Galley & Interior

Rapport’s comfortable three cabin, two head layout provides excellent private accommodations for two couples with two additional single berths for extended cruising.  Quality materials and superb craftsmanship are evident throughout.  The interior is finished in solid teak and teak veneers with practical use of Corian in the heads and galley.  Cabinet doors are solid teak, radiused and louvered.  Latches are positive pop out pushbutton.  Cabin doors are paneled with solid teak frames and radiused openings.  Louvers in door bottoms maintain air circulation.  The cabin sole is teak and holly and the headliner is white with teak trim. Removable blue carpets with taupe binding cover the cabin sole.  Padding with rubber backing makes these carpets very comfortable in bare feet.  Five Lewmar hatches, fifteen stainless steel opening ports, and five deck vents provide excellent ventilation.  All overhead hatches have wood-framed screens.  All ports are fitted with Peek-A-Boo blinds.  All cabin lights are LED and dome lights have red and white modes.  Courtesy lights illuminate the cabin sole at night with a switch at the companionway.  Ample handholds, countertop fiddles, and hold open door latches will be appreciated underway.

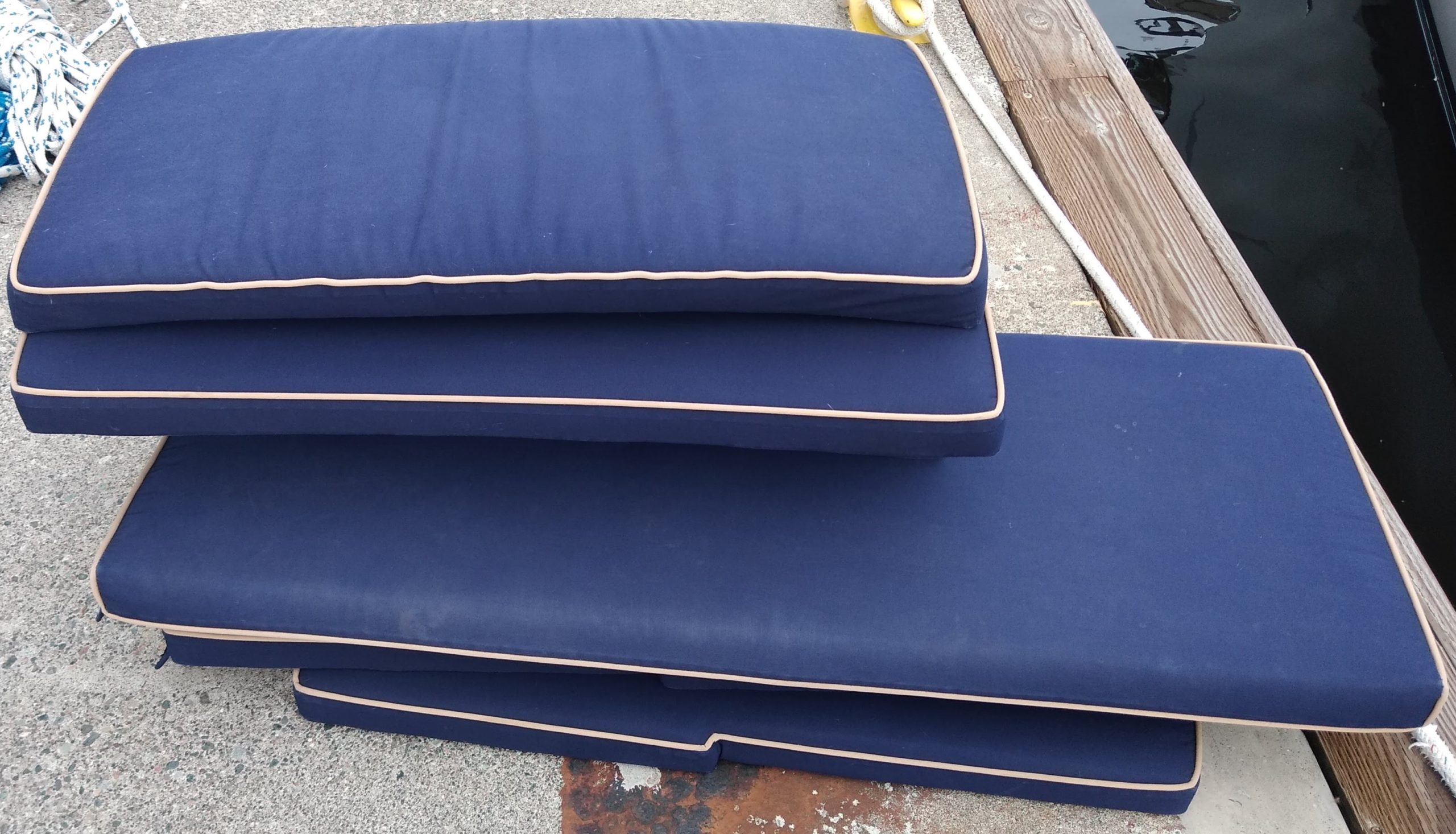

• All new high durability cabin upholstery (2015)
• Espar D10W hydronic diesel cabin heater servicing all cabin & saloon spaces (fully serviced September 2019)
• Espar heater features summer valve control allowing rerouting of boiler water to water heater for showers etc, without running motor at anchor
• Bug screens for ports

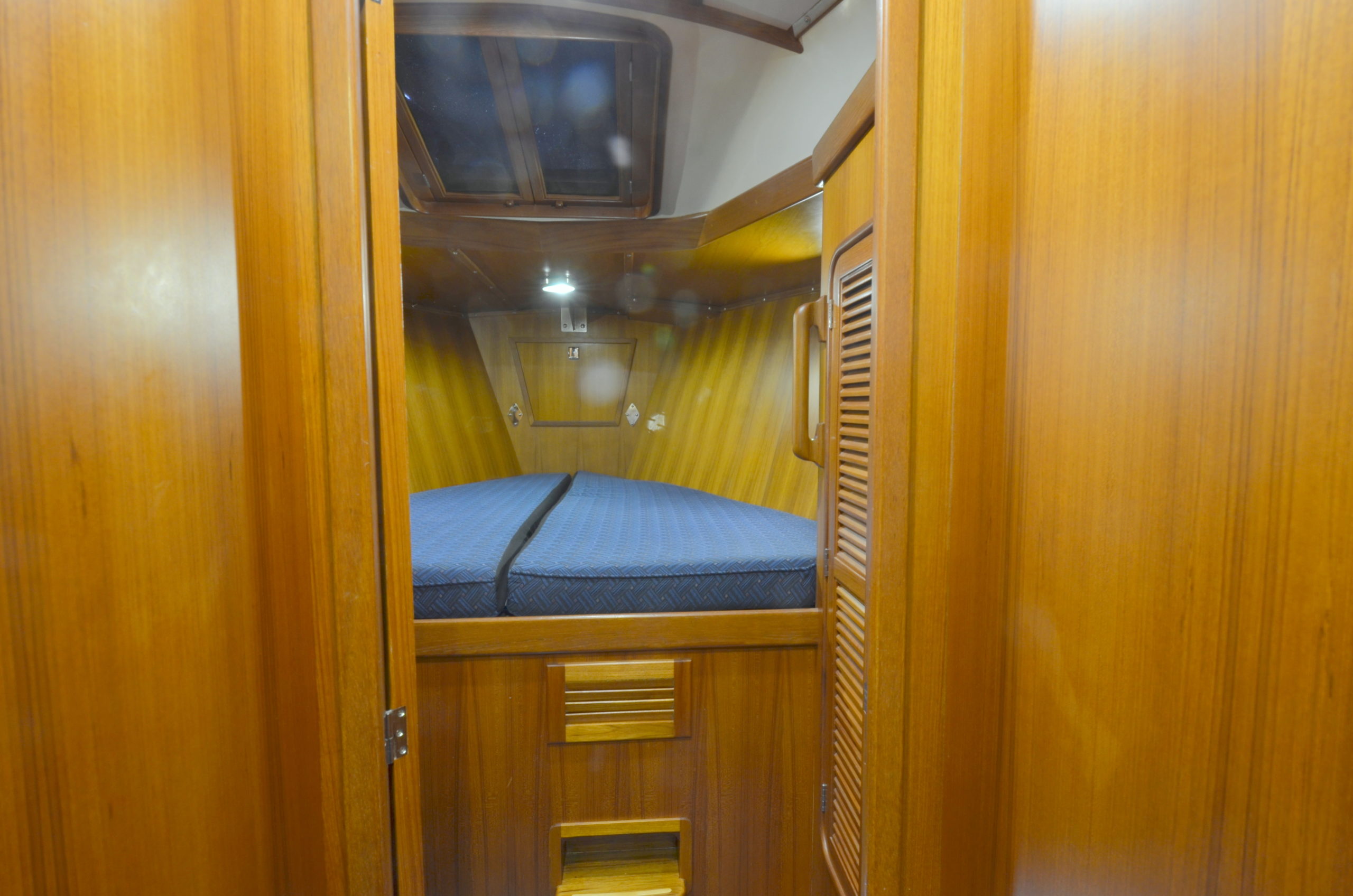

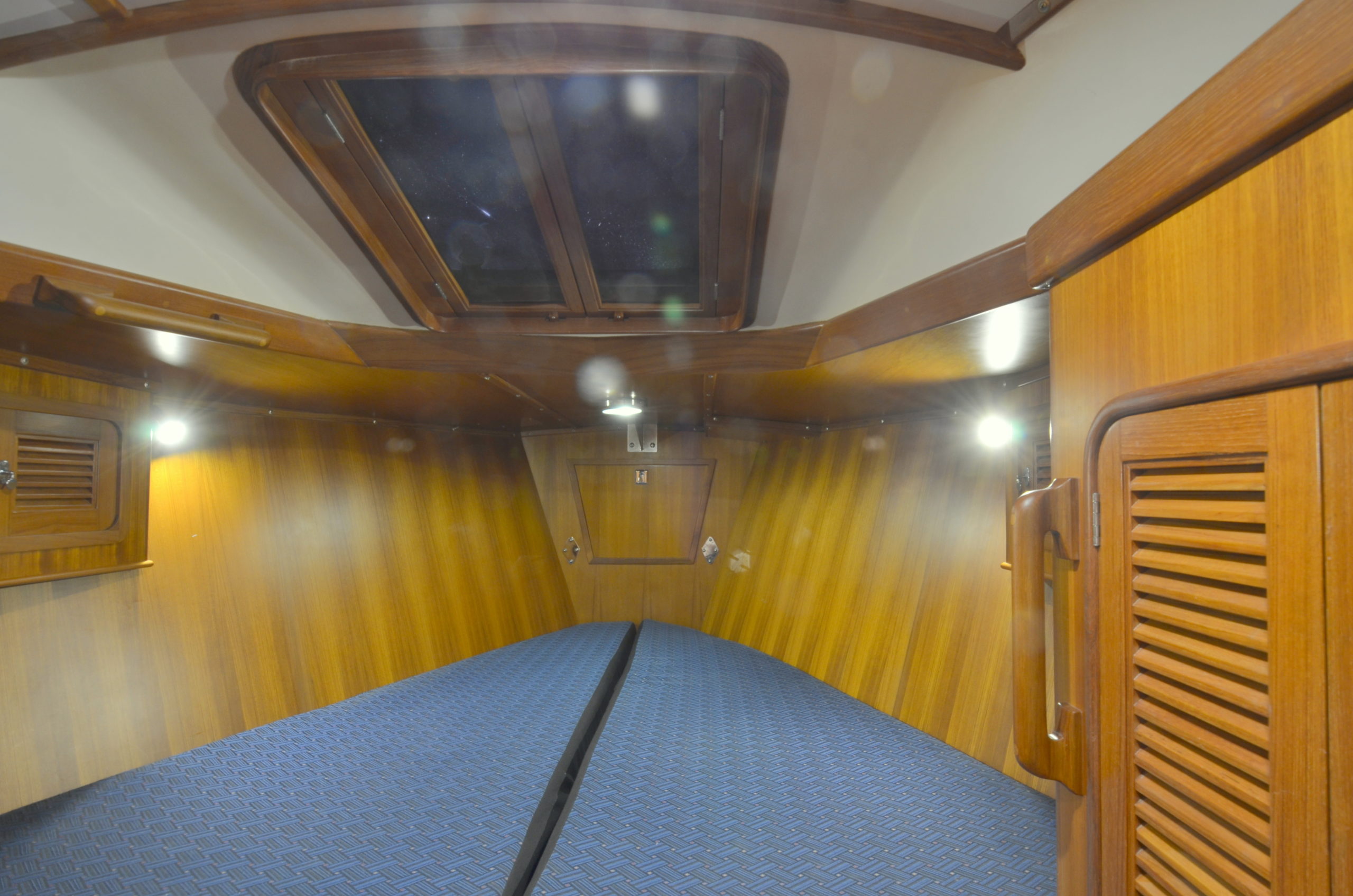

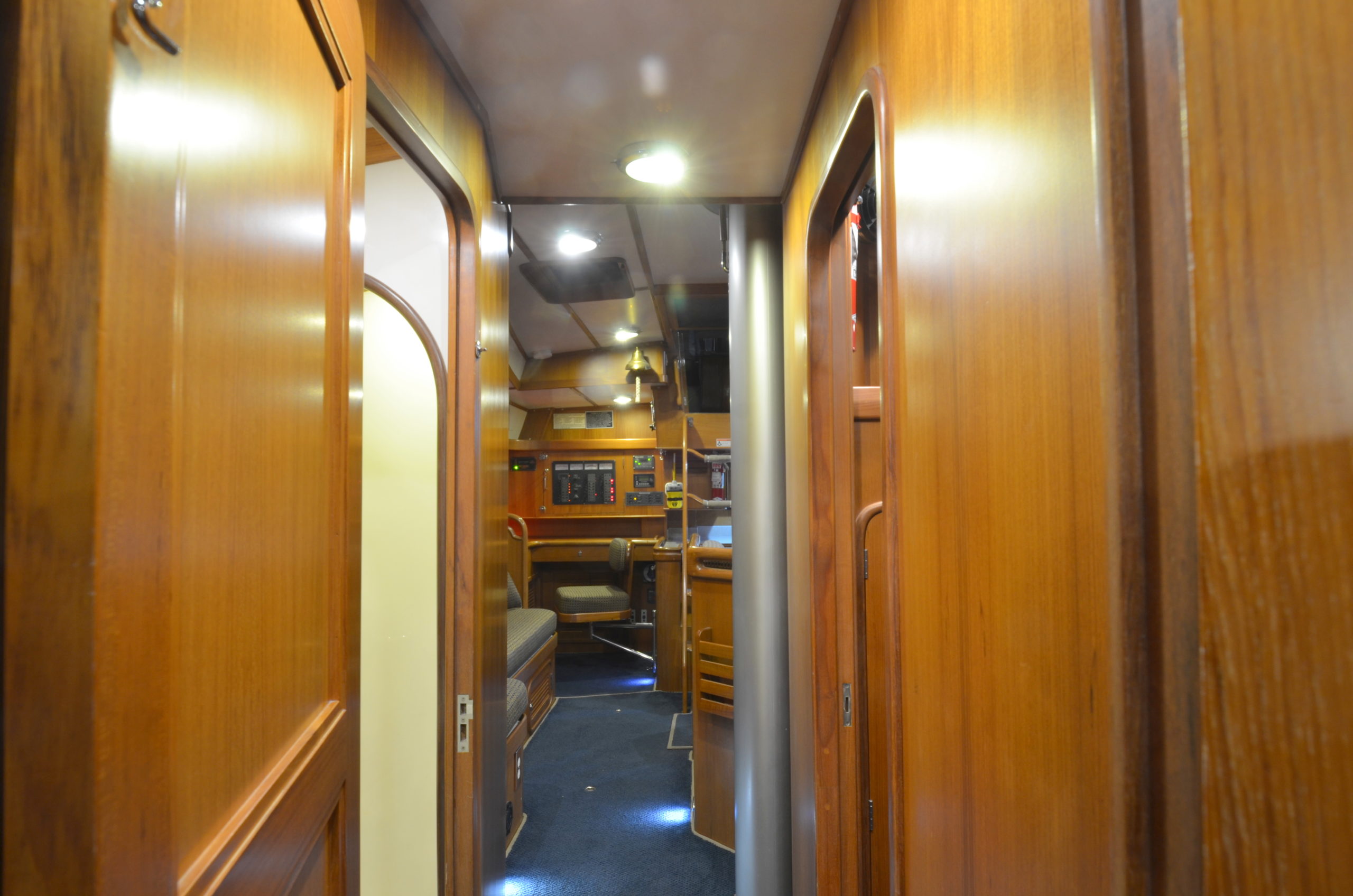

Starting forward is a guest stateroom.  This cabin is entered through a locking privacy door at the end of the forward passageway.  The “V” berth measures 7’ 6” long by 7’ 6” wide aft and 18” wide forward.  The 4” thick foam mattress is upholstered and split on centerline to easily access storage bins below.  Froli STAR mattress spring systems are used beneath the “V” berth, lower bunk, and master stateroom mattresses to improve sleeping comfort and eliminate condensation.  Two lockers are aft on each side, above the berth, beneath the deck edge.  To starboard and aft is a 28” wide hanging locker.  To port and aft is a bureau with three drawer, front opening bin, 15” x 12” open shelf, and cabinet with mirrored door and two shelves.  A cabin fan, two dome lights, two reading lights, two duplex 110V outlets, and large overhead hatch complete this cabin.  Headroom measures 6’ 7” in this cabin.

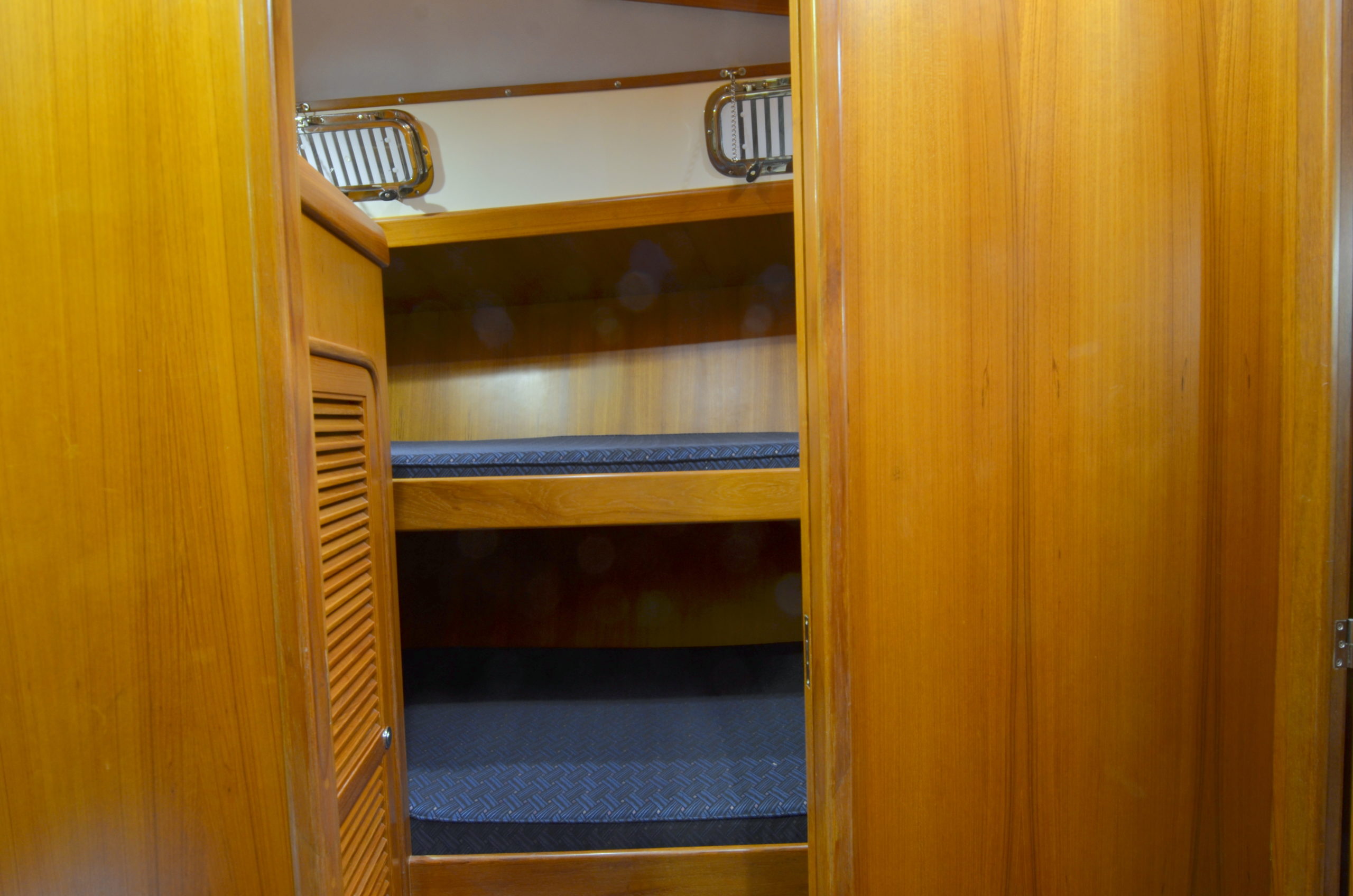

A bunk room is on the port side of the passageway and entered through a sliding door.  The upper bunk measures 7’ 5” long by 35” wide aft by 23” wide forward.  The lower bunk measures 79” long by 37” wide aft and 24” wide forward.  Two drawers and a top opening bin are below the lower bunk.  A 20” wide hanging locker with 23” x 21” open shelf is aft and inboard.  Headroom measures 6’ 7” in this cabin.  Two dome lights, two reading lights, two double coat hooks, a duplex 110V outlet, two opening ports, an overhead hatch, and a cabin fan complete this cabin.

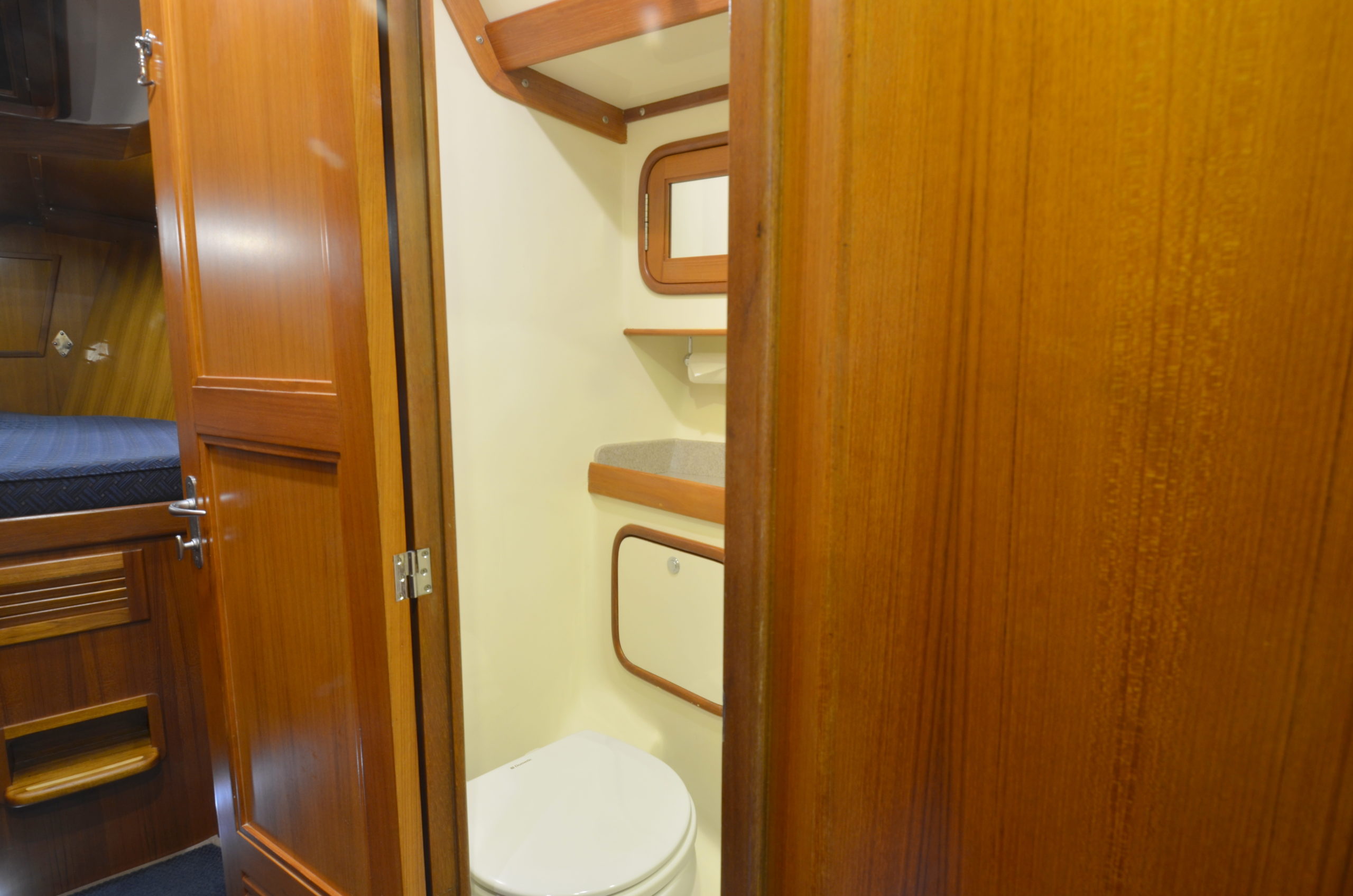

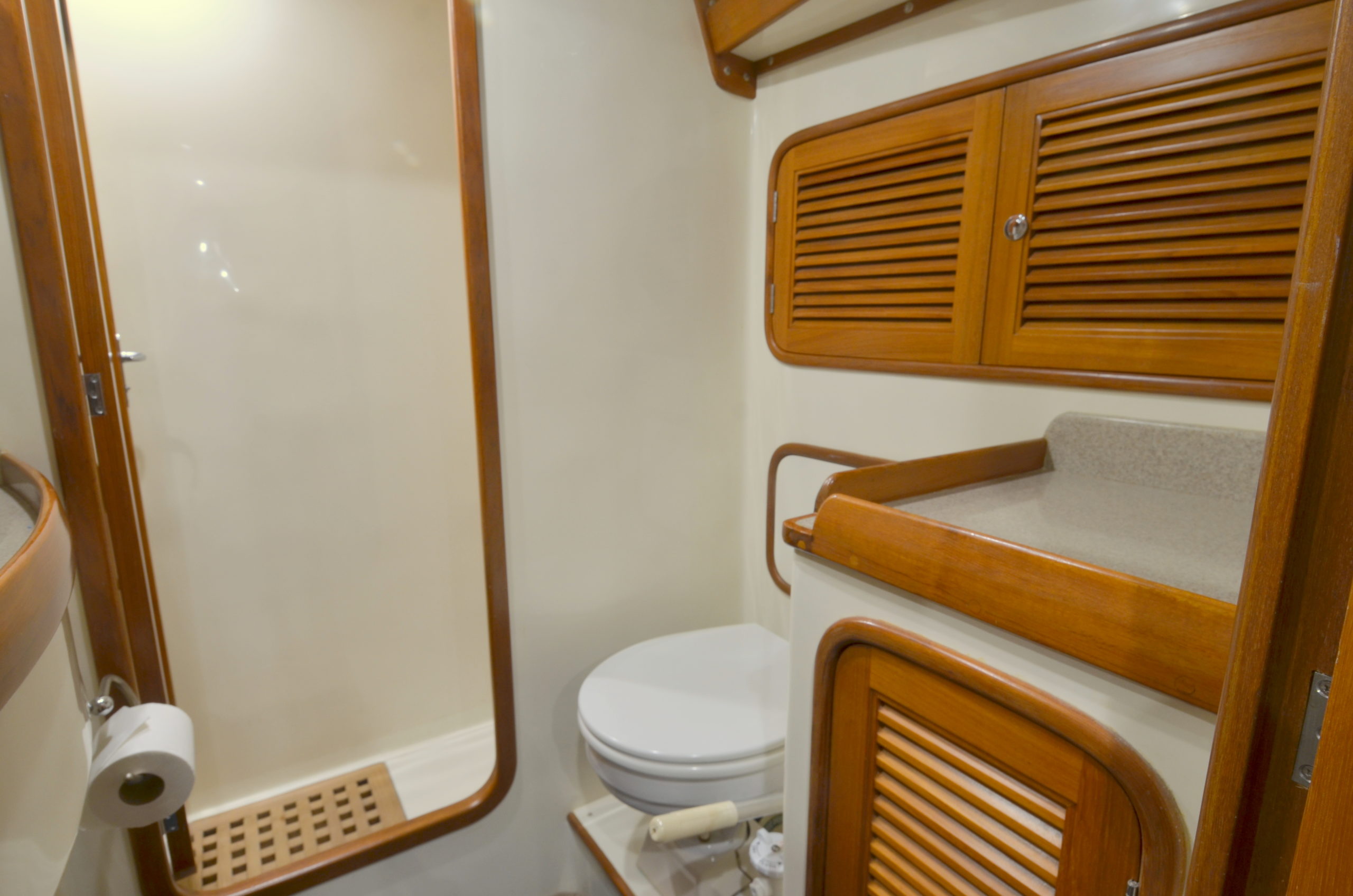

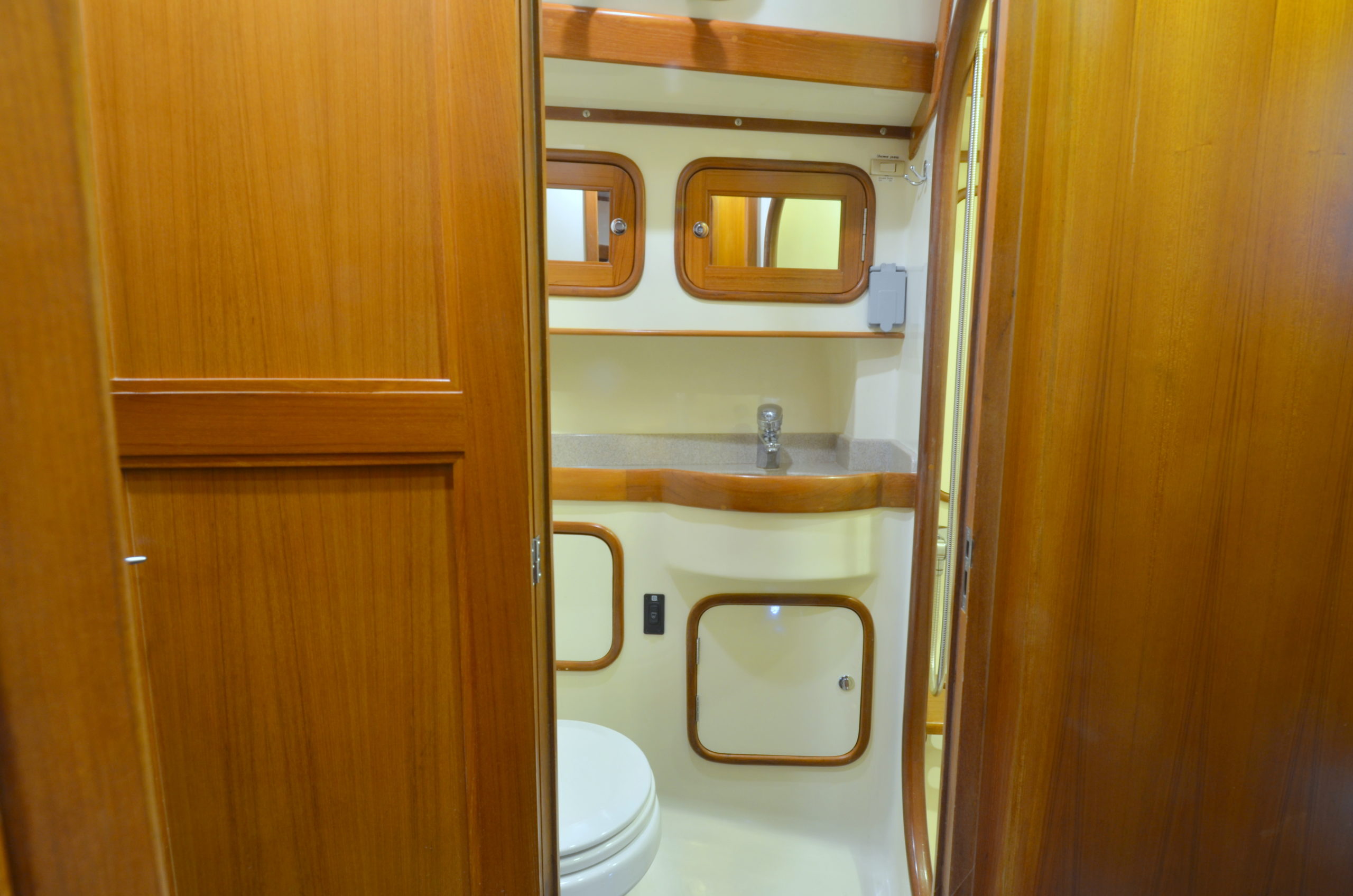

The forward head is to starboard of the passageway and entered through a locking privacy door.  This space is finished in white fiberglass with teak accent trims; a nice combination of bright easy to clean surfaces with elegant wood trim.  A Dometic electric flush head is forward.  Outboard is a vanity with Corian countertop.  A Grohe faucet and oval-shaped stainless-steel sink is undermounted below a beige-flecked Corian countertop.  Two cabinets with mirrored doors are above the counter.  A stall shower is aft.  A vanished teak seat, shower grate, overboard pump, Grohe mixer, adjustable spray nozzle and hose, and mounting bracket allow one to shower while standing or seated.  A storage locker with shelves is outboard.  Headroom is 6’ 5” in the head and shower stall.  Two dome lights, a 110V GFCI duplex outlet, two opening ports, cowl vent, and ample coat hooks serve this space.

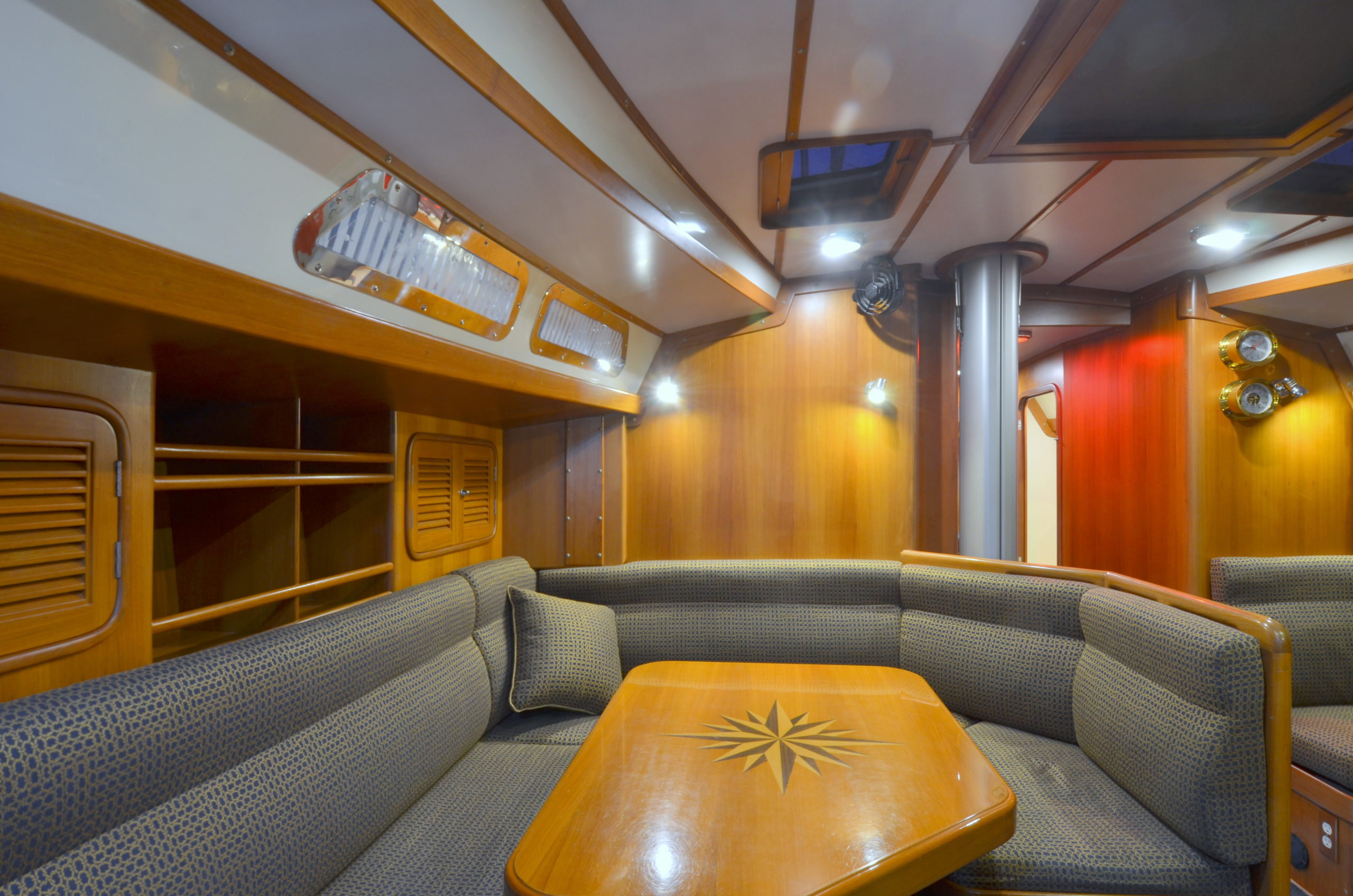

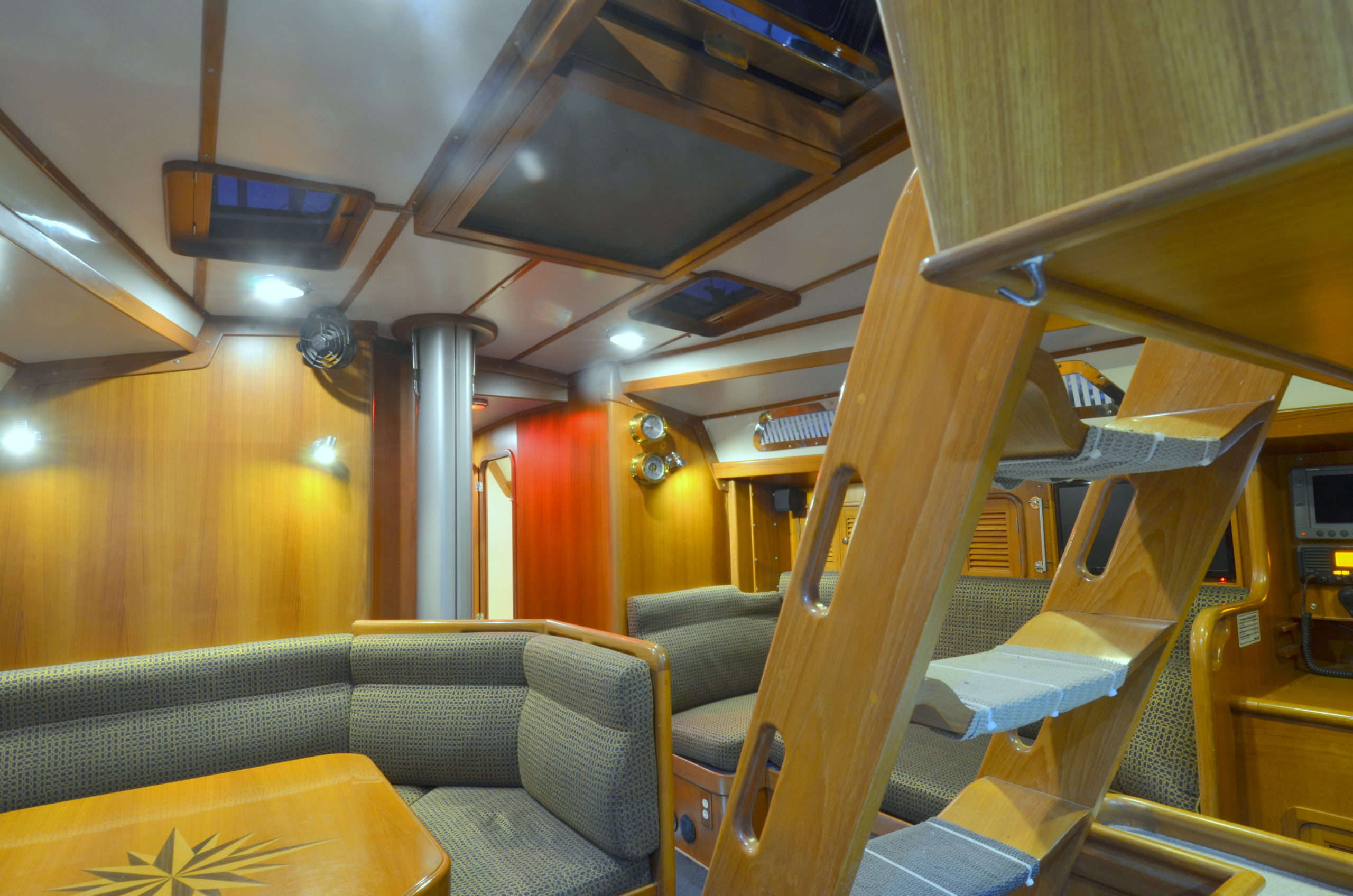

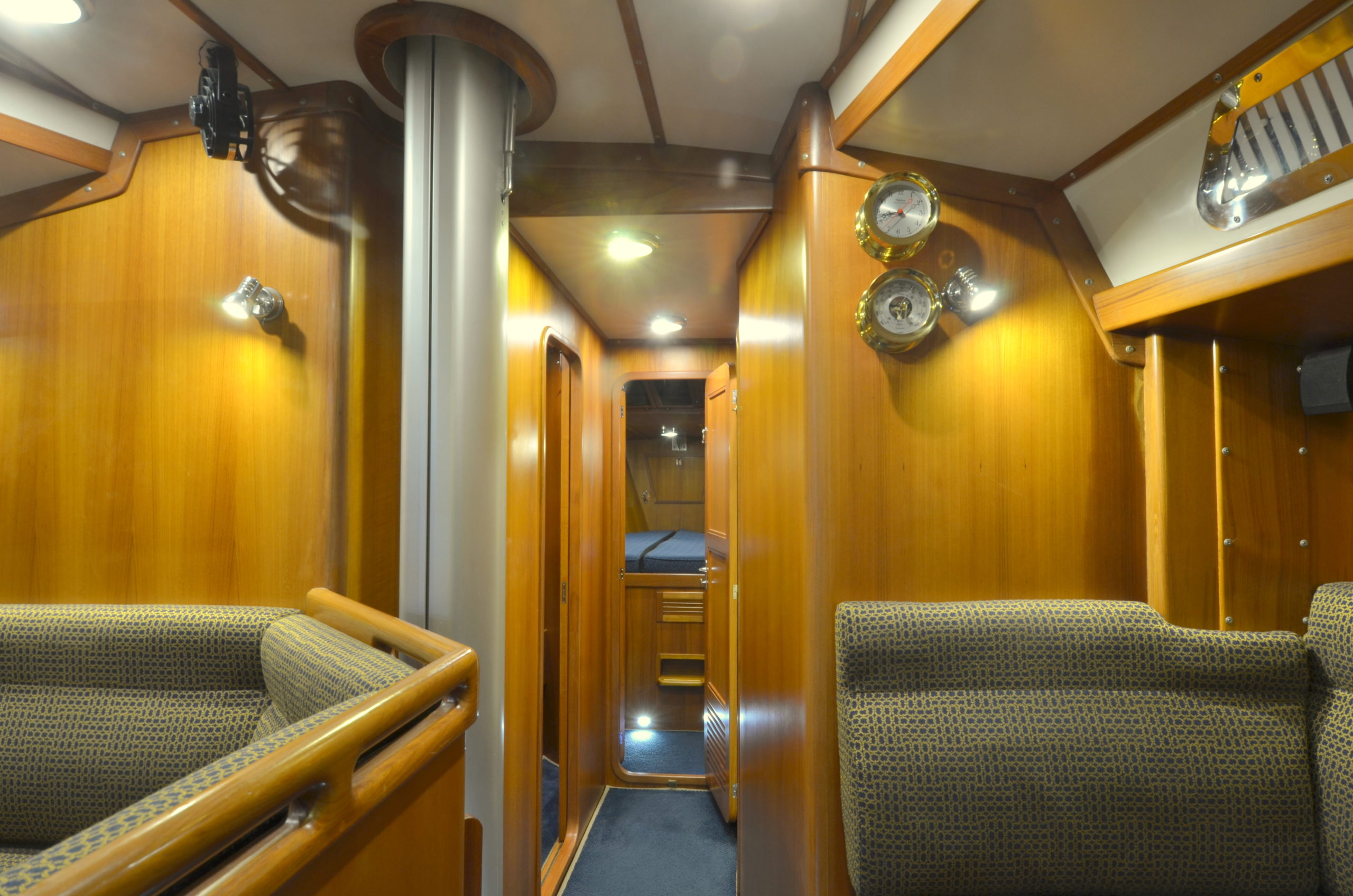

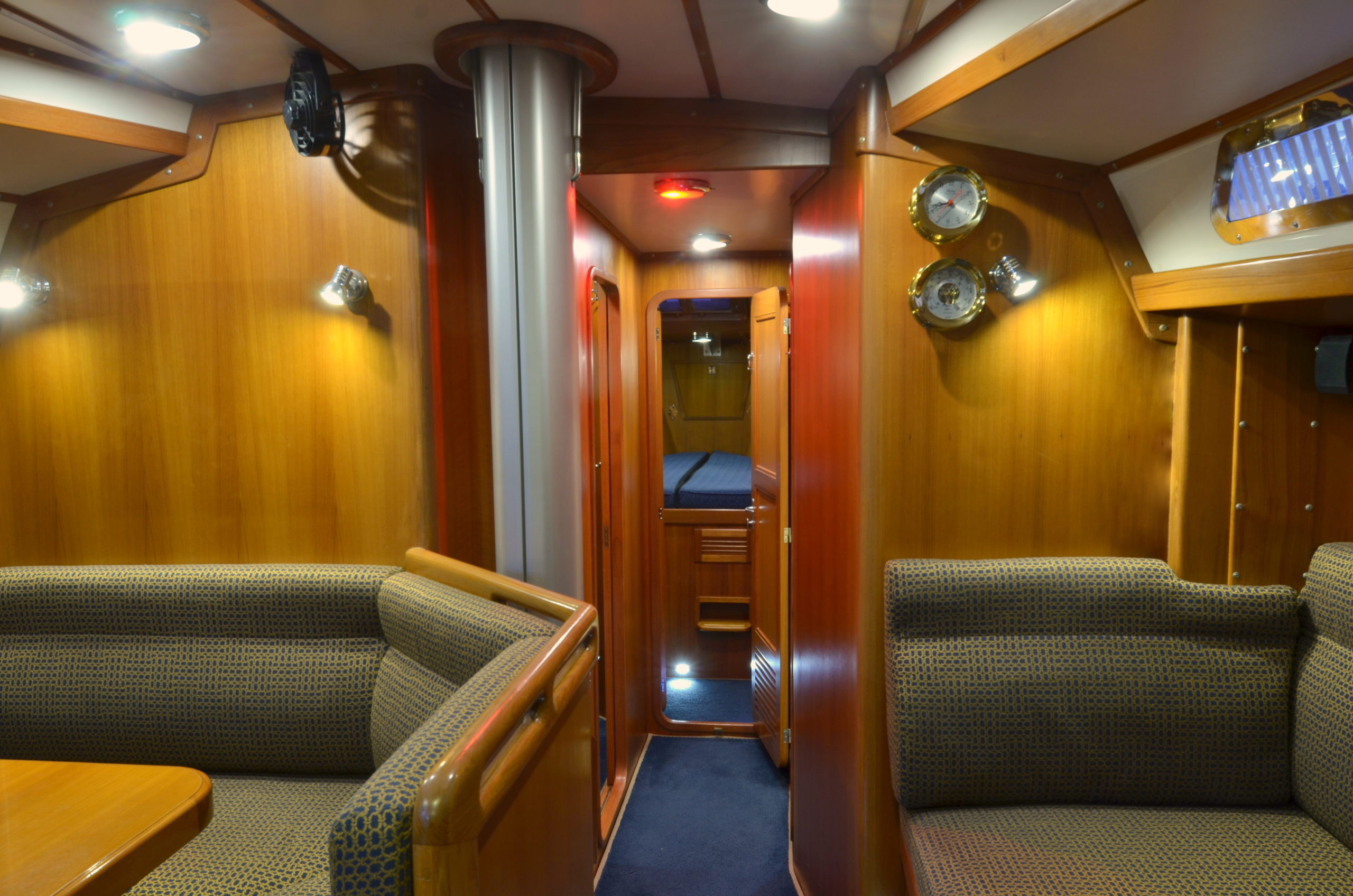

The salon is raised 6” from the forward passageway.  Headroom is generally 6’ 6” in this central living space.  To port is a “J”-shaped dinette.  A varnished teak dining table with inlaid compass rose measures 47” long by 32” wide.  The outboard settee measures 7’ 4” long by 24” wide; a nice sea berth.  Batteries and storage bins are beneath the settee.  Three storage bins are outboard of the port settee back.  Double door cabinets flank divided open bookshelves above the settee back.  To starboard is a straight settee.  The seat bottom slides out making a 7’ 5” long by 34” wide berth.   Front opening bins are below the berth and storage bins are outboard the seat back.  Two double door lockers with shelves are above the settee forward of a 21” flat screen TV (mounted on a hinged frame to access storage behind it).  Two overhead hatches, four fixed ports, a cabin fan, four dome lights, three reading lights, and two 110V duplex outlets complete this salon.

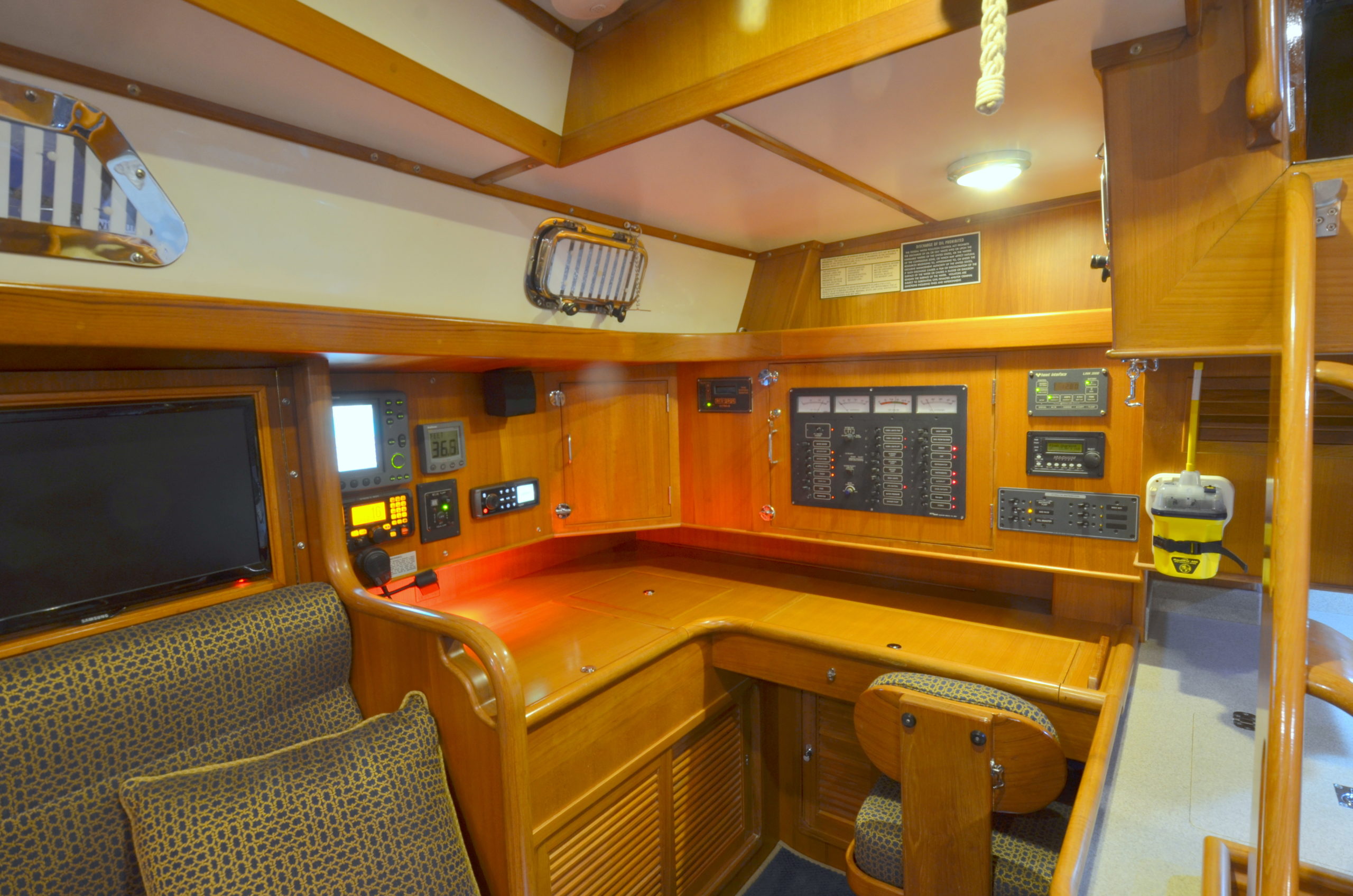

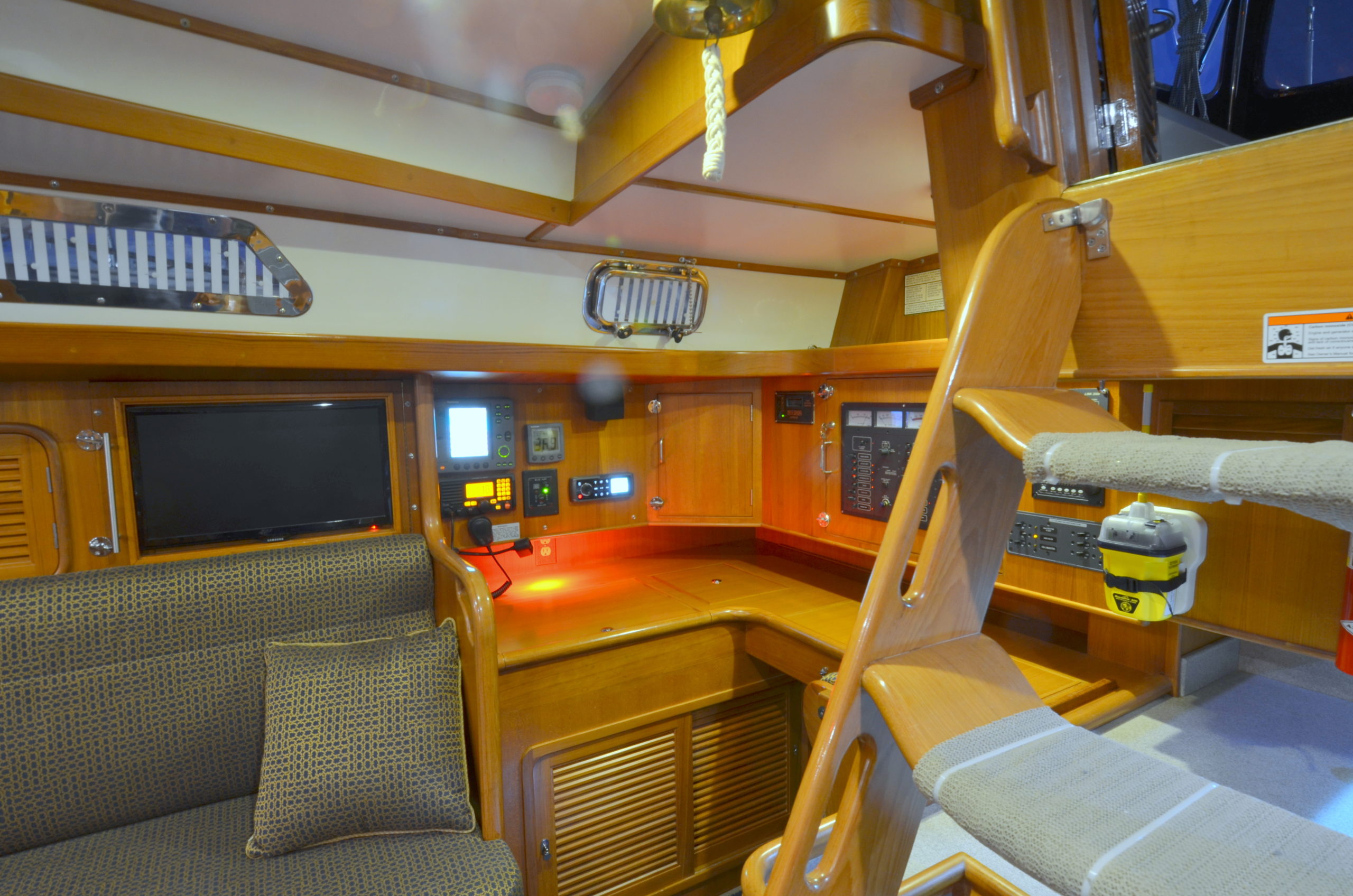

The navigation station is to starboard of the companionway ladder and open to the salon and galley for socializing, yet distinctly set apart when it’s time for work.  The “L” shaped chart table measures 50” long by 26” wide outboard and 32” wide by 20” aft.  A 3” deep chart table is access through three different openings.  Dividers nicely organize this space for tools and paper charts.  A comfortable, upholstered chair swings out on a polished stainless-steel pedestal.  There is ample legroom aft for extended periods of charting and study.  Below the chart table are storage cabinets with shelves; the outboard being very deep and voluminous.  Above the chart table is a wrapping console with navigation, communications, and electrical breakers controls, and monitors.  A 40” wide by 12” deep bookshelf is above the console aft.  Two opening ports, a dome light, flex-arm chart light, 110V duplex outlet, and pencil holder are fitted in this space.

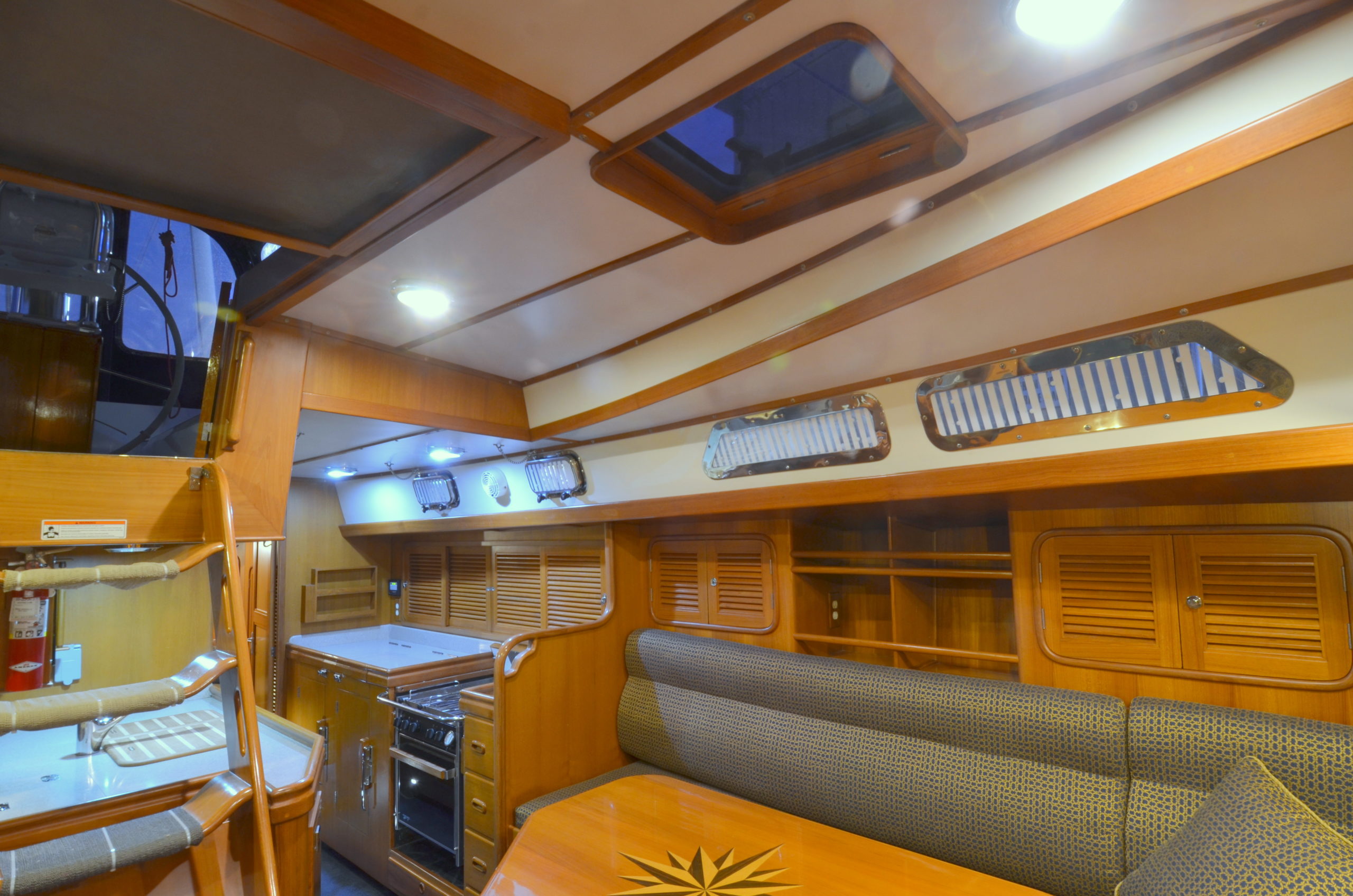

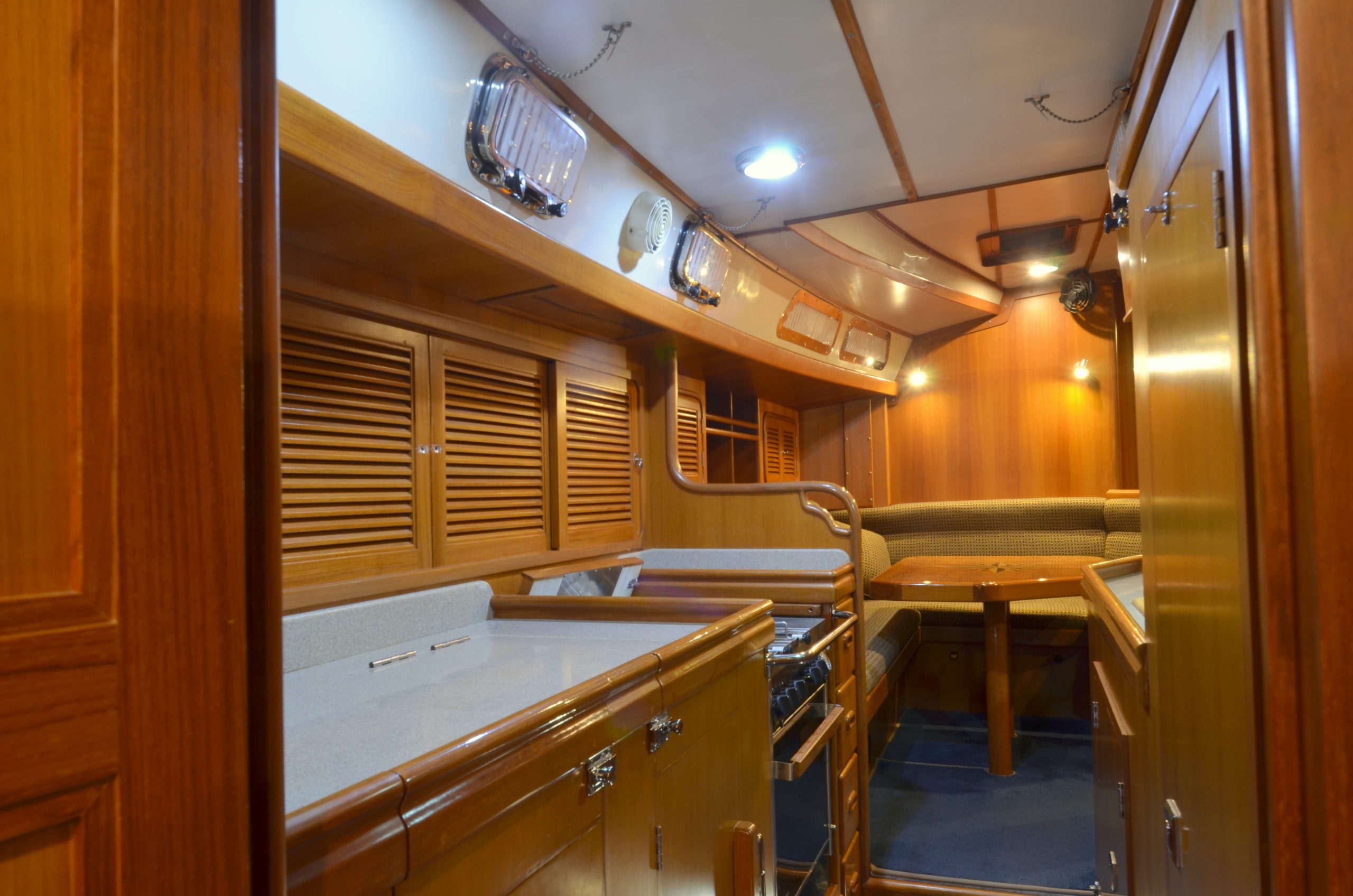

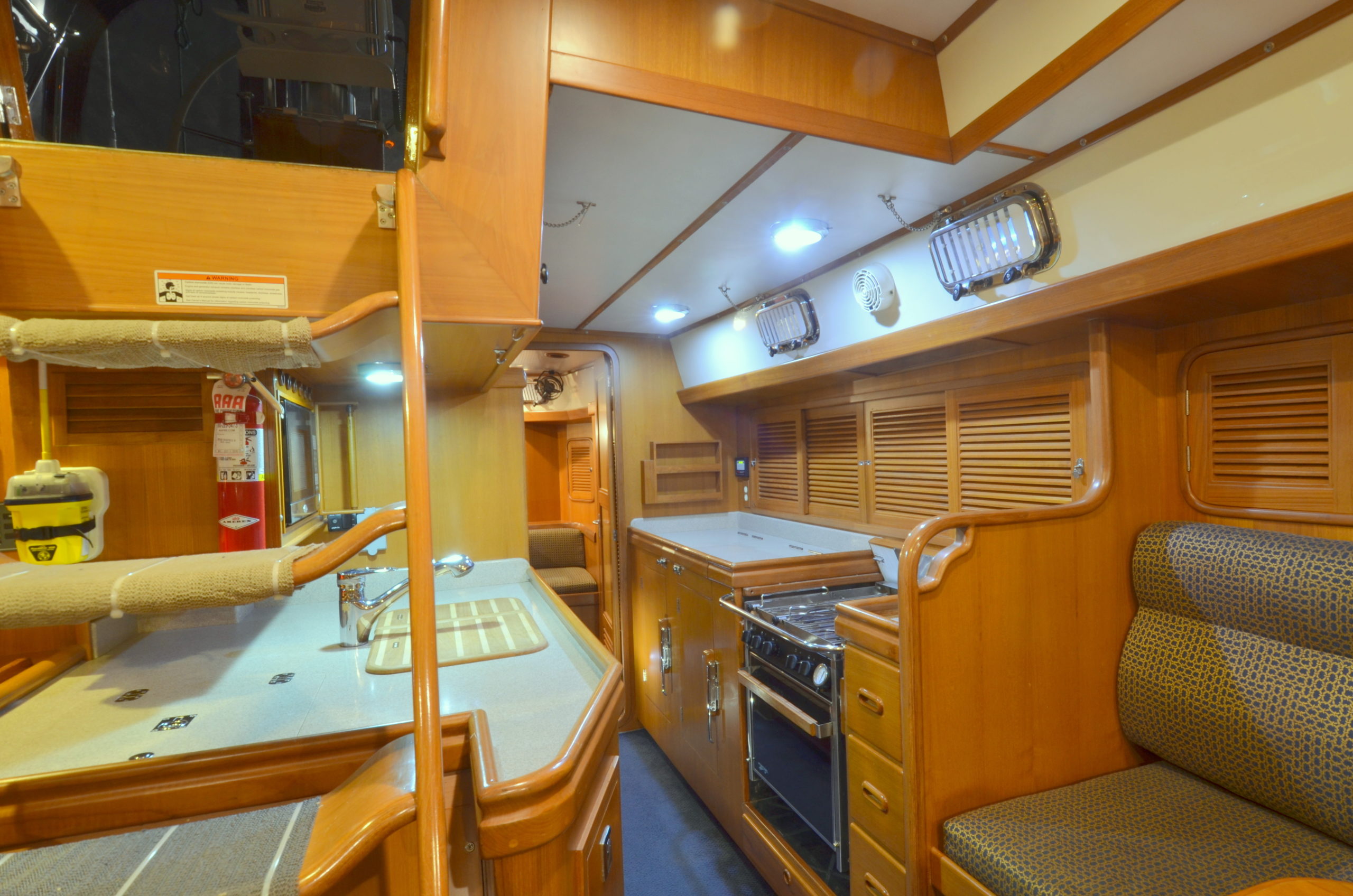

Everyone from haute chef to chief bottle washer will appreciate the large, functional passageway galley which is located to port and down 6” from the salon.  Corian countertops, tall fiddles, toe kicks, and ample light make this space very functional.  Inboard, below the cockpit sole is a 40” wide by 50” long counter.  A double stainless sink measures 13” x 13” x 10” deep and 13” x 7” x 10” deep and is fitted with a Grohe single lever pull-out sprayer faucet.  Contrasting teak/holly covers are form fitted to the sinks.  A top opening 2 cubic foot storage bin is to starboard in the countertop.  A microwave oven is housed in a custom cabinet aft of the sink.  Outboard, below the counter is a narrow bank of four drawers just forward of the stove/oven.  A stainless-steel crash bar is fitted to this oven.  A cover slides up/out over the stove when not in use.  A drawer for pans is below the oven.  The fridge and freezer boxes can open via top or front doors.  These custom boxes are lined with stainless steel, have automatic lights, acrylic shelves, and fitted plastic bins.  Large-capacity storage shelves for galley ware and provisions are outboard below the deck edge behind four louvered sliding doors.  Four opening ports, three dome lights, a teak paper towel holder, and two 110V duplex GFCI outlets complete this galley.  Headroom measures 6’ 3”.

• Force Ten three burner propane gimballed stove/oven with broiler
• 12V extraction fan over stove
• Xintex S2A propane solenoid switch with alarm and sniffer under oven
• Oyster 900-watt stainless-steel microwave oven
• 5 cubic foot front/top opening fridge box with automatic light
• 4 cubic foot front/top opening freezer box with automatic light
• Trash bin fitted on engine room hinged door
• (2) Composite fiber propane tanks
• Teak spice rack and knife rack

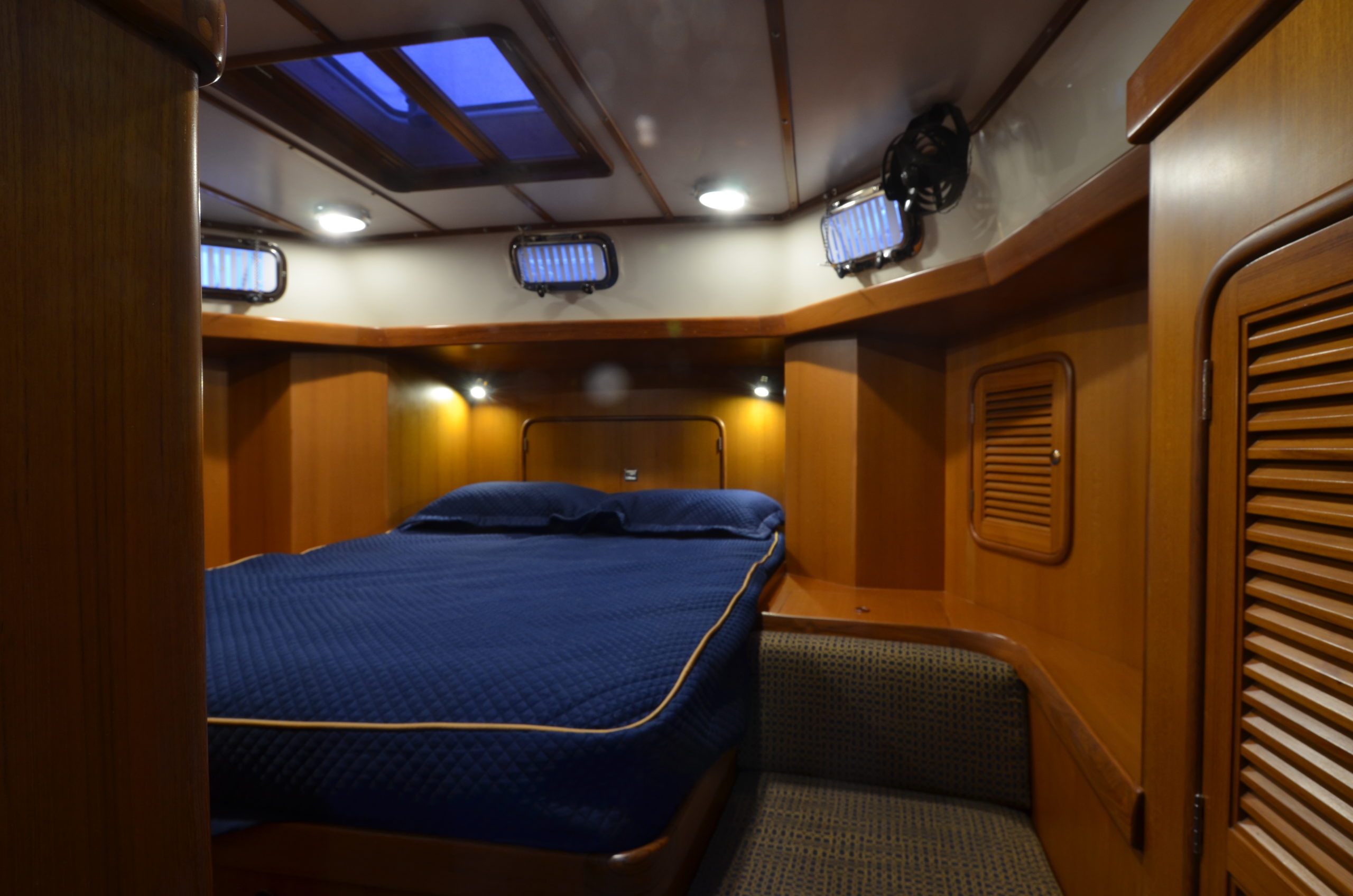

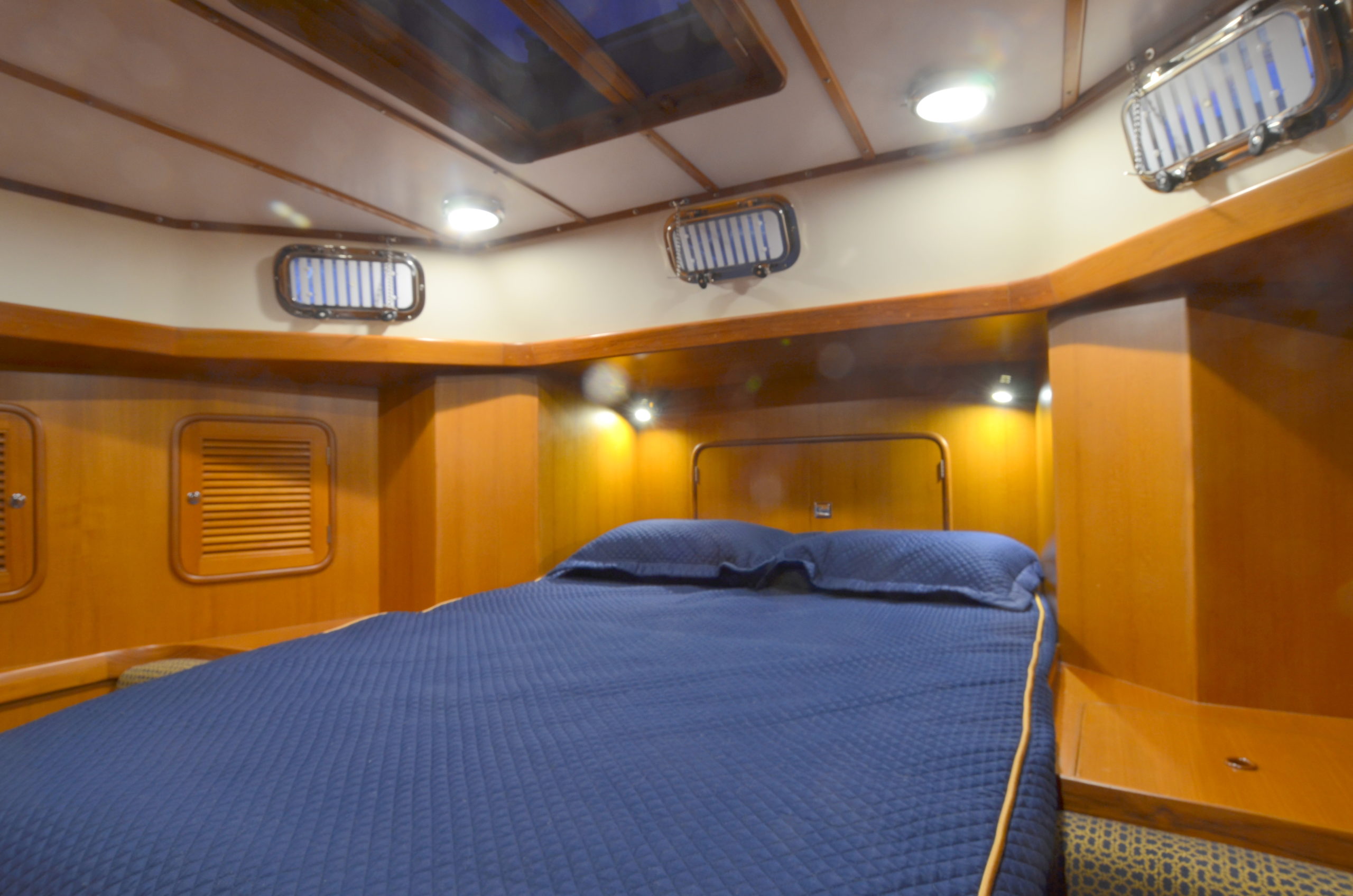

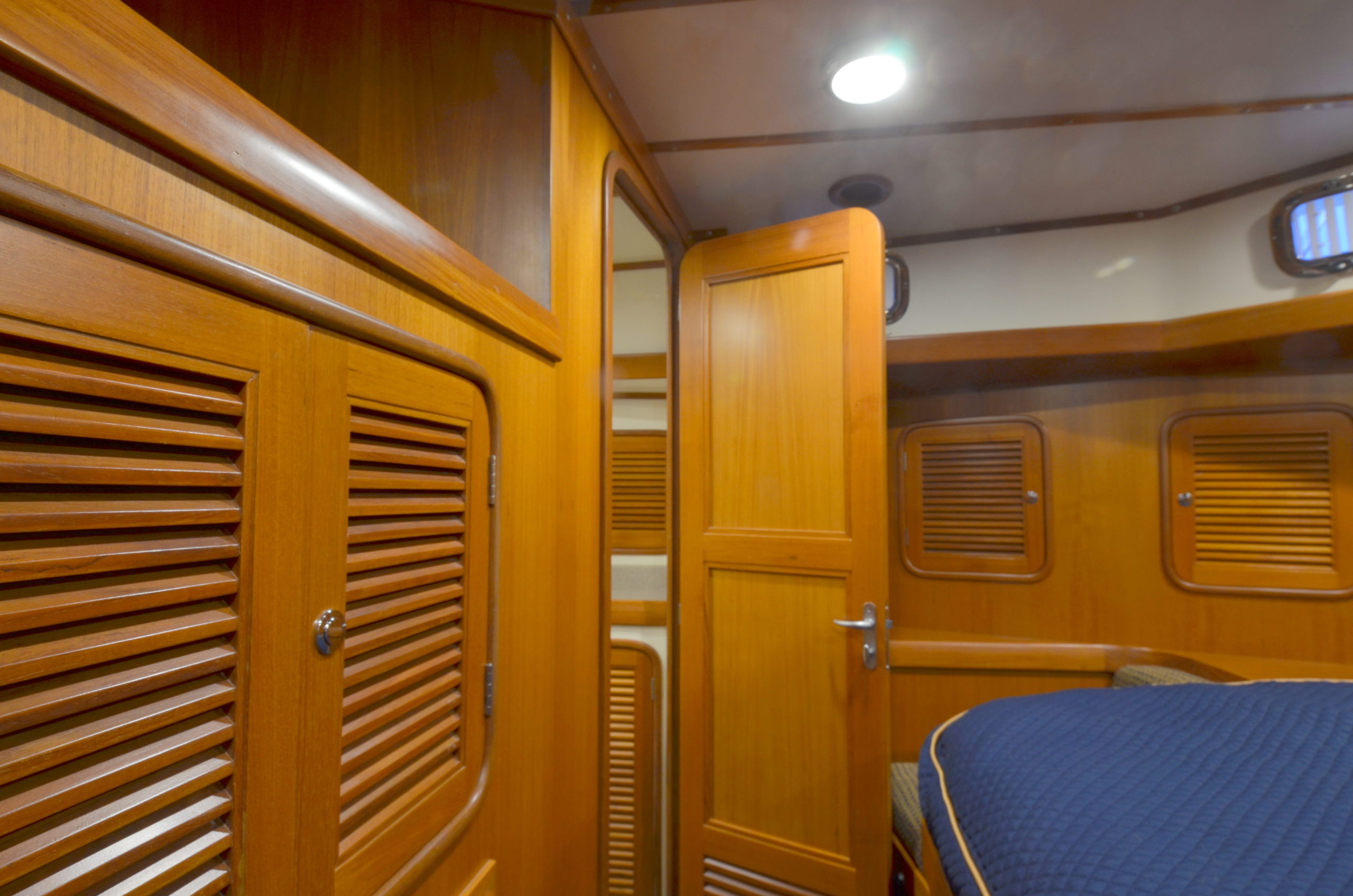

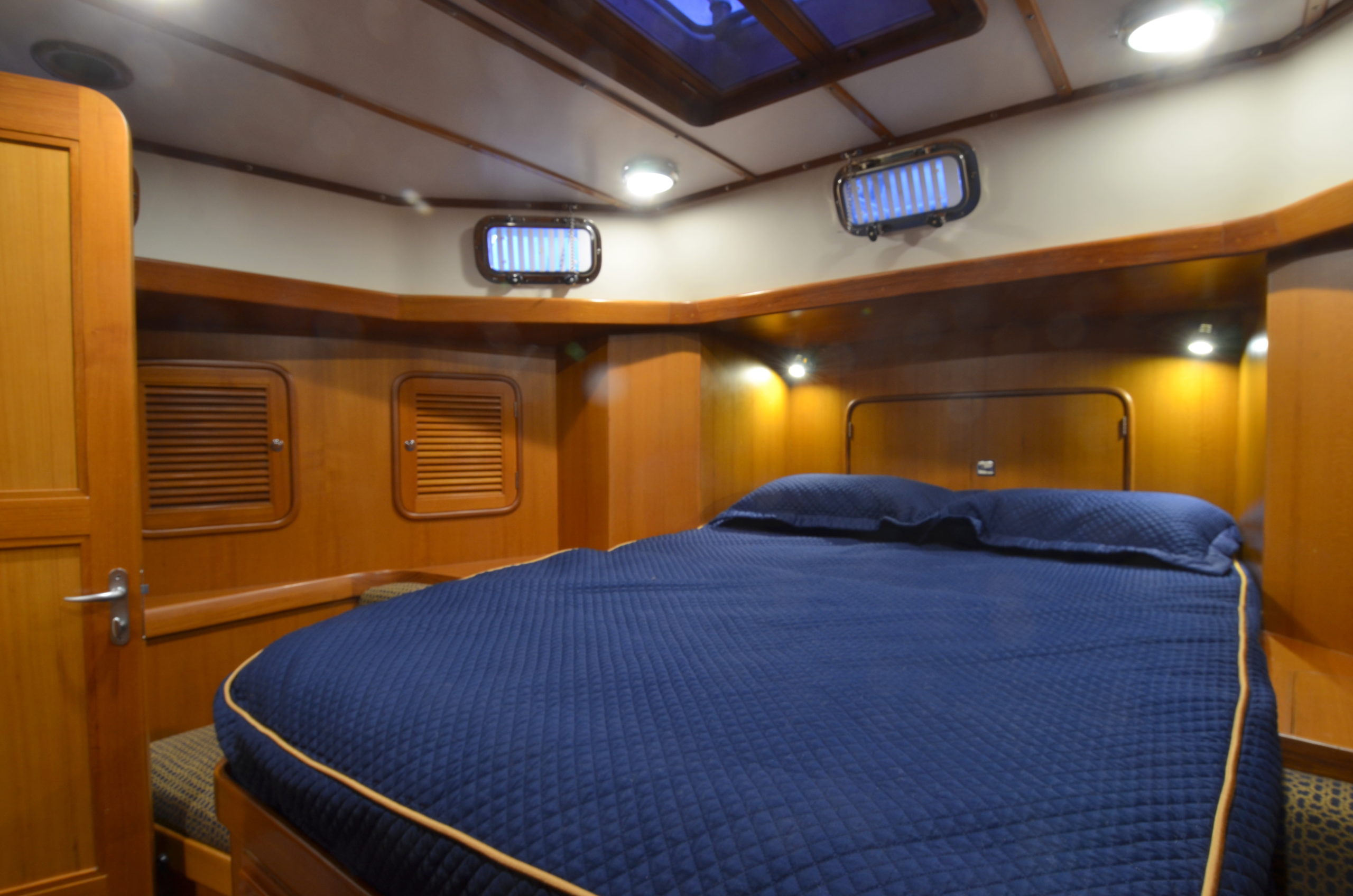

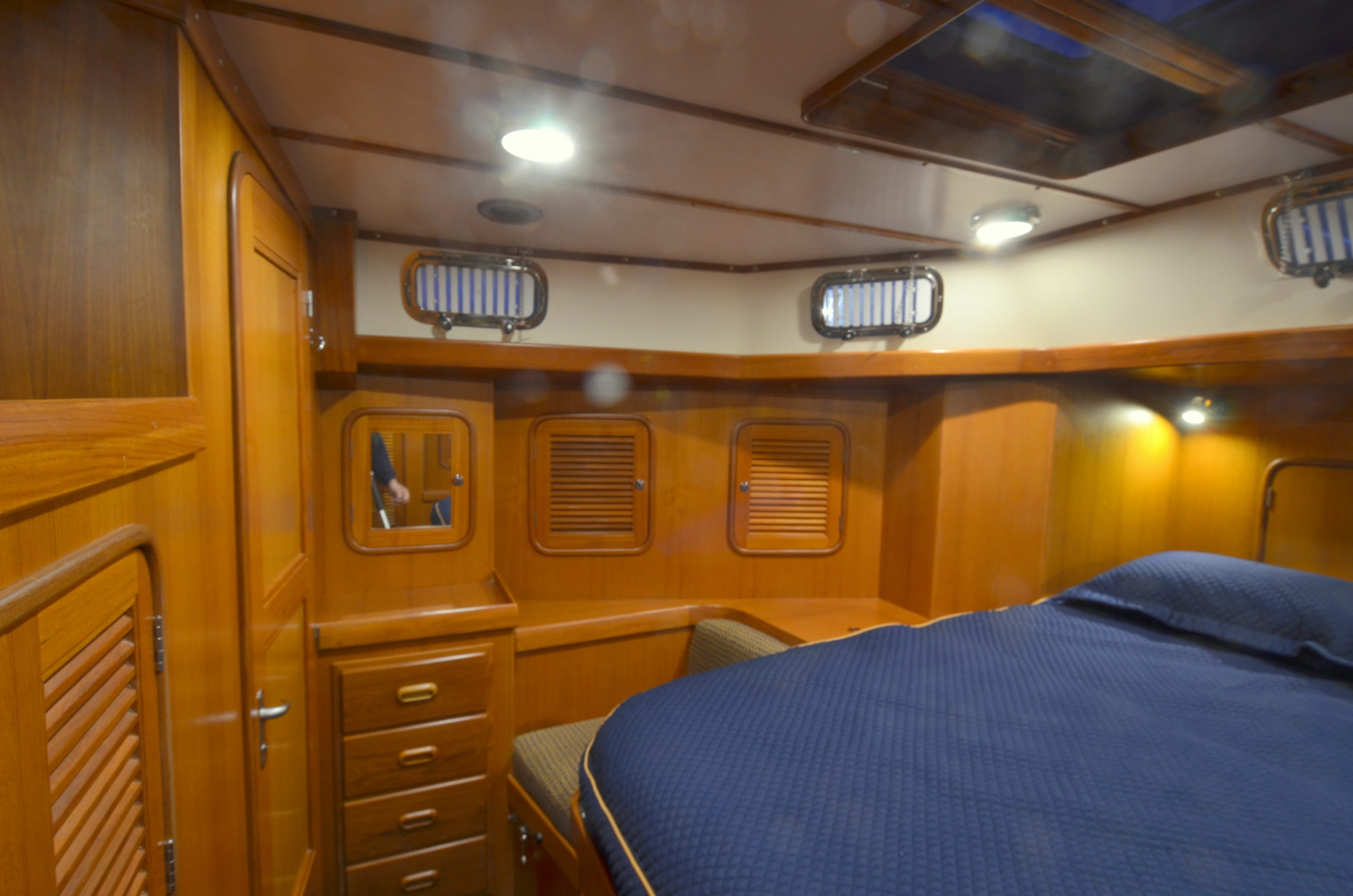

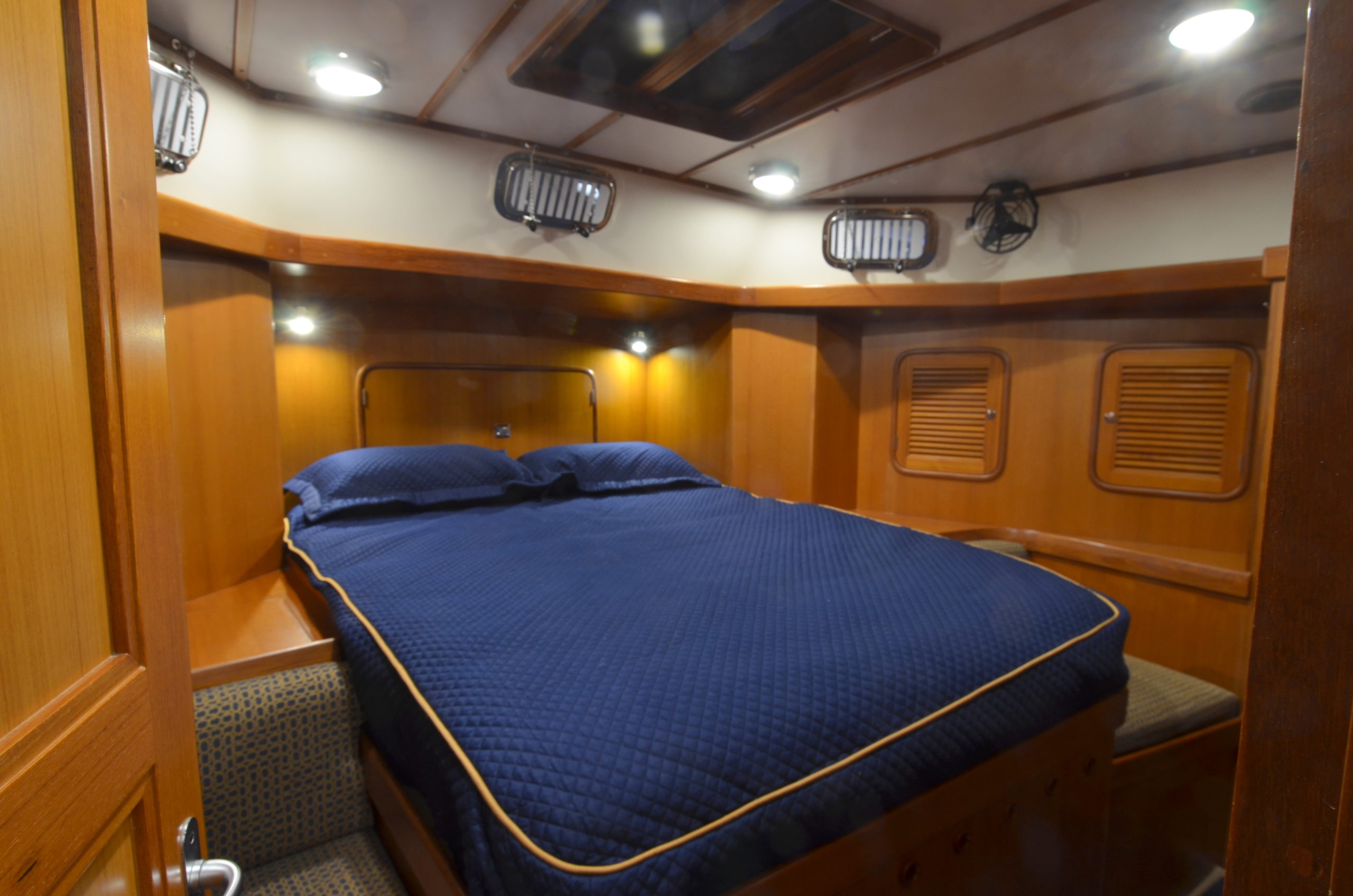

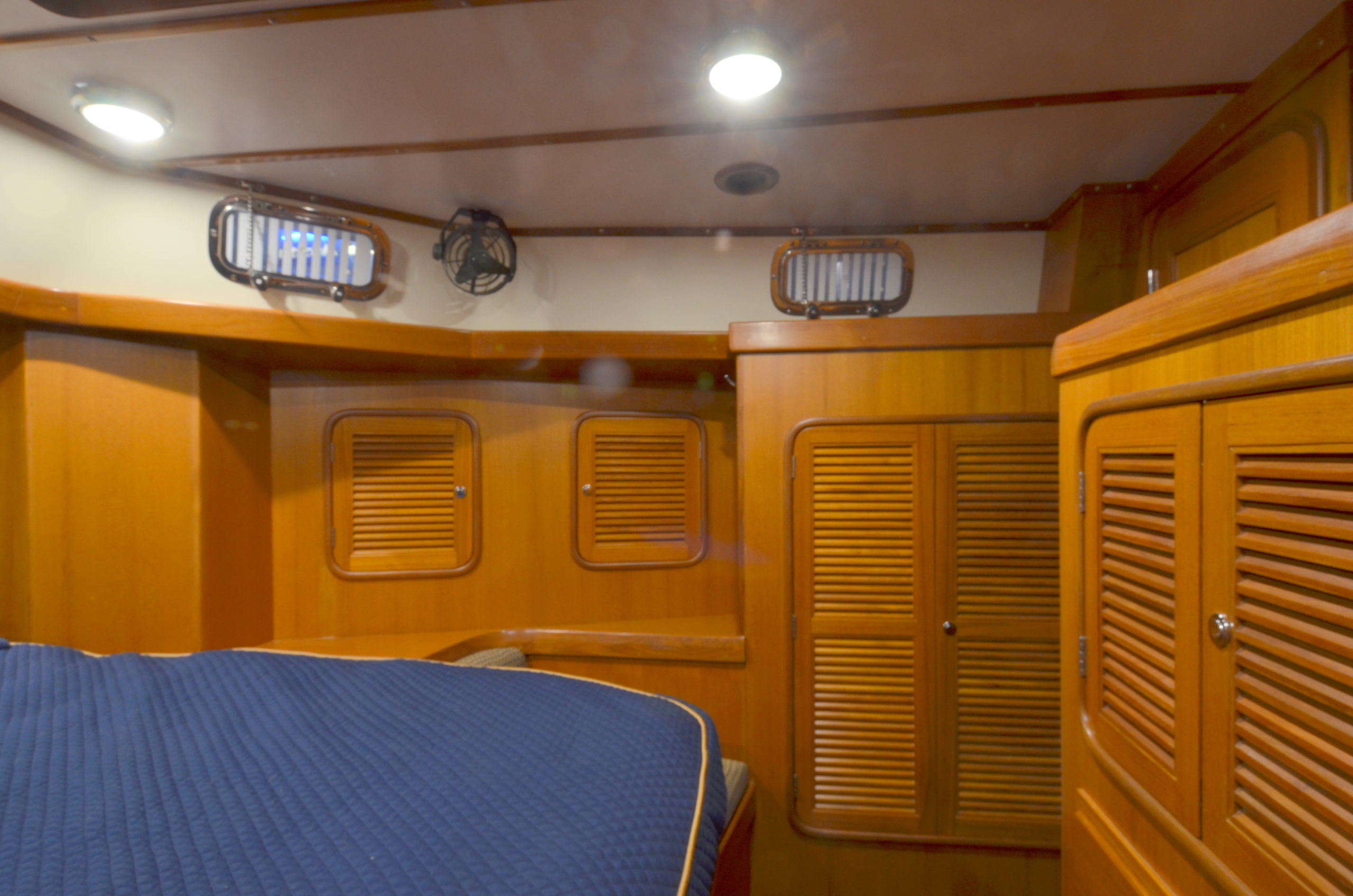

A huge benefit of center cockpit designs is the private and large master stateroom.   Headroom measures 6’ 4”.  A locking privacy door is to port aft of the galley.  The centerline berth measures 6’ 6” long by 59.5” wide aft and 50” forward.  An 8” thick custom foam mattress with mattress pad and quilted cover sits atop Froli system springs.  A bank of three drawers and top opening bins are below the berth.  Top opening storage bins are aft of dressing seats (storage bins below seats) on each side of the berth.  Two storage lockers are outboard along the hull sides outboard of the seats.  To port/forward is a 36” long hanging locker.  To starboard/forward is a vanity with four drawers and open shelf and locker with mirrored door.  On centerline forward is a bureau with four large drawers and a double door locker with shelves.  A 19” deep by 27” wide bookshelf is atop this bureau.  An overhead hatch, five opening ports, cabin fan, two 110V duplex outlets, dome lights and reading lights serve this stateroom.

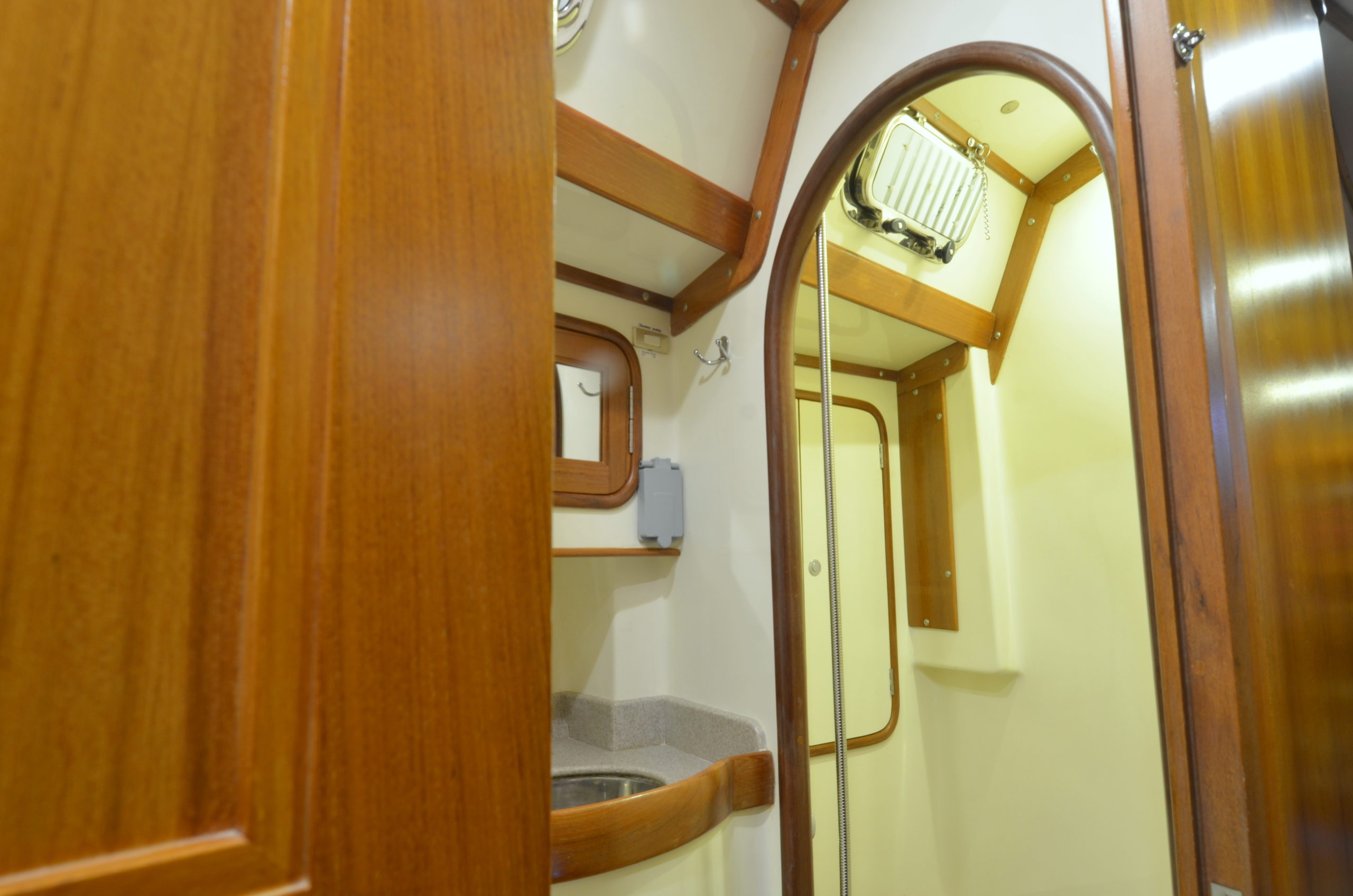

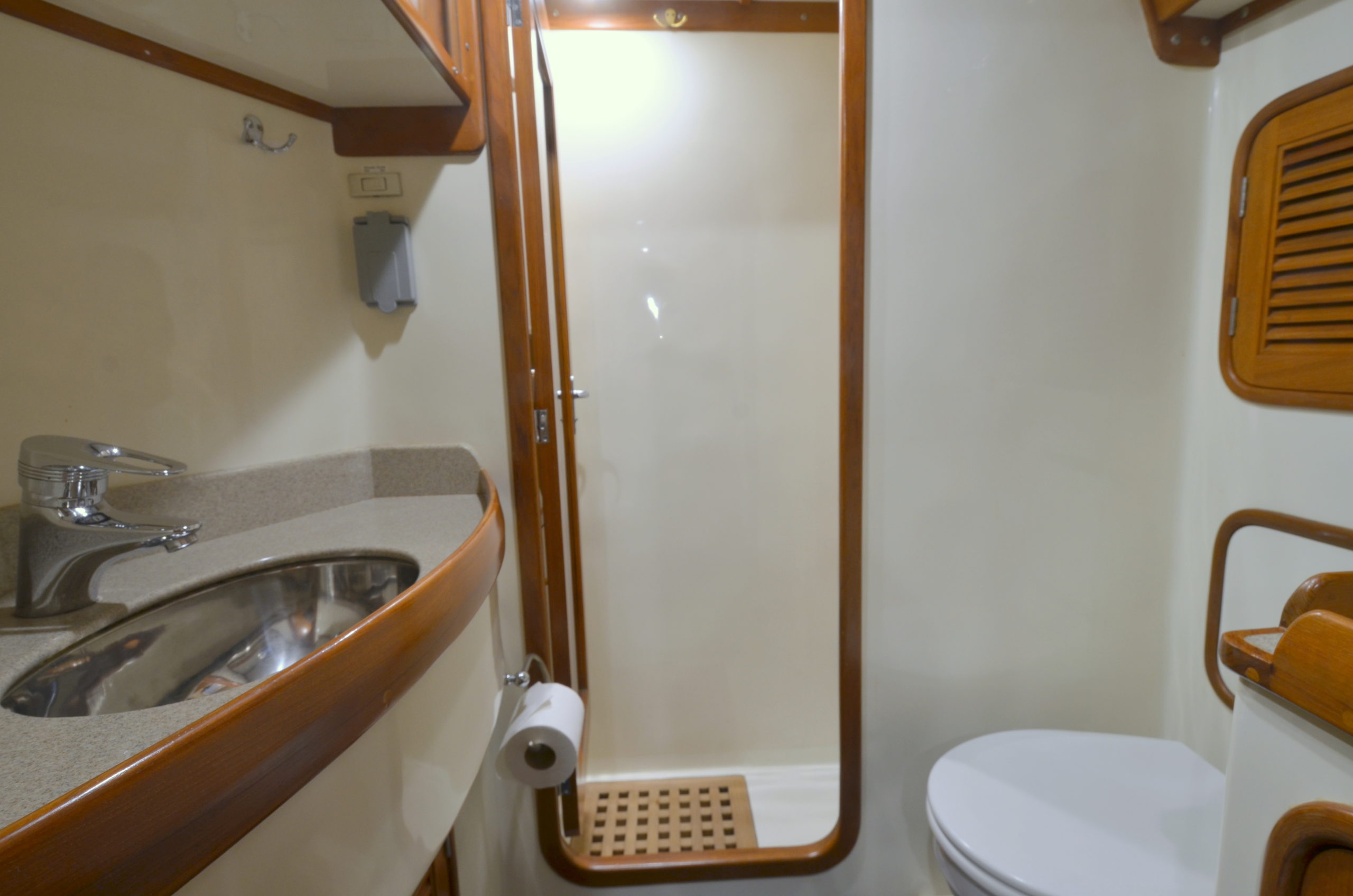

An ensuite aft head is to starboard and forward of the stateroom and closed with a locking privacy door.  Headroom is 6’ 3” in the head and shower stall.  Inboard is a vanity with Corian counter, stainless sink, and Grohe faucet.  A 36” long by 16” tall mirror is above the sink.  A marine head is outboard just forward of a narrow cabinet with shelves and 18” deep by 5” wide Corian countertop.  A locker with shelves and double/louvered doors is outboard and above the head.  The stall shower is forward and closed with a hinged, teak-framed smoked acrylic door.  A Grohe faucet, hose, sprayer nozzle, bracket, varnished teak seat, teak shower grate and overboard pump allow standing or seated showering as the conditions warrant.  Ample coat hooks, two opening ports, two dome lights, and a duplex GFCI outlet outfit this head compartment.

Electronics & Navigation

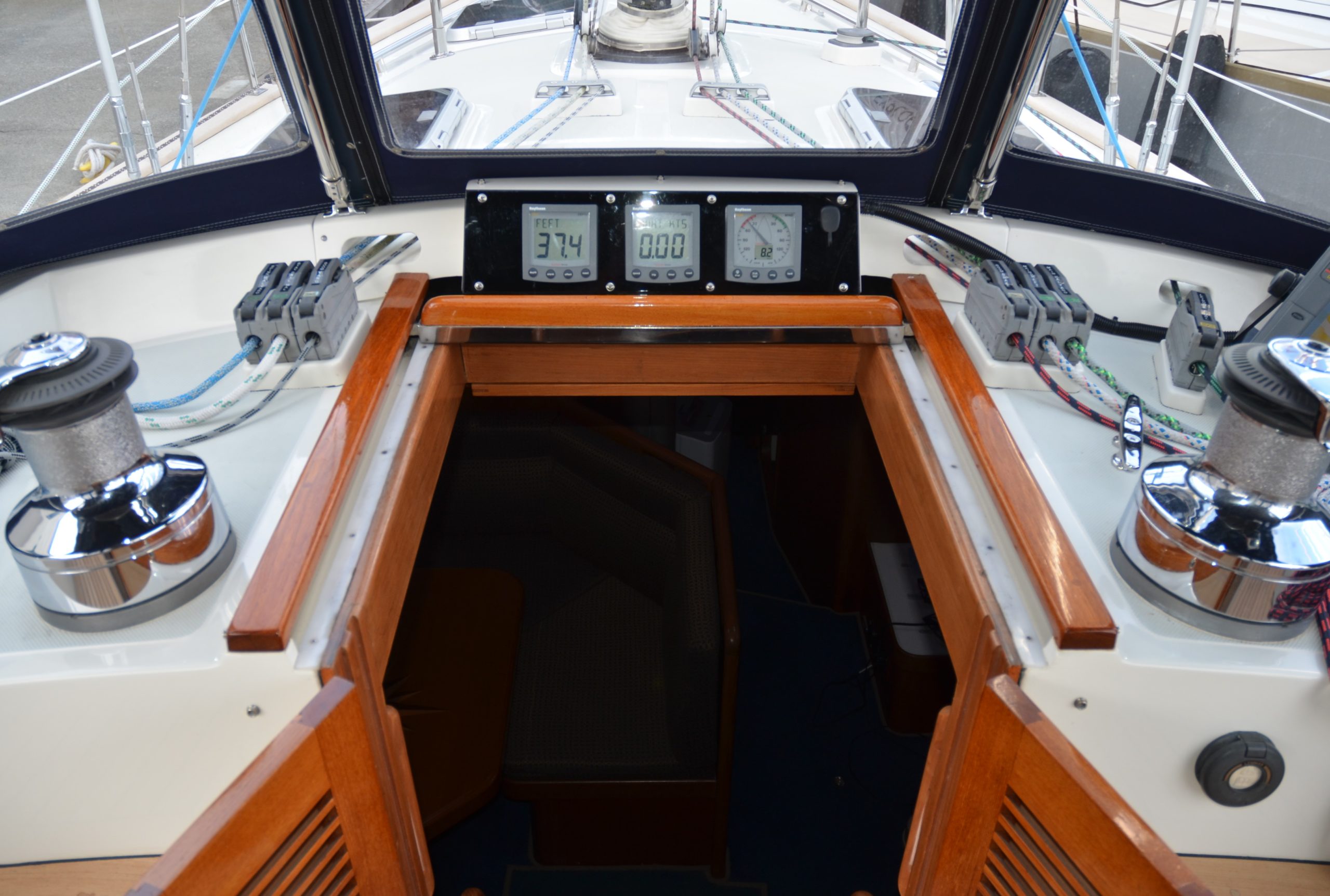

Cockpit forward:

• Raymarine RL70C Pathfinder radar/chartplotter
• Raymarine ST60 Wind
• Raymarine ST60 Speed
• Raymarine ST60 Depth

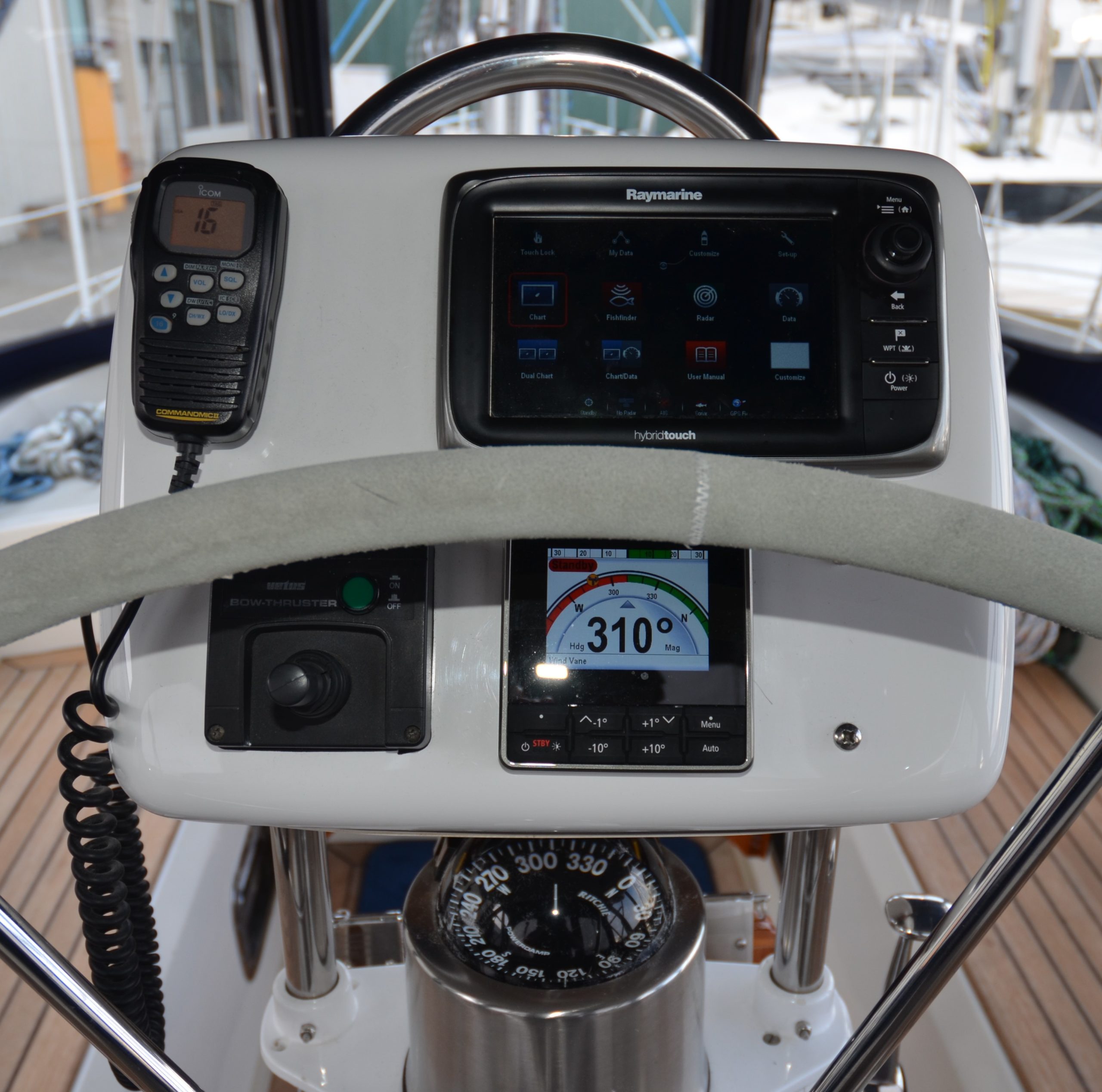

Helm:

• Raymarine e7 MFD including AIS control depth & fish finder
• Raymarine Evolution 400 Sail autopilot control with solid state compass
• Jefa autopilot drive
• Vetus bow thruster control
• Icom VHF microphone control (2014)

Nav station:

• Raymarine RL70 radar/chartplotter
• Raymarine ST60 TriData
• ICOM IC-M604A VHF marine transceiver, with DSC, deck hailer & fog alarm signaling (2014)
• Raymarine AIS 650 transceiver (2013)
• Wilson Mobile 4G cellular signal booster
• Wave wi-fi bridge with antenna on starboard aft rail
• Samsung 26 in LED flatscreen television in main saloon, Triax TV antenna on mast
• Fusion marine CD DVD stereo system w surround speakers in main saloon
• Chelsea polished brass barometer & clock
• Polished brass ship’s bell
• Navionics Gold Canada and SE Alaska chip
• Current atlas
• Maptech San Juans chartbook
• Maptech Puget Sound chartbook
• Canada 3313 Gulf Islands chartbook
• Maptech Pacific Northwest to Northern California chartbook

Electrical Systems

• 110V electrical system with 30A shore power plug and 50’ cord
• 12V electrical system with three-way switch
• Voltmeter & ammeter, 12V outlets
• Newmar AC (8 breakers x 110 v) & DC (20 breakers x 12 v) breaker panel
• Additional Blue Sea 12/24 v breaker panel (6 x breakers)
• Magnum MS2812 2800W inverter/125A charger
• Magnum control panel
• Heart Link 2000 panel
• Lifeline 4DL AGM house battery (2019)
• (4) Lifeling GPL-4CT house batteries (2019)
• Lifeline 8DL AGM bow thruster/windlass battery
• All rigging & thru hulls bonded, ground plane for SSB installed

Mechanical Systems

Engine access is superb, and the engine space is spotlessly clean. The engine was fully serviced in December of 2019 including: injectors cleaned and nozzles replaced, heat exchanger replaced, diesel injection pump and timing gear replaced, water pump and impellor replaced, new cutlass bearing, prop and shaft coated with Propspeed.

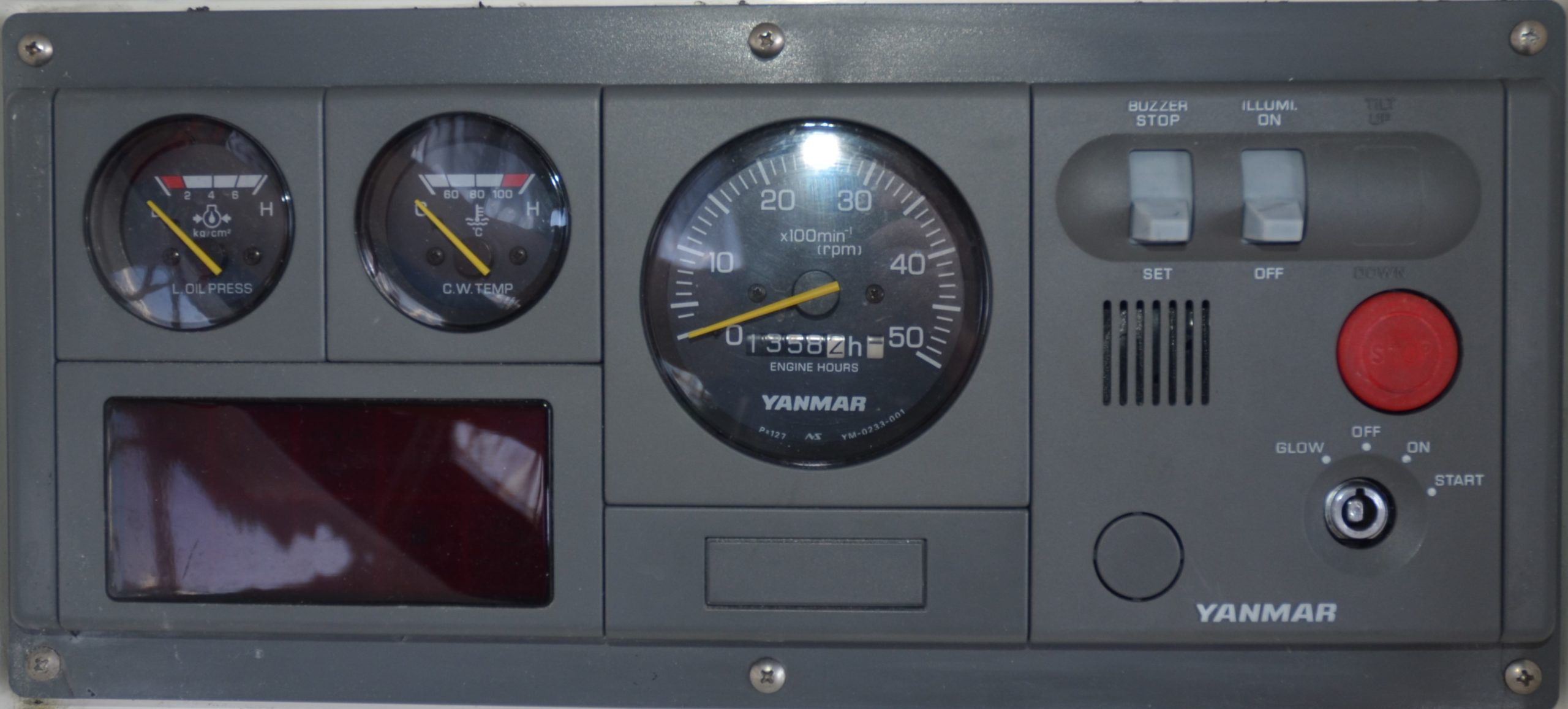

• Yanmar 4JH3-TE 75HP turbo diesel engine (1358 hours)
• Yanmar Kansaki KM4A transmission with flexible coupling to shaft
• Dripless shaft seal
• Maxprop three-blade bronze feathering propeller
• Shaft Shark line cutter
• Balmar 100amp high output main engine alternator with Mach Charge MC-614 regulator
• Dual Racor 500 primary fuel filters with vacuum gage, plus additional Racor 500 fuel filter inline
• Engine oil change system

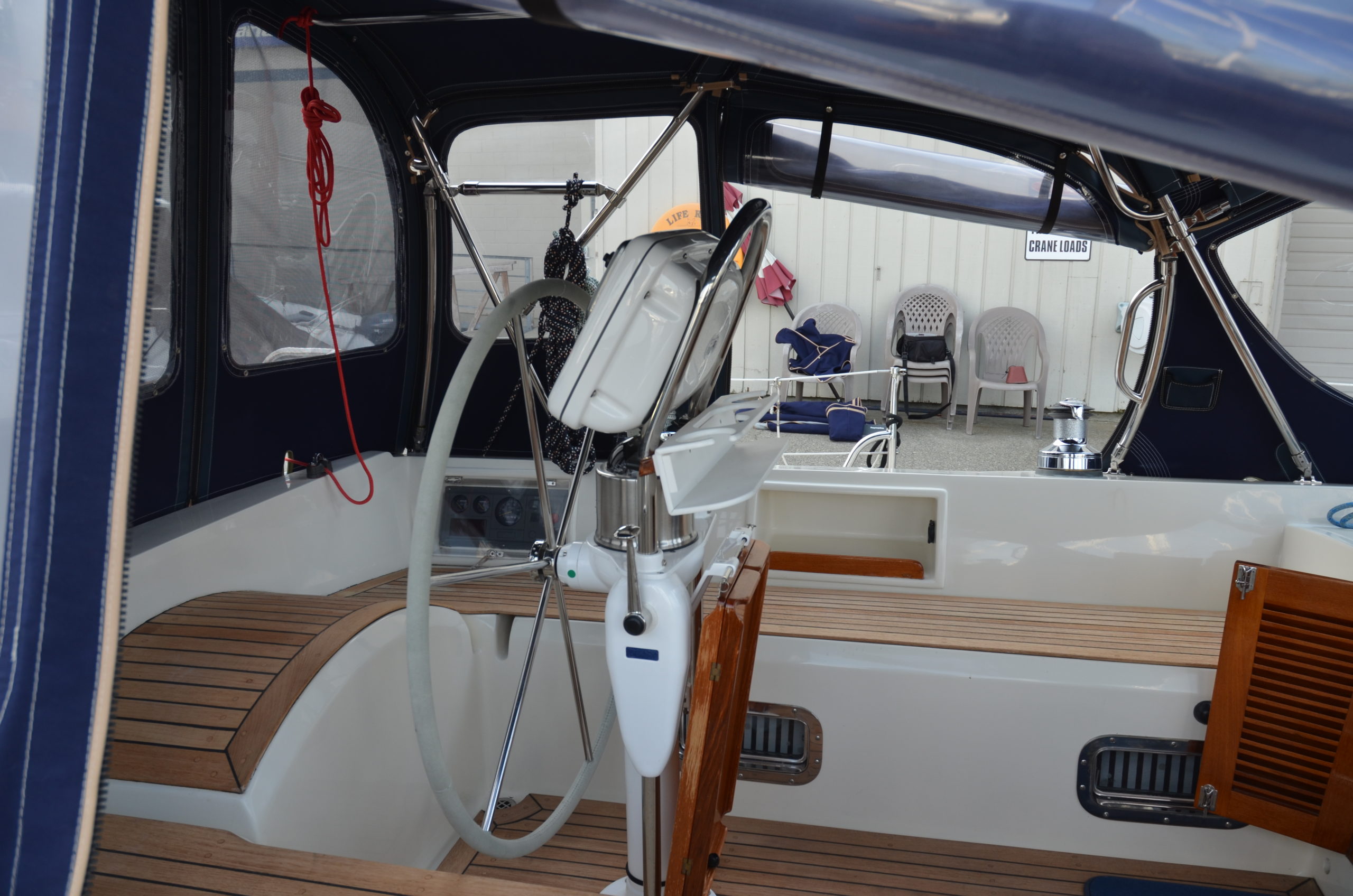

• Whitlock steering pedestal with stainless destroyer wheel
• Single lever throttle/shoft control
• Kubota DC genset driving 160 amp Balmar alternator with Balmar external regulator (207 hours)
• Racor 215 secondary fuel filter for generator
• Vetus 10 Hp Bow-Prop bow thruster
• Hot and cold pressure water
• Isotemp Basic 40L hot water tank
• 2 x auto bilge pumps with electric alarm at chart table, 1 x manual under galley sole
• Arid Bilge Series 2 nano dry bilge system

Deck & Hull

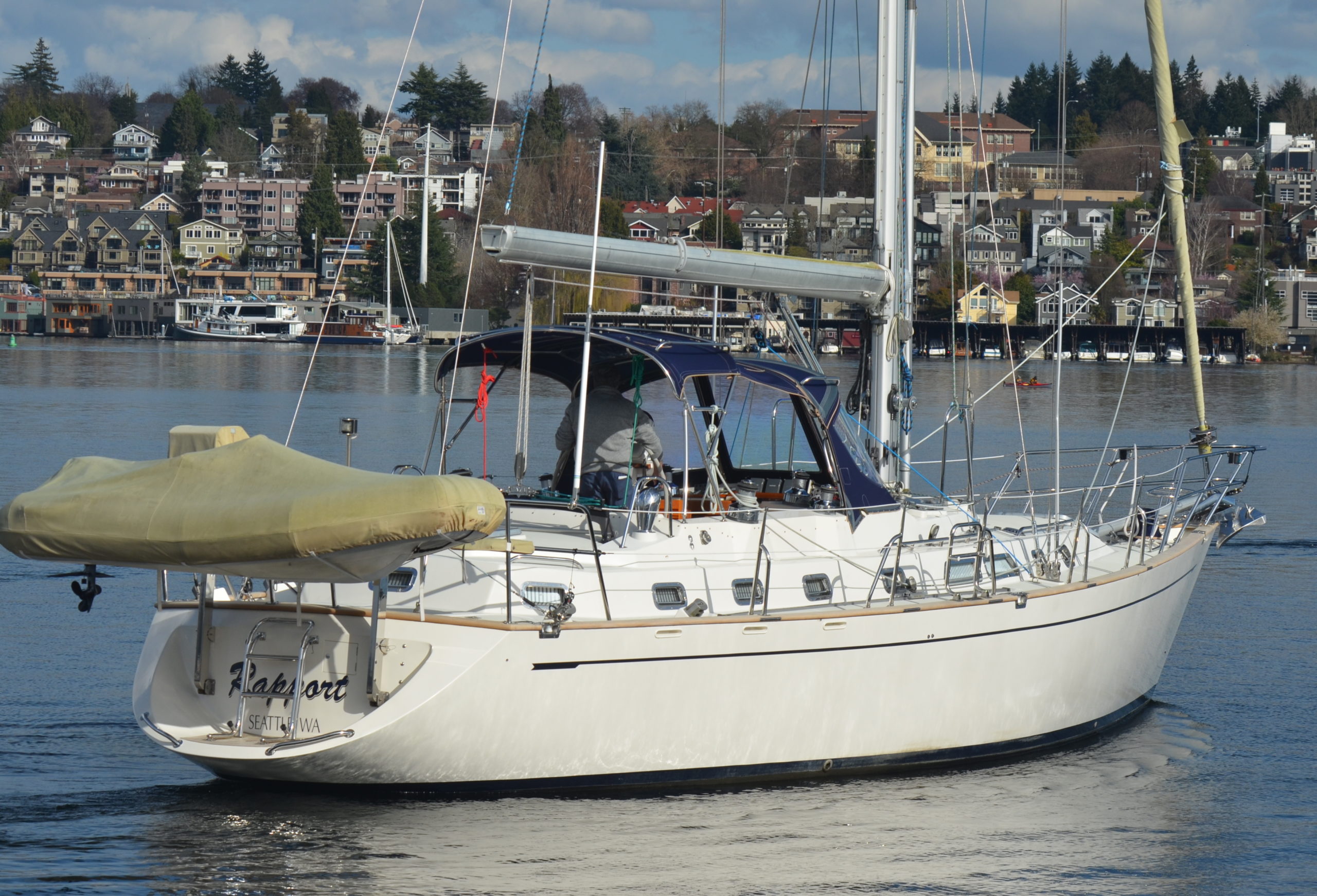

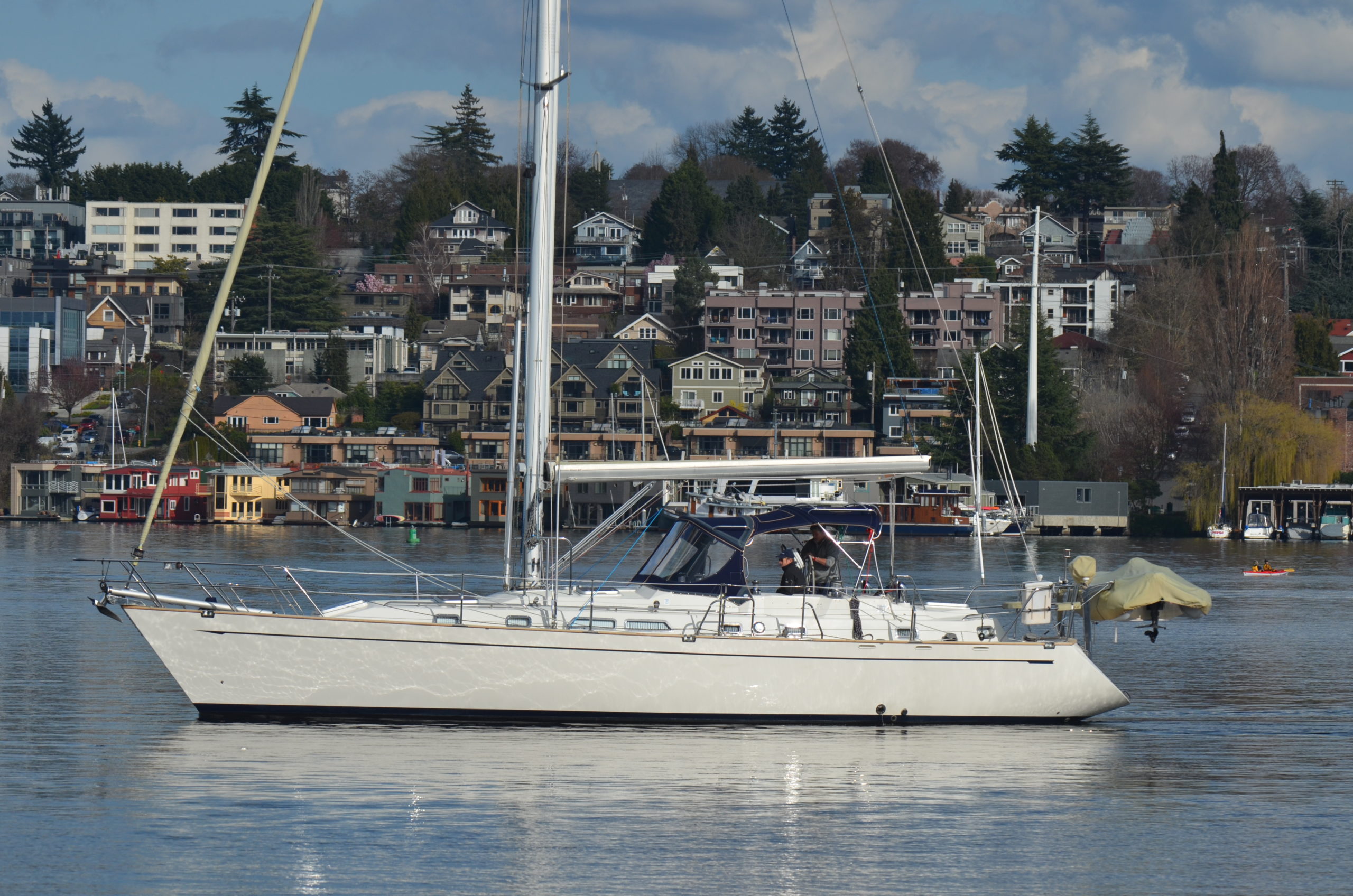

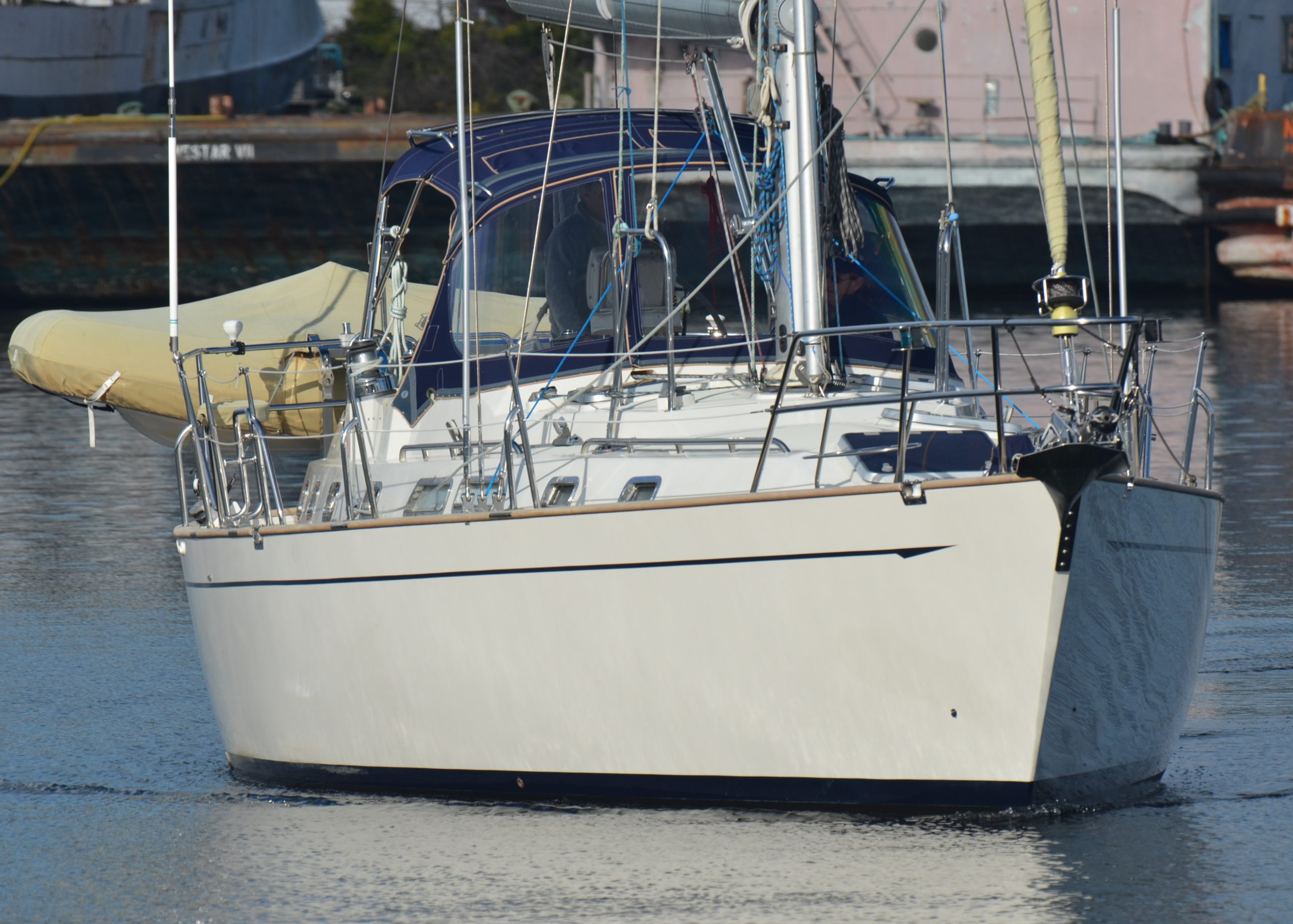

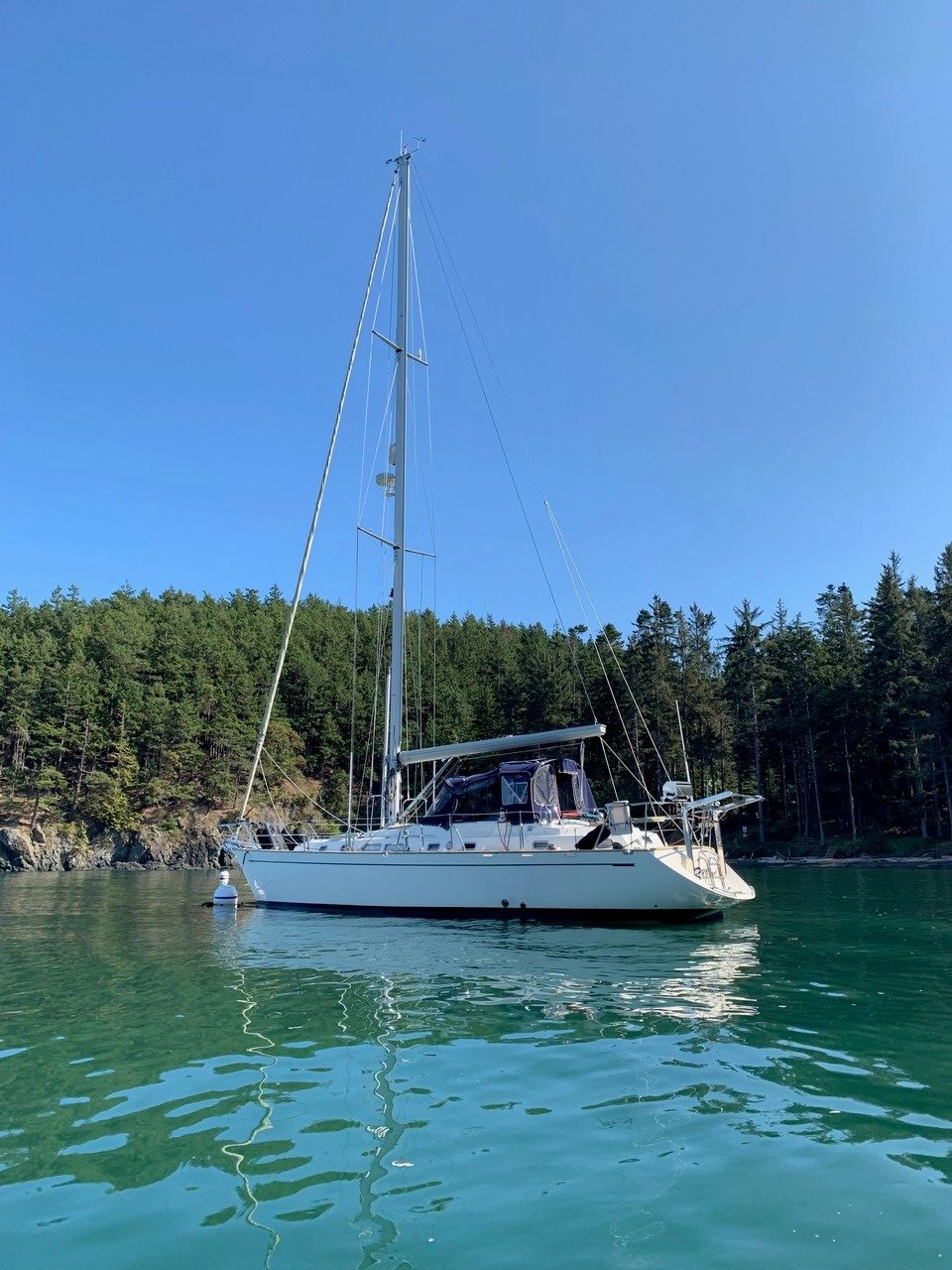

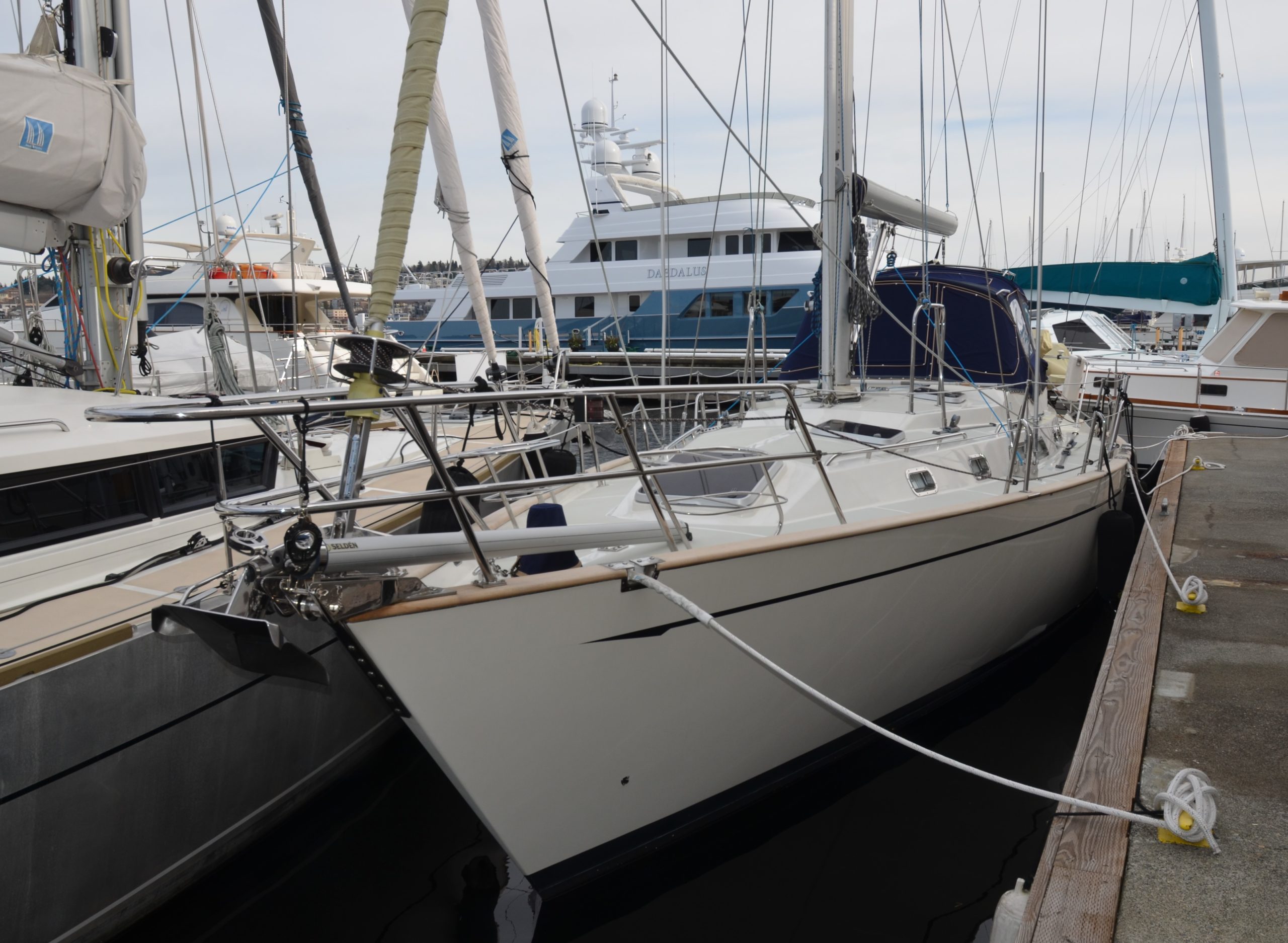

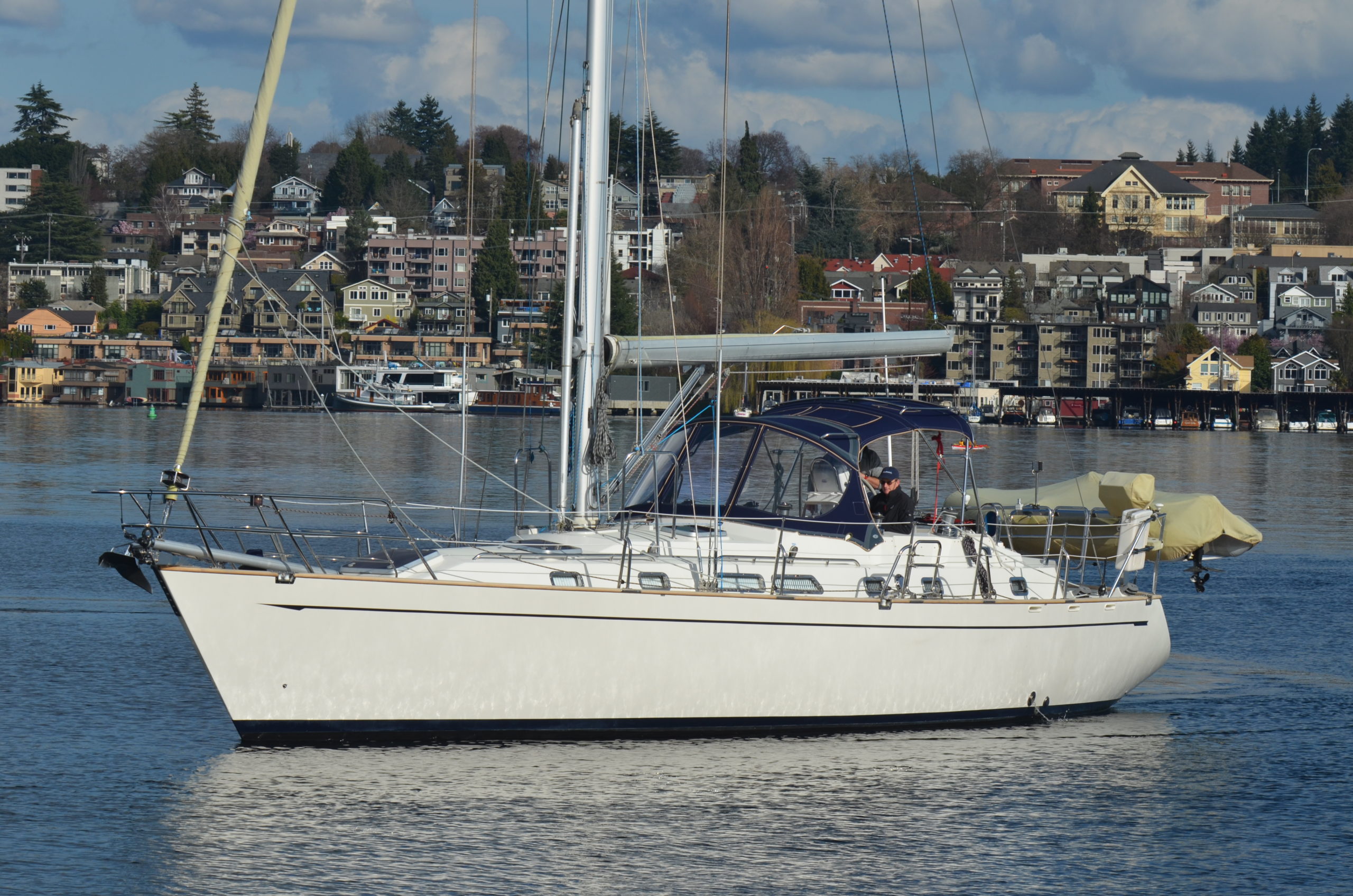

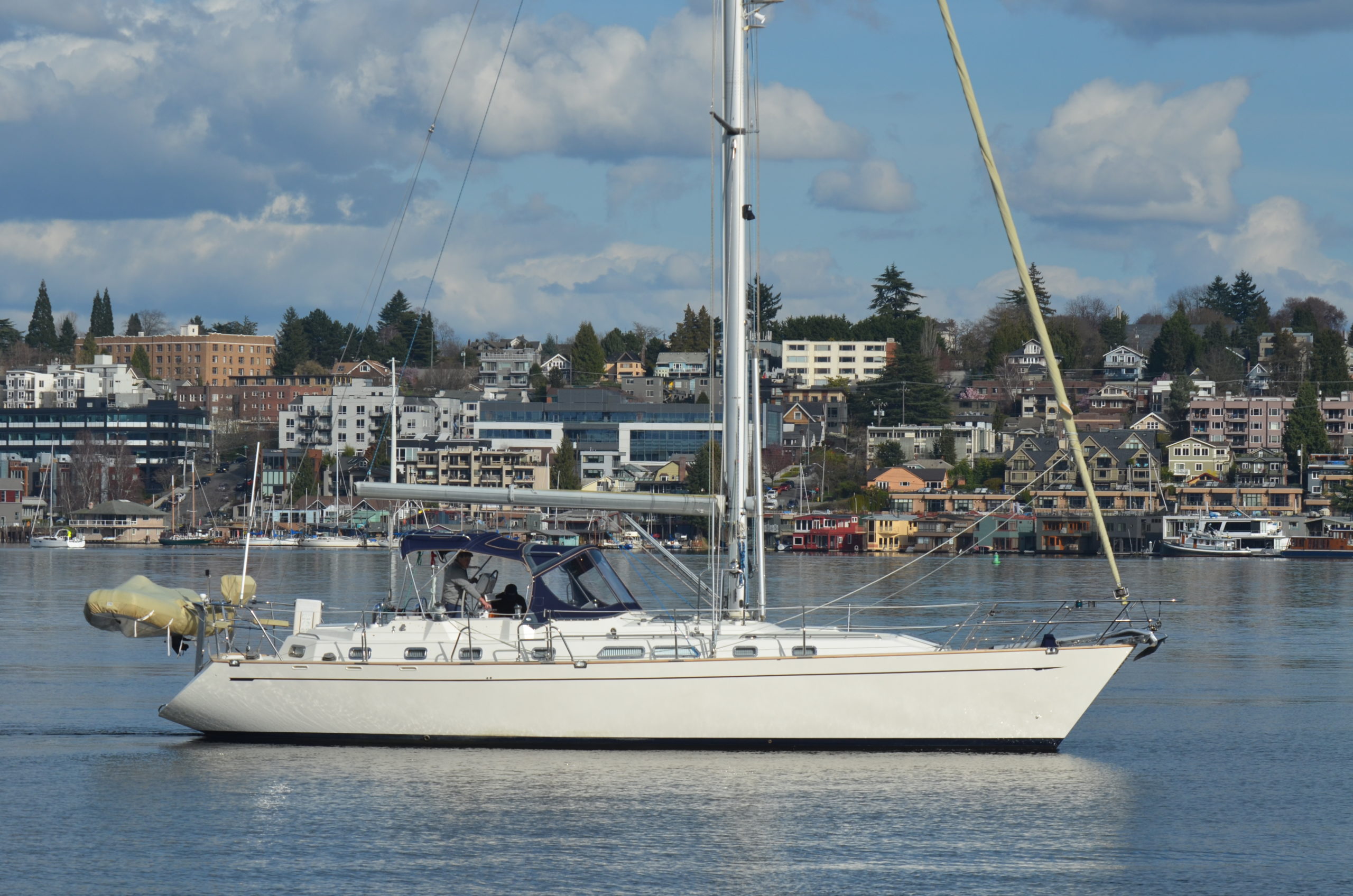

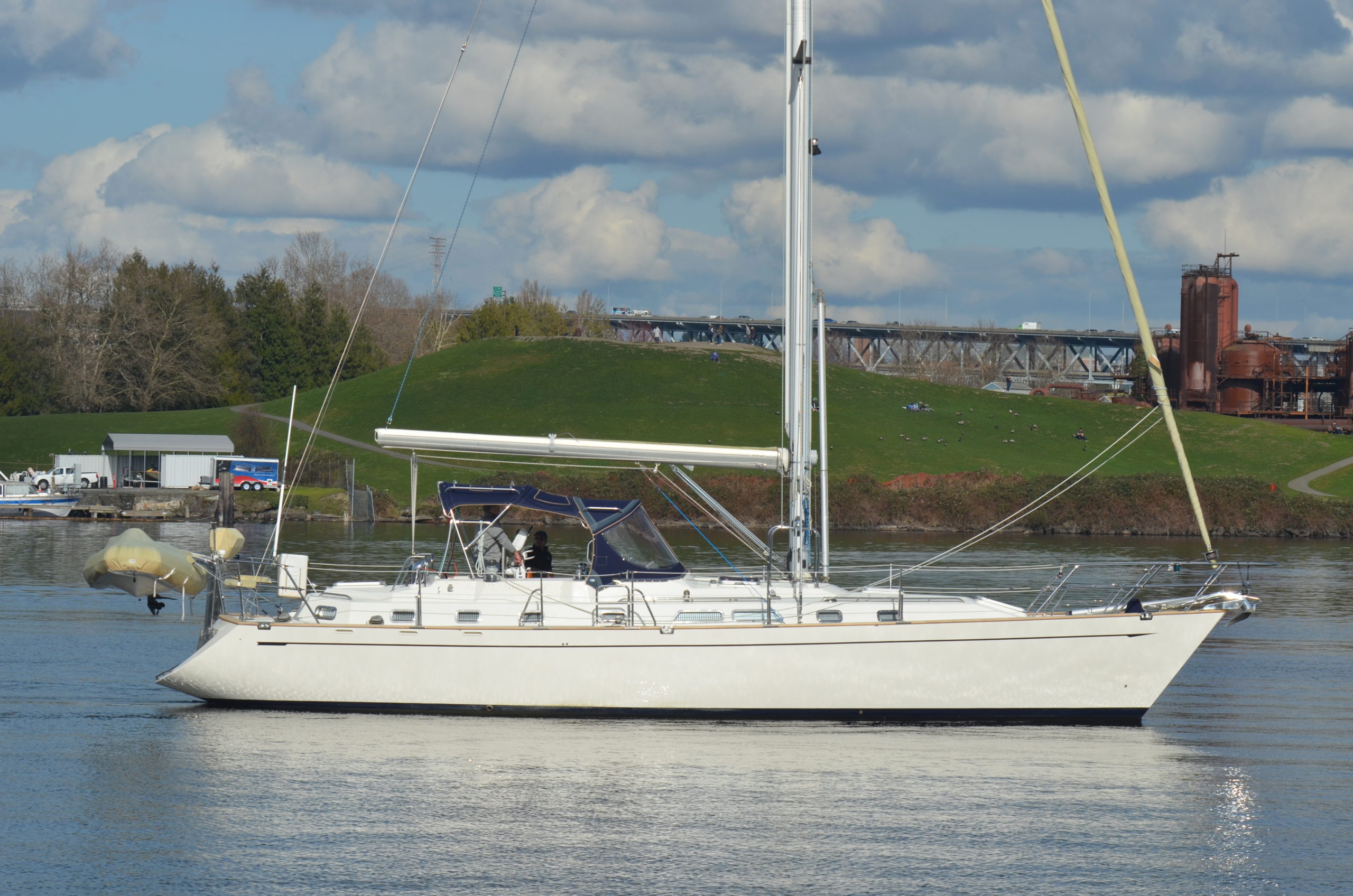

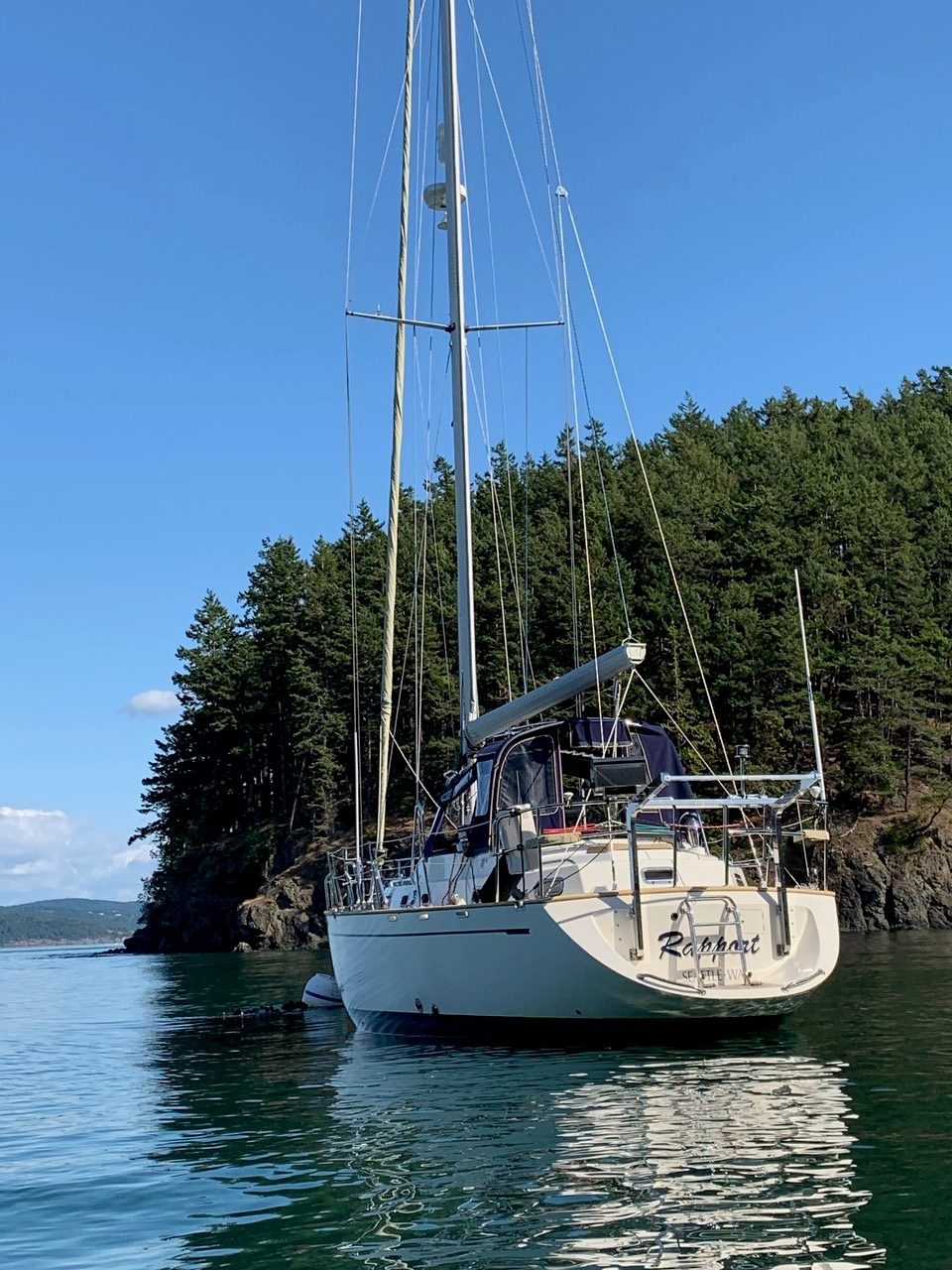

Rapport’s underbody is a moderate chord length fin keel with skeg hung rudder. Her hull is hand laid fiberglass cored above the waterline with PVC foam and finished in white gelcoat with a navy blue pin stripe. Her deck is cored fiberglass with smooth surfaces in white gelcoat and gray molded nonskid surfaces. Her wide side decks are surrounded by double lifelines and a molded bulwark with teak cap rail. The cap rail and teak grabrails are bare teak and the cap rail is fitted with stainless rub strips where fenders hang. Stanchions, bow pulpit and pushpit are 1.25 inch diameter stainless steel. There are boarding gates to port and starboard. The center cockpit is well configured for comfort under sail or at anchor. At the aft end is a Whitlock pedestal with leather covered stainless destroyer wheel. A teak cockpit table folds flush against the forward end of the pedestal. A Iverson’s Design canvas dodger and enclosure protect the cockpit. The cockpit seats are overlayed with teak. On the aft deck there is a propane locker to port and a storage locker to starboard. Her open stern platform with teak deck and stainless ladder provides fantastic space to launch and board the dinghy. A fresh water stern shower is available to rinse off after swimming. There are custom stainless dinghy davits and an outboard motor hoist with rail mount.

Rapport was hauled in December 2019.  Two coats of Seahawk Biocop antifouling were rolled below the waterline.  Hull and topsides were buffed and waxed.  All zincs were changed.  The cutlass bearing was replaced and the prop shaft and prop were coated with PropSpeed.

• Maxwell 1,500 w electric windlass with capstan
• Polished stainless ULTRA anchor 77 lbs (plow style, all conditions, fast set)
• ULTRA snubber bridle
• ULTRA foredeck anchor tensioner
• Fortress FX37 21 lbs aluminum folding anchor
• 10 ft polished stainless anchor chain attached to anchor swivel
• 200 ft galvanized chain marked at 20 ft intervals for first 100 ft
• 130 ft nylon rode

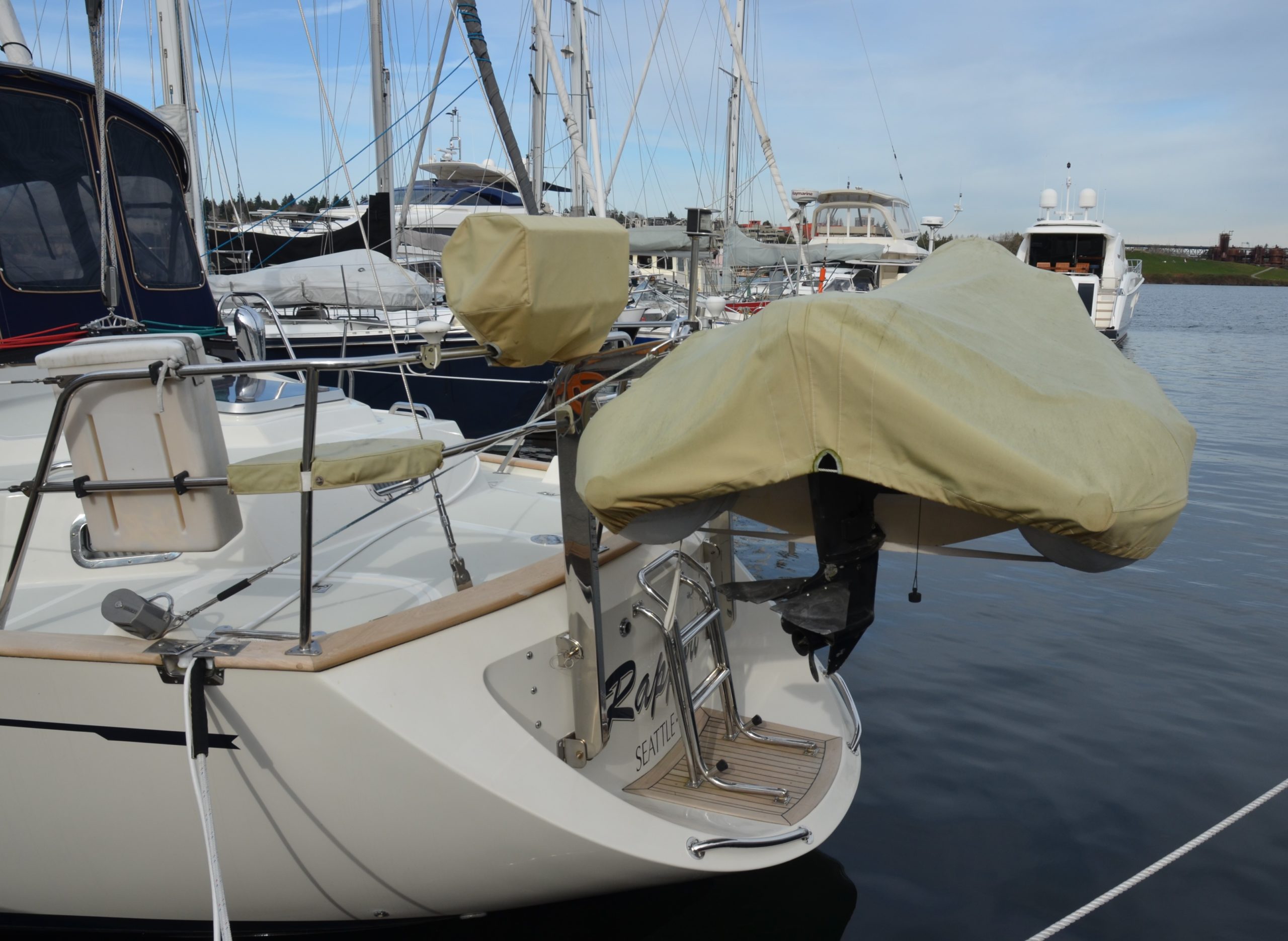

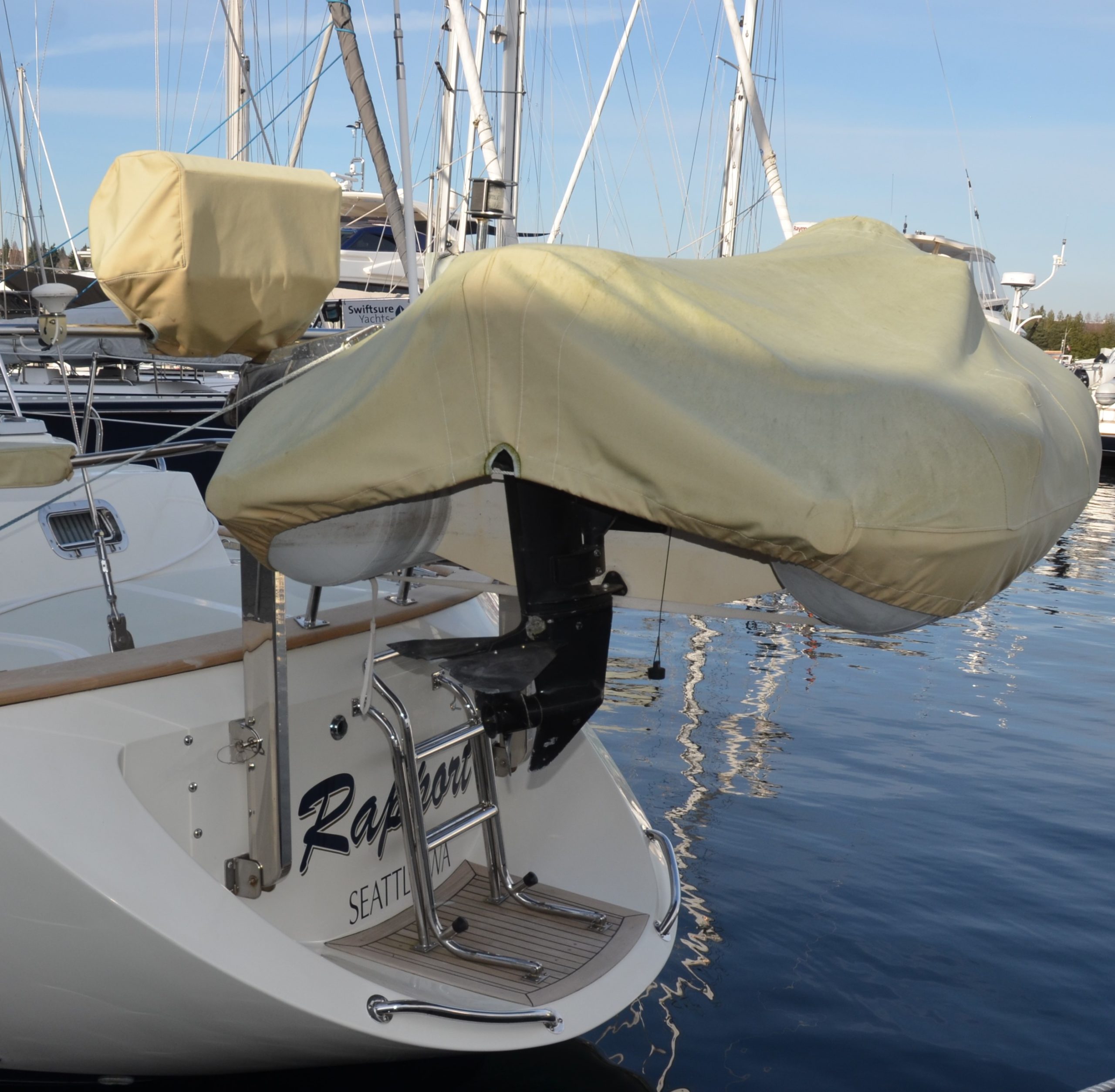

• Custom polished stainless davit system: hinged pivot type, designed to carry tender above deck level for offshore (2012)
• 11 ft Achilles rib tender with 15 HP Mercury 2-stroke outboard motor (light weight, fast)
• Dinghy anchor

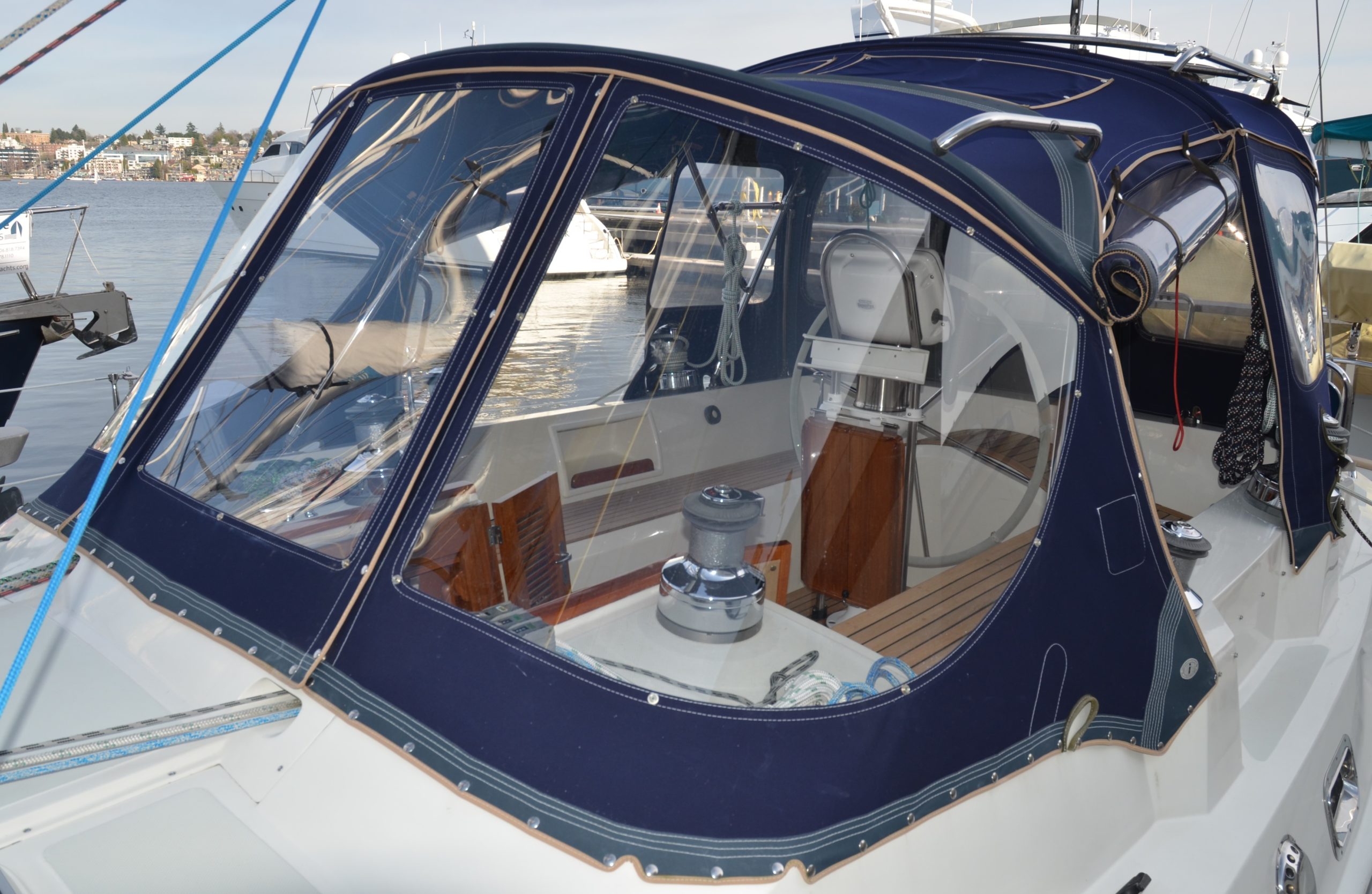

• Iverson’s Design dodger, bimini and cockpit enclosure (2017) with stratoglass windscreen, 1.5 inch stainless frame, complete enclosure with roll-up curtains, aft shade screens

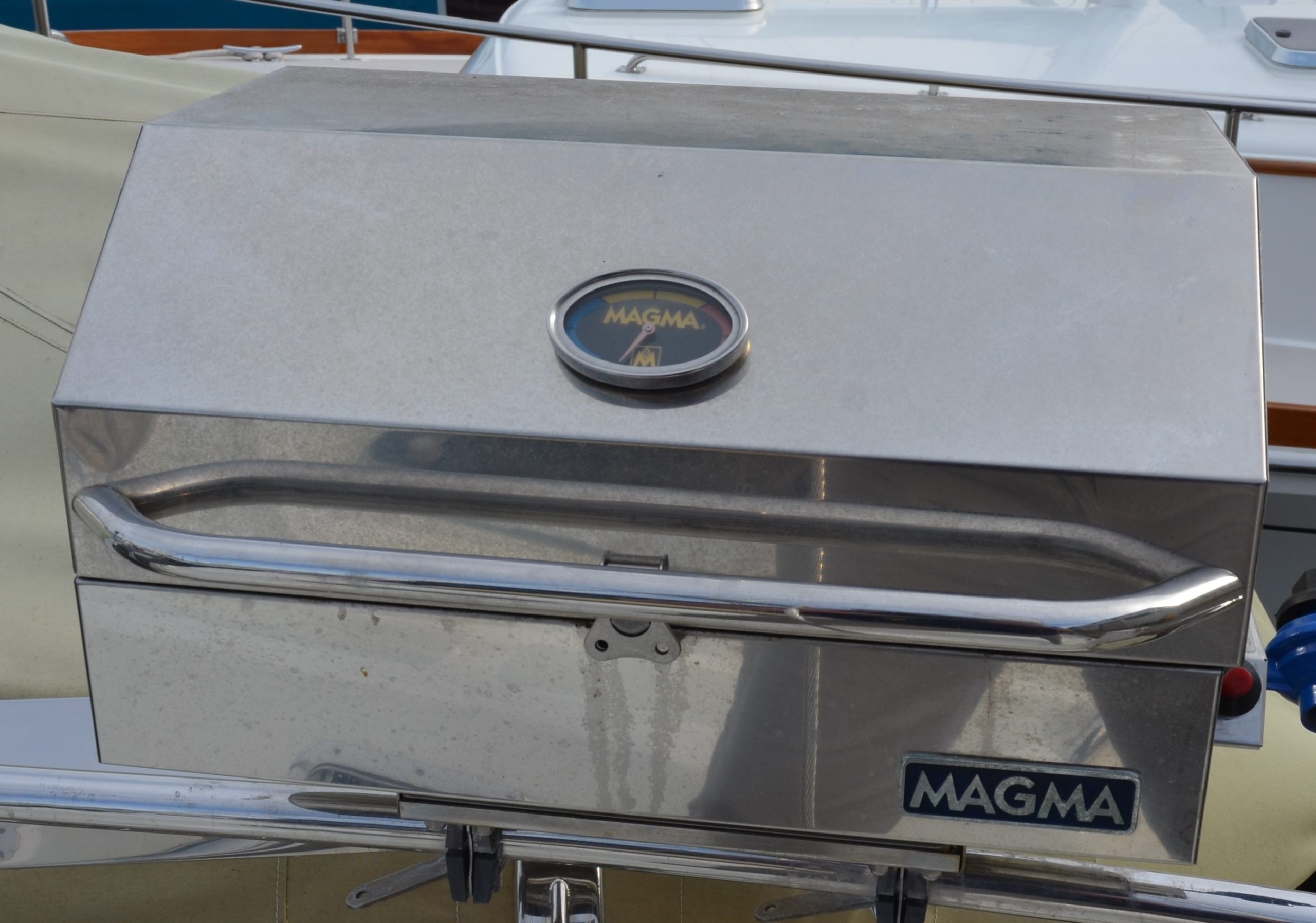

• Magma Catalina stainless marine gas barbecue & cover, separate fiberglass propane tank
• Teak cockpit table
• Hot/cold stern shower at transom
• Replaced teak with stainless steel grab rails 2 on aft deck, 2 amidships & 2 foredeck

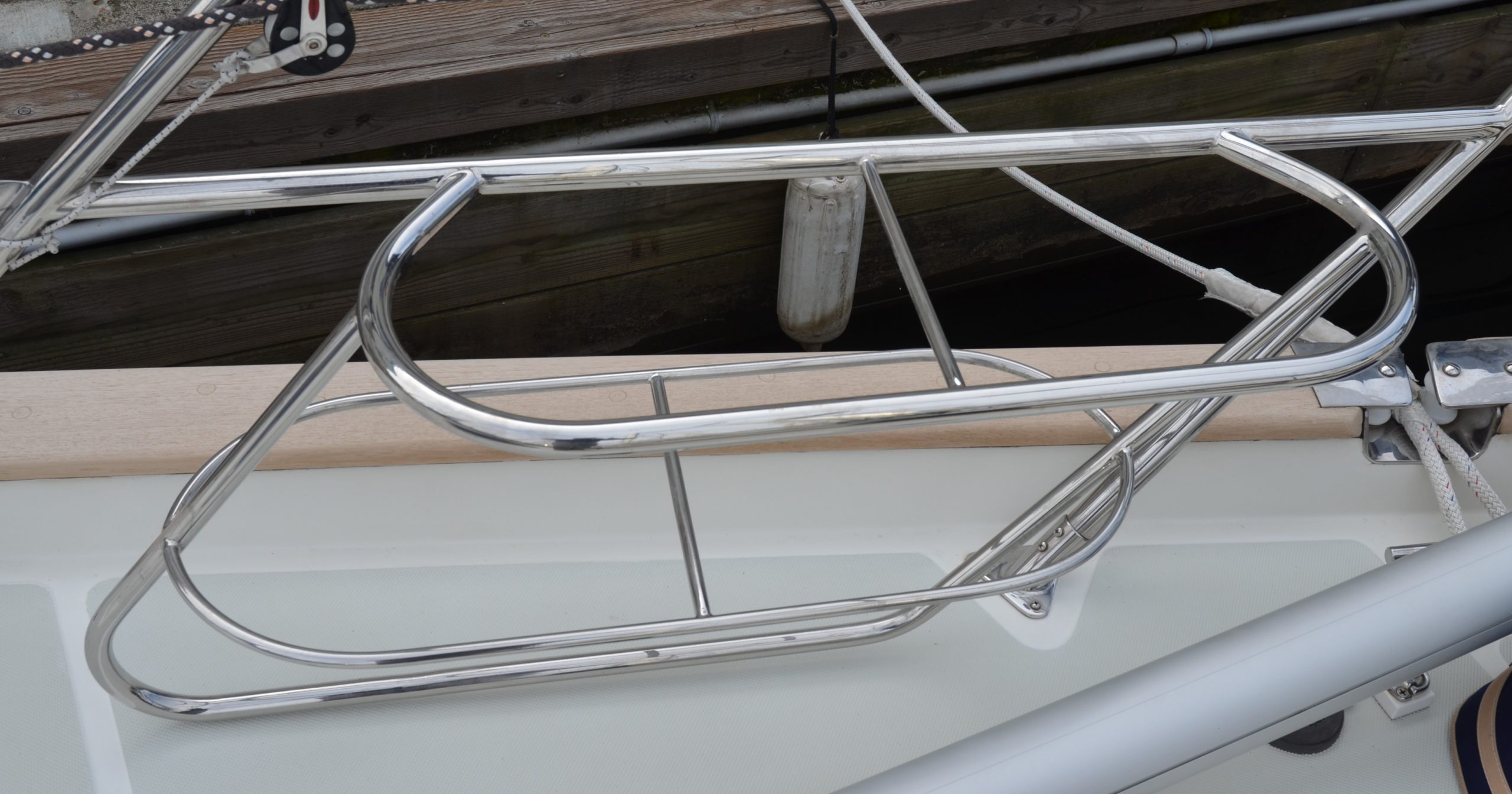

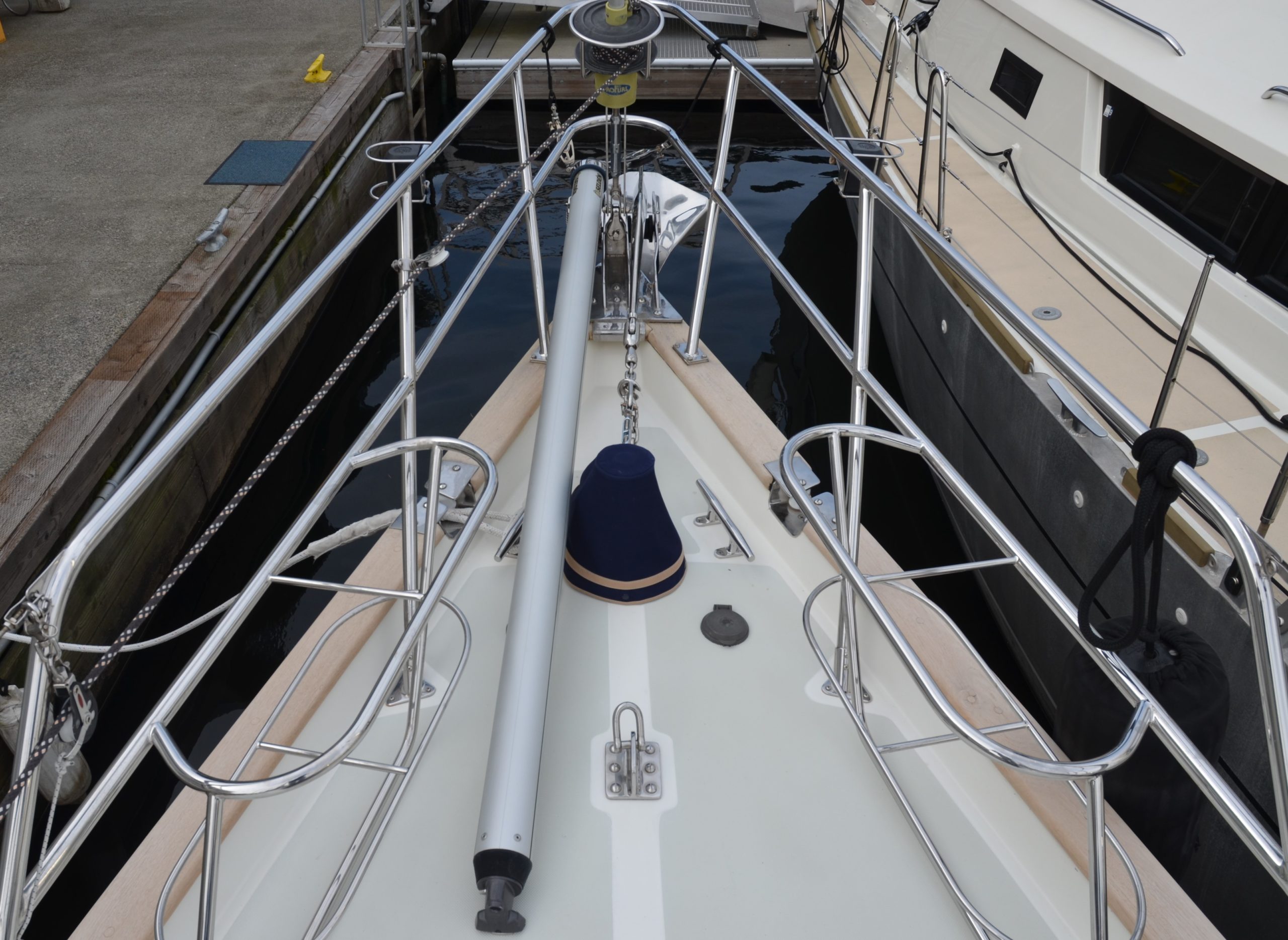

• Extended polished stainless bow pulpit with incorporated racks for 4 boat fenders
• Stainless stanchions with double lifelines

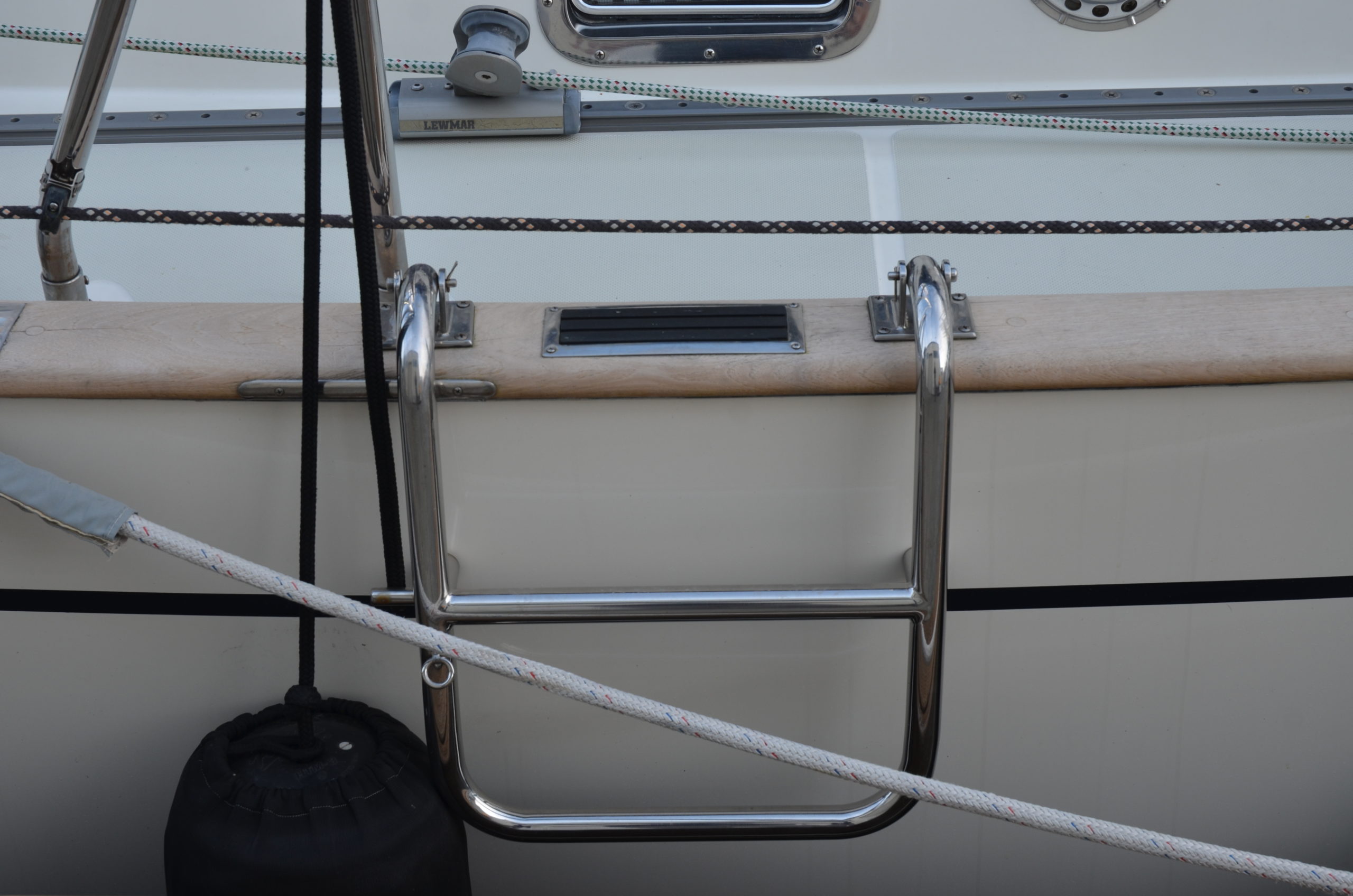

• Boarding gates to port and starboard with folding stainless boarding ladders
• (2) stainless Dorade vents over aft cabin with guards
• (6) stainless mooring line chocks and mooring cleats
• Canvas covers for dinghy, BBQ, stern seats, winches

Sails and Rigging:

Rapport’s sailplan is easily managed, utilizing Leisurefurl in-boom furling and genoa furler with a removable inner forestay and hank-on staysail. Important control lines are led aft to winches and Lewmar rope clutches in the cockpit. An electric main halyard winch aids in raising the mainsail and the primary and secondary winches are electrified. Stainless “granny bars” provide support while working at the mast.

• Cutter sailing plan: Total working sail area = 1,048 sq ft (excluding asymmetric spinnaker & Parasailor)
• All sheets & halyards belayed to cockpit

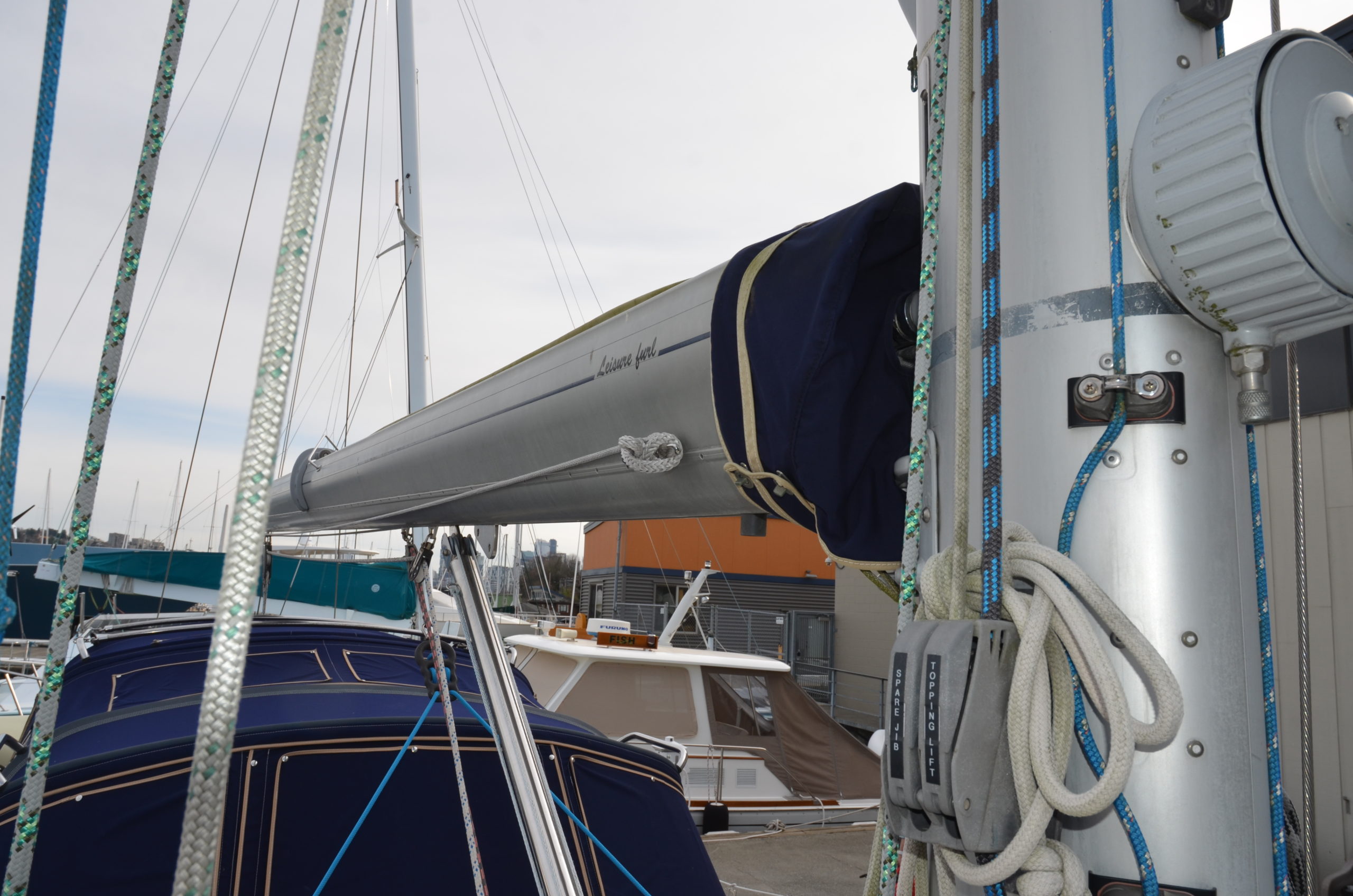

• Leisurefurl anodized aluminum in-boom furler (electric cabin-top winch control)

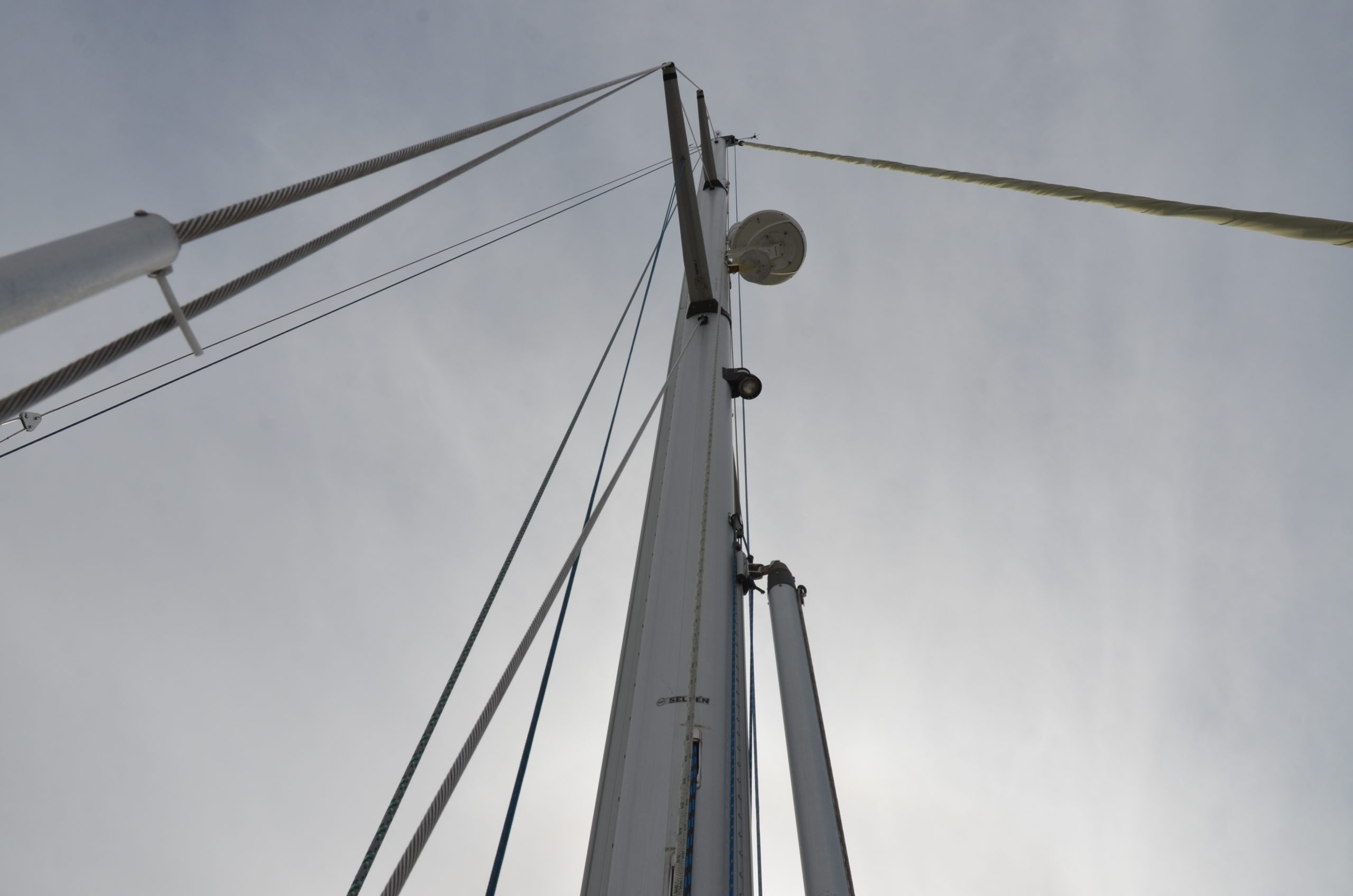

• Selden double-spreader anodized aluminum mast with running backstays; tall rig (70 ft from waterline)
• Spinnaker halyard, (2) genoa halyards, staysail halyard, (2) mainsail halyards
• Dyneema pennants for preventer rigging
• Forespar telescoping whisker pole on mast track
• Selden extendable bowsprit for spinnaker (2015)
• Garhauer stainless rigid boom vang

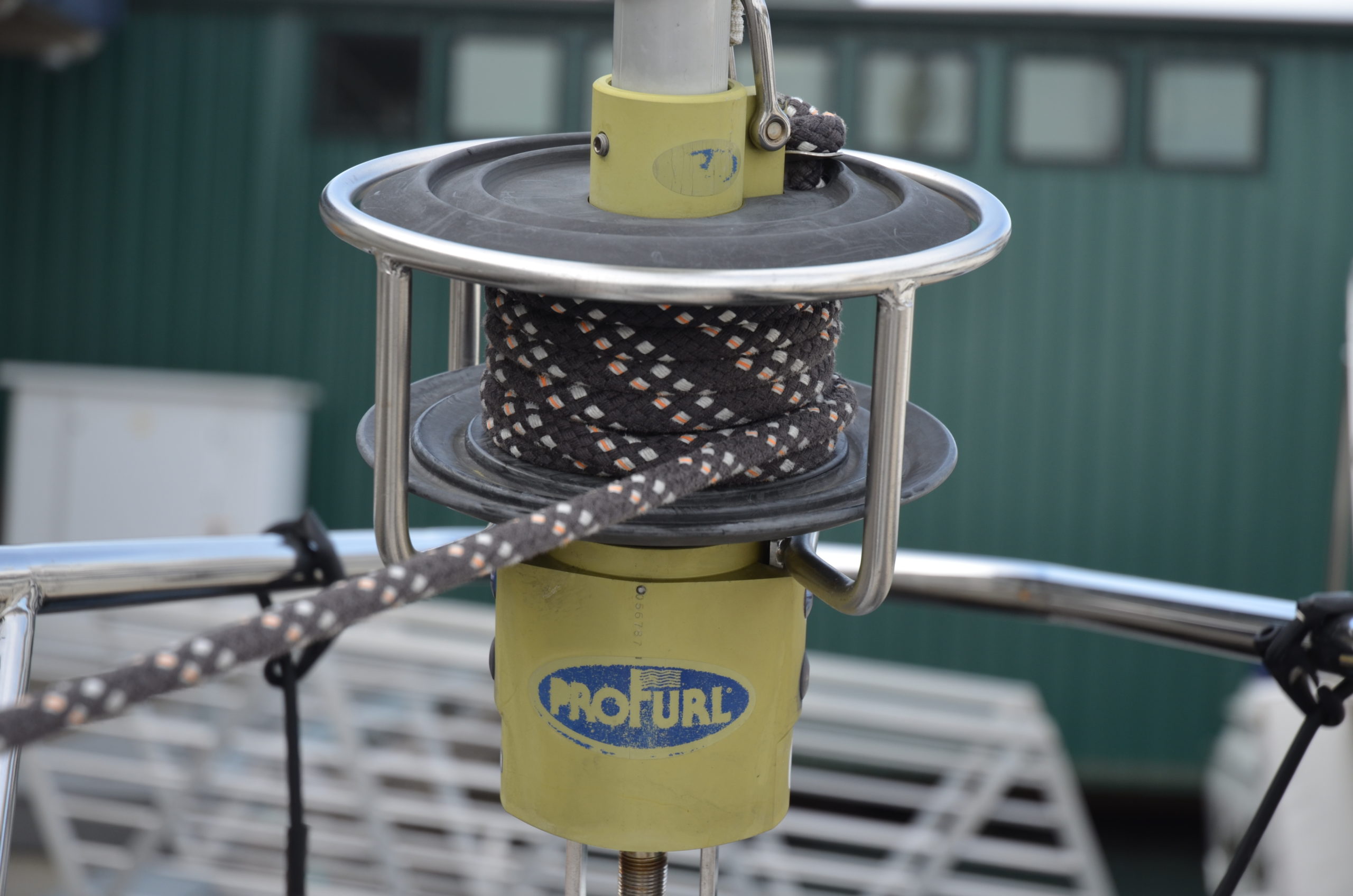

• Profurl headsail furler – C42 w link plate & integrated turnbuckle cylinder
• Headsail halyard brake on port side deck
• Mainsail – UK, horizontal battens, continuous furling
• Genoa – UK 135% with foam luff & Sunbrella UV cover with clew block
• Staysail – UK hank on (removable cutter stay attached to mast when not in use)

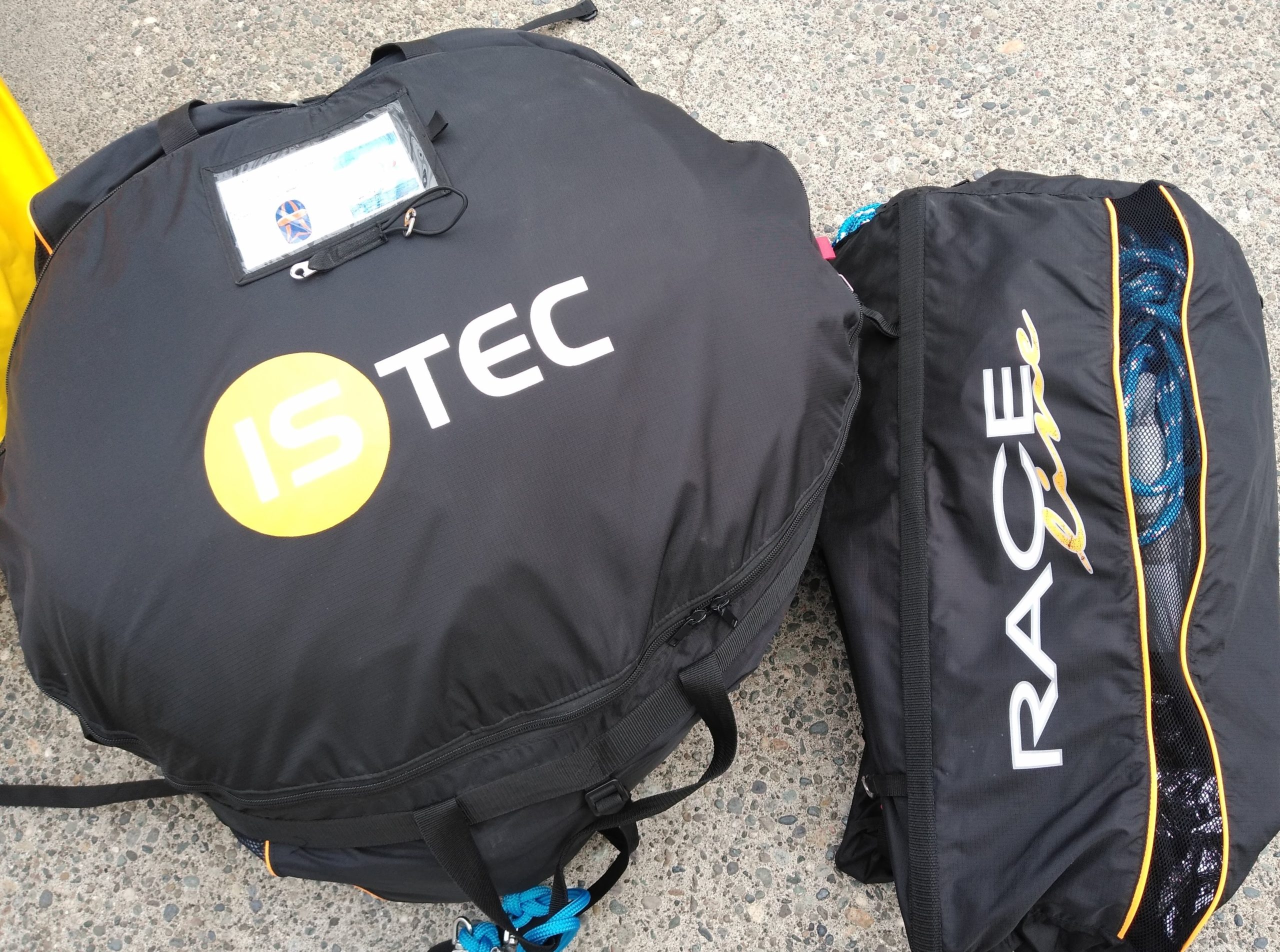

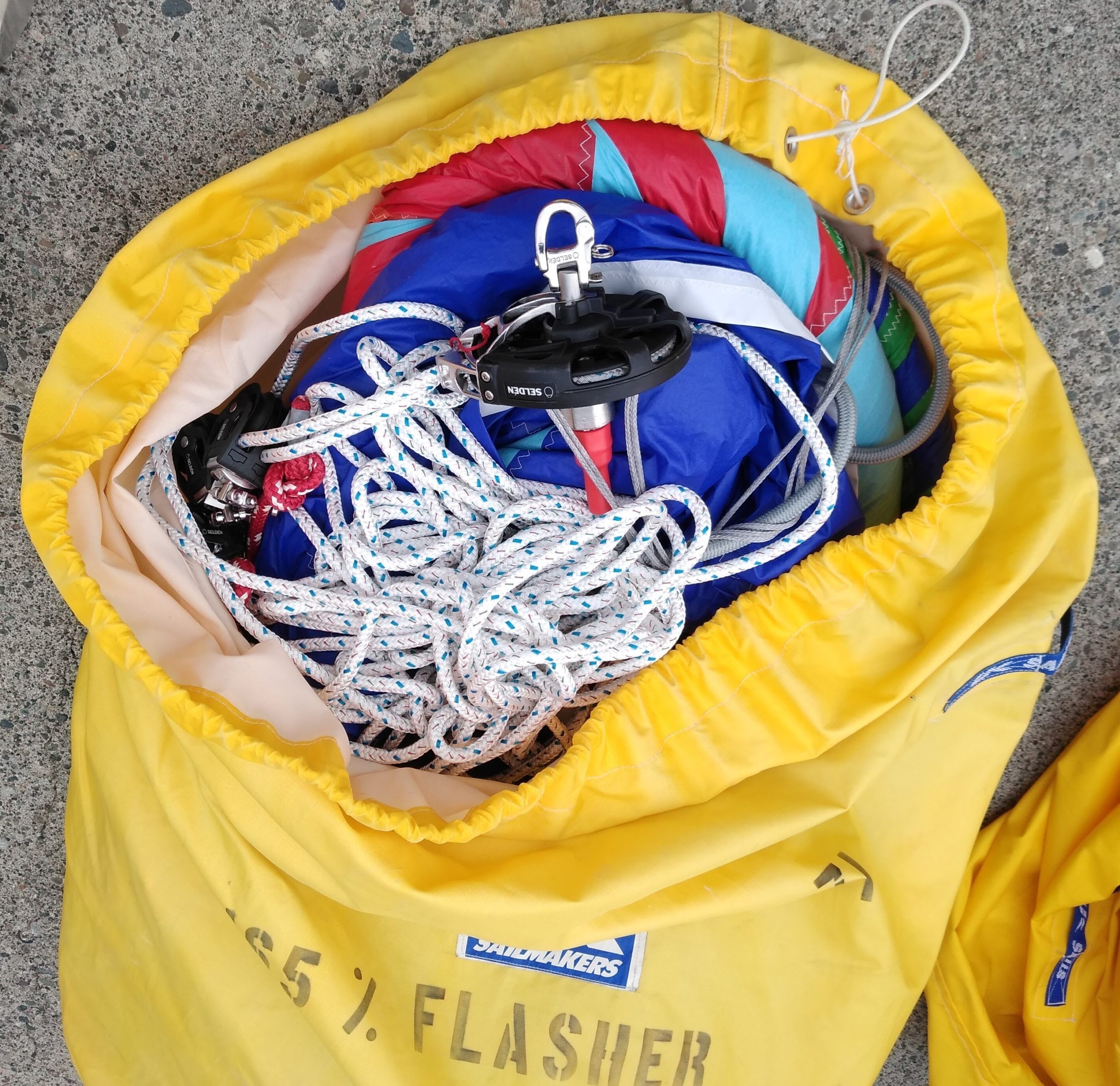

• Parasailor 1,879 ft2 with associated rigging (2015)
• Asymmetric spinnaker on continuous furler (2015). Dousing sock rig also included.
• Wichard Gyb’Easy boom brake (2015)

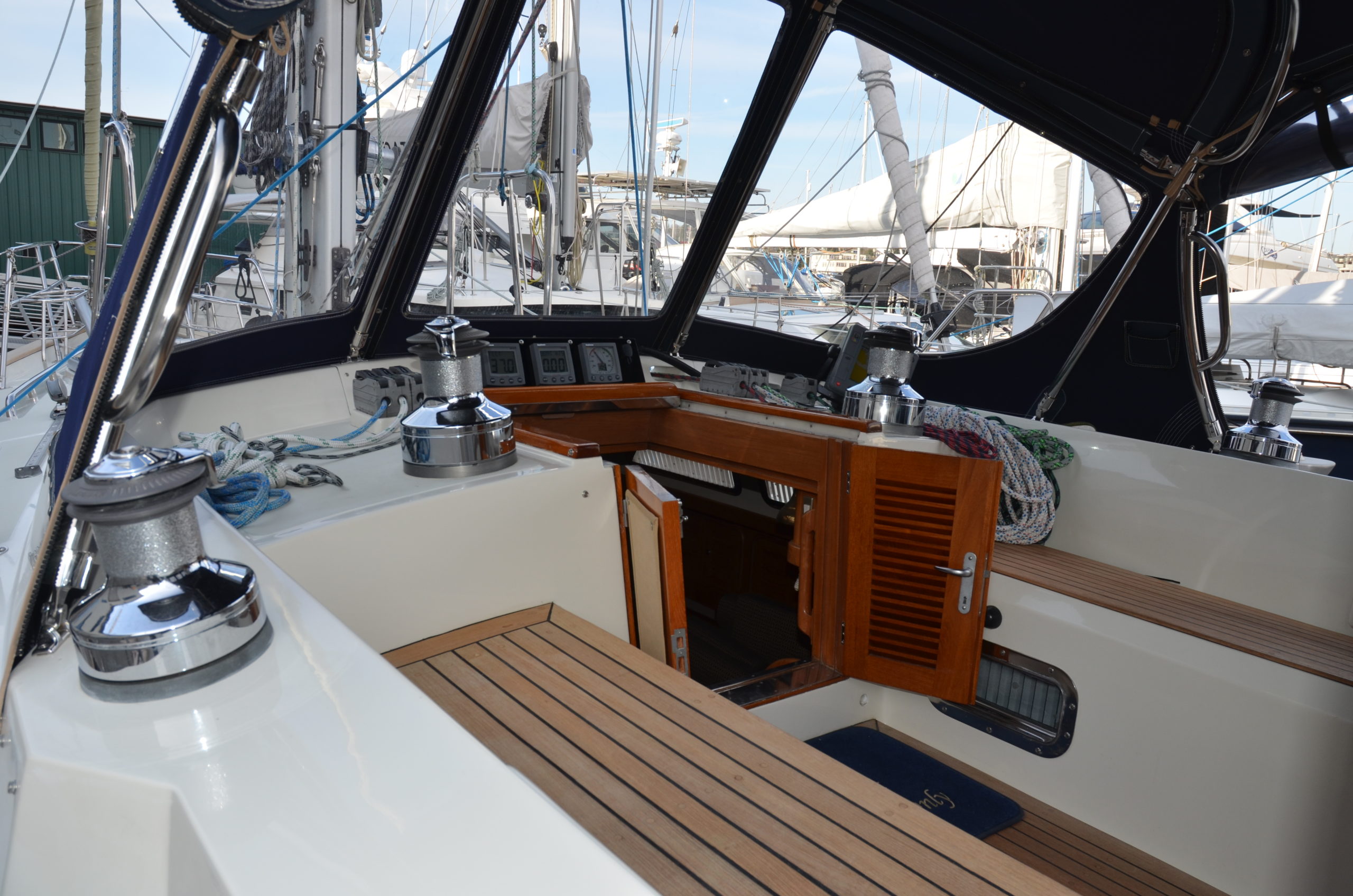

• (2) Lewmar 65 CEST primary winches – electric (2013)
• (2) Lewmar 54 CEST & CST cabin top secondary winches – 1 x electric & 1 x manual
• (2) Lewmar 44 CEST secondary winches – electric
• (2) Lewmar 44 CST mast winches – manual
• (4) winch handles

Miscellaneous and Safety

• Kidde Fyrewatch engine room automatic fire extinguisher
• Amerex fire extinguishers in all 3 cabins, saloon & starboard aft deck locker
• Fireboy & Safe T Alert CO alarm, CO detectors in all living spaces
• ACR RapidFix GPS EPIRB (battery expired 12/16)
• Marine first aid kit
• (2) throw cushions
• (3) standard PFDs
• (4) auto inflatable PFD’s in ditch bag, Wichard double line tethers
• Night-visible 36 ft Wichard Lyf’safe jackstays
• Flares (out of date)
• Life Sling MOB recovery device
• Extensive spare parts: engine, rigging, general
• Extensive cleaning materials

Recent Maintenance (July – December 2019)

• Engine completely serviced
• Injectors cleaned & nozzles replaced
• Heat exchanger replaced
• Diesel injection pump & timing gear replaced
• Engine water pump & impeller replaced
• Anti-fouled (2 coats Seahawk Biocop)
• Cleaned & polished hull & topsides
• New cutlass bearing on prop shaft
• Prop shaft & propeller cleaned & Prop Speed applied
• All anodes replaced with new (hull, prop shaft, bow thruster)
• Raymarine in-hull speed transducer replaced
• All batteries replaced: Lifeline GM (1 x 12V 210 AH, 6 x 6V 220 AH, 1 x 12V 255 AH)
• Standing rigging inspected, rig tuned & cordage added for main & Parasailor handling
