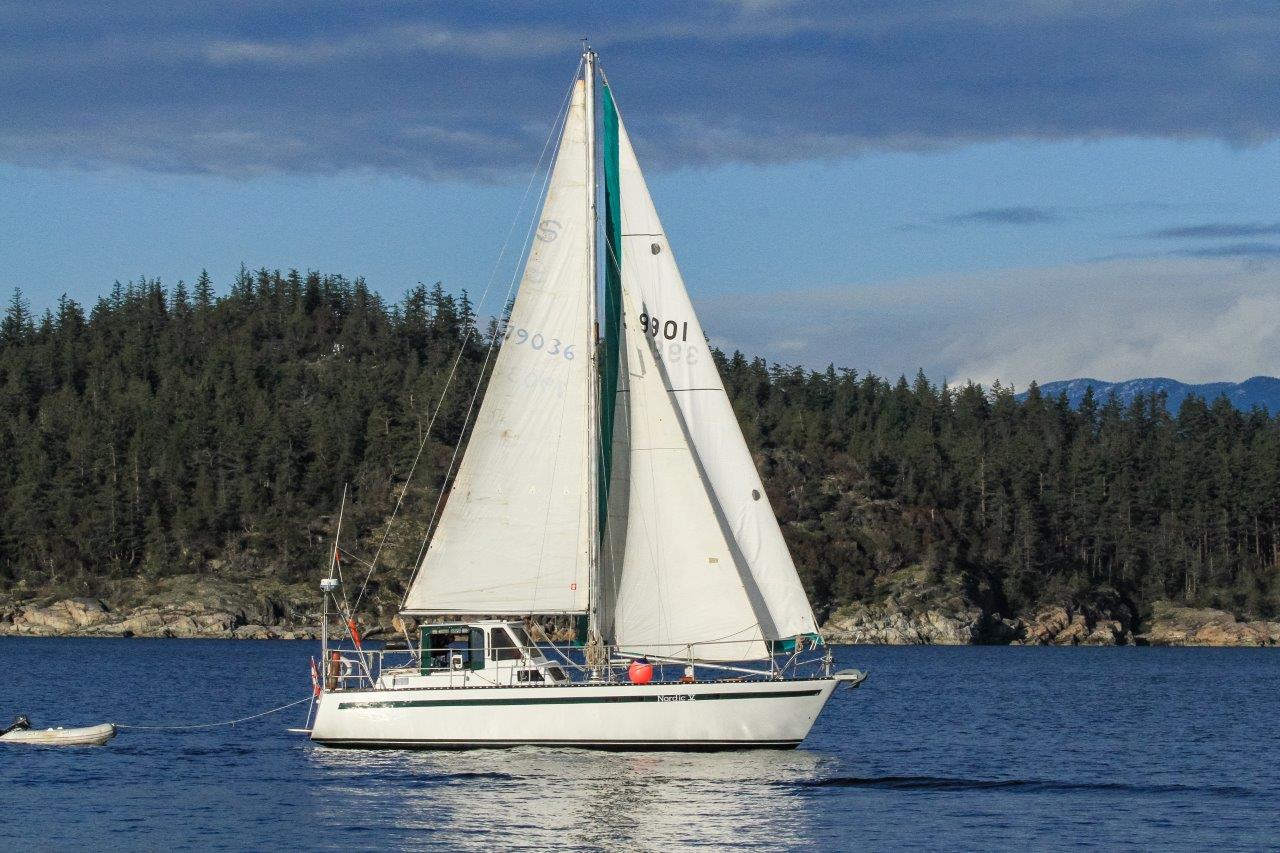

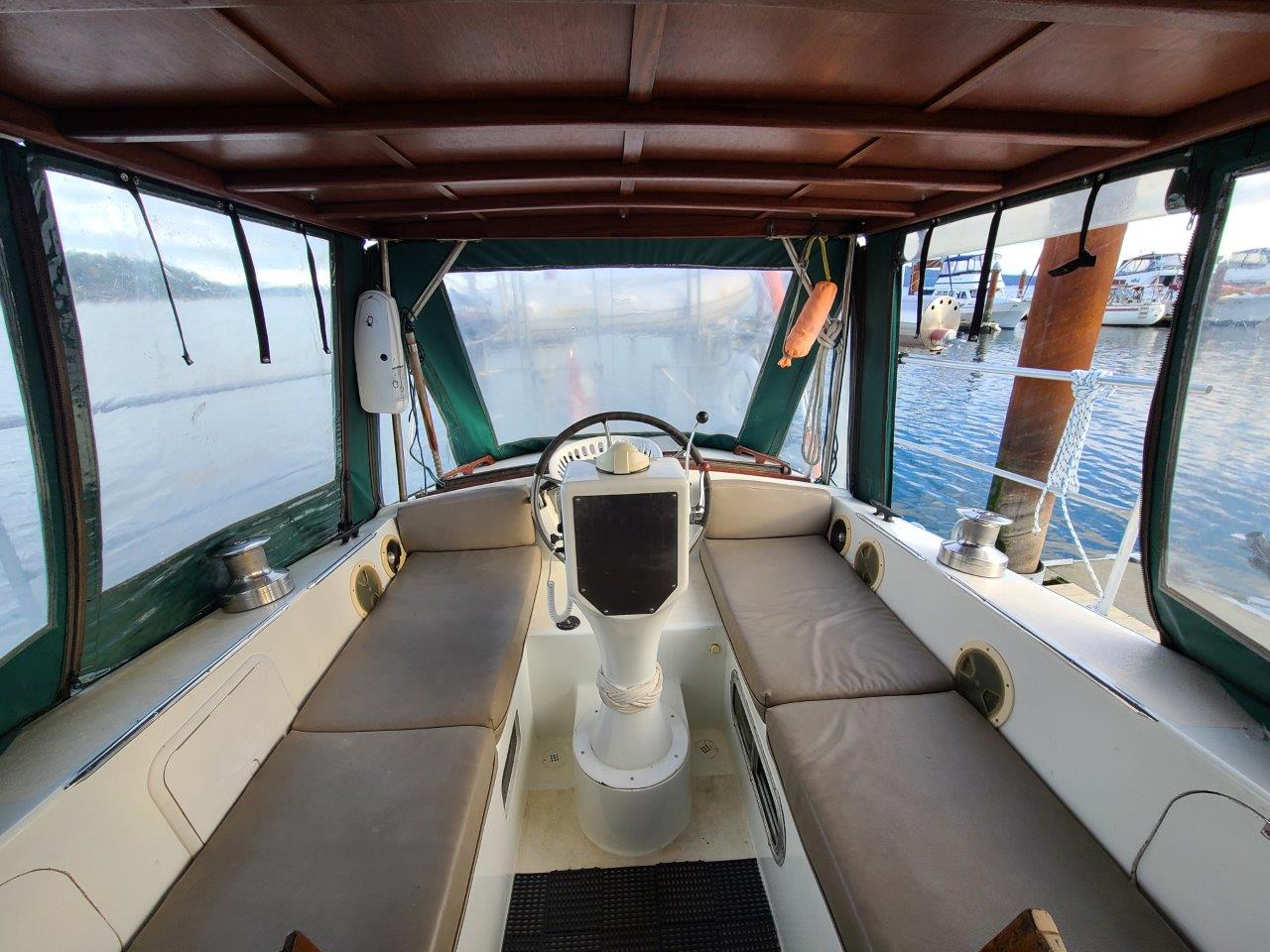

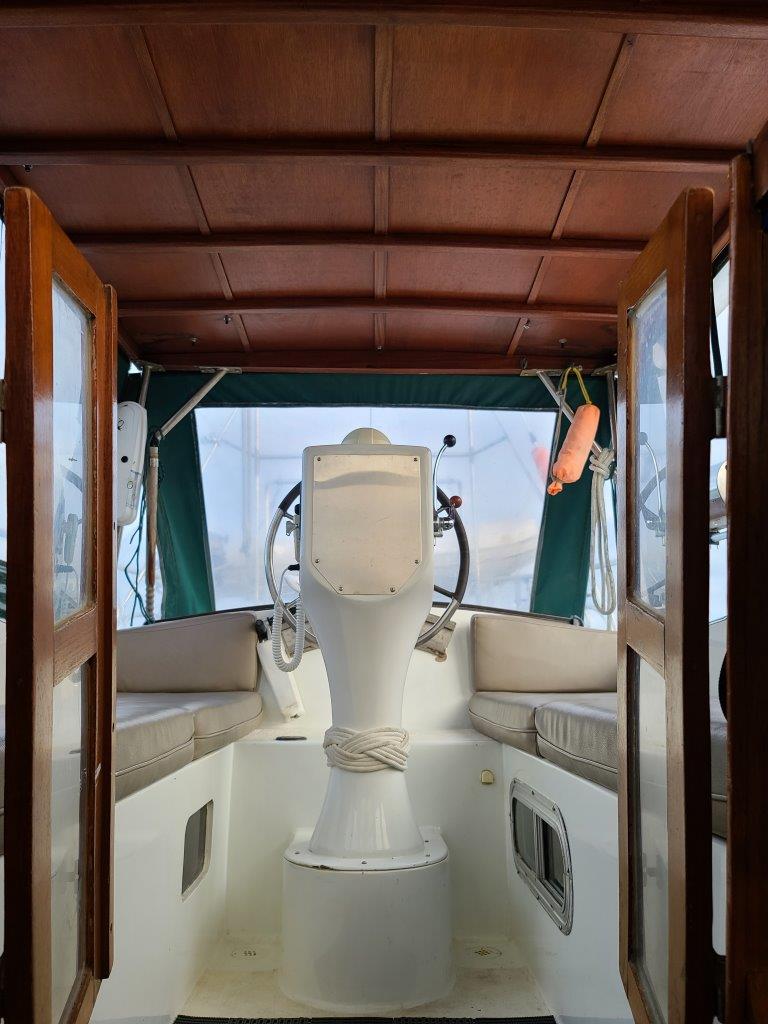

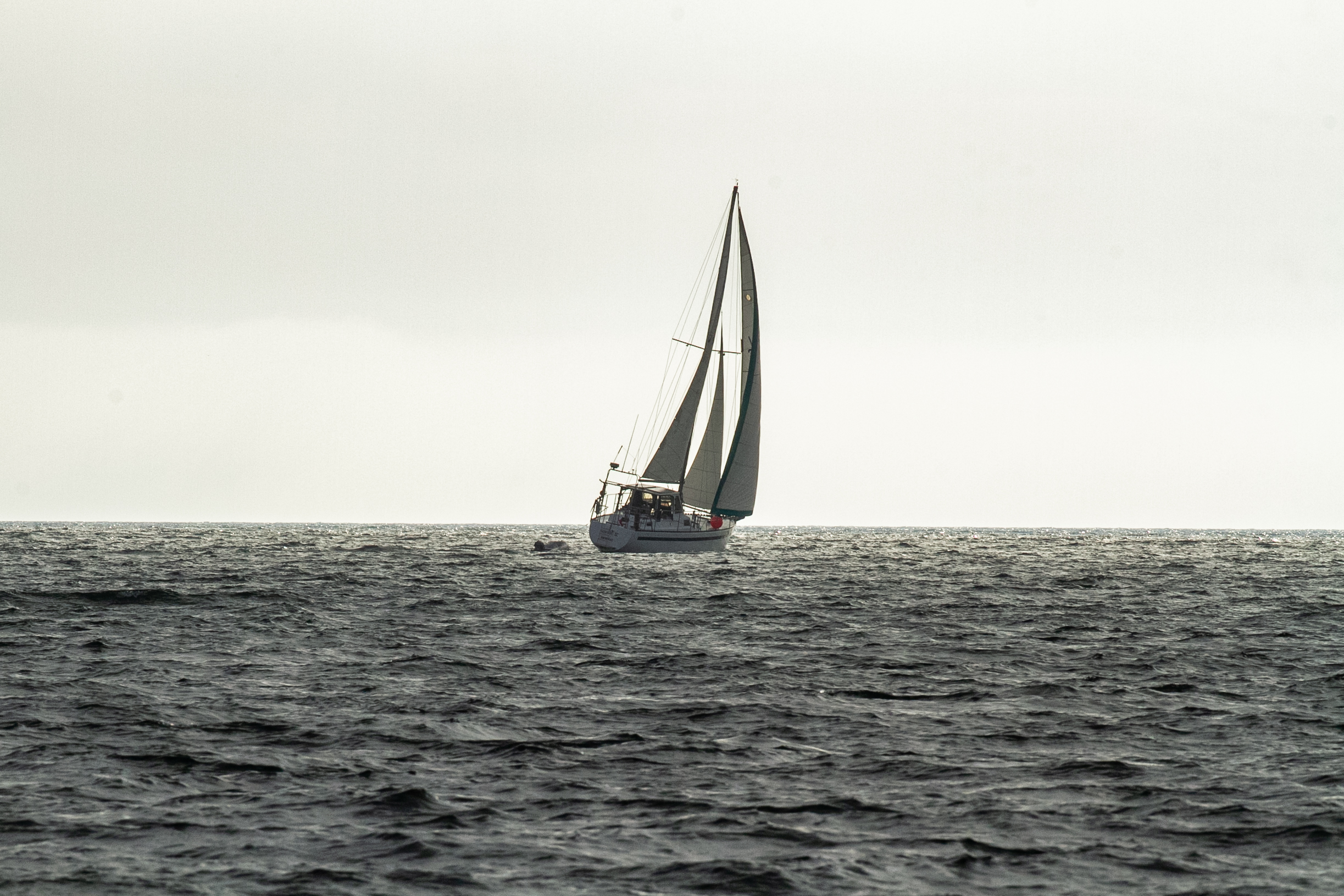

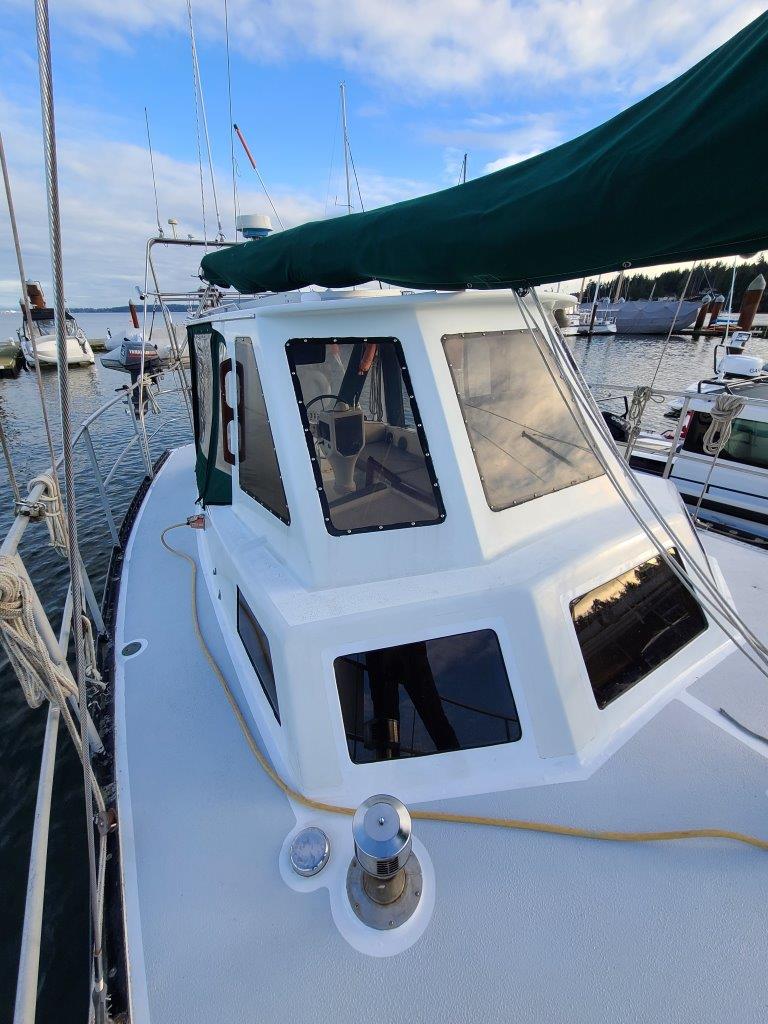

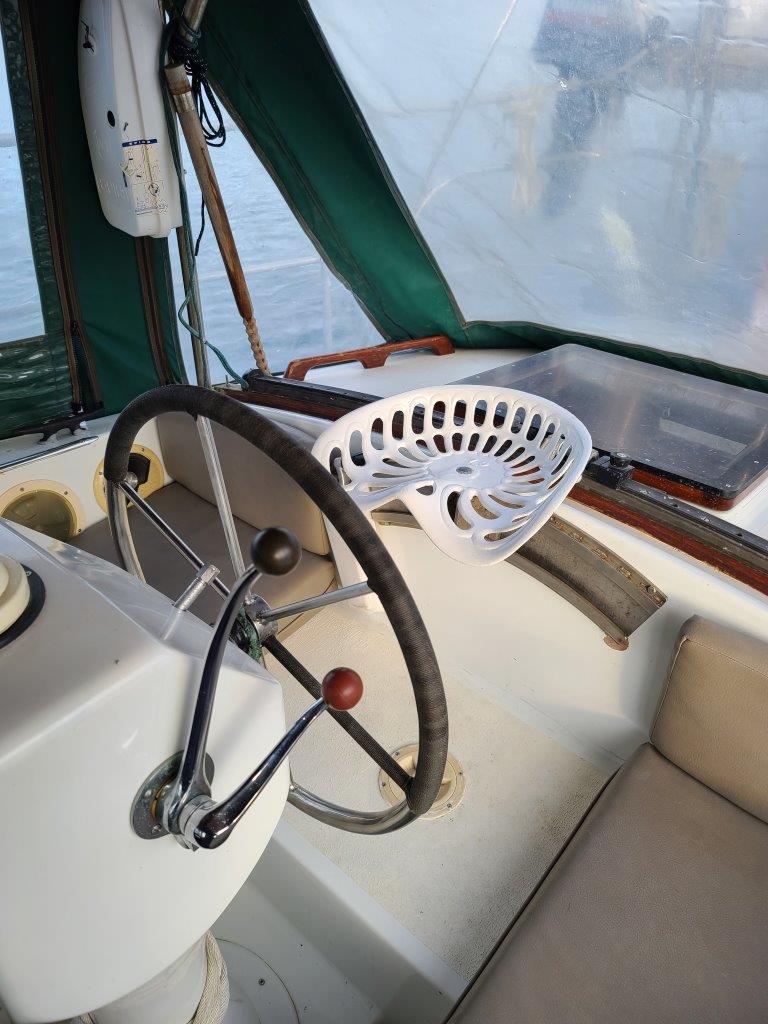

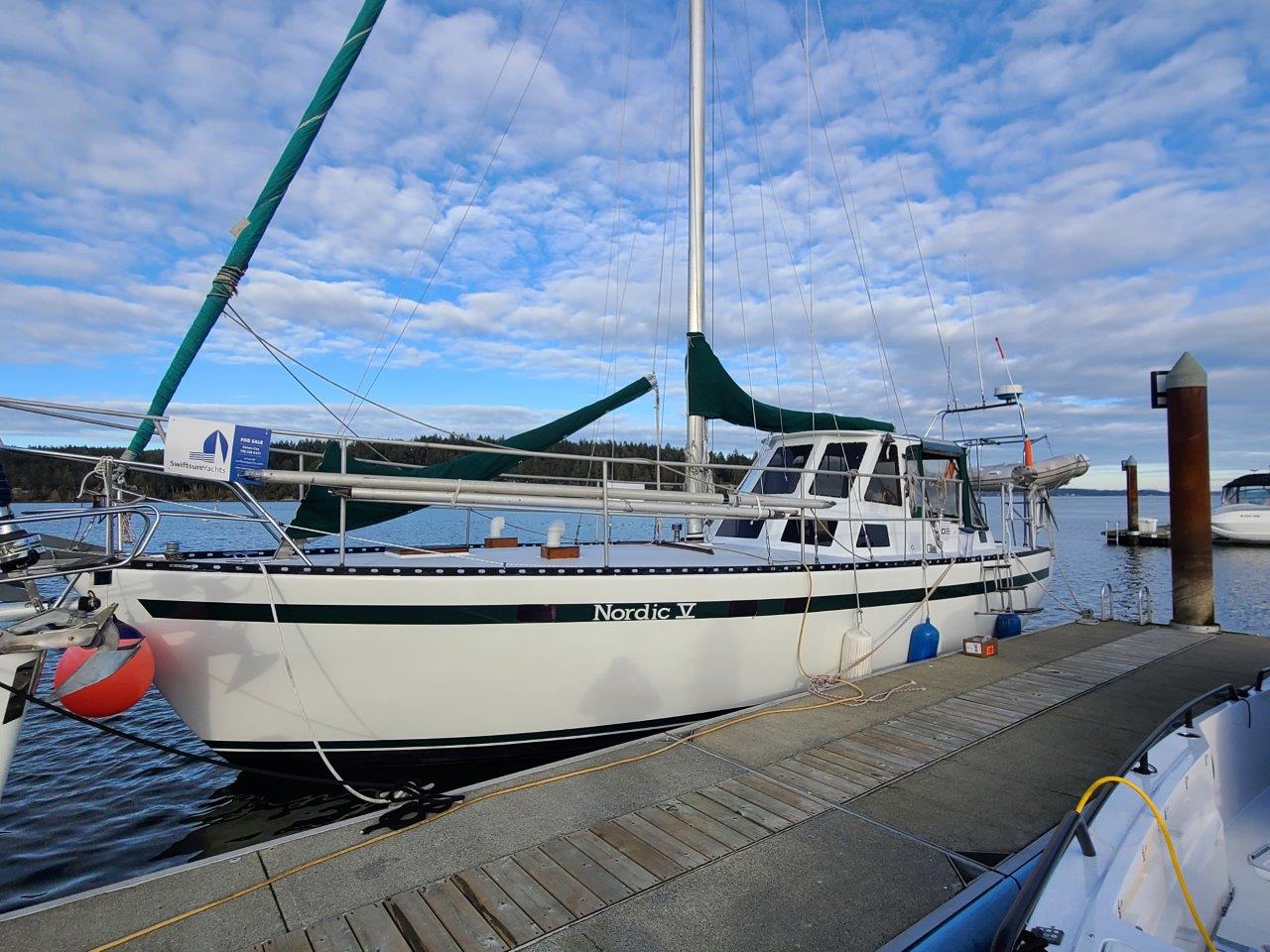

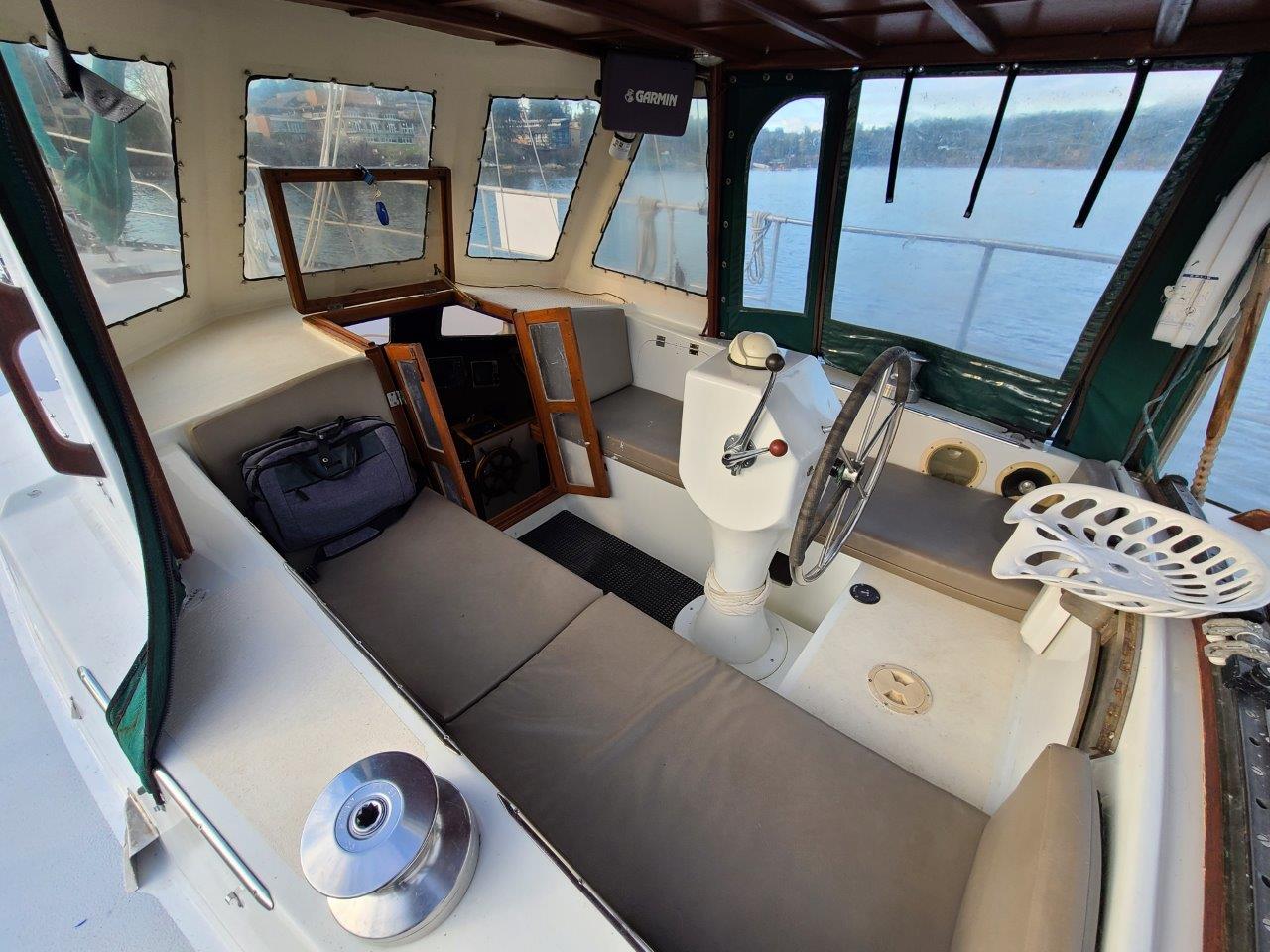

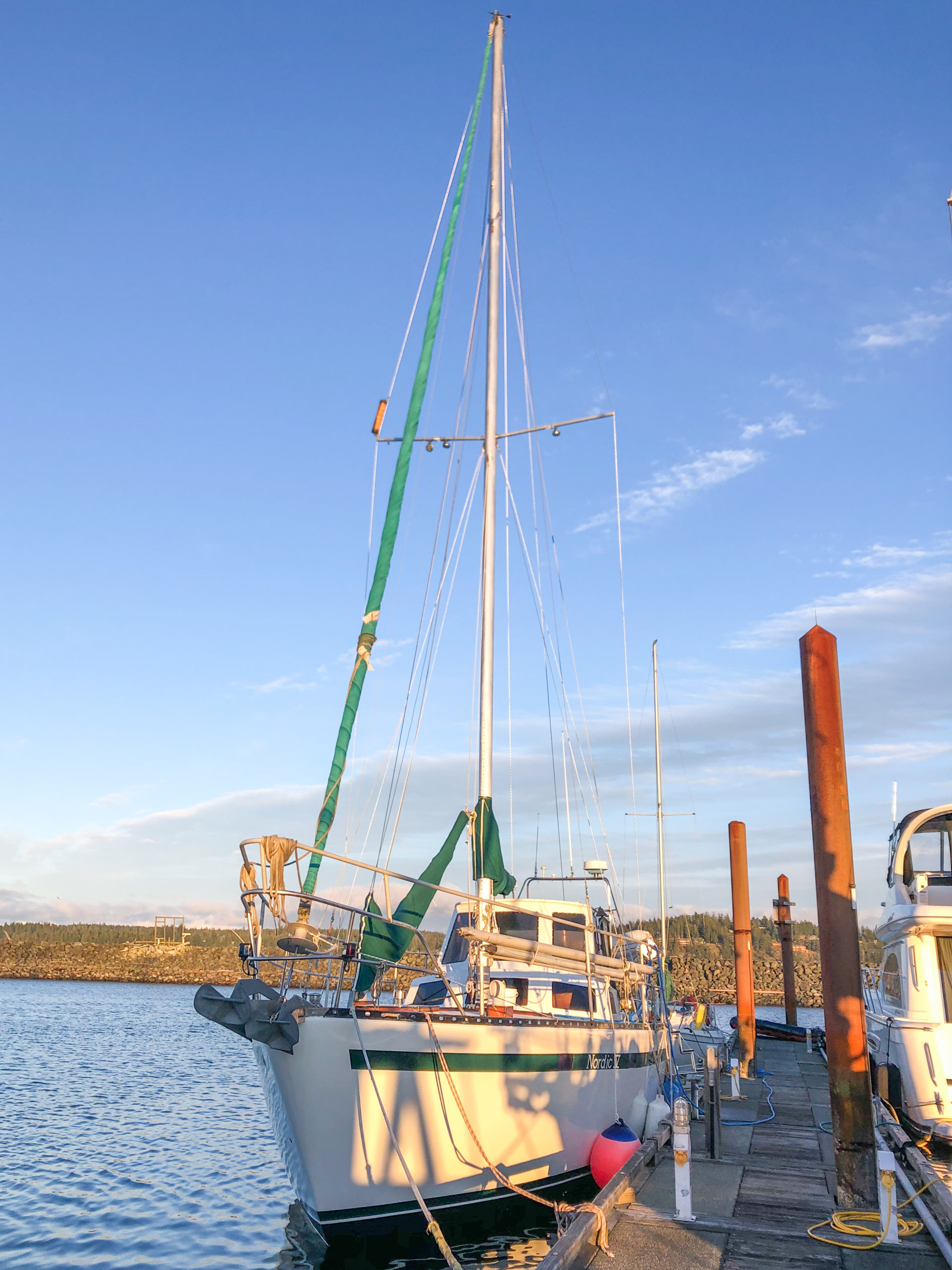

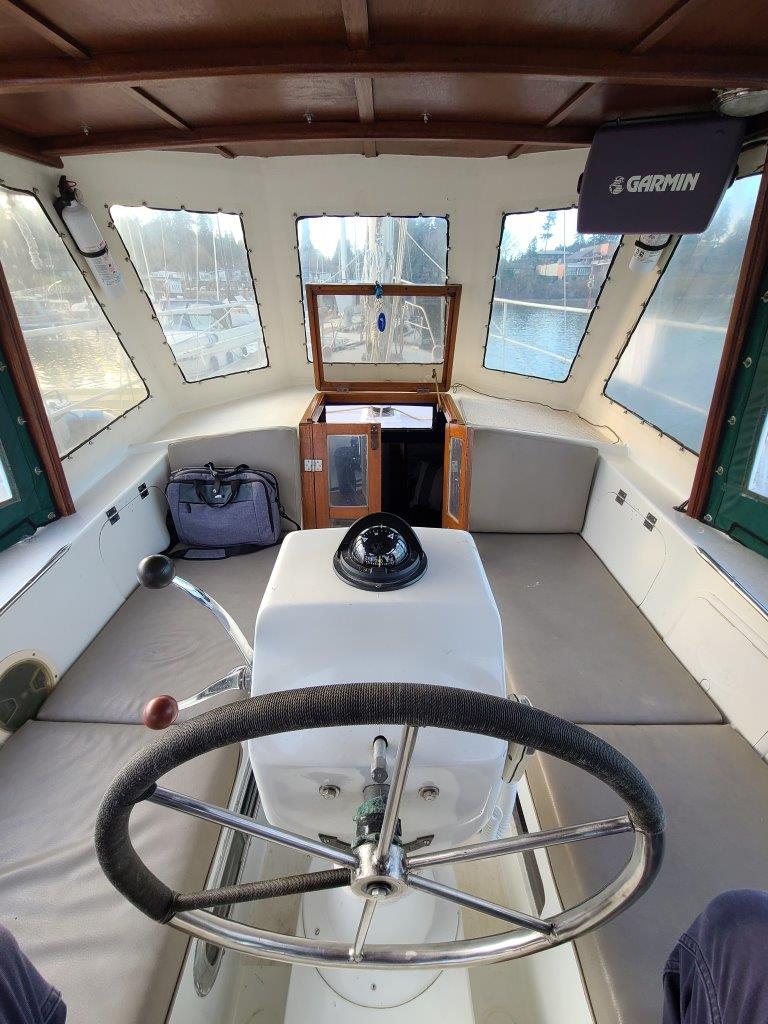

Well built, well upgraded and re-powered, Nordic V is turn-key ready for her next owners. The Pedersen 45 Cutter is a versatile pilothouse design that was custom built by British Columbia boat builder Peter Pedersen. The design features dual helms: an interior pilothouse helm station and a helm in the well protected center cockpit. Below the waterline the design features a very modern hull shape. This, combined with a proportionally slender beam of 13-feet and a cored hull, provide the boat with a remarkably quick hull speed.

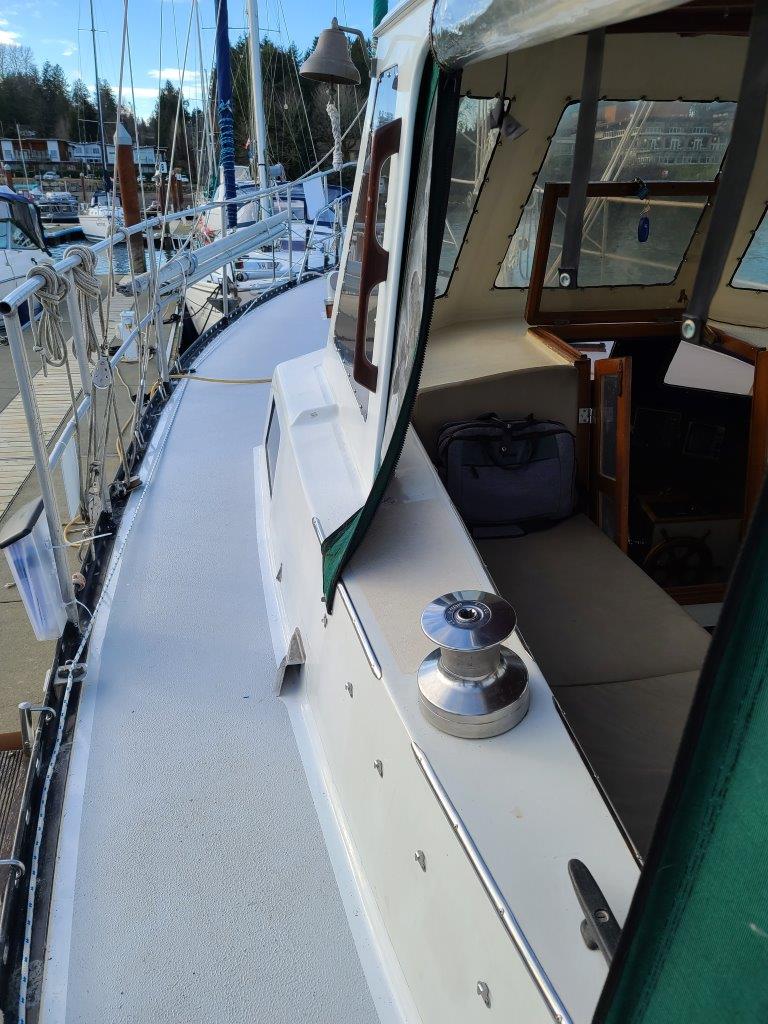

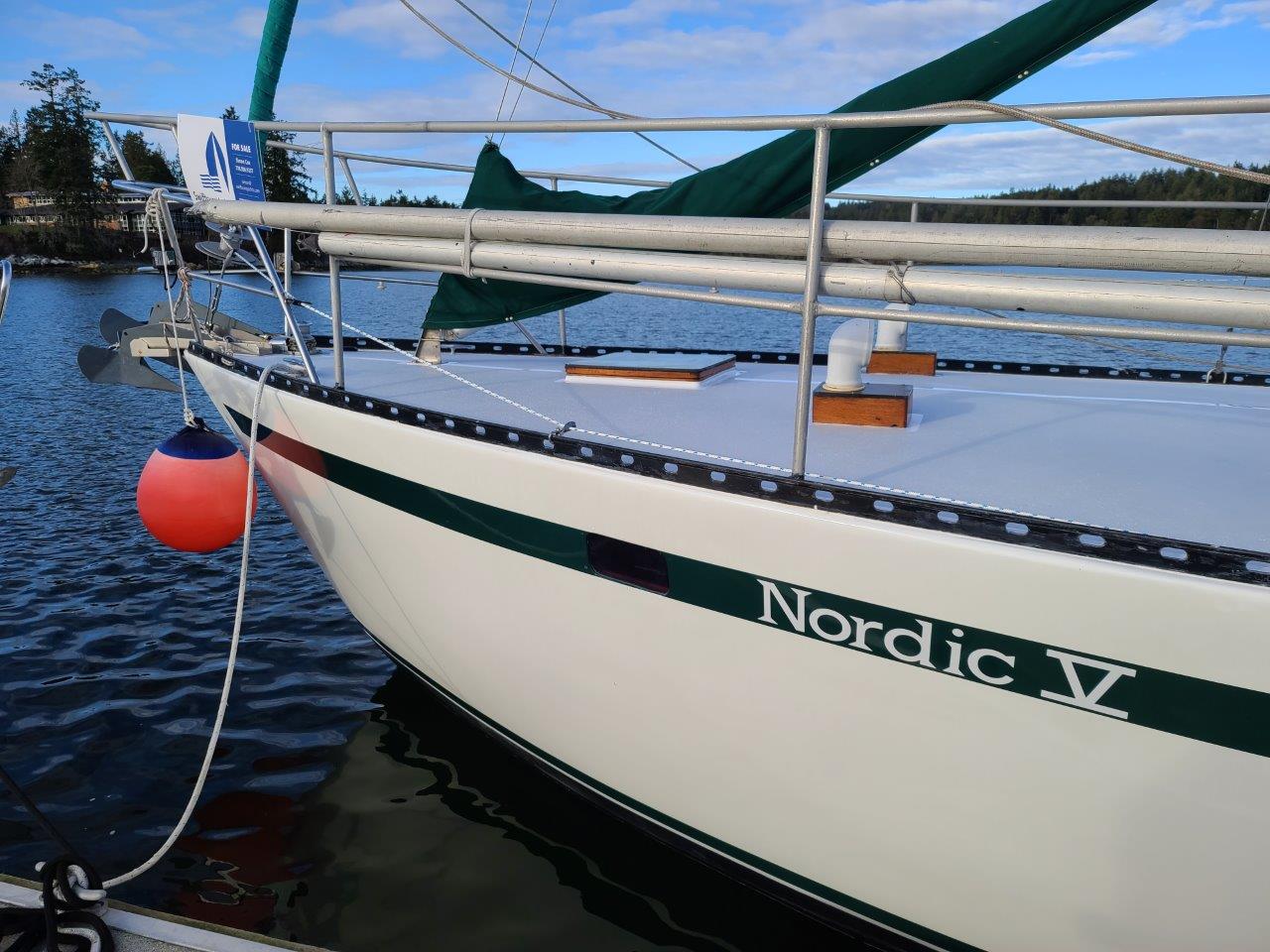

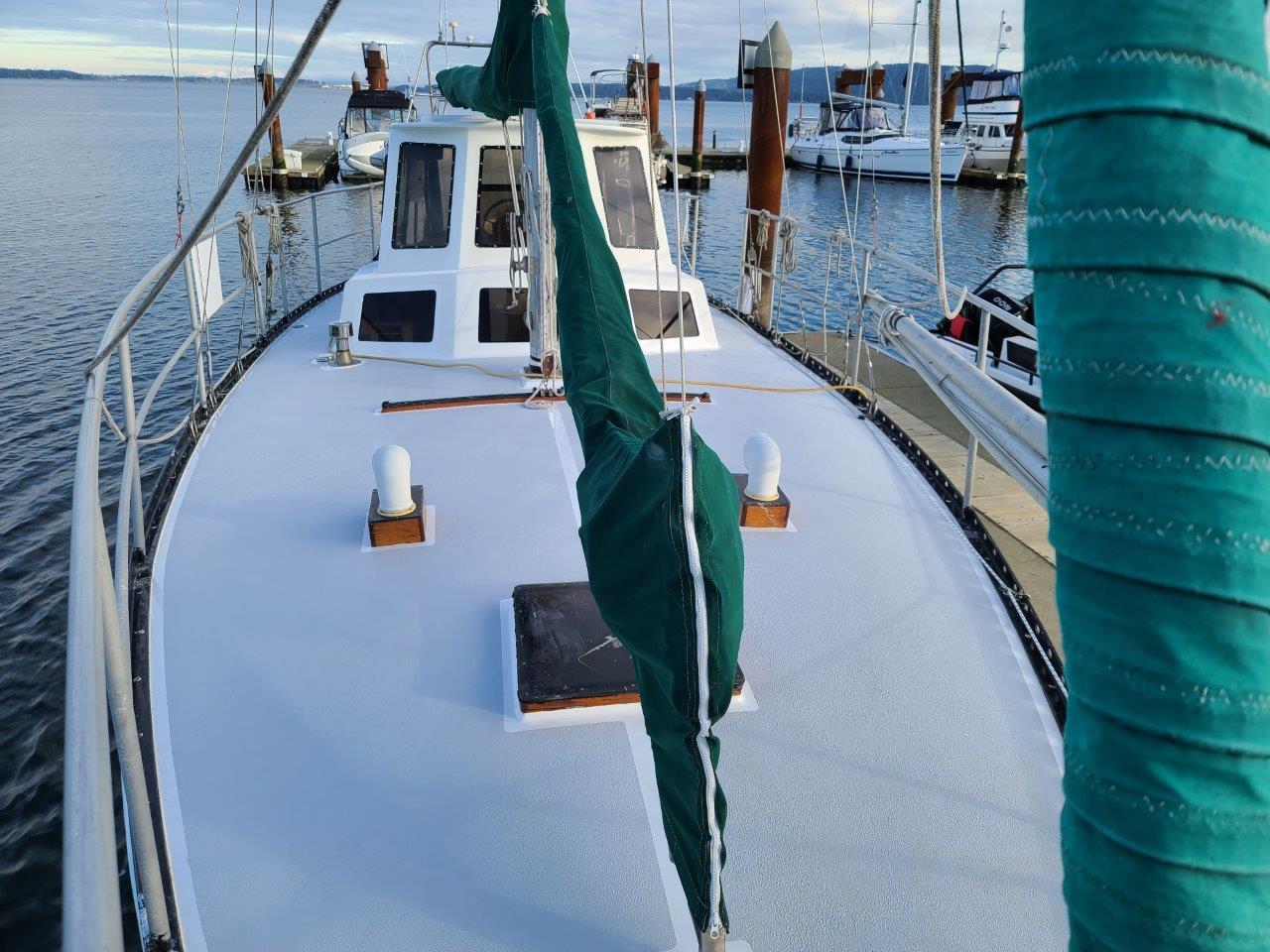

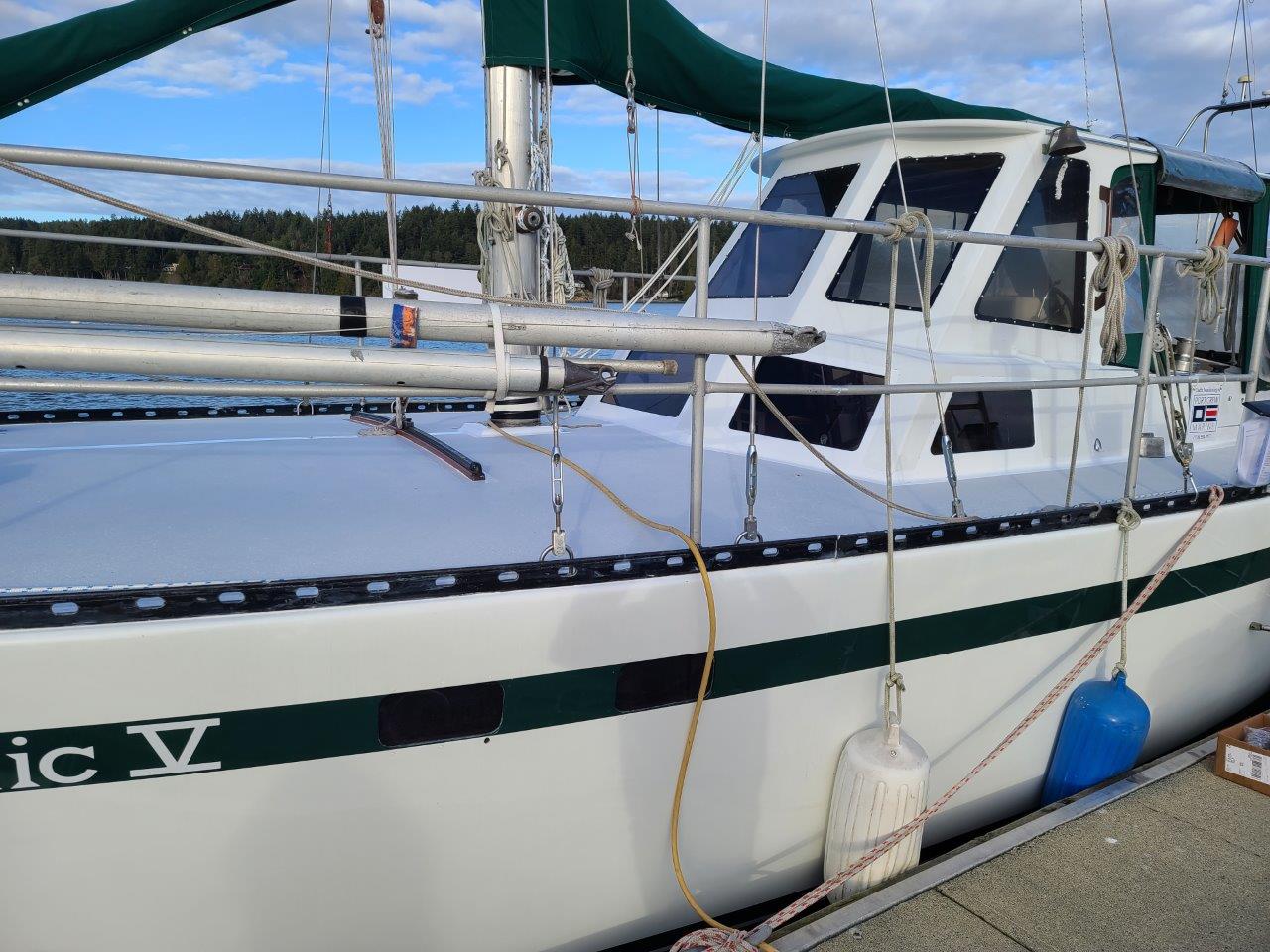

Flush decks with a fresh finish of Kiwi Grip make for safe and comfortable footing for working and maneuvering while aboard. The standard height life lines were replaced by a raised custom welded aluminum railing. A custom stern arch with dinghy davits and a brand new custom swim grid dress the stern.
The overall size and layout of the vessel makes it an ideal candidate for many local and extended cruising adventures. Excellent live-aboard potential, too. Taking her higher than average condition and recent upgrades into consideration, Nordic V offers an exceptional value for a pilothouse of this size and quality.
Name of vessel | Nordic V |
Model | Pedersen 45 Pilothouse Cutter |
Year | 1975 |
Builder | Peter Pedersen (BC, Canada) |
Designer | |
Price | $89,000 Canadian Dollars |
Location | OUR DOCKS - Mill Bay, BC |
Length (feet) | 45 |
Beam (feet) | 13 |
Draft (feet) | 6 |
Displacement (pounds) | 36,400 |
Ballast (pounds) | |
Engine model | Yanmar 4JH4E |
Engine horsepower | 55 |
Engine hours | 1600 +/- |
Fuel tank capacity (gallons) | 183 |
Water tank capacity (gallons) | 251 |
Holding tank capacity (gallons) | 24 |
Year……………………………………………………………. 1975
Builder………………………………….. Peter Pedersen (CAN)
LOA……………………………………………………………….. 45’
LWL………………………………………………………………. 38’
Beam……………………………………………………………… 13’
Draft………………………………………………………………… 6’
Displacement…………………………………………. 36,400 lbs
Ballast………………………………….. cast-iron, incapsulated
Hull………………………………………. fiberglass, balsa-cored
Deck……………………………………………………… fiberglass
Steering……………………………………………… dual stations
Keel……………………………………………………………….. fin
Rudder…………………………………………………. skeg-hung

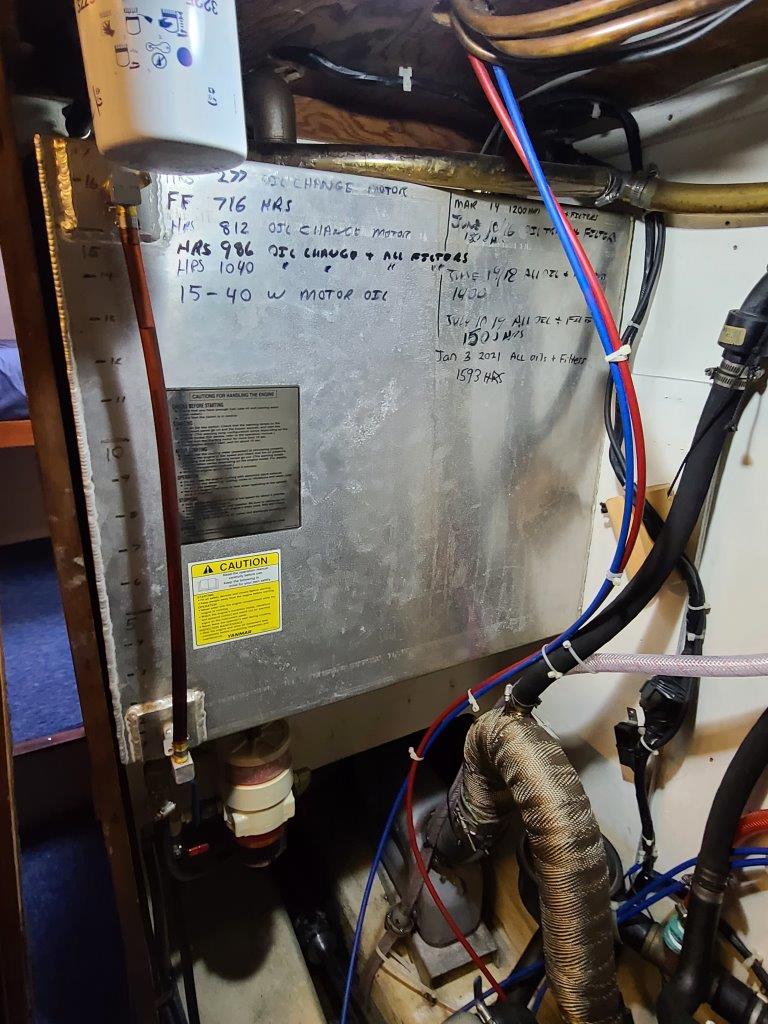

Fuel……………………… diesel, aluminum tank, 166 gallons
Fuel (day tank)……………………………………….. 17 gallons
Water………. 2x aluminum tanks, 166 gallons + 85 gallons

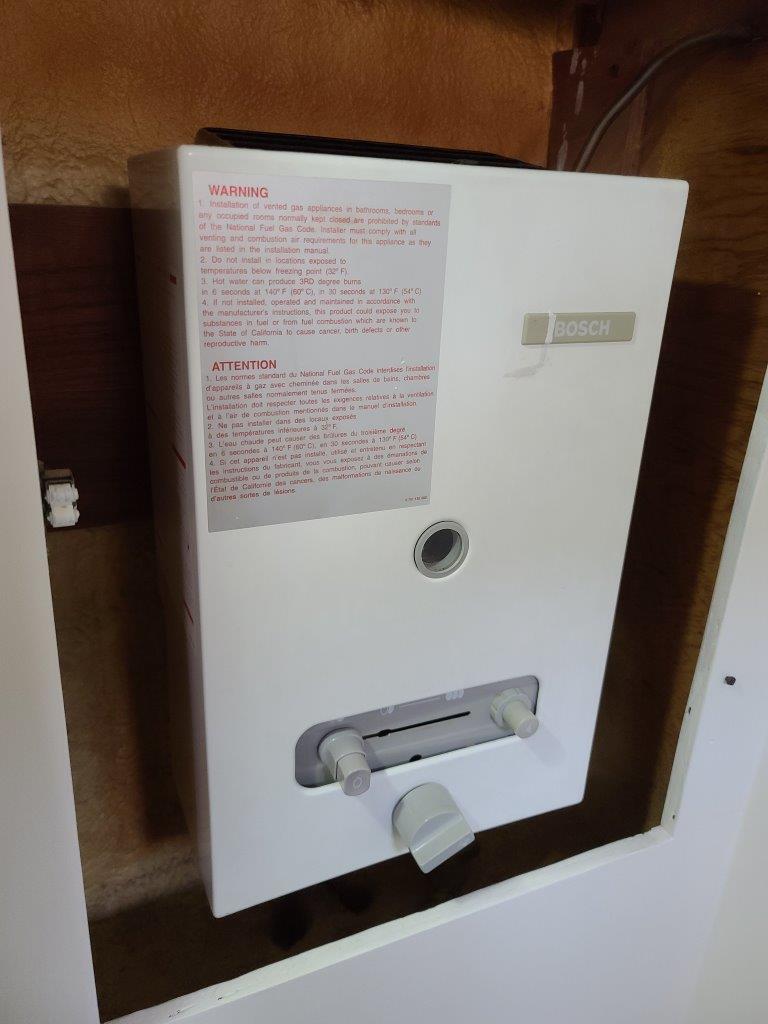

Hot Water……………………………………. Bosch on-demand
Holding Tank……… plastic, 24 gallons (not currently plumbed)
Propane……………………………… 2x 20 lb aluminum tanks
LAYOUT

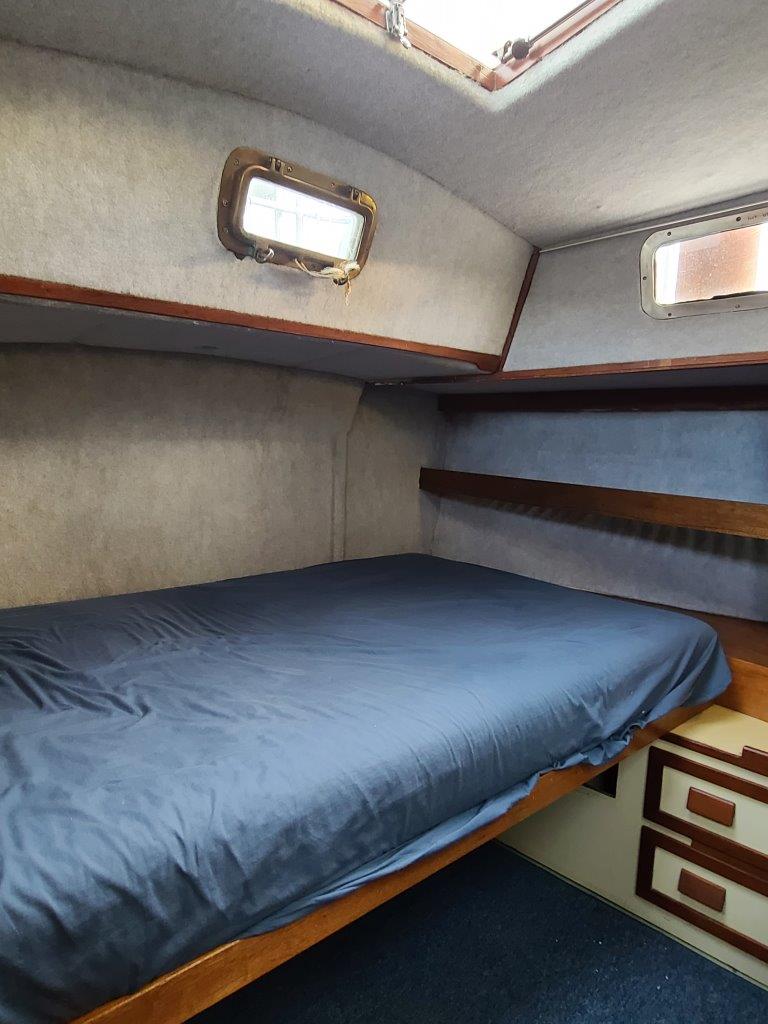

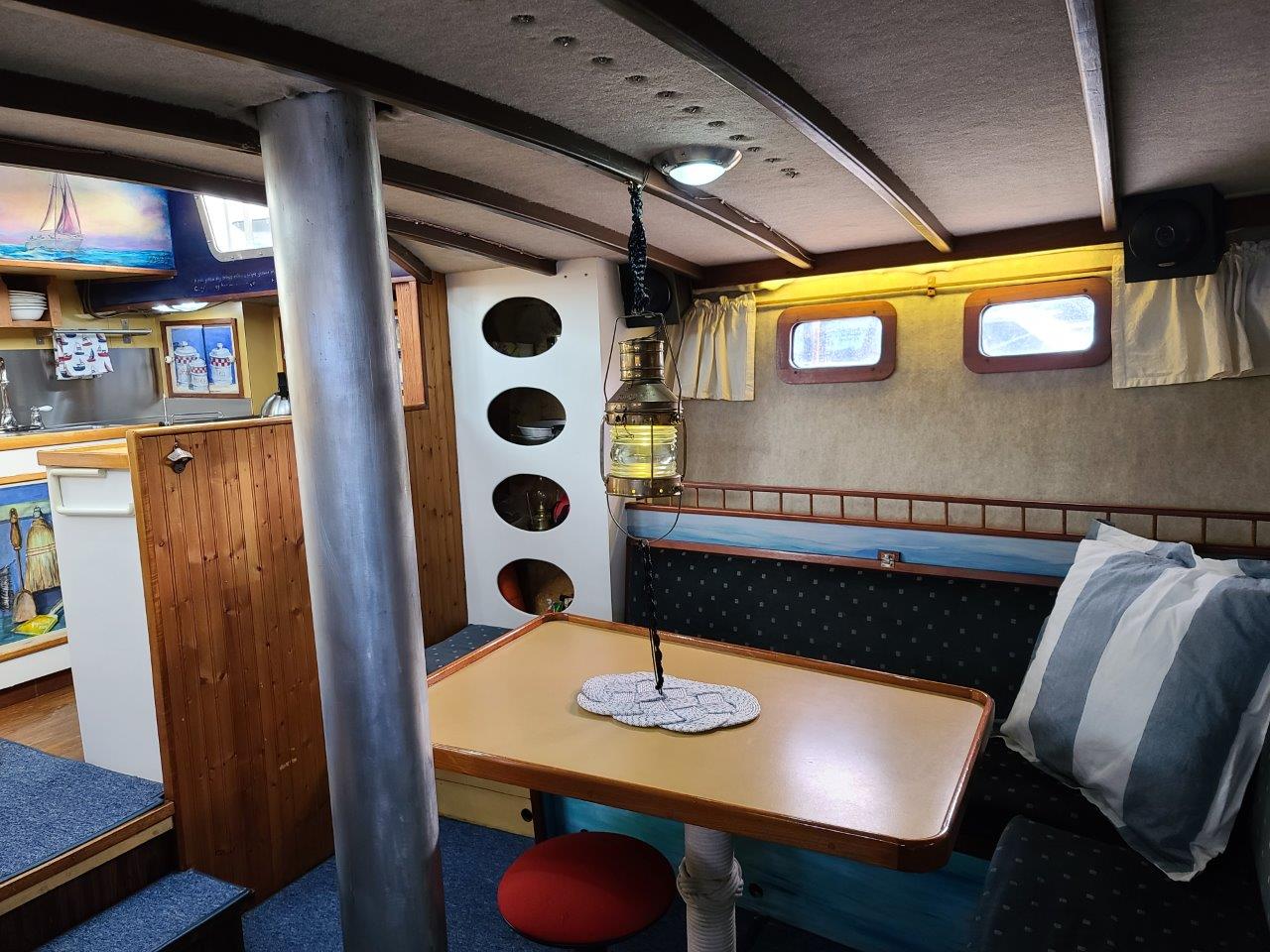

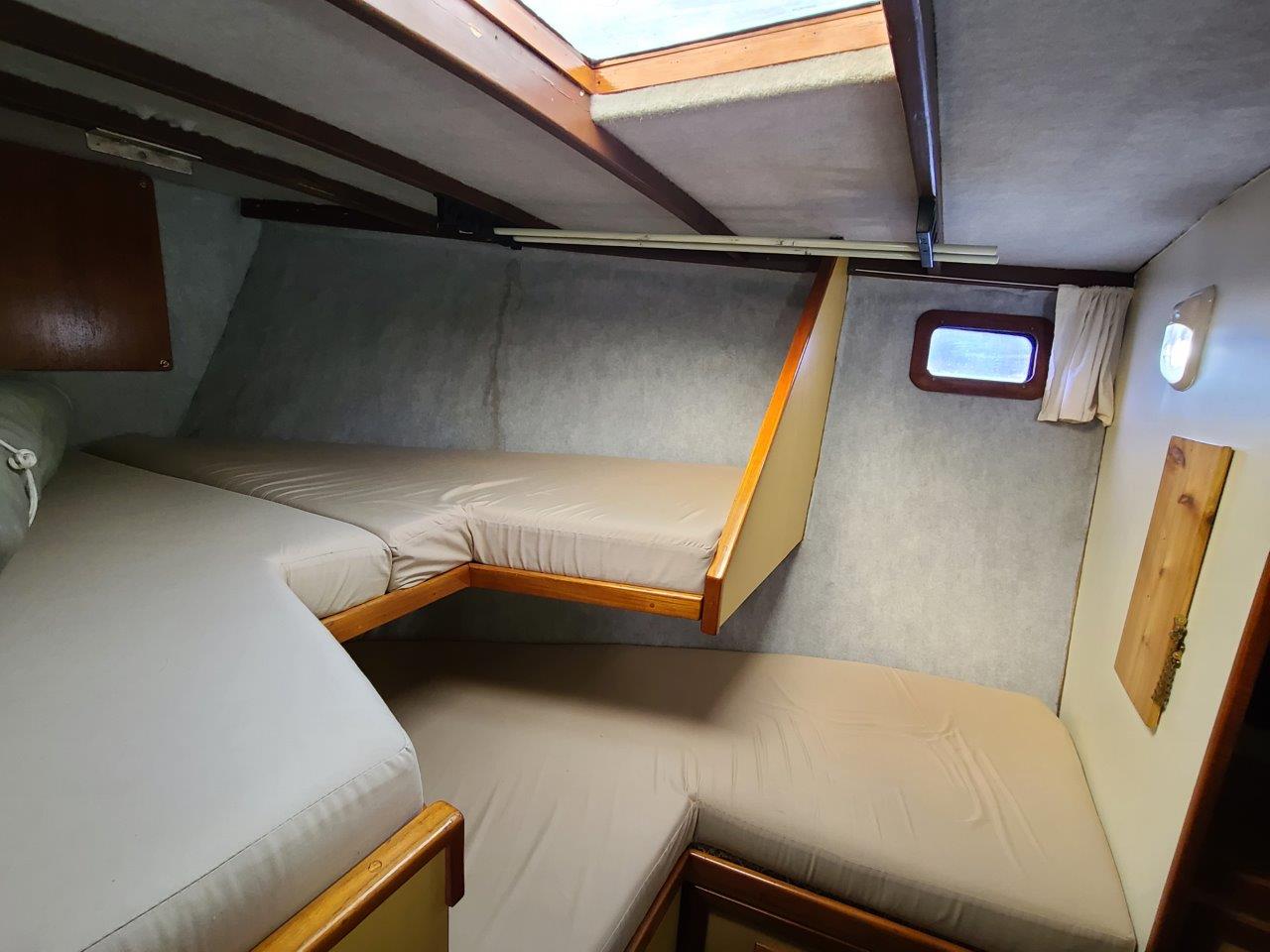

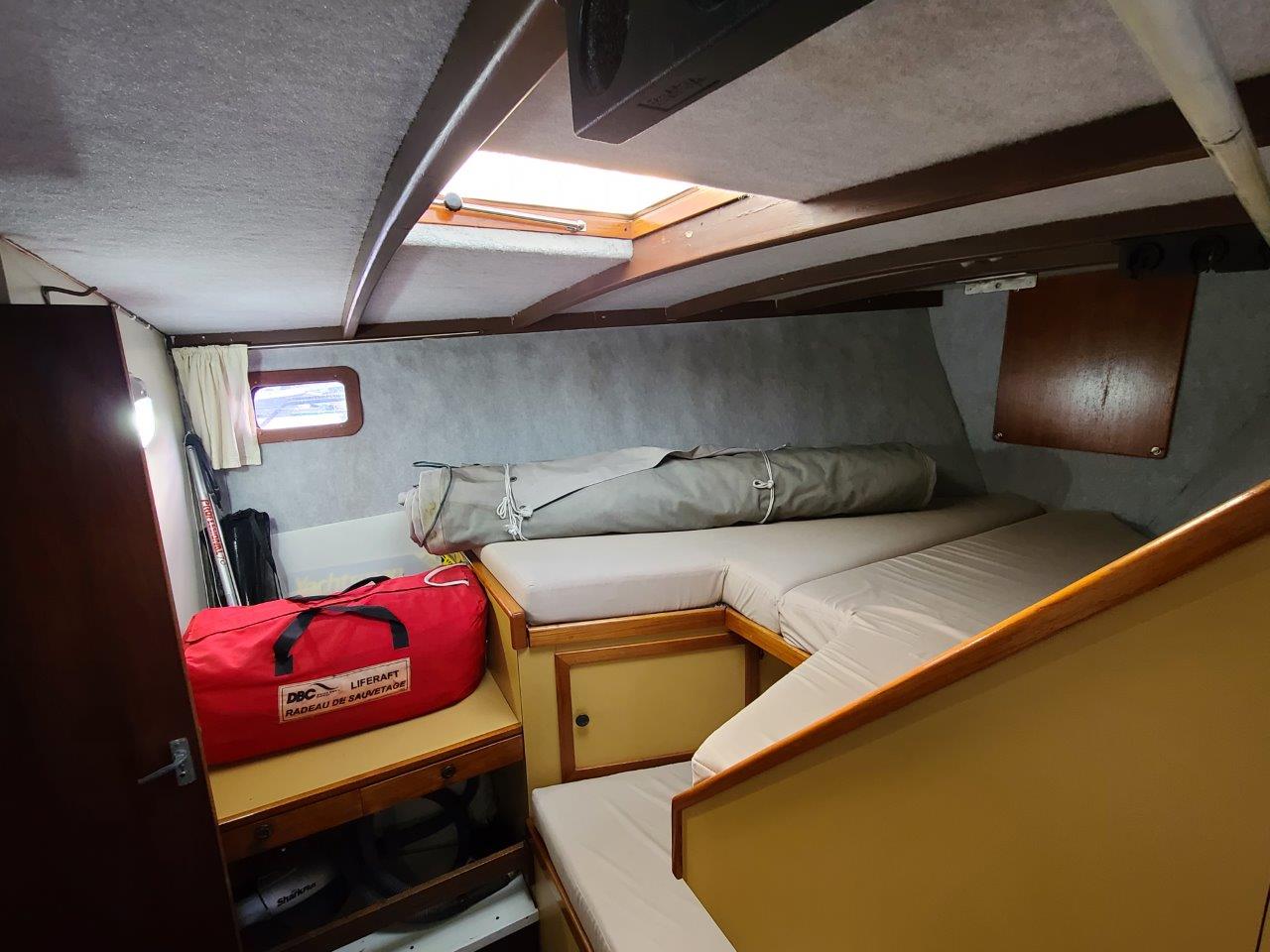

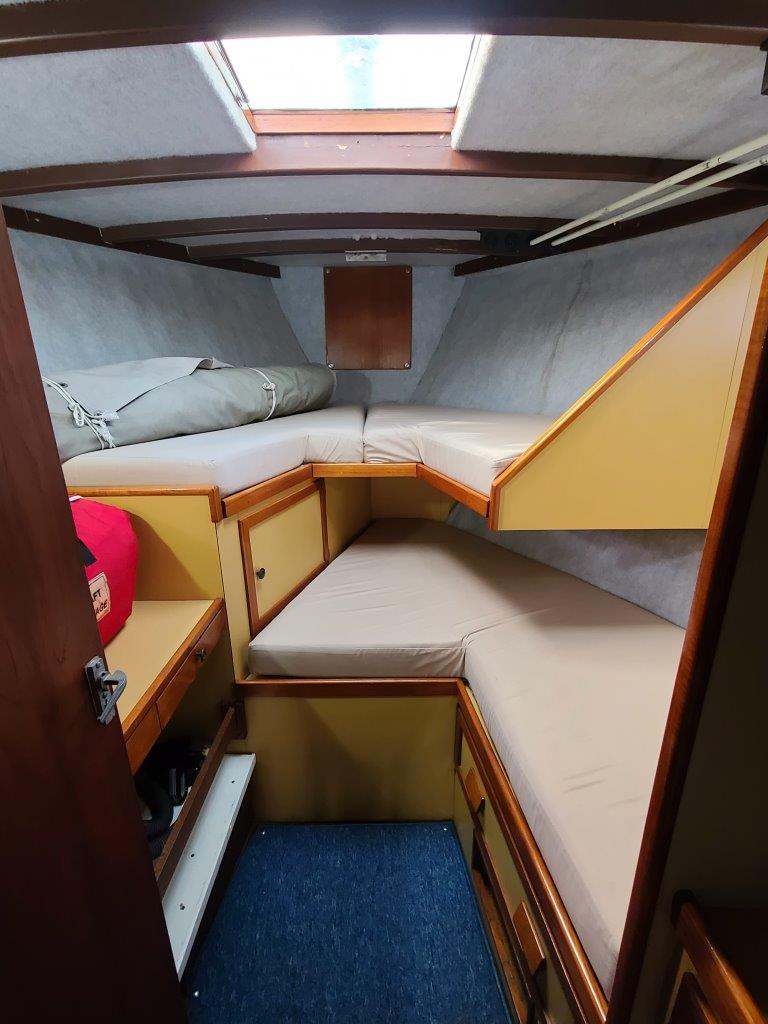

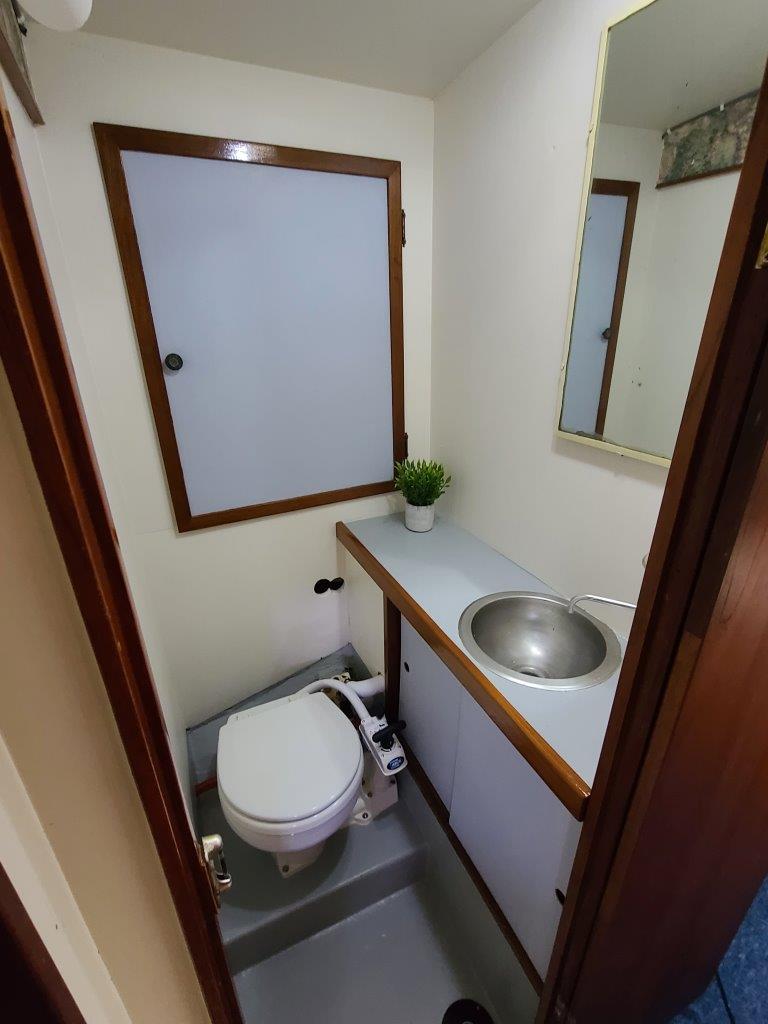

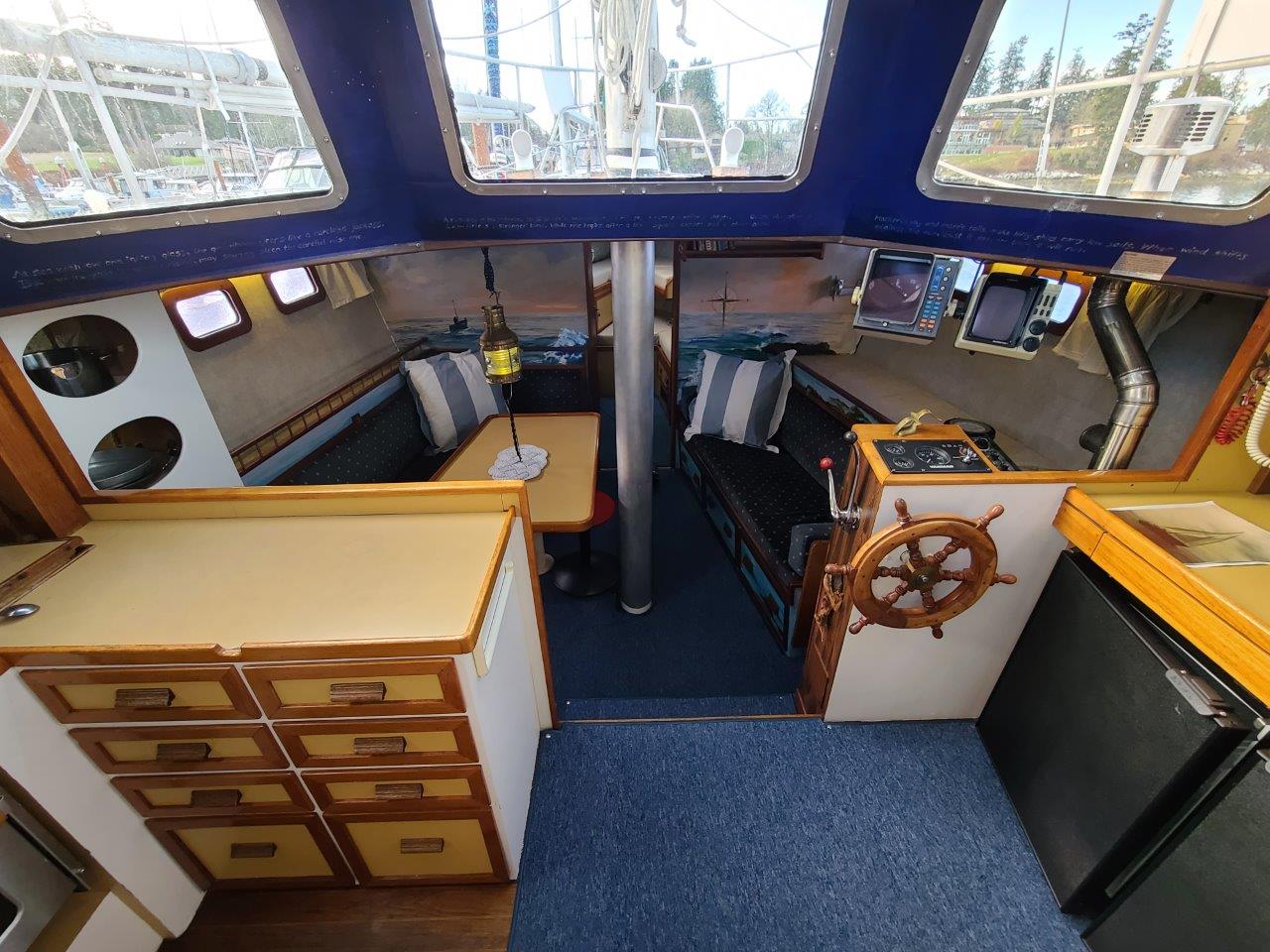

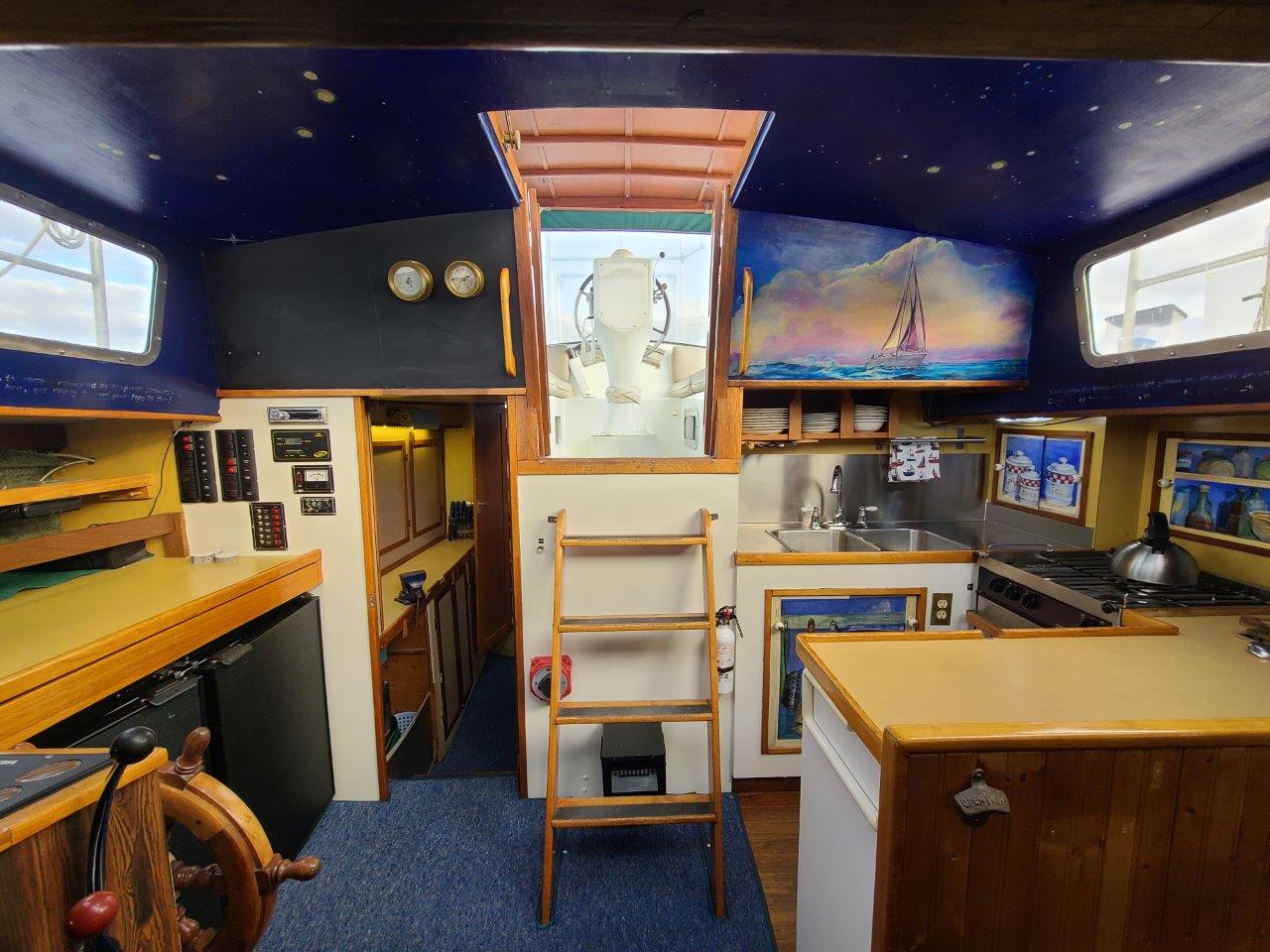

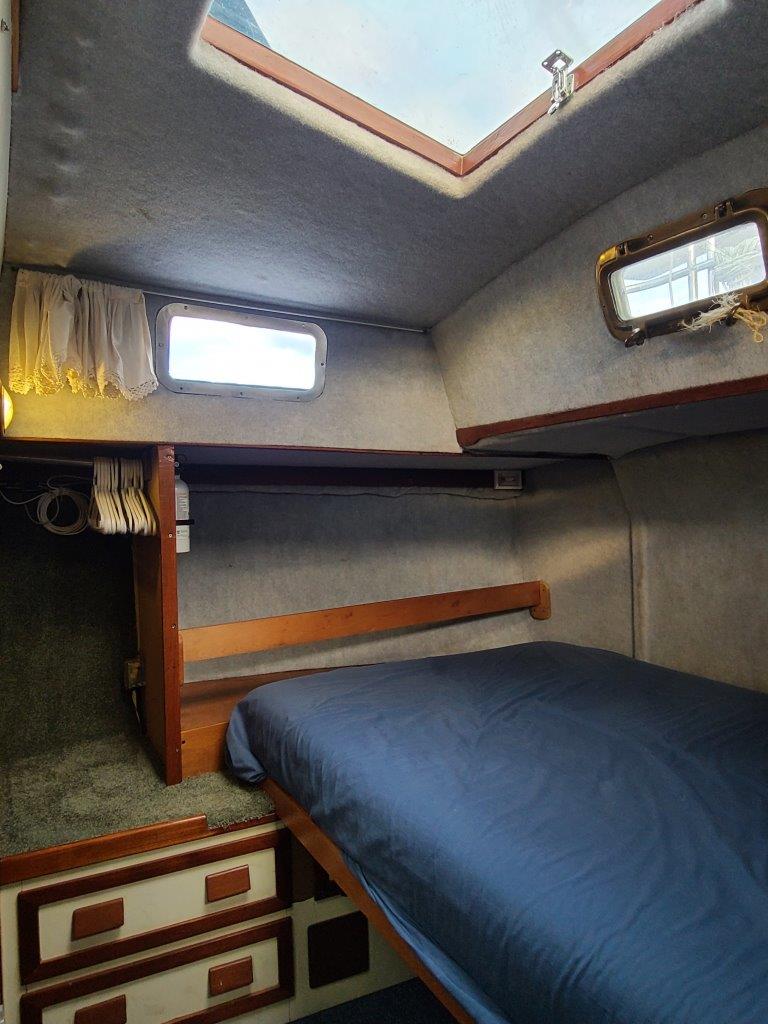

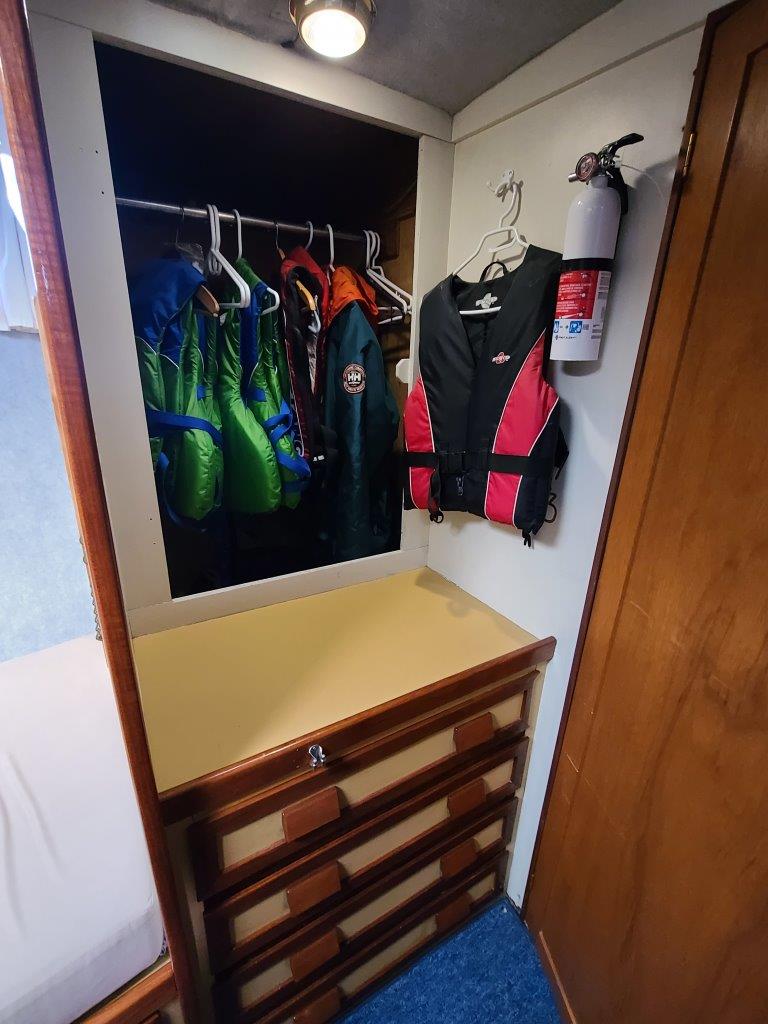

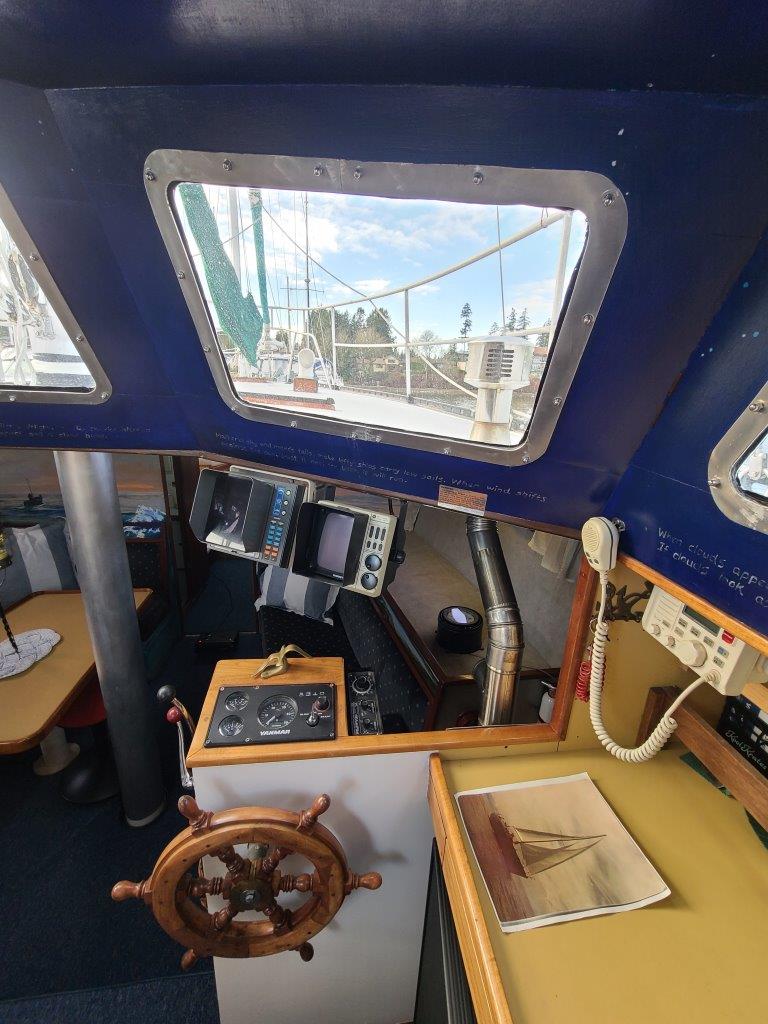

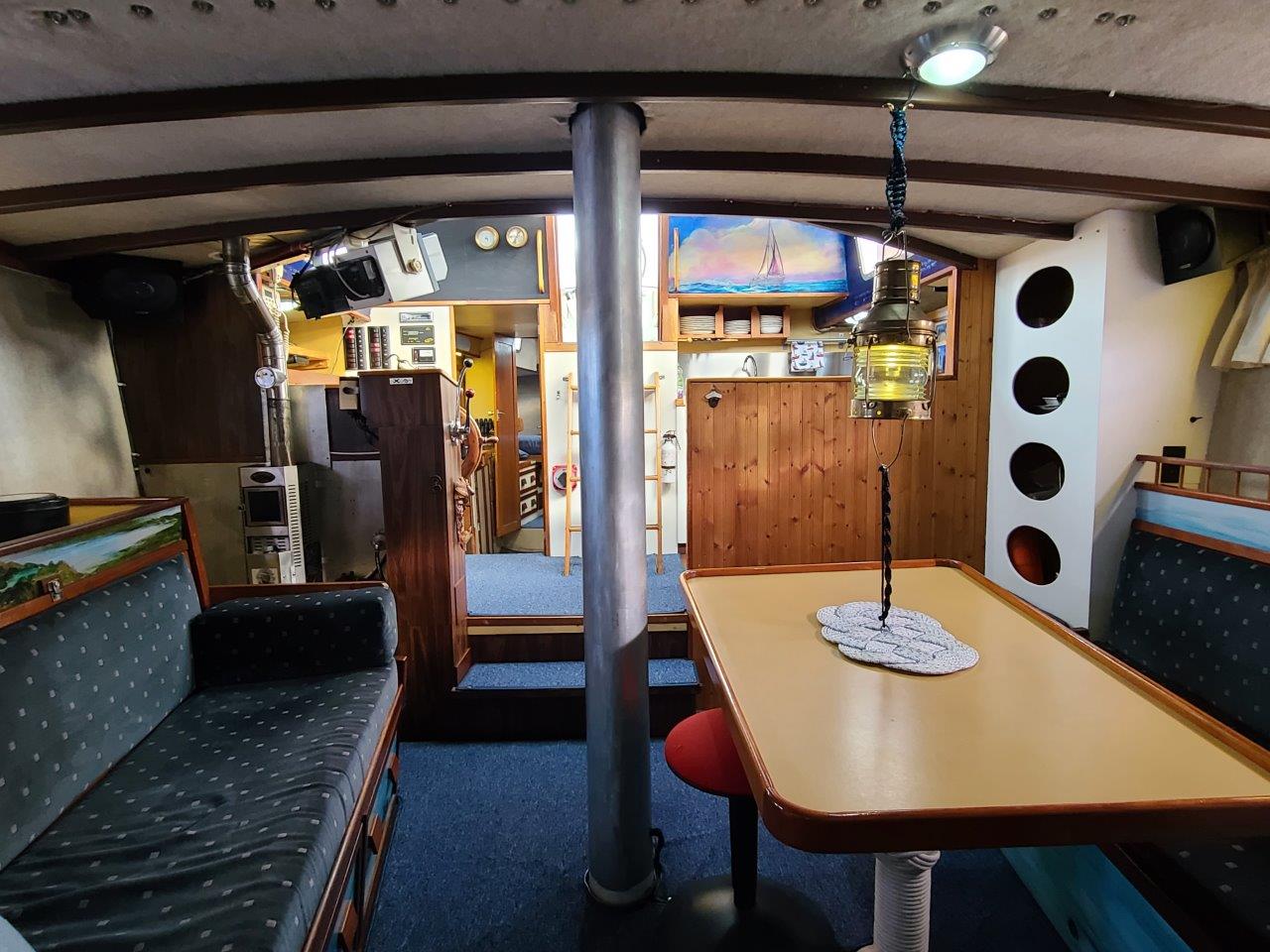

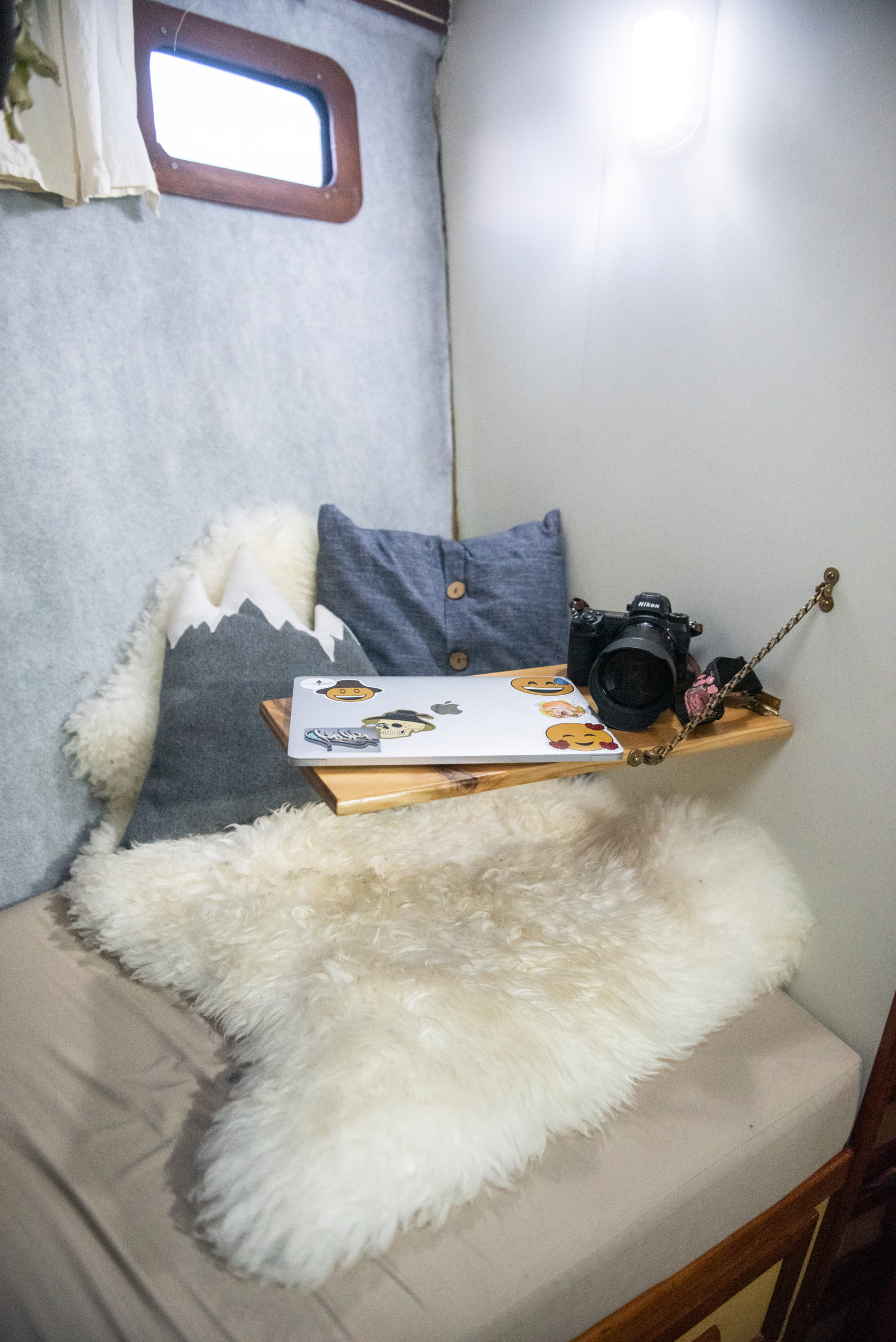

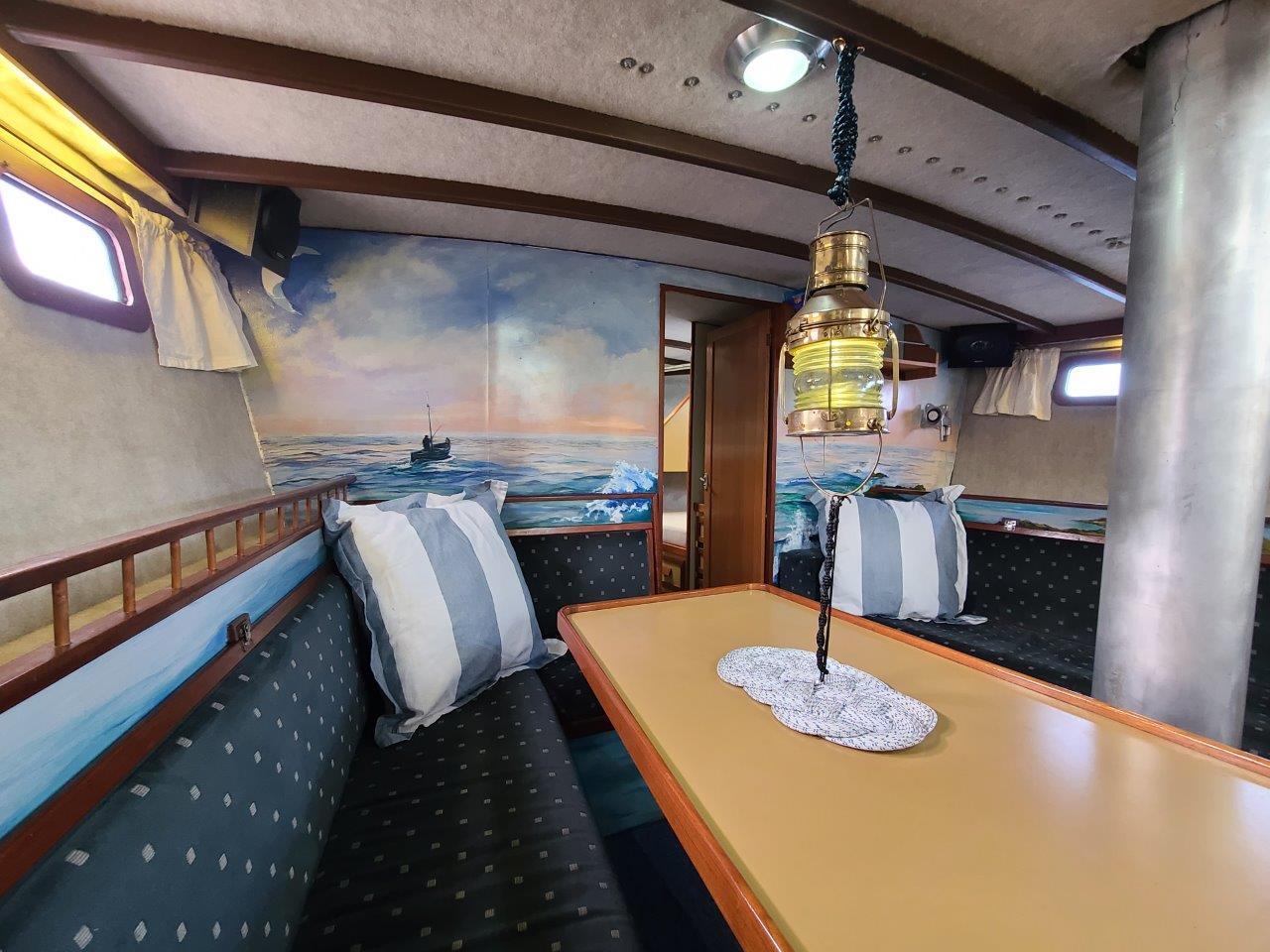

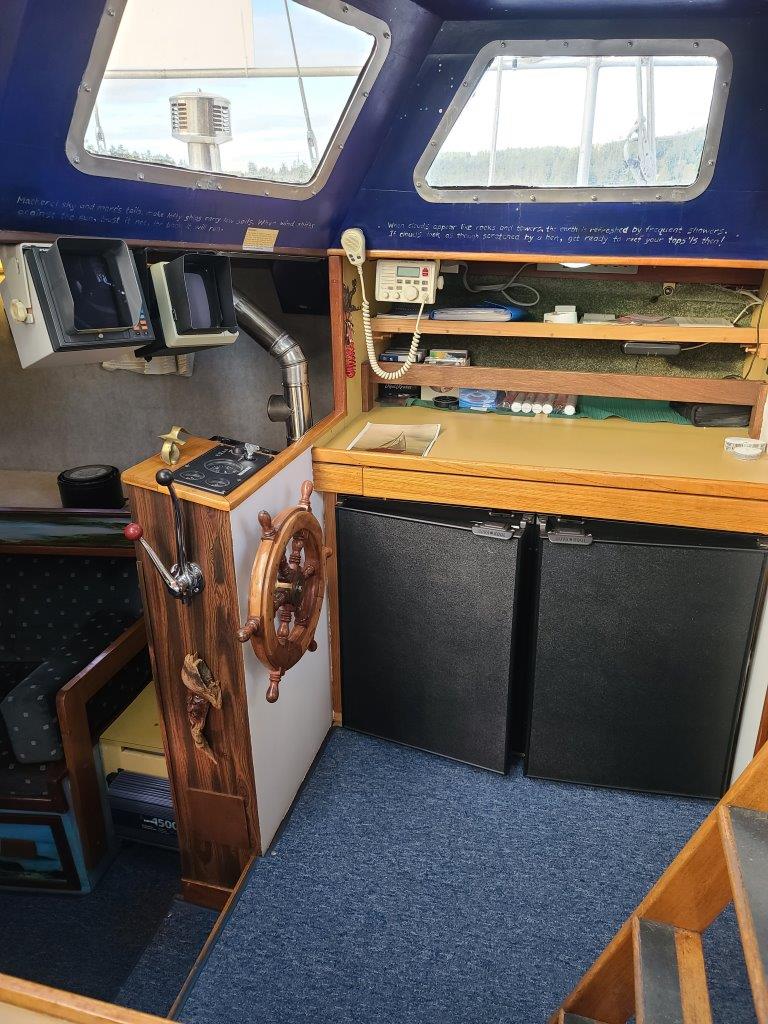

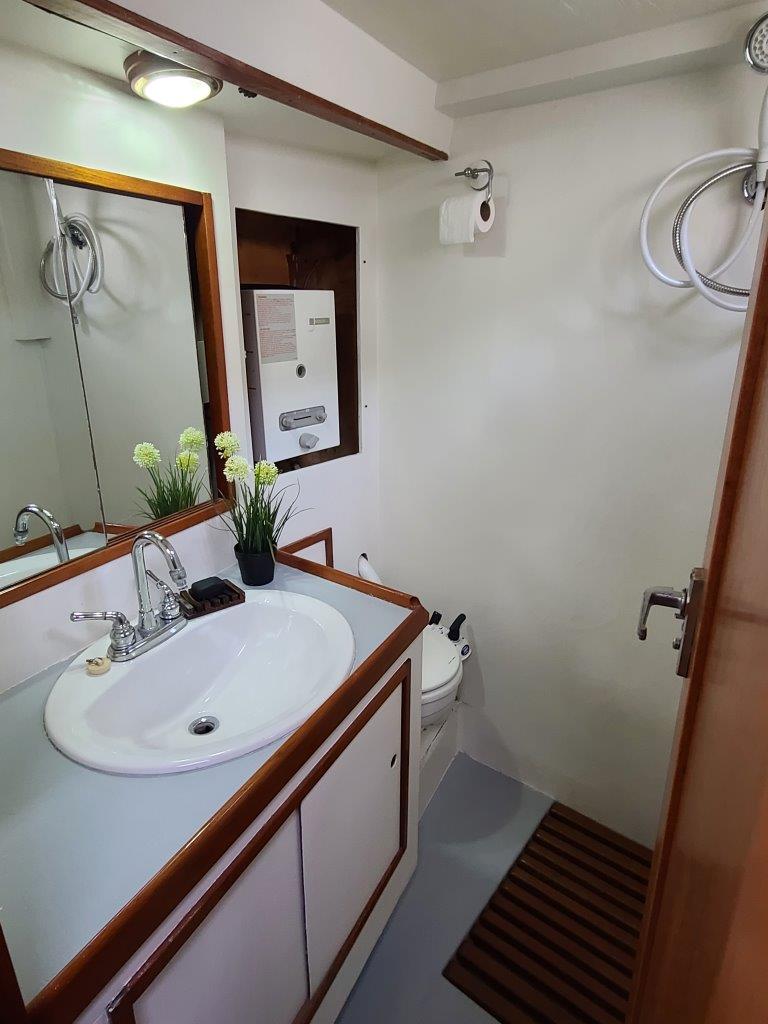

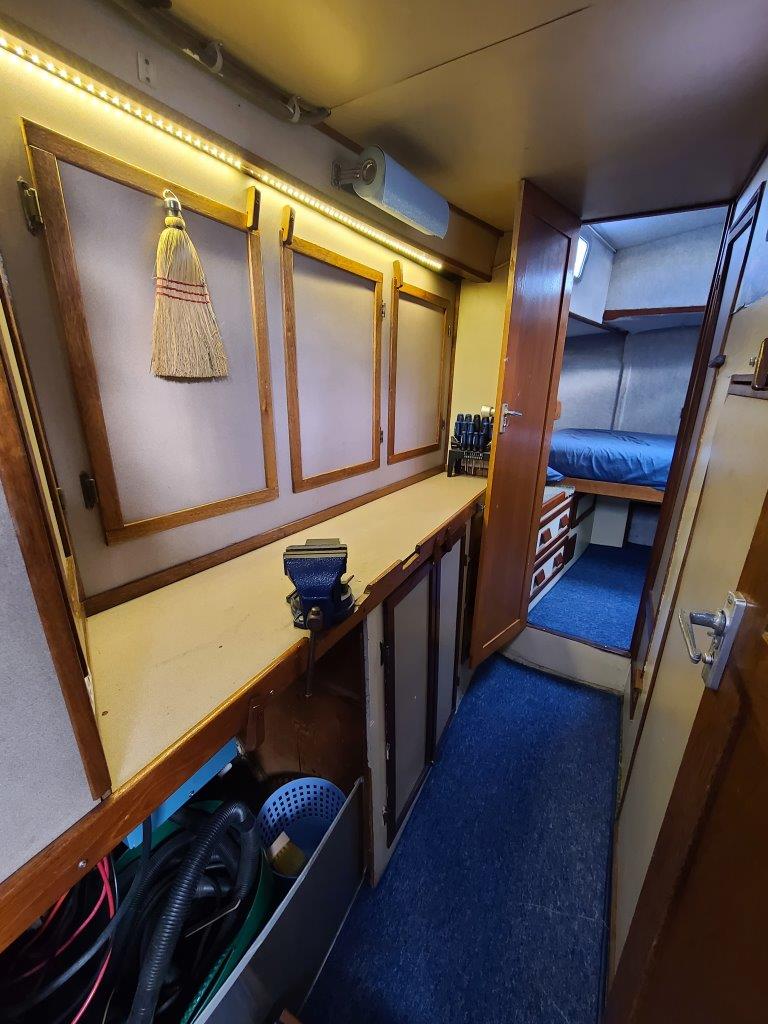

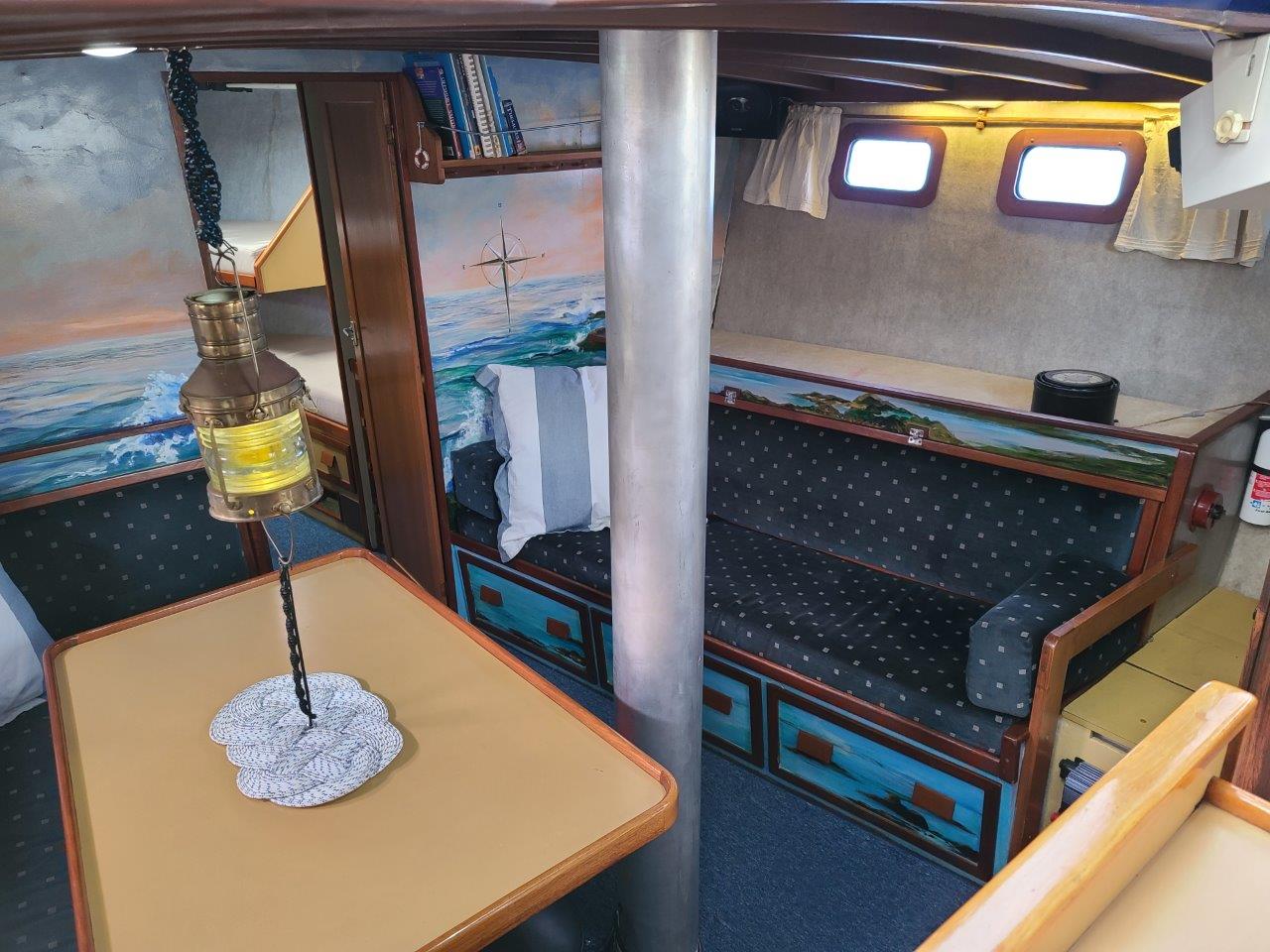

Starting forward, the guest accommodation provides a very versatile, stacked berth arrangement with two double berths. Perfect for hosting the kids AND the grandkids. The forward cabin also offers a work station/desk and large hanging locker. Adjacent to the cabin and the saloon, the forward head is to port. The saloon offers 6’3” standing headroom and plenty of seating for the whole family and can be easily converted to additional sleeping accommodation. The galley and pilothouse are up and have tonnes of daylight and excellent visibility. Aft of the inside helm is a passageway to the aft cabin that doubles as additional storage, a workshop and engine room access. The aft cabin is a very private master stateroom with excellent storage and volume, plus its own private en suite head with shower.
INTERIOR
- Cabin(s): 2
- Head(s): 2
- Sleeps: 10
- Headroom: 6’ 3”
- HEAT 1: bus heater from the engine

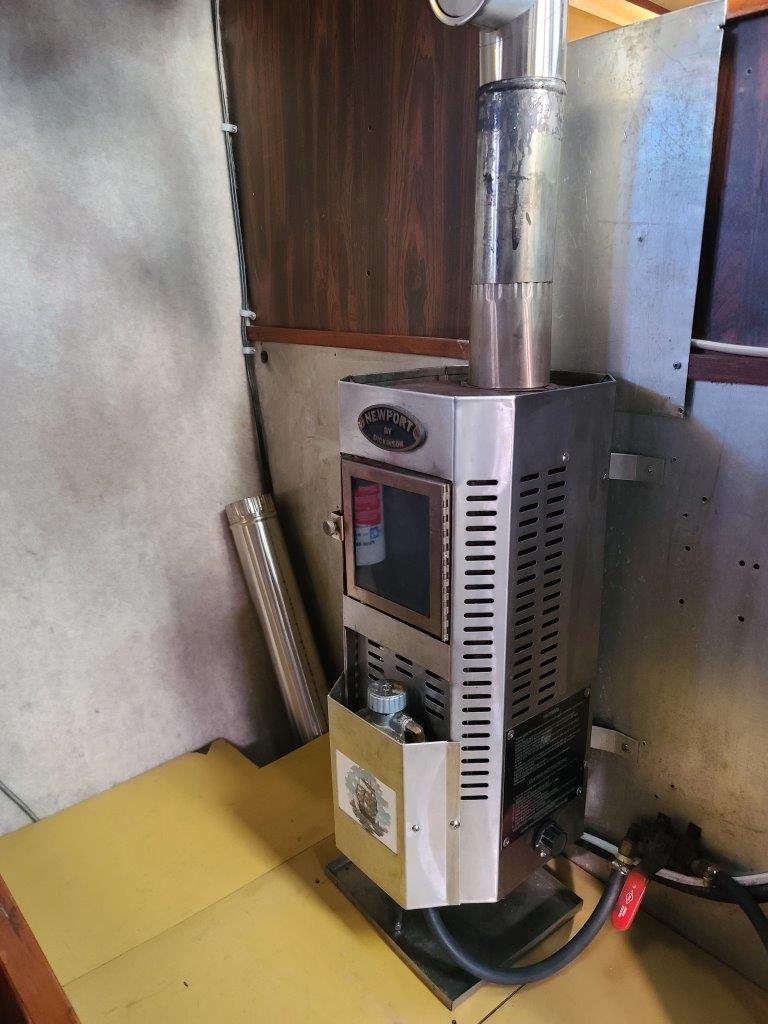

- HEAT 2: Dickinson oil bulkhead heater, fully refurbished (2020)
- Lighting: LED ceiling and reading lights

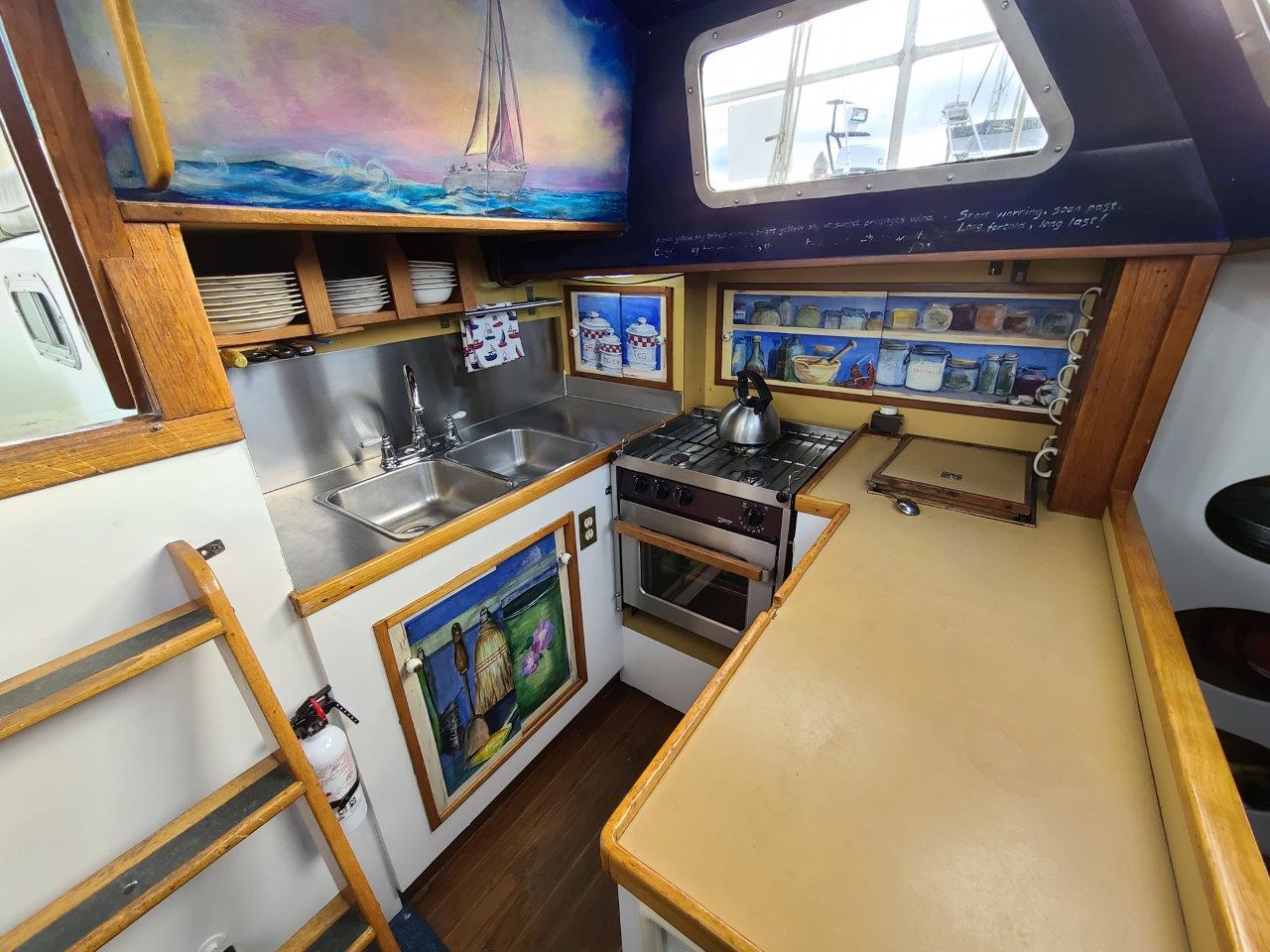

GALLEY

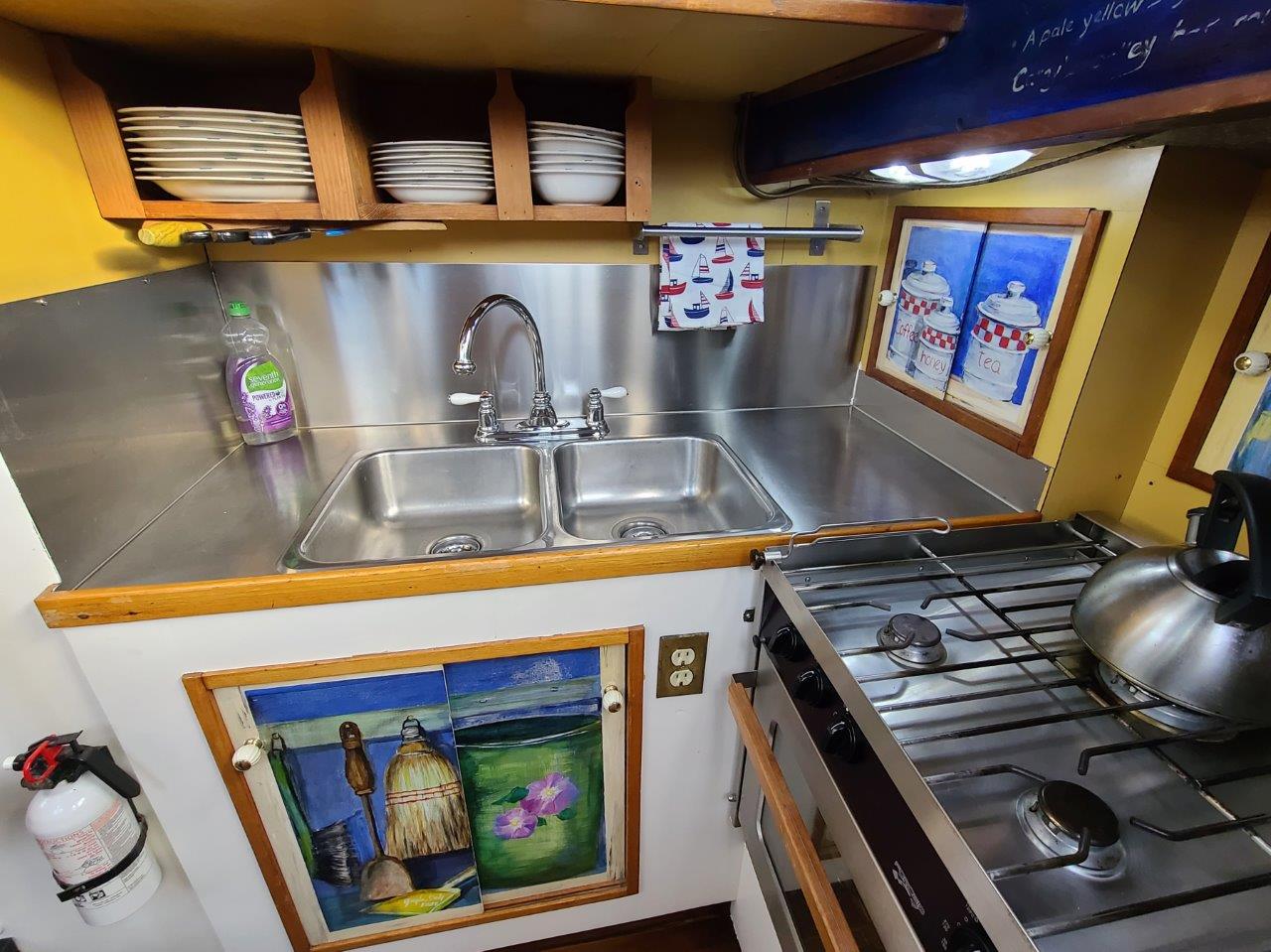

- Force-10 3-burner propane stove/oven
- Dual stainless steel sinks with hot/cold water

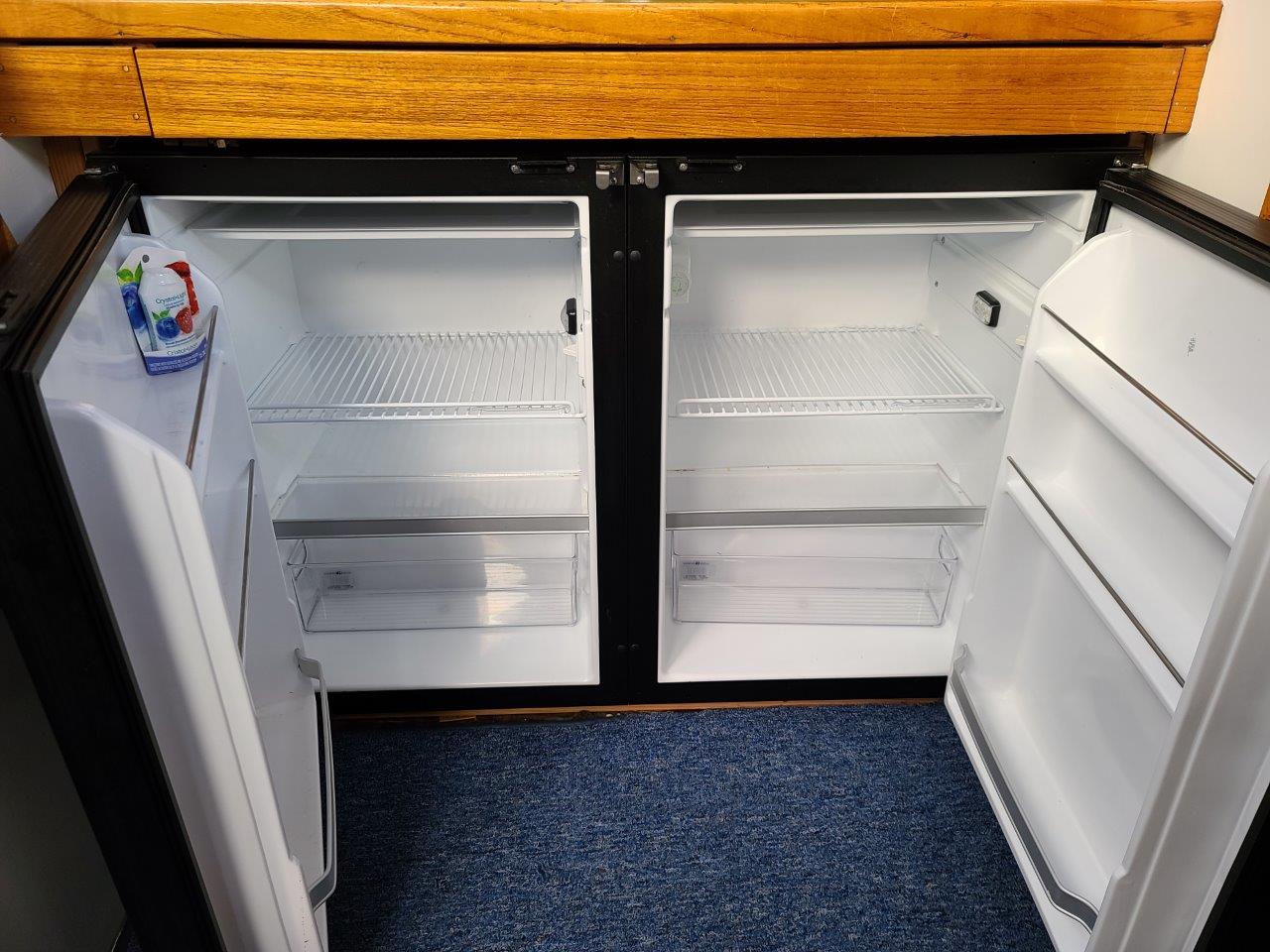

- 2-door Nova Kool dual voltage
- Top-loading 12V freezer
MECHANICAL

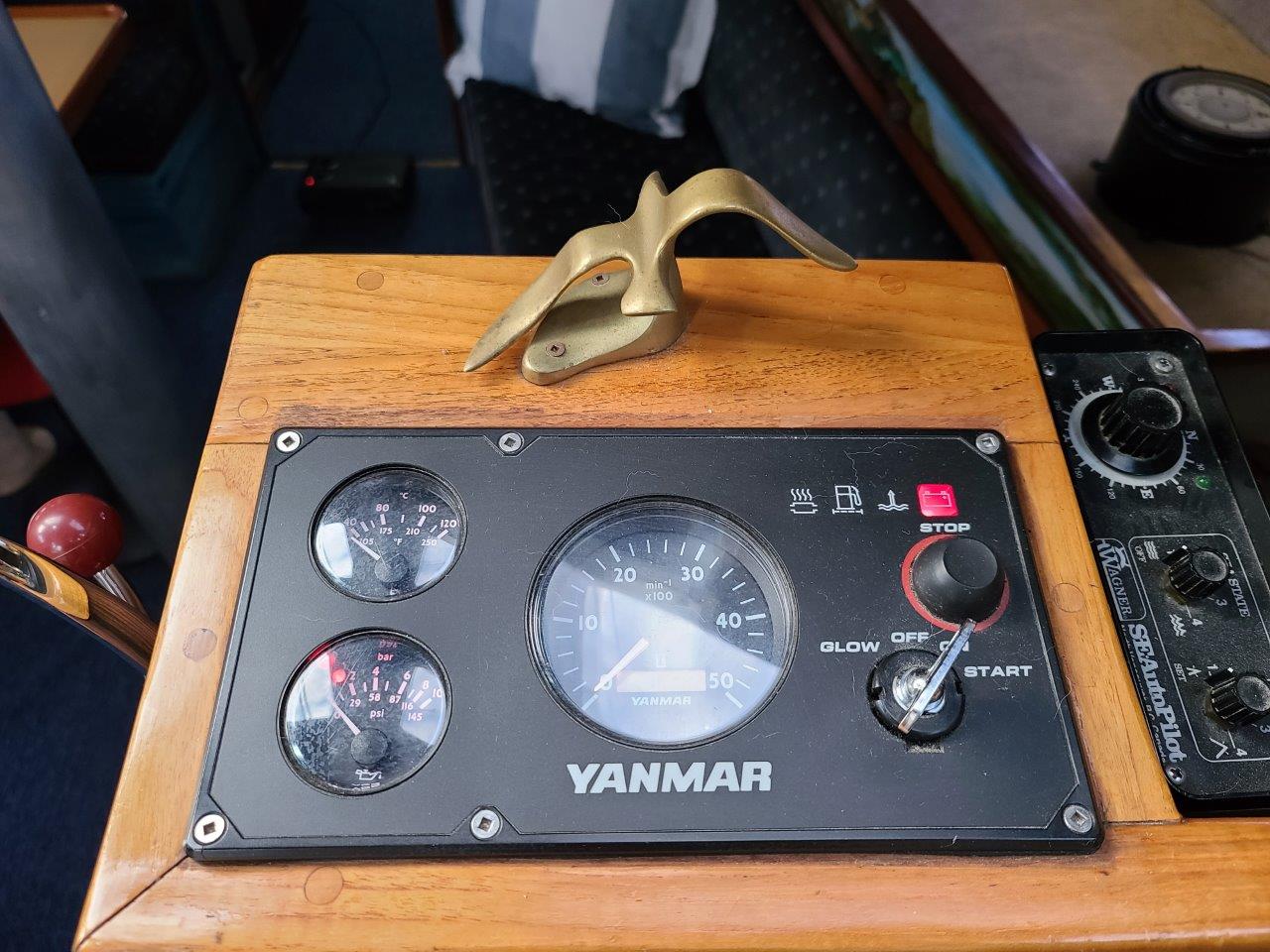

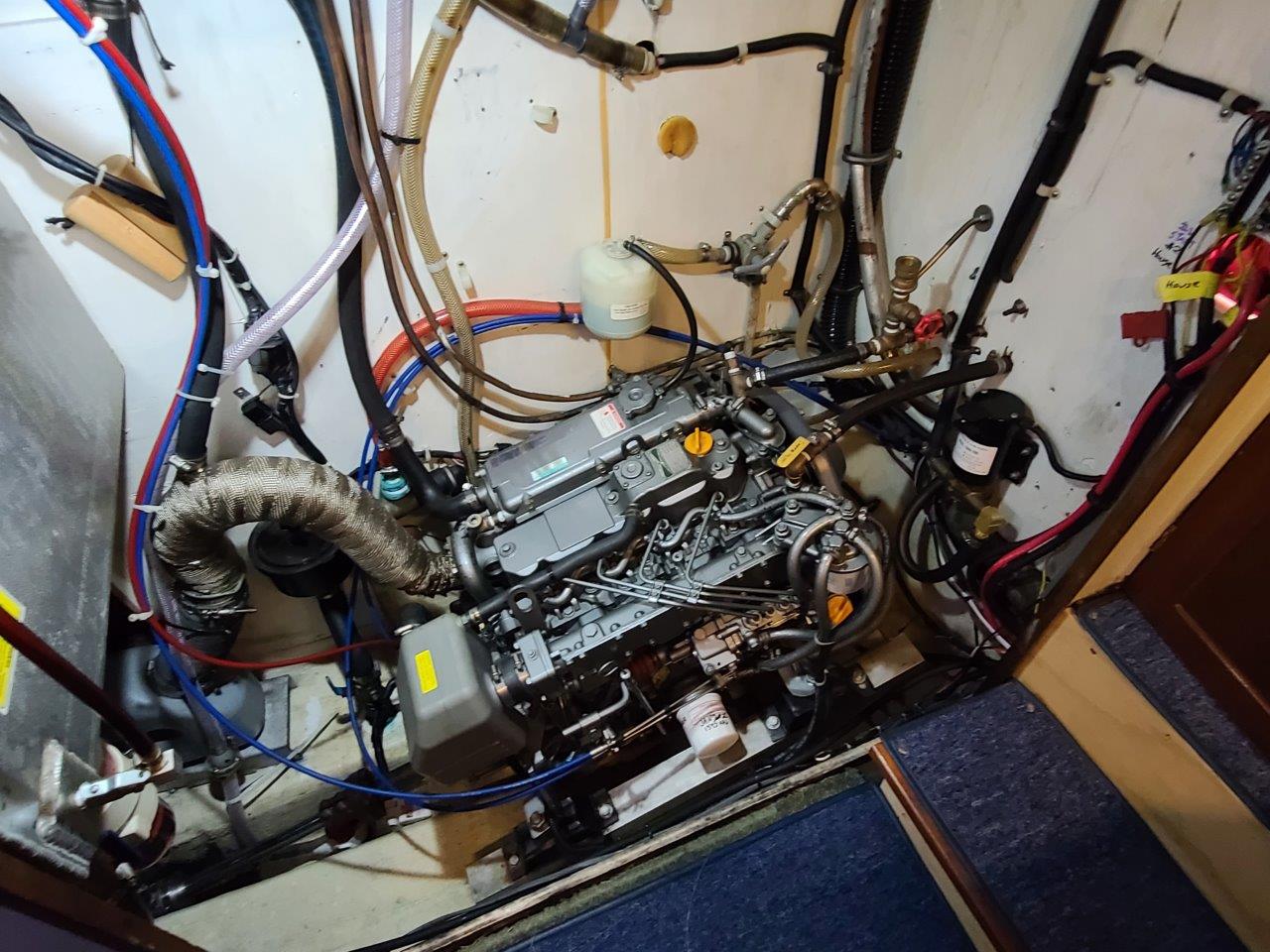

- Engine(s): Yanmar 4JH4E 4-cylinder, 55HP, diesel

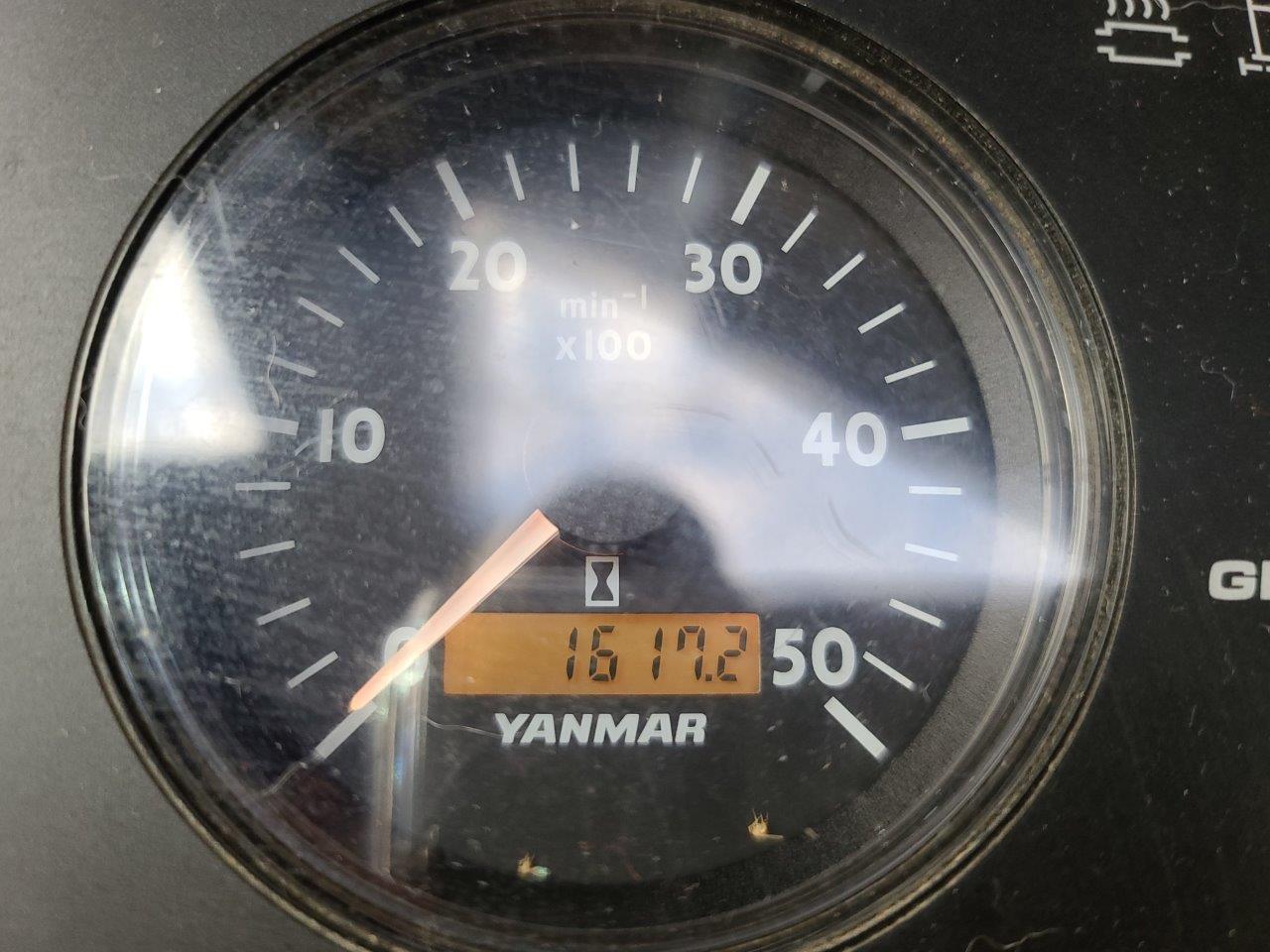

- Year built: 2005, Hours: 1,600 +/-
- Propeller: bronze, 3-blade
- Spare propeller

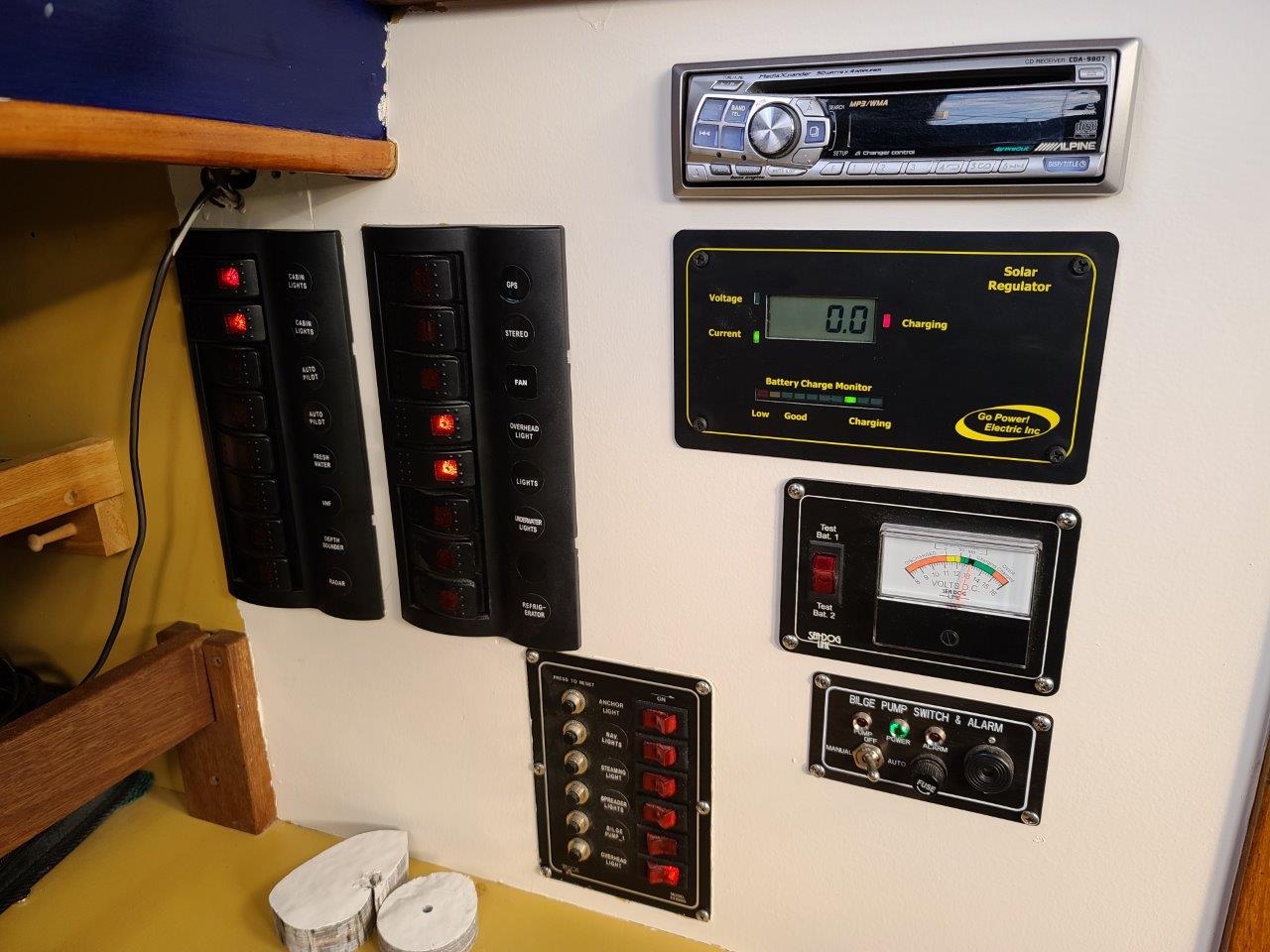

ELECTRICAL + PLUMBING
- 12V DC and 120V AC, with 30 amp shore power
- House Battery: 4x Trojan 6V deep cycle T105, 464 amp hours total (2020)
- Start Battery: 2x Group 30
- SmartPlug 30 amp shore power connector
- Battery Charger: Pro Mariner 50 amp

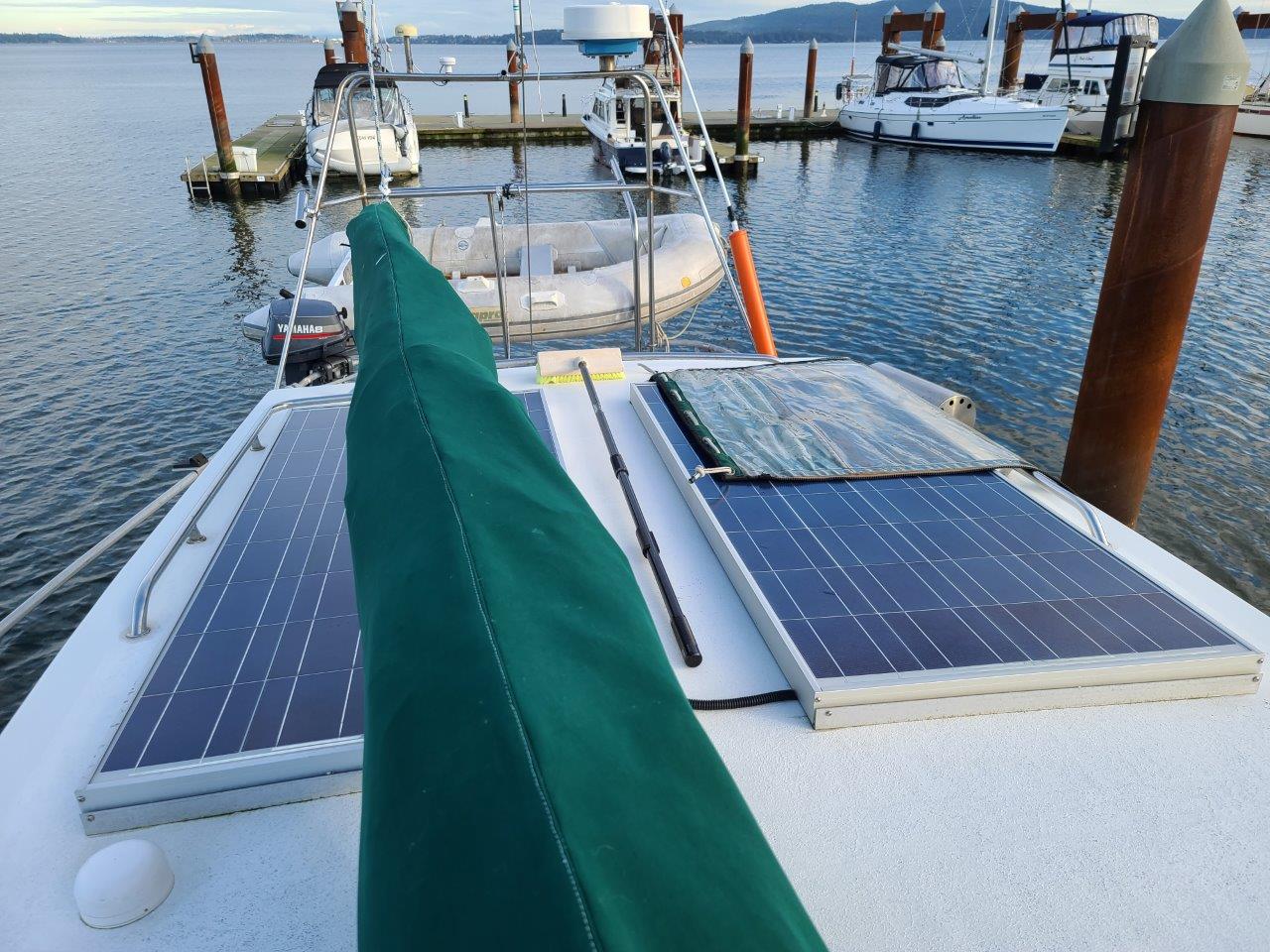

- Solar: 2x 175W panels
- Inverter: Somlex 1500W
- Rule 1750 GPH automatic bilge pump, midship
- Automatic bilge pump, engine room (2020)
- 1 manual bilge pump
- 2x Jabsco manual marine toilets
- High-water alarm (2020)
- Forward head and rebuilt pedestal (2020)
- 1x shower in the aft head. Water (epoxy) sealed in 2020
- New water hoses (2020)
- New water pressure tank (2020)
INSTRUMENTS

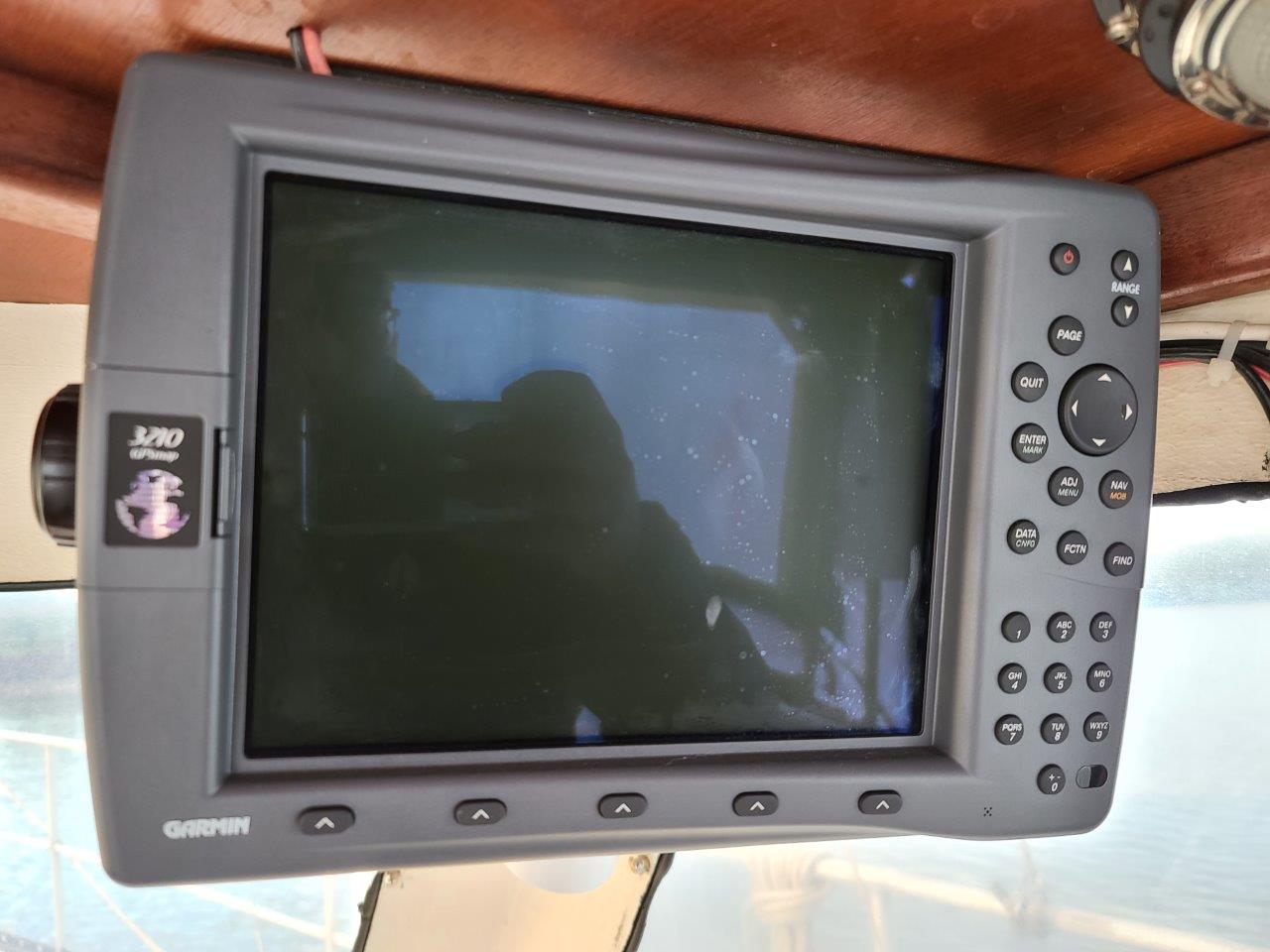

- Chartplotter/GPS: Garmin

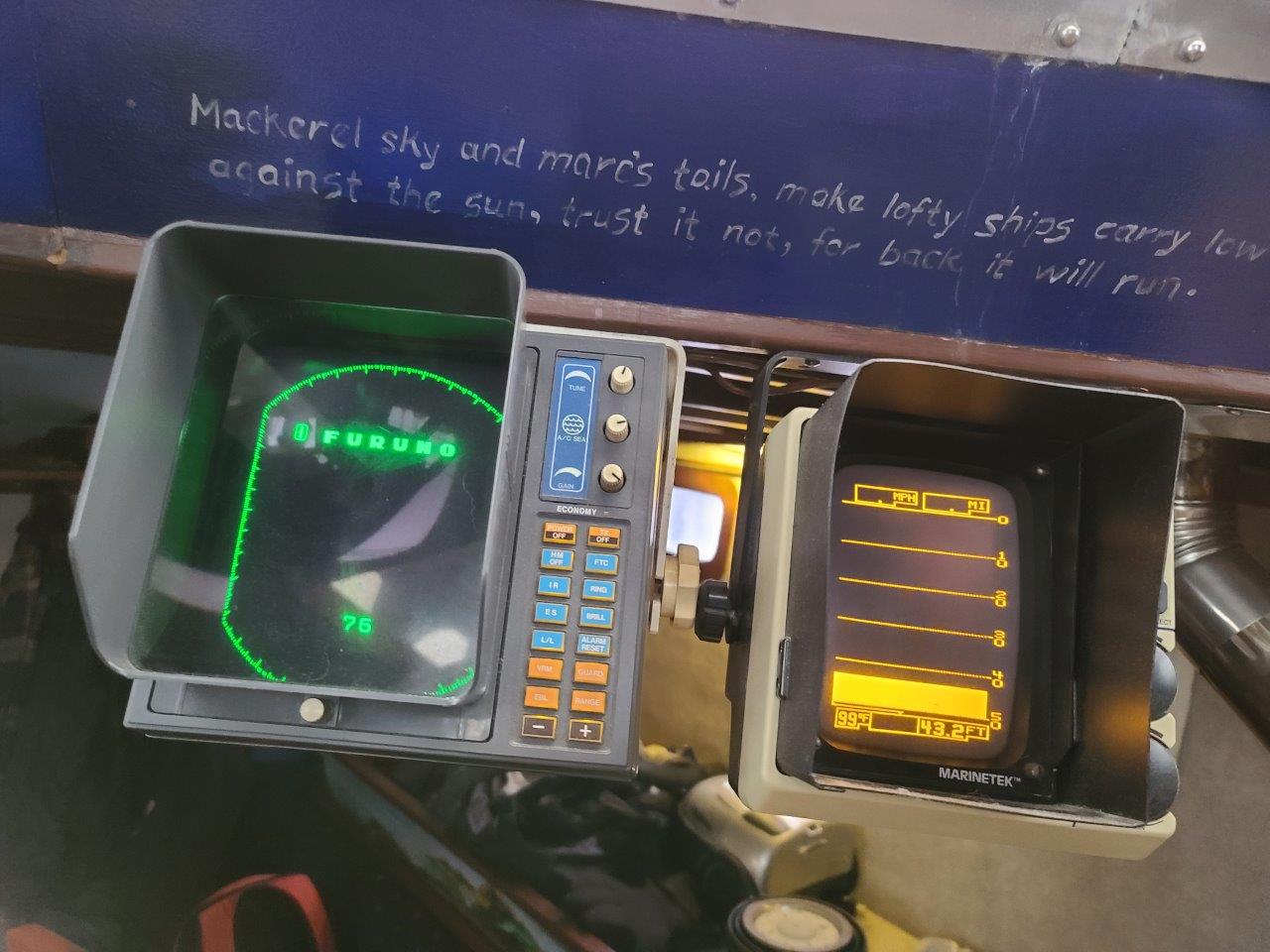

- Radar: Furuno 1720 CRT
- Marine Tec video sounder

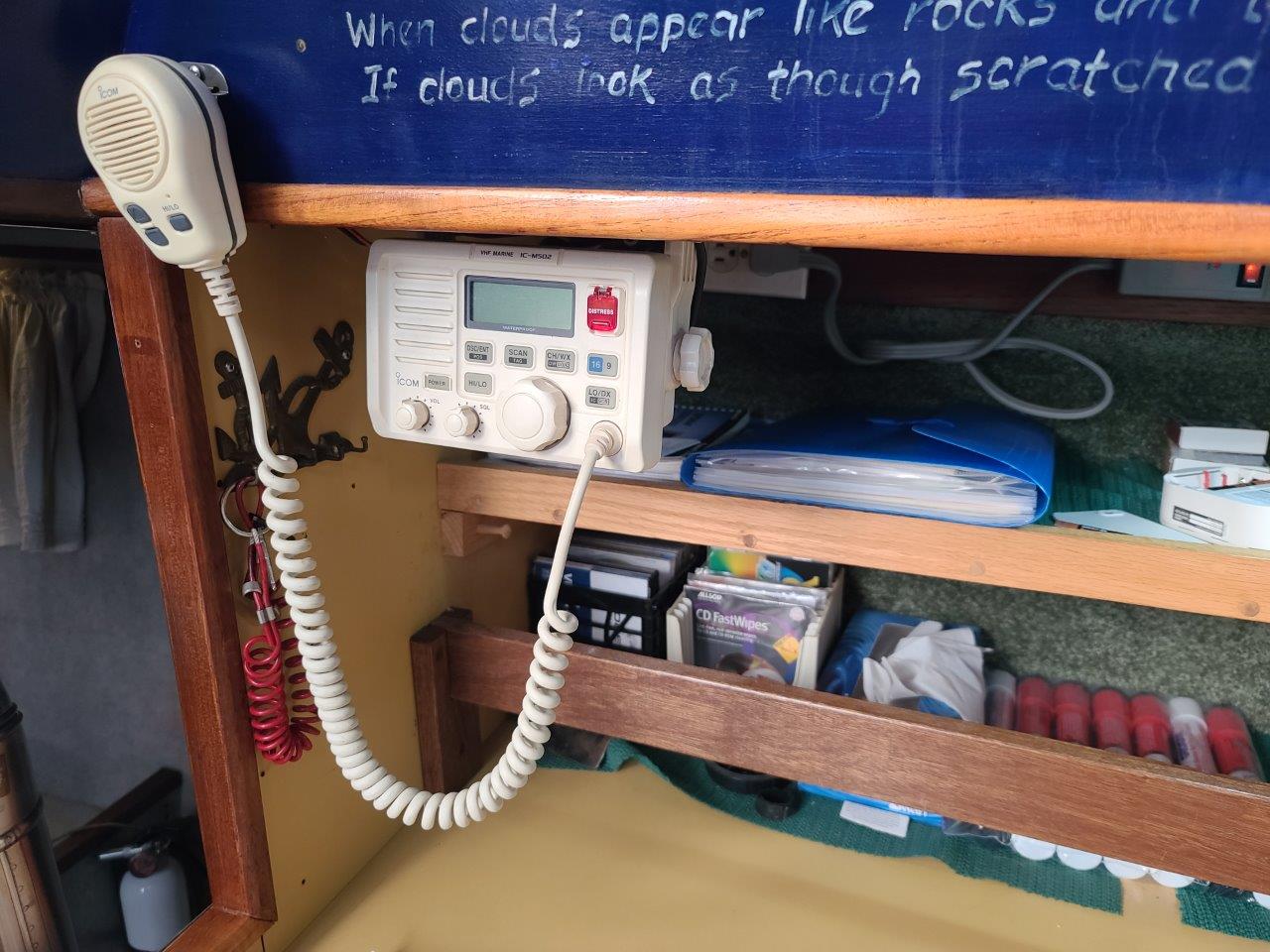

- VHF: Icom IC-M502 with DSC
- 2x handheld VHFs

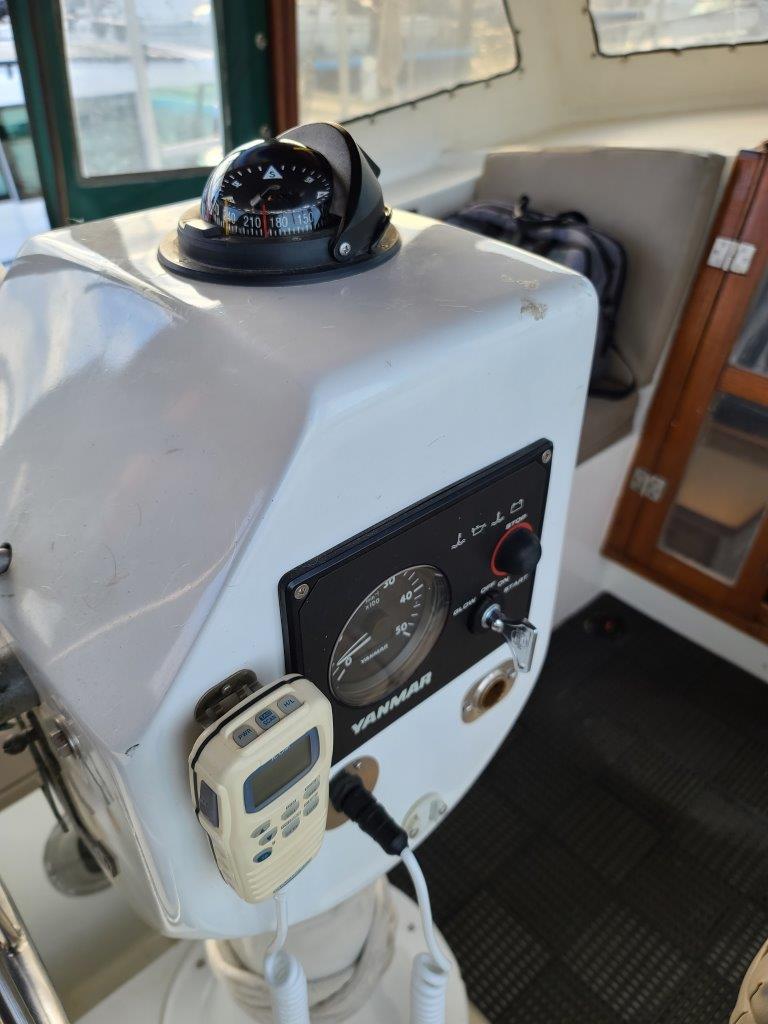

- Ritchie 3” compass

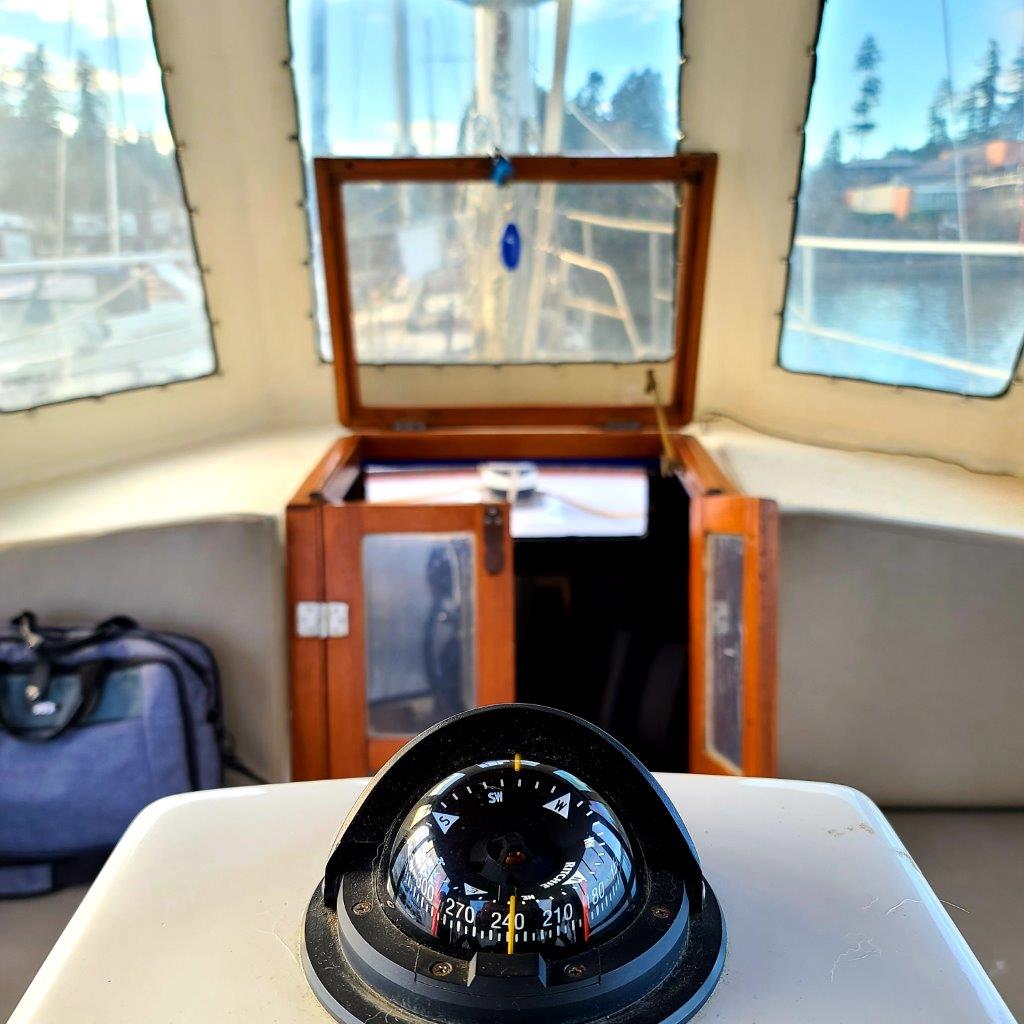

- 4” binnacle compass
- XMWX weather system
- Stereo: Alpine
SAILS
- Mainsail
- Genoa
- Staysail
- 2x storm sails
- Gennaker
- Spinnaker in sock
RIGGING + DECK GEAR

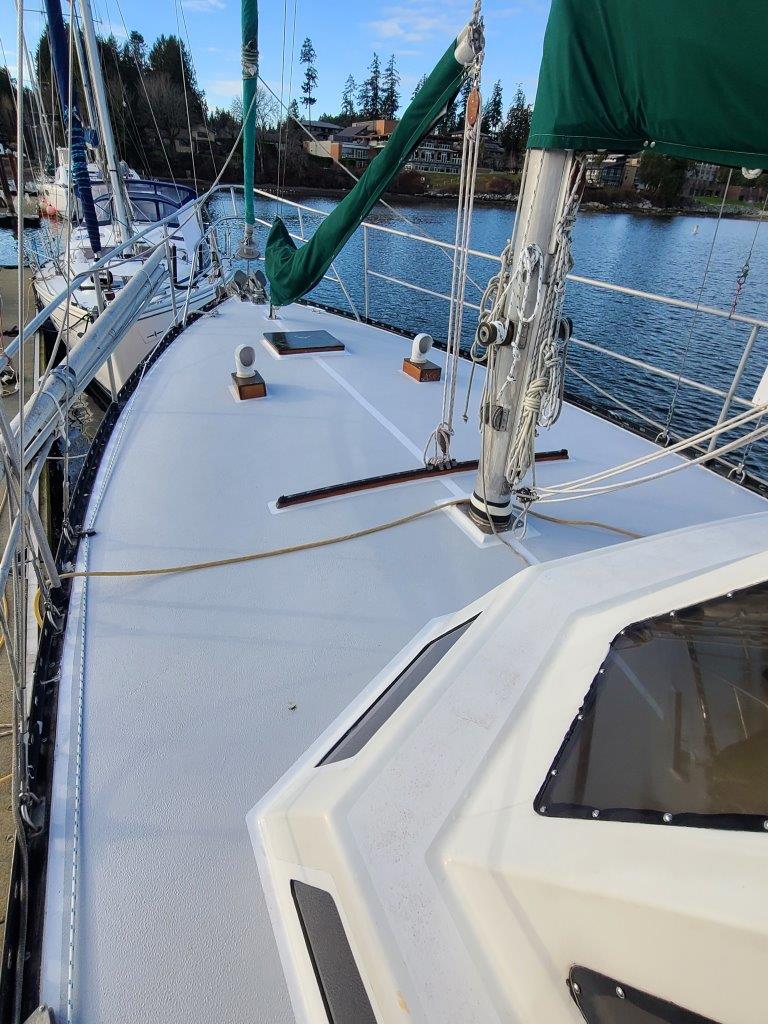

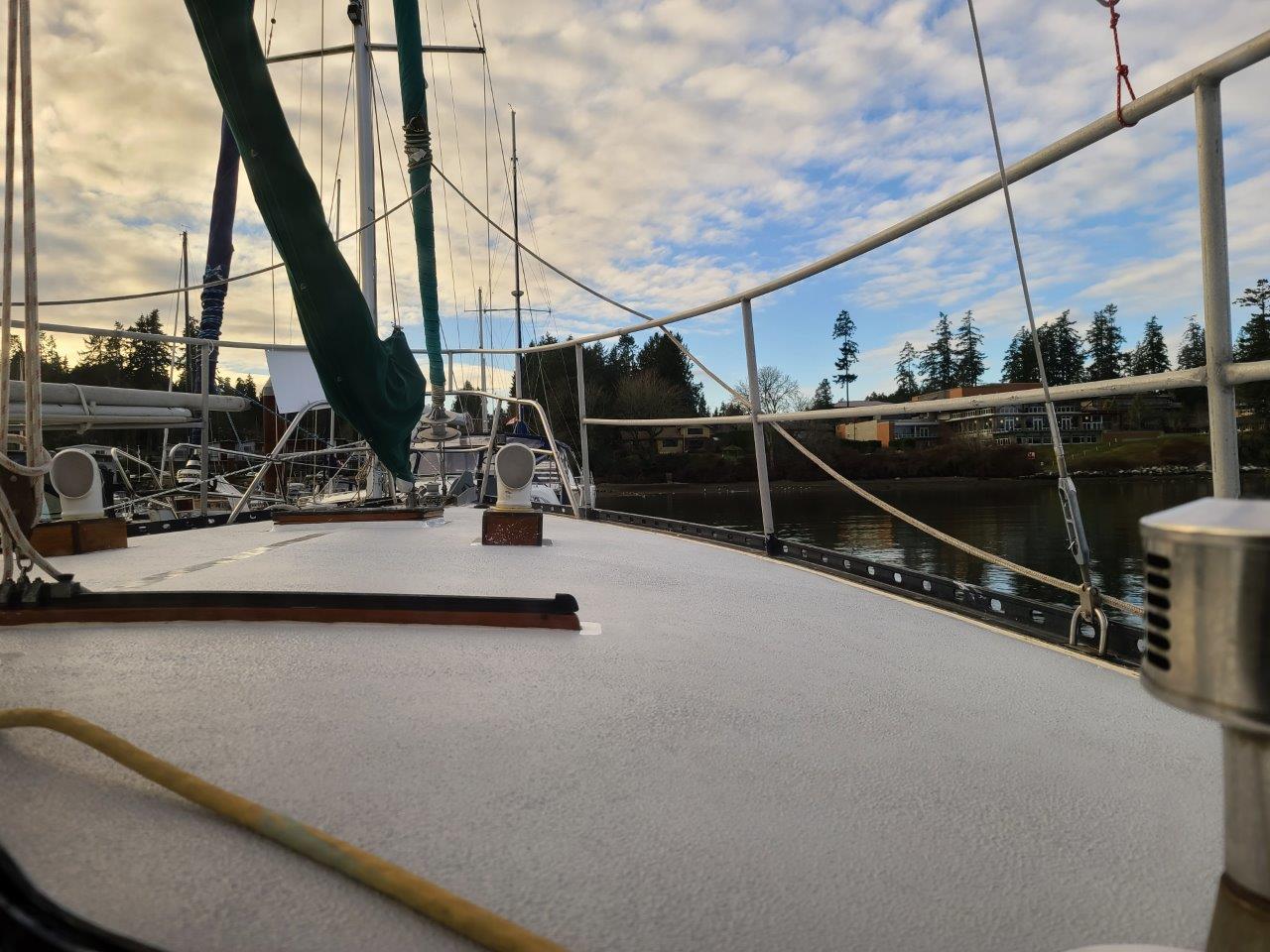

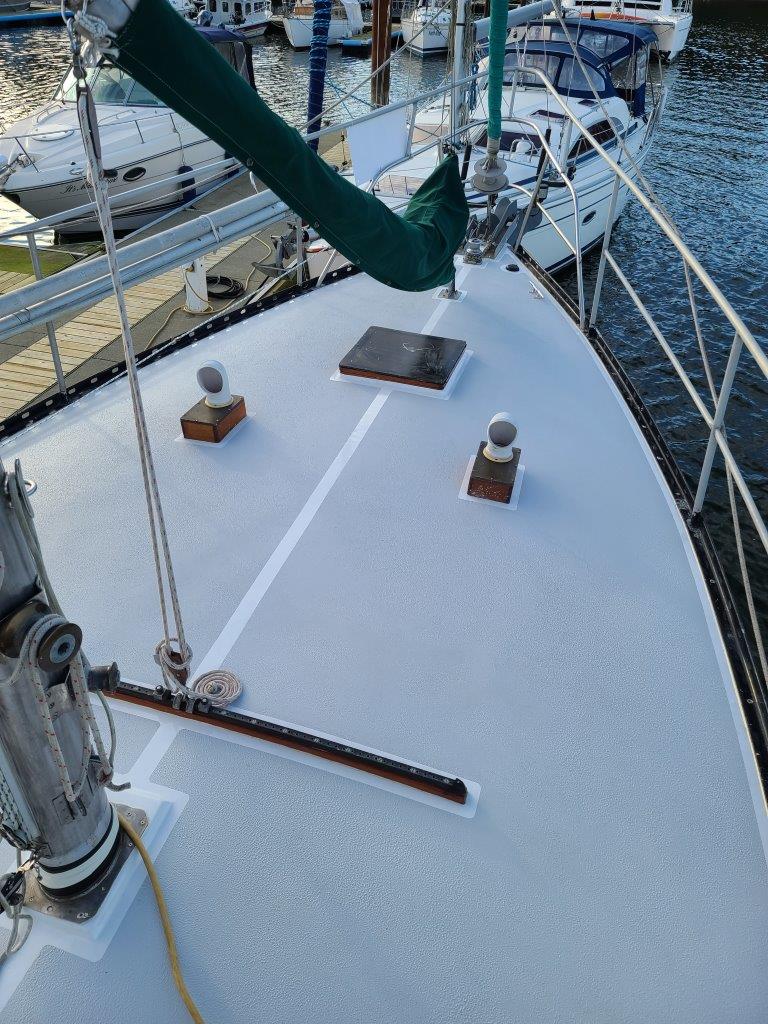

- Entire deck repainted with Epiphanes and Kiwi Grip (2020)
- Brand new chainplates (2020)

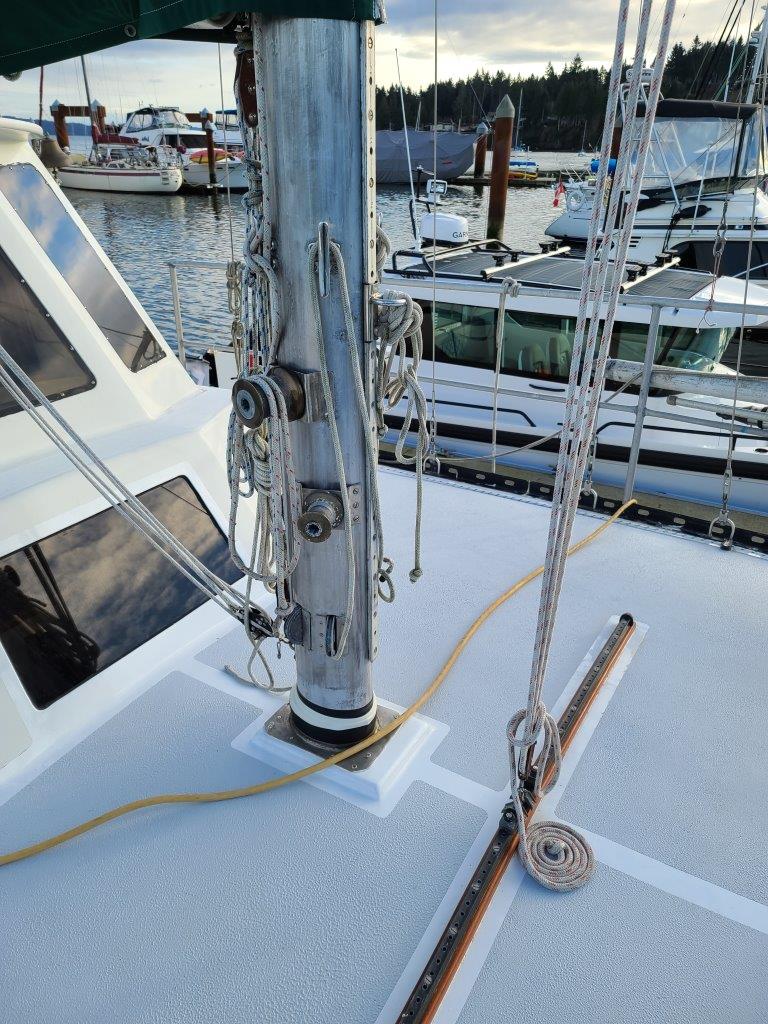

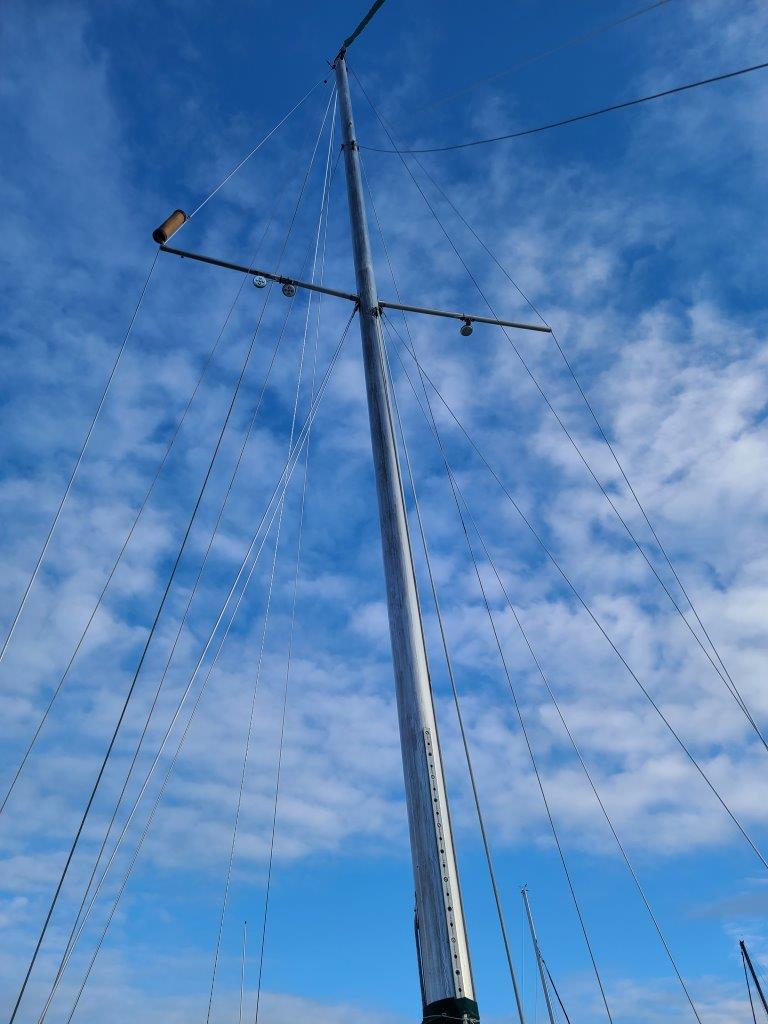

- Aluminum (keel-stepped) mast, boom and spreaders
- Staysail boom with traveler
- 2x whisker poles
- Stainless steel cable standing rigging (2011)
- Furling head sail
- 2x Enkes 26 2-speed winches in cockpit
- 2x Barlow 15 winches at mast
- 1x Barlow 10 winch at mast
- Raised 1.25” aluminum railing in lieu of standard life lines

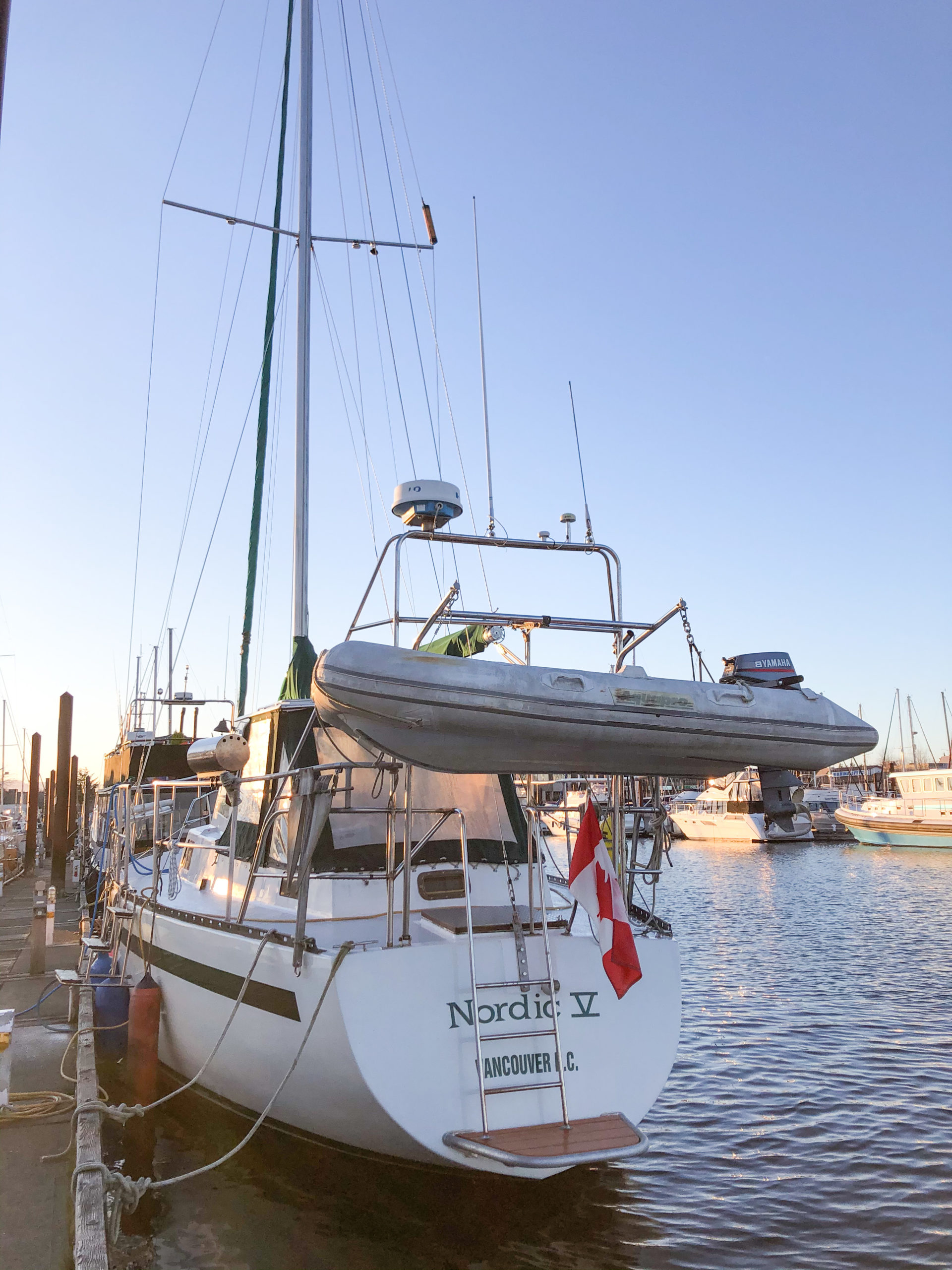

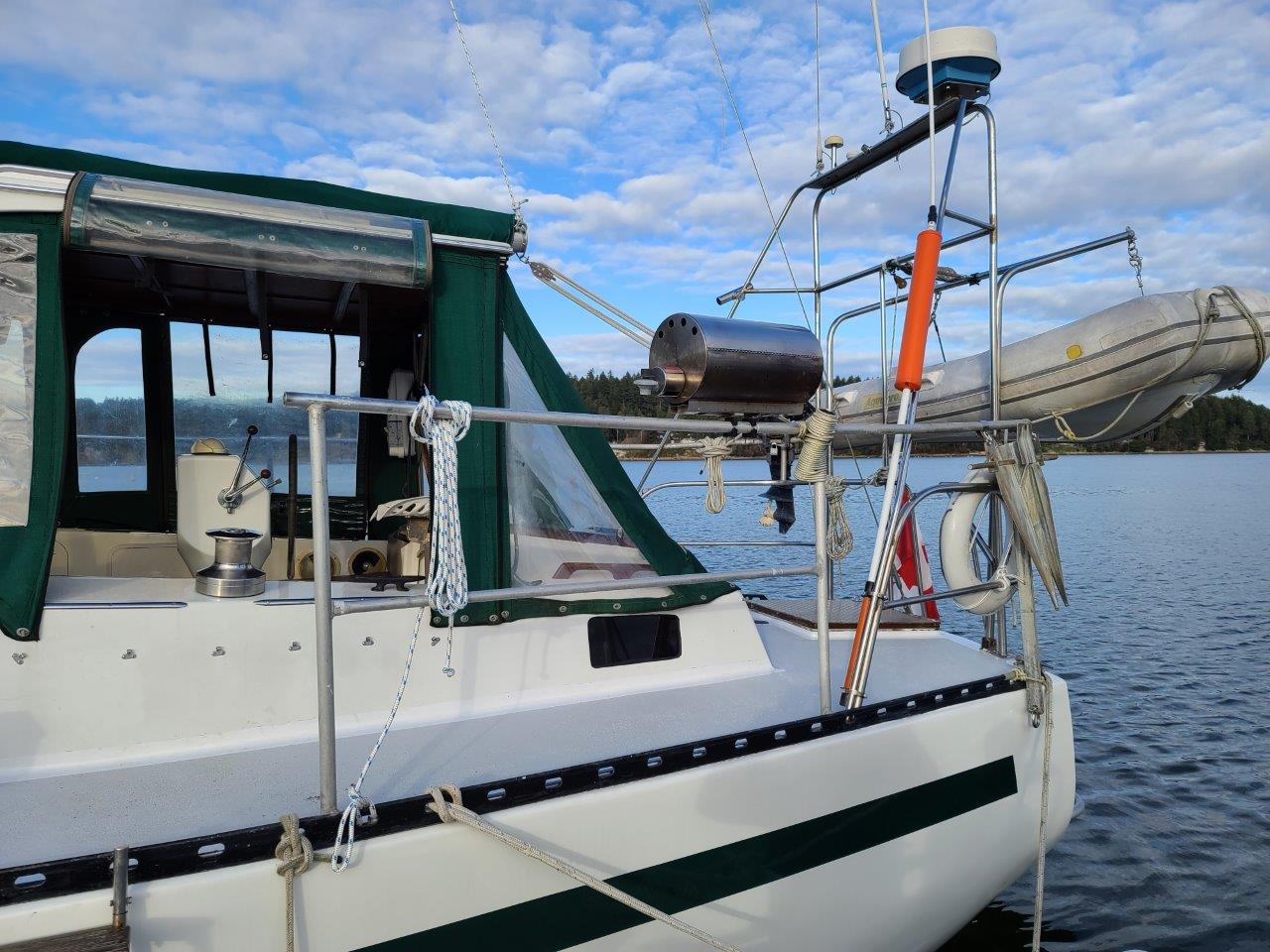

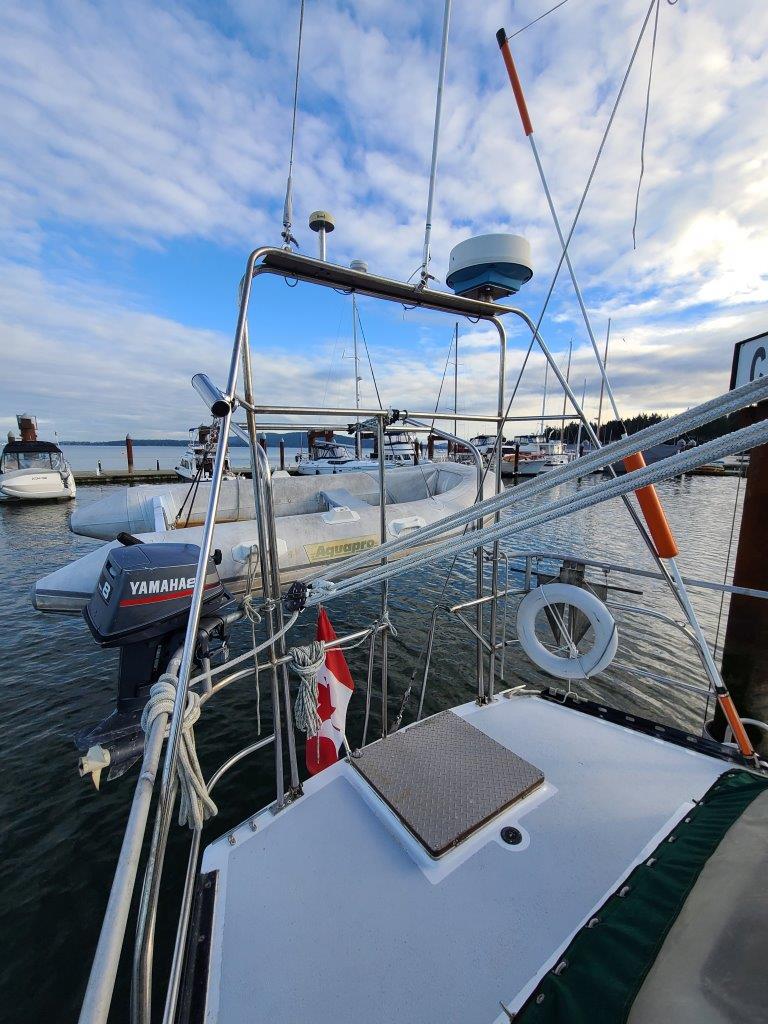

- Custom stainless steel radar mast on aft deck, with dinghy davits

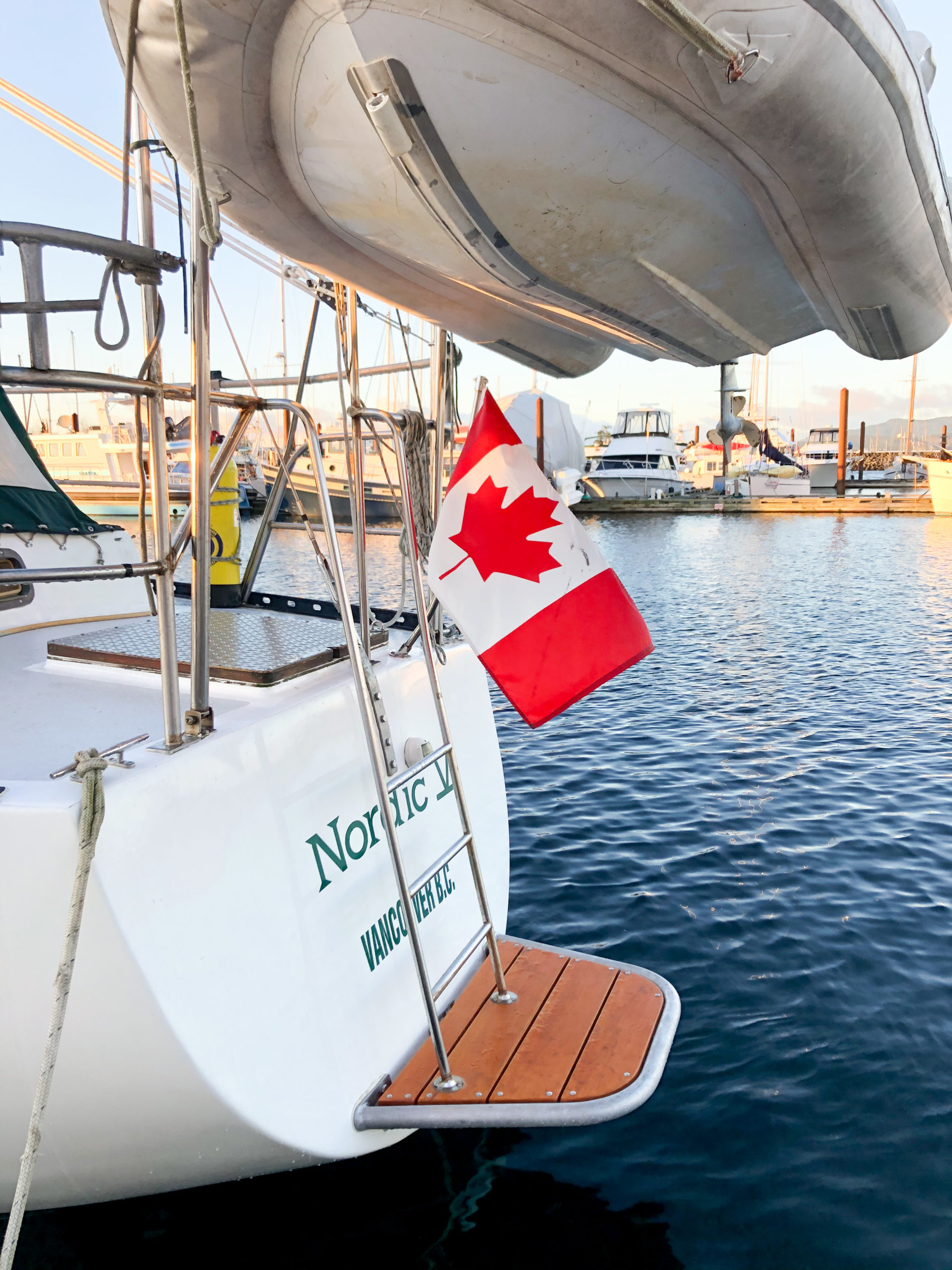

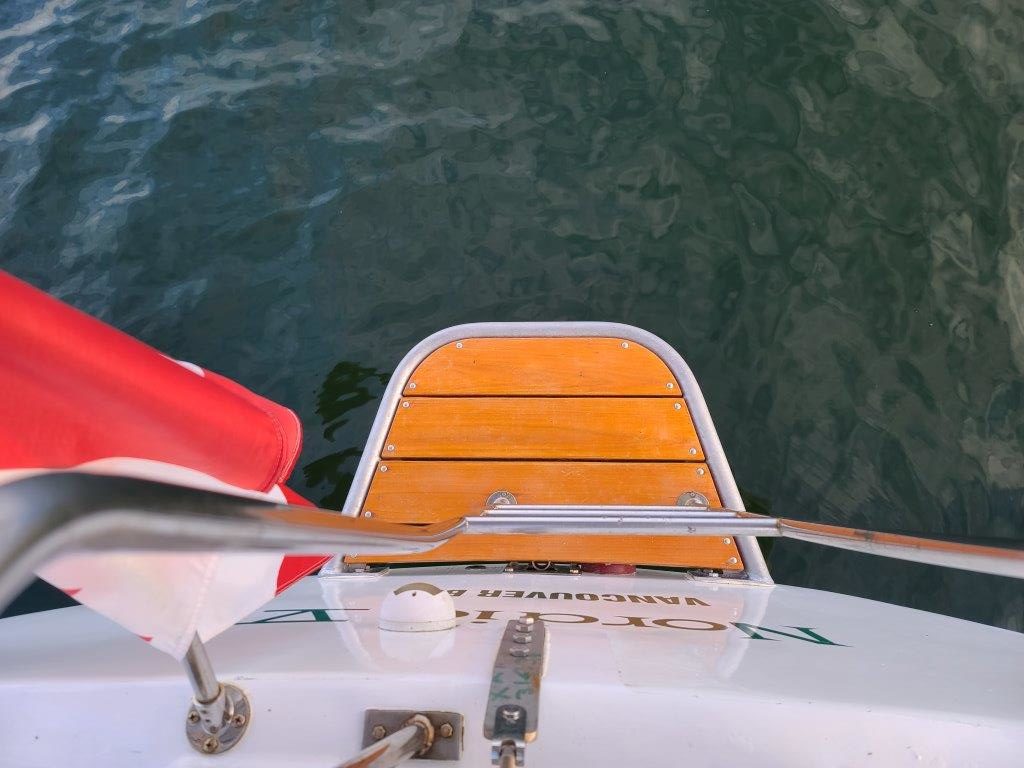

- Custom swim grid (2020)
- New LED deck/anchor/steaming lights (2020)
ADDITIONAL EQUIPMENT

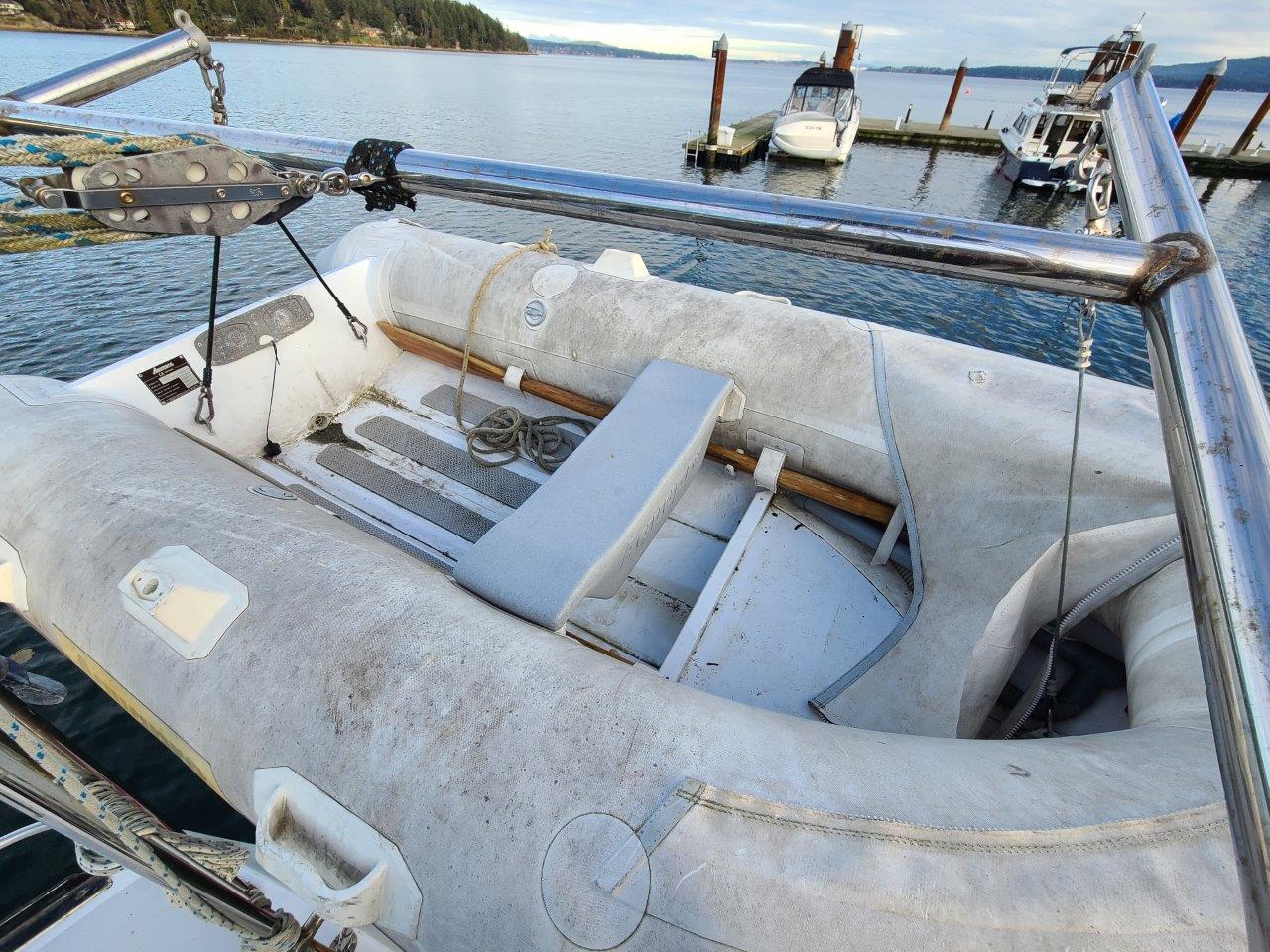

- Tender: Aquapro SMR901 8’11”
- Outboard engine: Yamaha 8hp
- Primary Anchor: Delta 55 lbs
- Rode: 200’ x 5/16” galvanized chain
- Spare Anchor: Delta 45 lbs
- Stern Anchor: Danforth 40 lbs

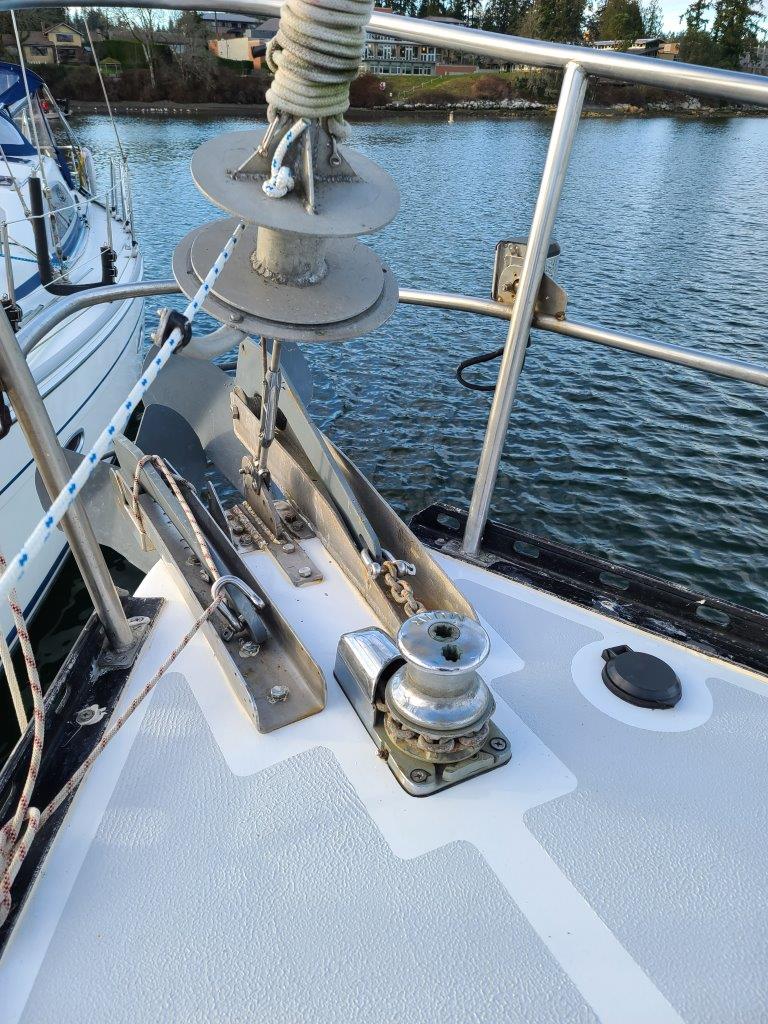

- Windlass: Muir 12V, electric up, clutch down

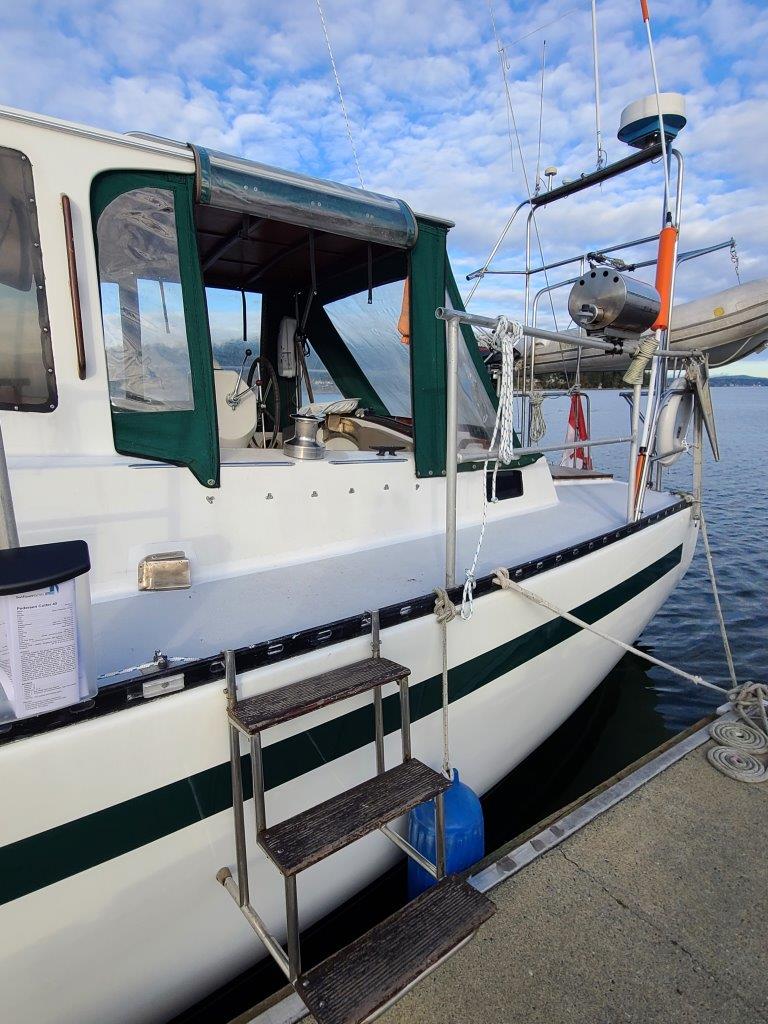

- Full cockpit enclosure
- Cockpit cushions
- Deck cover/awning from mast to stern

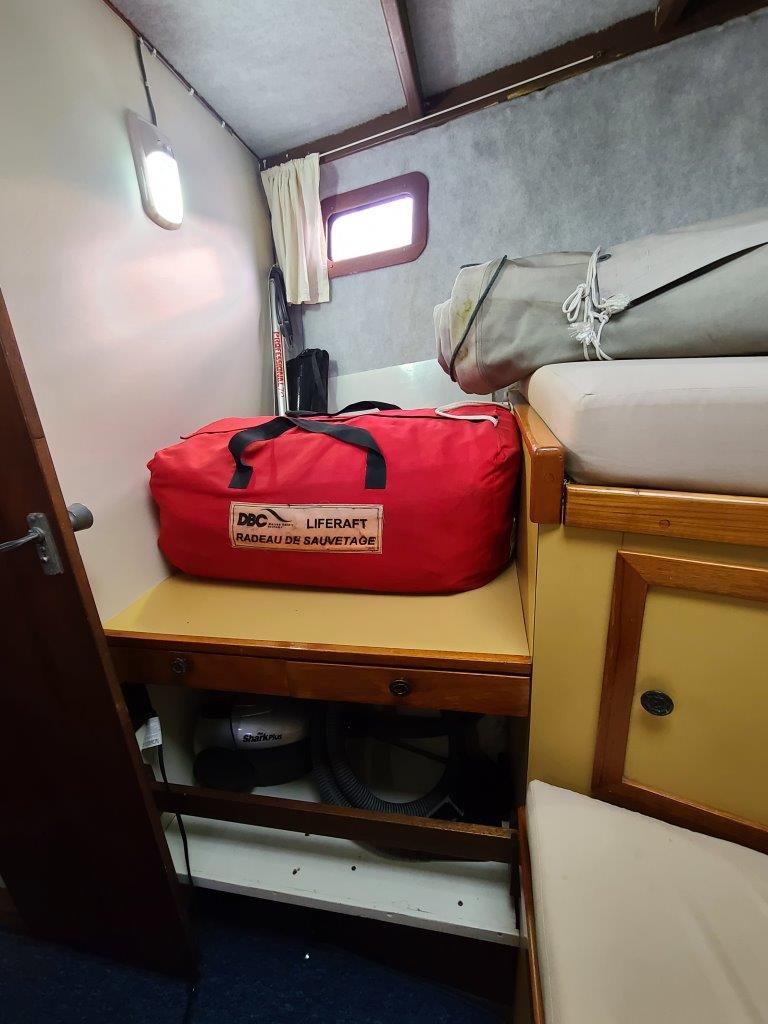

- 4-person life raft, last certified: 2000
- EPIRB, not current
- MOB pole
MAINTENANCE

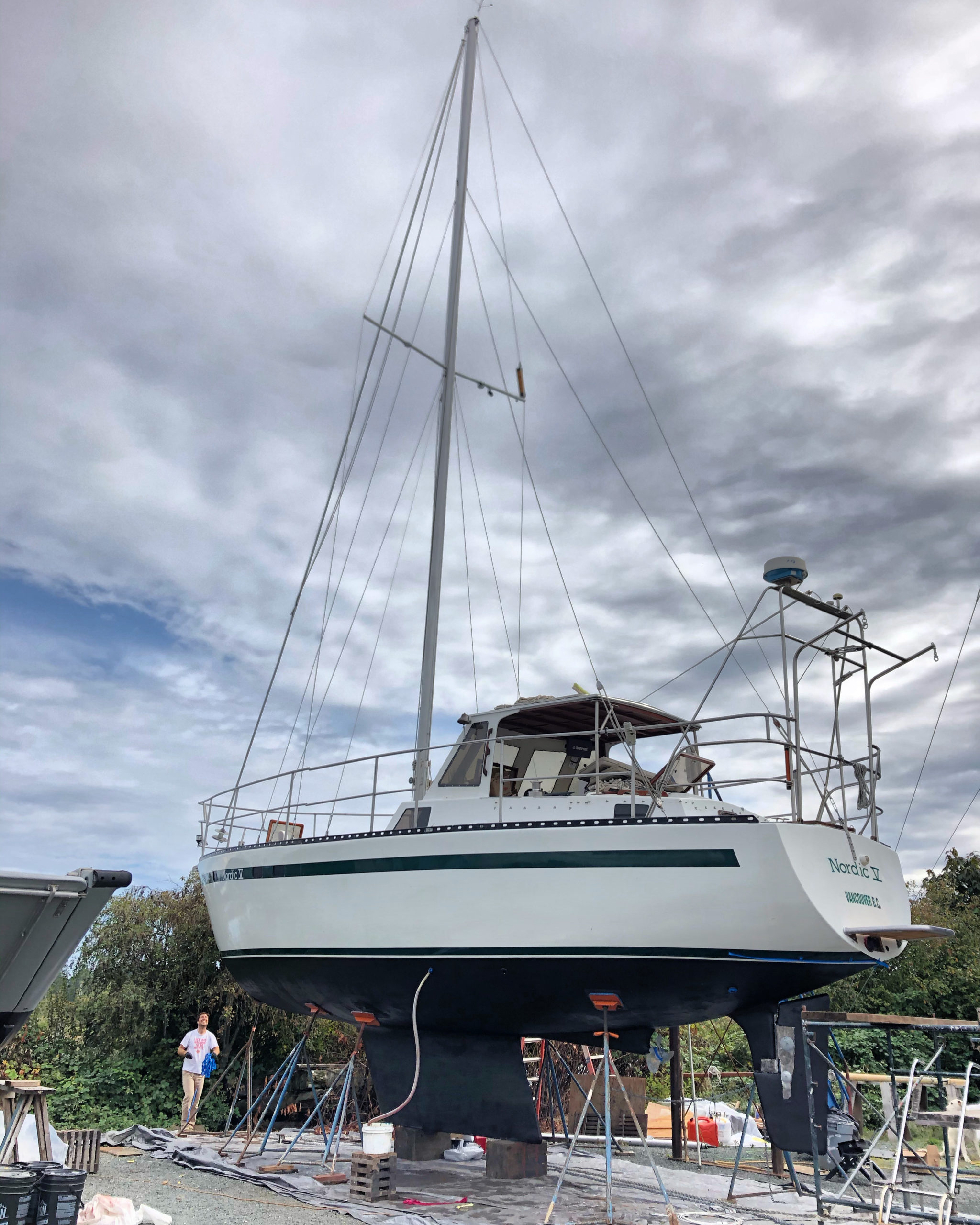

- Last haul-out and anti-fouling: Sept 2020
- Last zinc(s) change: Sept 2020
- Last engine oil change: Jan 2021
