Interior Accommodations
BELLAMARE’s accommodation access is through the well-protected companionway hatch forward in the cockpit, beneath the dodger. The washboard drops into a storage cavity and pins closed or half height.

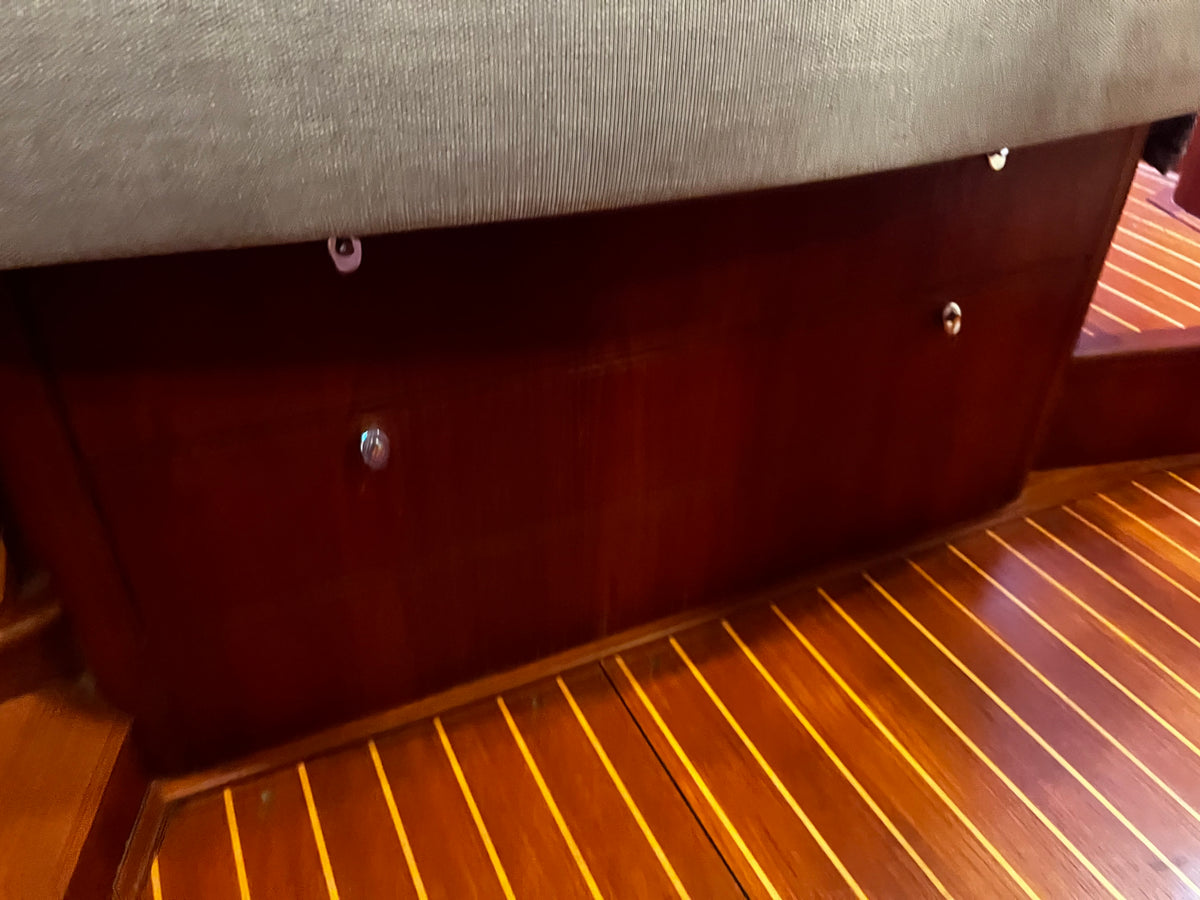

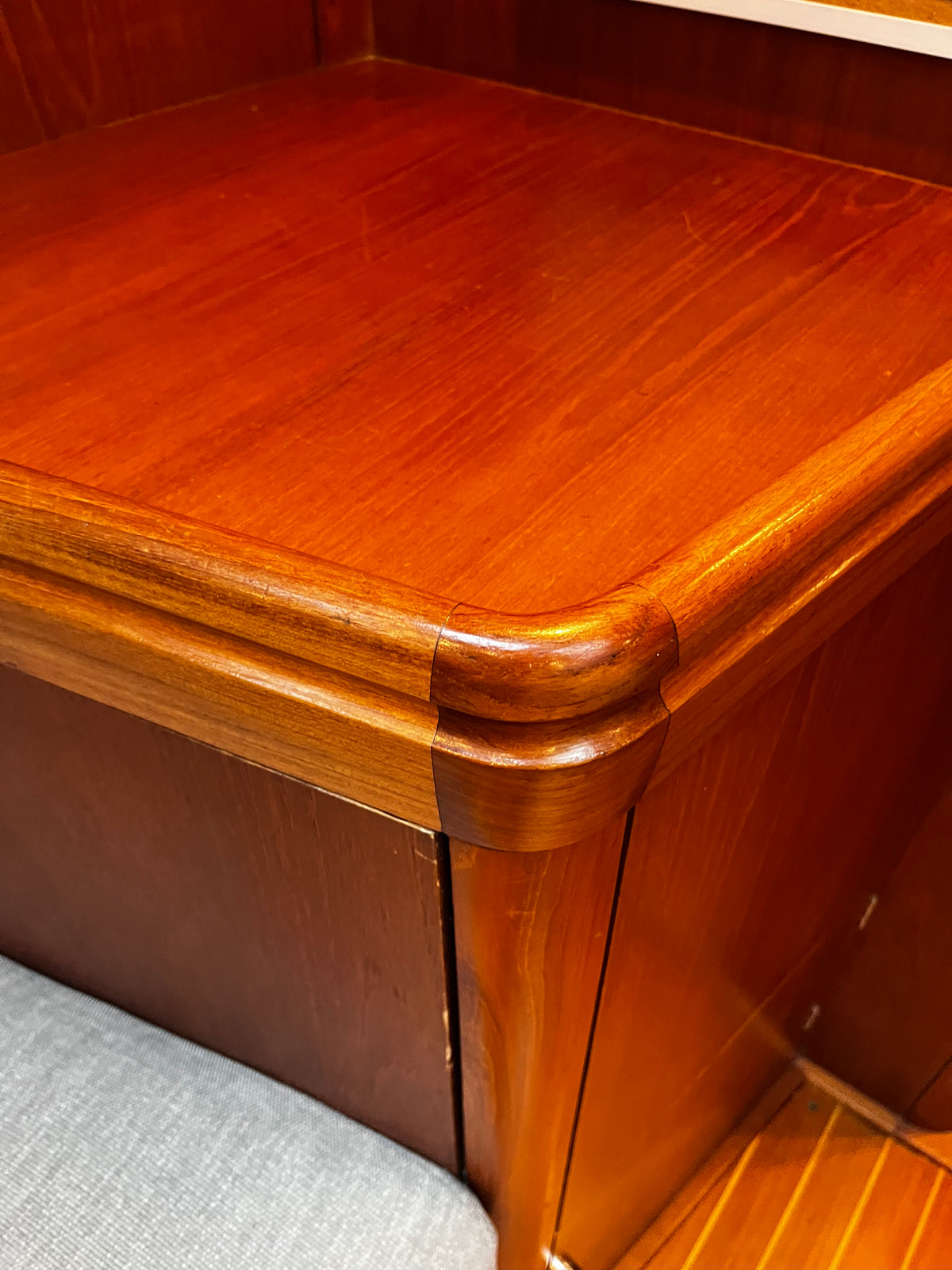

One immediately senses the elegance, comfort, and quality of the bright and open interior. Details are thoughtfully designed with rounded corners everywhere, panel reliefs, counter and shelf fiddles, handholds, and contrasting white overheads. Varnished teak is used for interior joinery and is in excellent condition. The cabin sole is teak with holly accent stripes and all sole boards are easily removed for bilge access after removing retention screws. The overhead is padded white vinyl - fully removable. All overhead hatches are fitted with concealed Ocean Aire blinds and screens. Wall-switched recessed spotlights are well placed for evening illumination. Brass Frigast reading lights are sensibly mounted in each space. All cabinet and cabin doors positively latch closed.

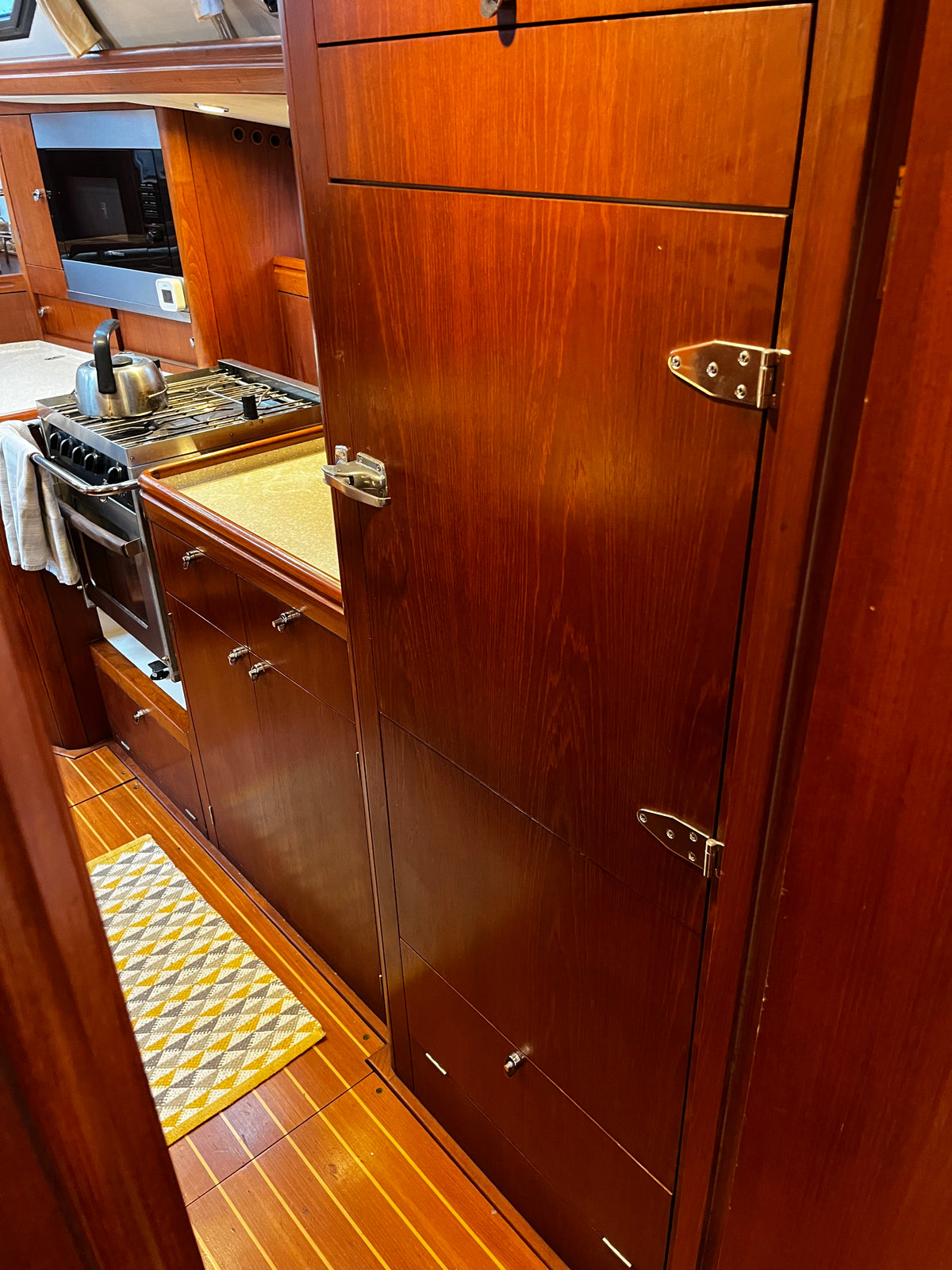

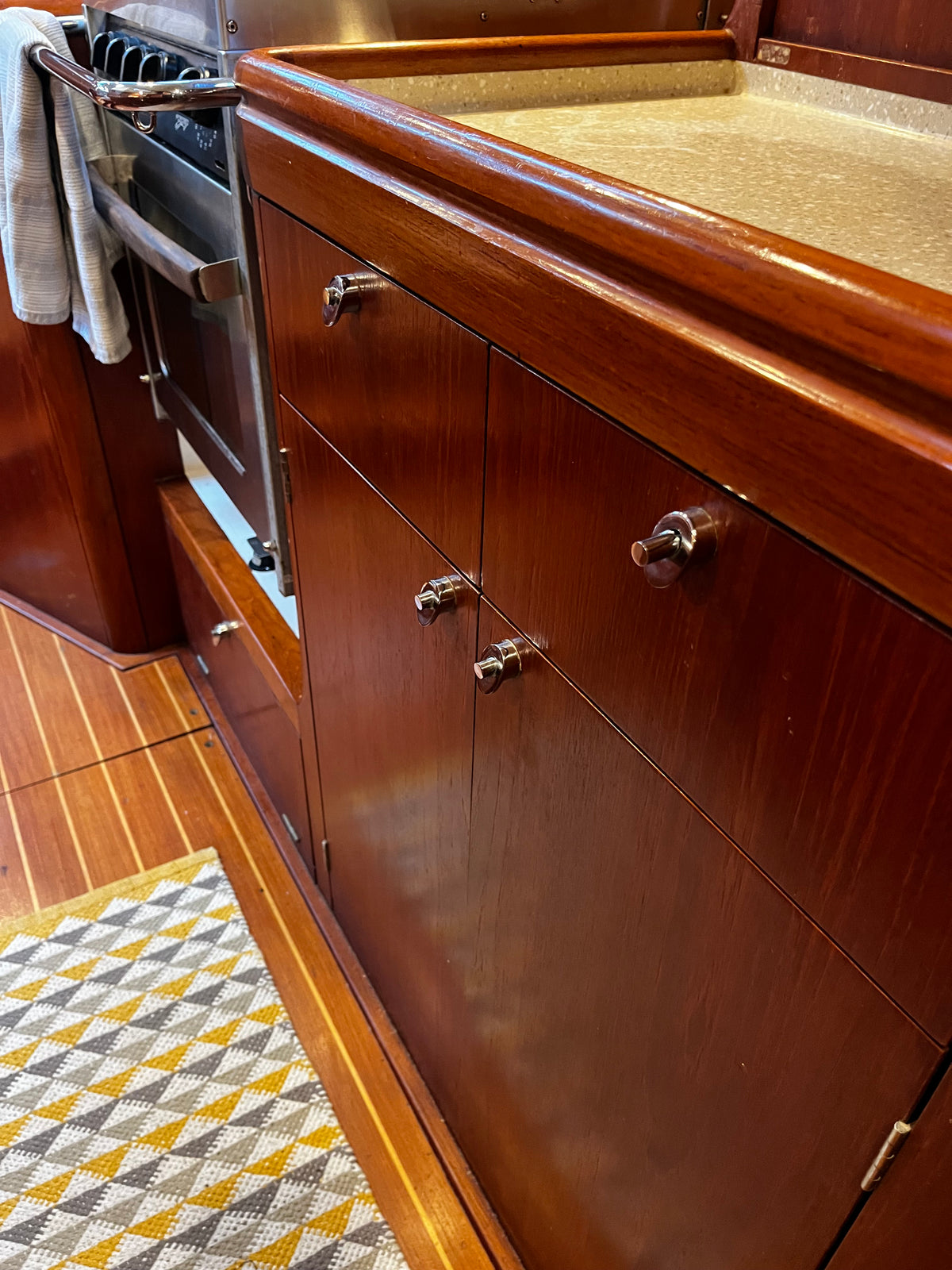

BELLAMARE features a four cabin layout with two heads. Forward, there are two staterooms that share a head. The starboard cabin featuring a pullman style double berth and the port stateroom featuring two bunks. The head, forward, features a integral shower. Amidships, her raised salon is bright and airy with excellent ventilation. There is a curved settee to starboard surrounding a beautiful teak table with chessboard inlay that folds to create a larger dining space. To port is a settee that has a knockout to create a sea berth. At the aft, port corner of the salon is the nav station with full instrument package and electrical distribution/monitoring close at hand. Adjacent to the nav station is a additional cabin with single bunk. The spacious galley is located in the passageway to the aft cabin. Counter space is more than ample, as is storage in many lockers and drawers. A deep top loading freezer compartment and massive front loading refrigerator are well insulated. Aft, the owner’s stateroom with full size walk around berth is a comfortable space with excellent storage. There is a ensuite head with separate shower stall.
Covers for salon table and salon cabin sole
Oceanair screens/shades for all hatches
Fly screens on all opening ports
Hella fans in cabins
Eumenia Sparmeister 802 washer/dryer
Jabsco toilet at forward head
Jabsco electric toilet at master stateroom head (2024)
(2) Wema holding tank level gauges (non functional)

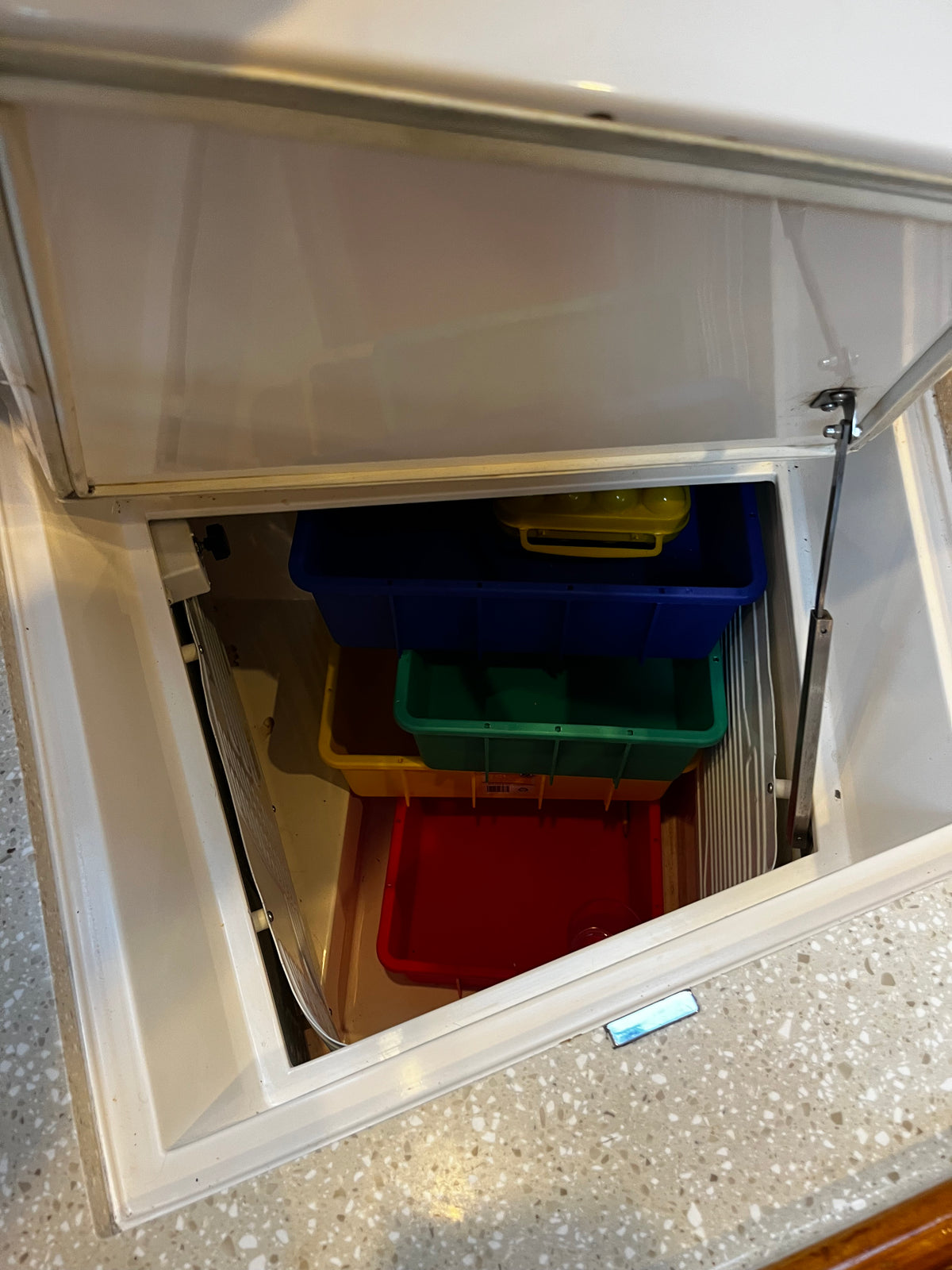

Large top loading freezer with Isotherm 12v 5D50F DC compressor (Keel cooled)

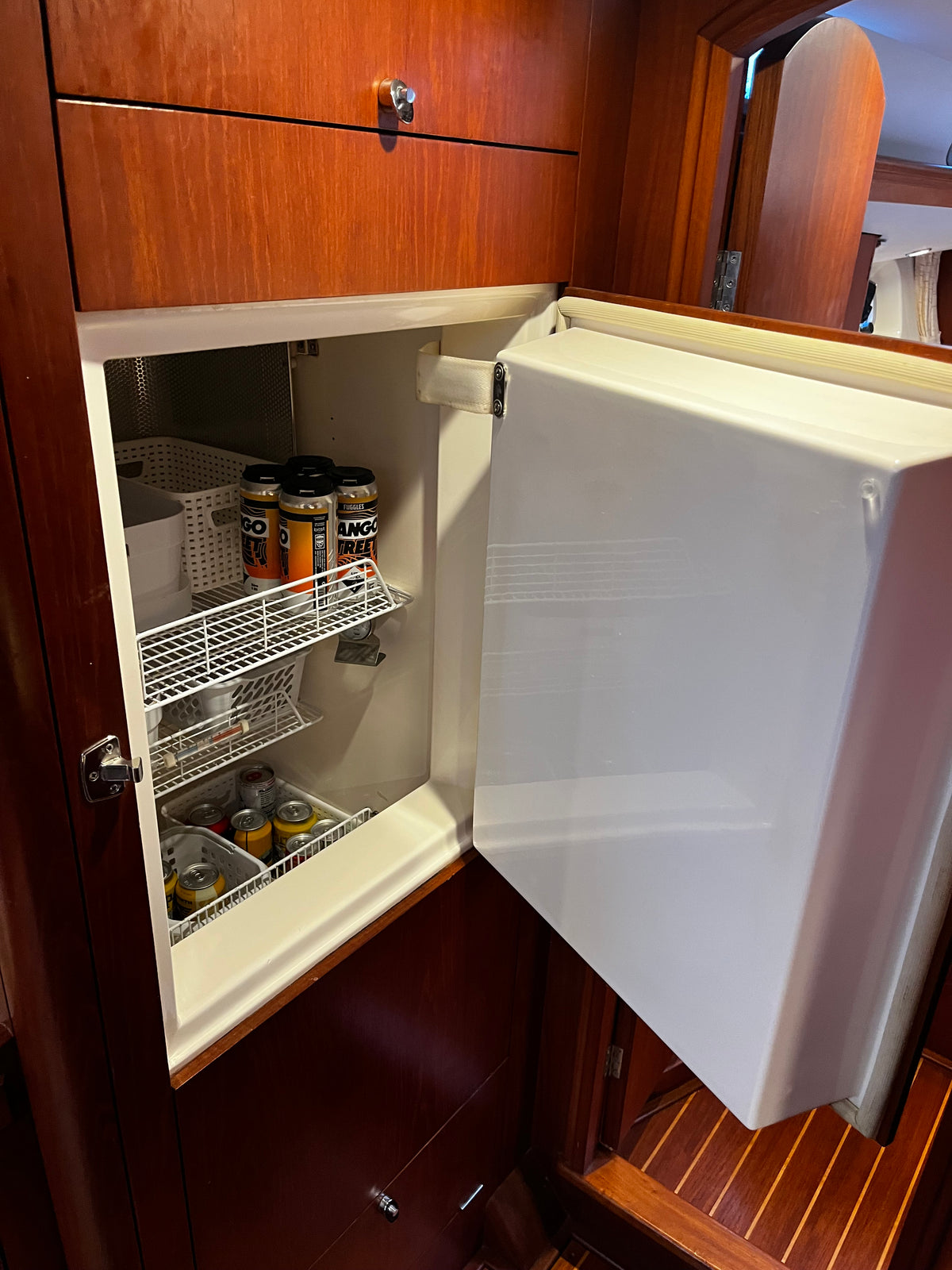

Large front loading refrigerator with Isotherm 12v DC BD50F refrigerator compressor (keel cooled)
Westinghouse microwave (2024)
Force 10 propane four burner stove/oven (2014)
Matrix gas detector (certified 2023)
Propane solenoid control panel at galley
(2) aluminum propane tanks
Fresh and raw water hand pumps at galley
Webasto DW90 hydronic heating system
Pressure hot/cold water system with Par Max HDS 6gph water pump and accumulator tank
Isoltemp 50L stainless water heater (2024)
Custom aft stateroom mattress (2024)
Interior upholstery (updated 2024)
Electronics and Navigation
BELLAMARE received a major electronics upgrade in 2022.
At cockpit:
(2) B&G Triton displays and (2) B&G multi displays at companionway
(2) B&G Triton displays at helm
B&G autopilot remote at helm
B&G Zeus 12 chartplotter at helm
Icom Commandmic 3 VHF ram mic at helm
Custom Sestrel “Oyster Yachts” compass
B&G Halo radar on mast
At nav station/interior:
B&G chartplotter at nav station
(2) B&G Triton displays at nav station
Iridium Go satellite phone with external antenna (non functional)
Starlink professionally mounted and converted to 24v power supply
4G LTE Dual SIM router with external antenna
Icom ICM25 handheld VHF radio
Icom IC-M604 VHF radio
Icom M710 SSB radio
Altitude clock, barometer and thermometer
Fusion Marine RA770 stereo with wifi (2022) with four speakers in saloon, two speakers in cockpit (2026), two in aft cabin and speakers in each forward stateroom with independent on-off switch for each area
Miscellaneous:
B&G DST800 speed/depth/temperature transducer and WS310 wind transducer

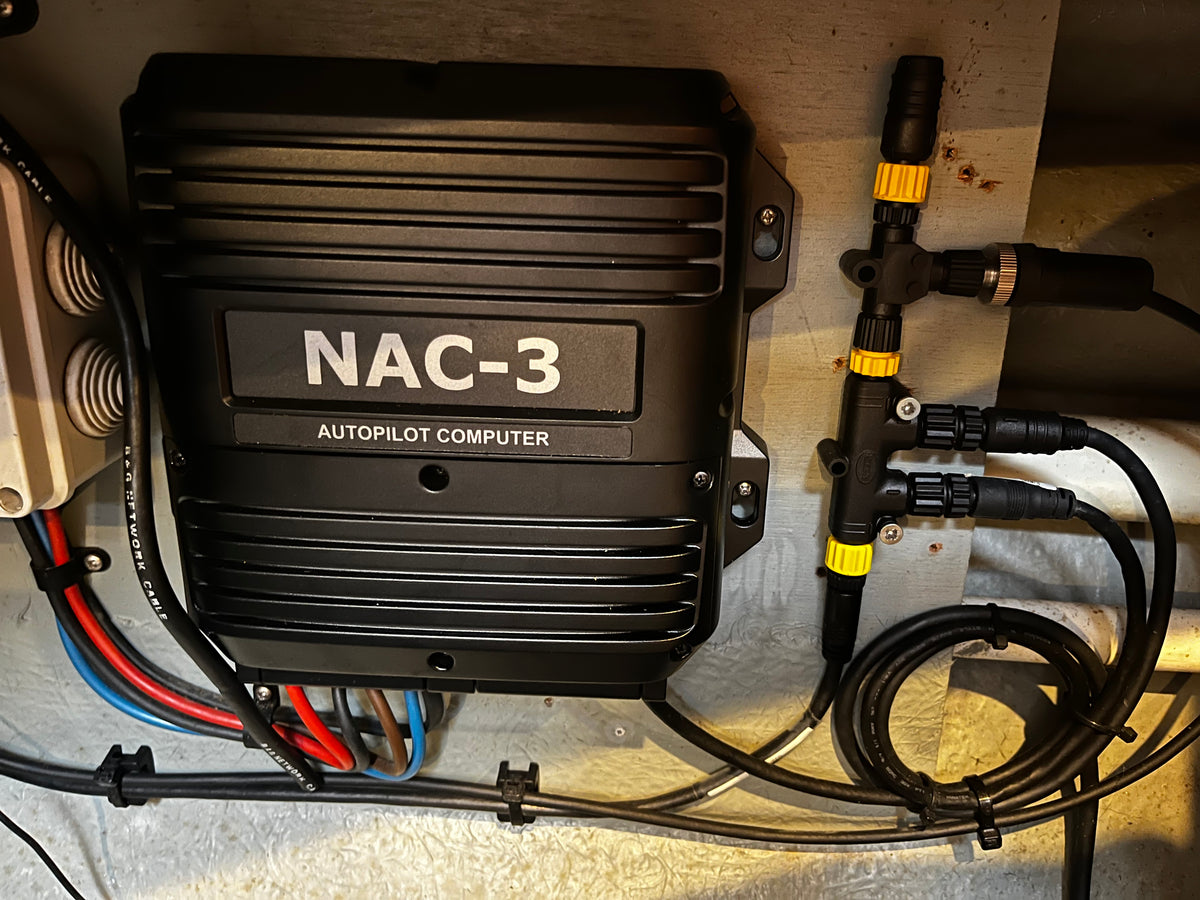

B&G NAC3 autopilot computer with rudder angle indicator
B&G hydraulic autopilot ram
B&G V3100 SOTDMA Class B AIS with Shakespeare VHF/AIS antenna
Backup NSPL-500 VHF AIS antenna
Running lights, anchor light, tricolor light, spreader lights
Electrical Systems
24v DC and 230v/50hz AC electrical systems
Custom AC and DC electrical distribution panels with AC voltmeter and ammeter, DC digital meter
(8) Endurance 86GC2 house batteries
(2) MMF31 start batteries for engine and generator
(2) 12v 6 amp battery chargers
Mastervolt IVET (110-240v) transformer allows shorepower connection worldwide
Mastervolt 220v Mass 24/75 battery charger
Mastervolt Mass 24/2500 230v/50hz inverter with remote panel
(2) 325w Trinasolar solar panels on stainless rack at stern (650 total watts)
Victron MPPT 150/70 solar charge controller
Leece Neville 8RL3136 high output alternator with Ample Power Nextstep external regulator
Yanmar 80 amp alternator
Mechanical Systems
BELLAMARE is fitted with a efficient Yanmar diesel engine and Westerbeke generator. An Aquadrive shaft coupling, high-quality lead backed sound insulation, and exhaust gas/water seperator eliminate most engine noise while motoring. All systems are of top quality with excellent access for service. The engine is located beneath the cockpit with access through hinged doors in the bunk room, and removable panels below the companionway ladder and galley. Overhead lights switch on for visual inspection of the engine.
Yanmar 4JH2HTE 88hp diesel engine (estimated 6,000 hours)
Direct drive transmission

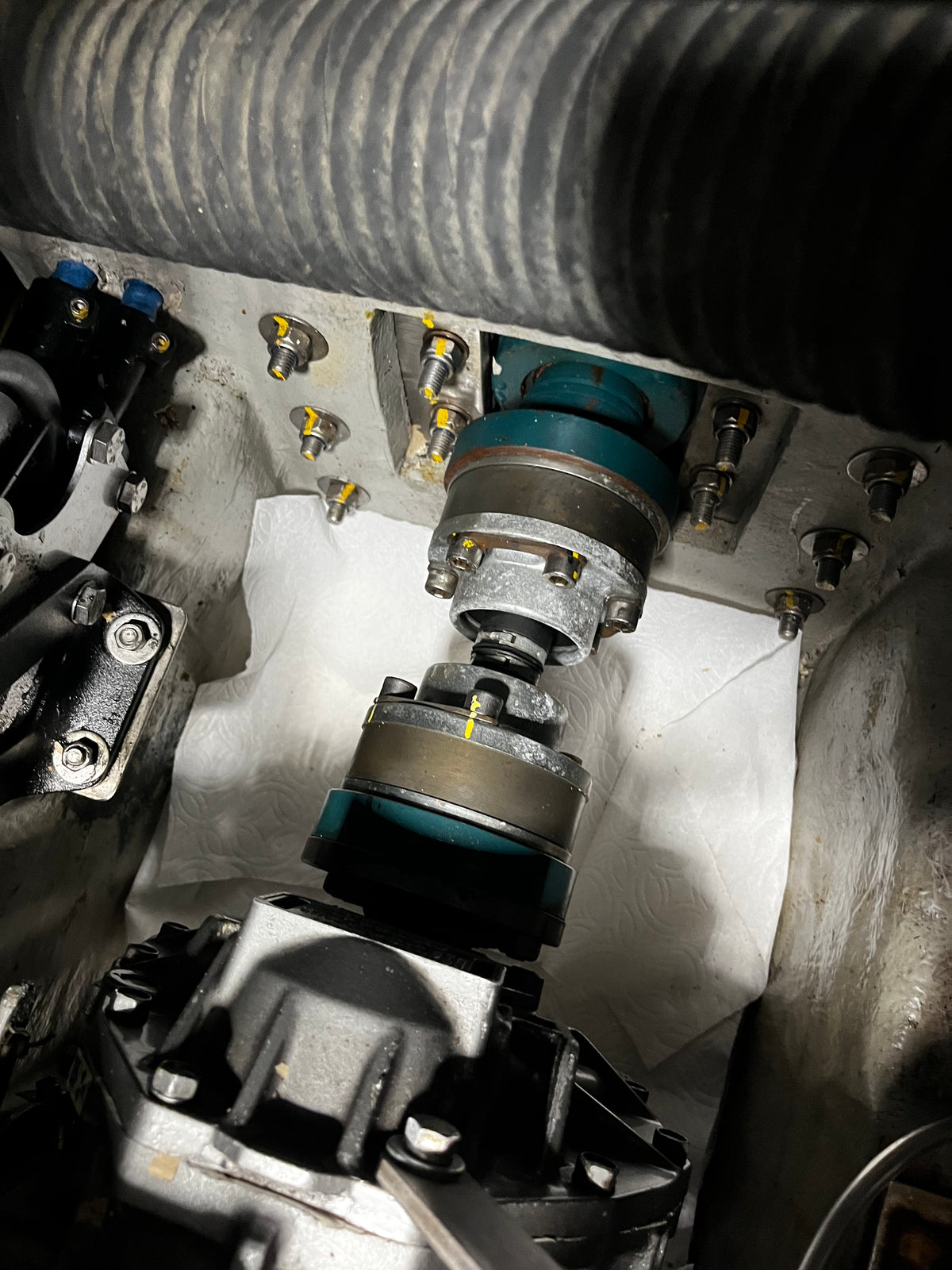

Aquadrive flexible coupling (2019)
Stainless propeller shaft (2024)
PSS dripless shaft seal (2024)
Max Prop three blade feathering propeller
Ambassador AM15 rope cutter
Manual oil change pump mounted on engine
Single lever throttle/shift control
Sleipner 10hp bow thruster (Solenoid replaced 2024)
Westerbeke 7.5kw 230v/50hz generator with exhaust water separator (1572 hours)
Generator control panel with oil pressure, coolant temperature, voltmeter and hour meter Tank Tender tank level monitor
Dual Racor primary fuel filters with water sensor and remote alarm panel (2022)
Jabsco engine compartment blower
Whale manual bilge pump
Rule electric bilge pump
Isotherm water heater (2024)
CJD Watermakers H204A AC watermaker
Bauer J2B dive compressor
Deck and Hull
The Oyster 53 combines a powerful offshore hull with the practical, beautifully finished deck layout that has made Oyster a benchmark for serious cruising yachts. Designed by Rob Humphreys and Oyster Marine, her substantial 49,600-pound displacement, high-performance bulb keel and deep 7’3” draft provide the stability and tracking ability expected of a true passage maker, while the robust Lloyd’s-approved GRP construction is built for miles offshore. Above deck, the Oyster’s distinctive deck-saloon profile, wide side decks, protected cockpit and thoughtfully arranged sailhandling systems create a secure and efficient platform for short-handed cruising. BELLAMARE has seen significant attention to her exterior, including a complete hull repaint, a fully painted non-skid deck following replacement of the original teak, new deck hatches, resealed deck fittings, and new standing rigging.
Sails and Rigging
Selden aluminum double spreader mast
Selden aluminum boom
1x19 stainless wire standing rigging (new 2024)
Harken furlers for genoa and staysail
Low friction mainsail luff track on mast
Selden rigid boom vang
Manual backstay adjuster
(2) spinnaker poles
Lewmar mainsheet traveller
Lewmar 48ST electric winch at cabin top – mainsail halyard, main sheet
Lewmar 48ST winch at cabin top
(2) Lewmar 64ST electric primary winches
(2) Lewmar 48ST secondary winches
(2) Lewmar 16ST traveller winches
Lewmar 48ST winch on mast
Lewmar 44ST winch on mast
Gray canvas “stack pack” mainsail cover (2024)
Genoa halyard, spinnaker halyard, staysail halyard, Storm Jib Halyard, (2) pole topping lifts, mainsail halyard, mainsail topping lift, running backstays
Sails:
Full batten mainsail with three reefs (2019)
Staysail (2024)
Spare staysail
North Sails 150% Norlam tri radial genoa (2014, new UV cover 2024)
Gennaker
Spinnaker
Storm jib with luff pocket
Trysail
Miscellaneous and Safety
OC Tenders 300 dinghy (2020)
Yamaha 8hp outboard engine (new 2020, serviced 2025)
Whittall electric stainless steel dinghy davits (SWL 150kg)
ACR Globalfix v5 EPIRB

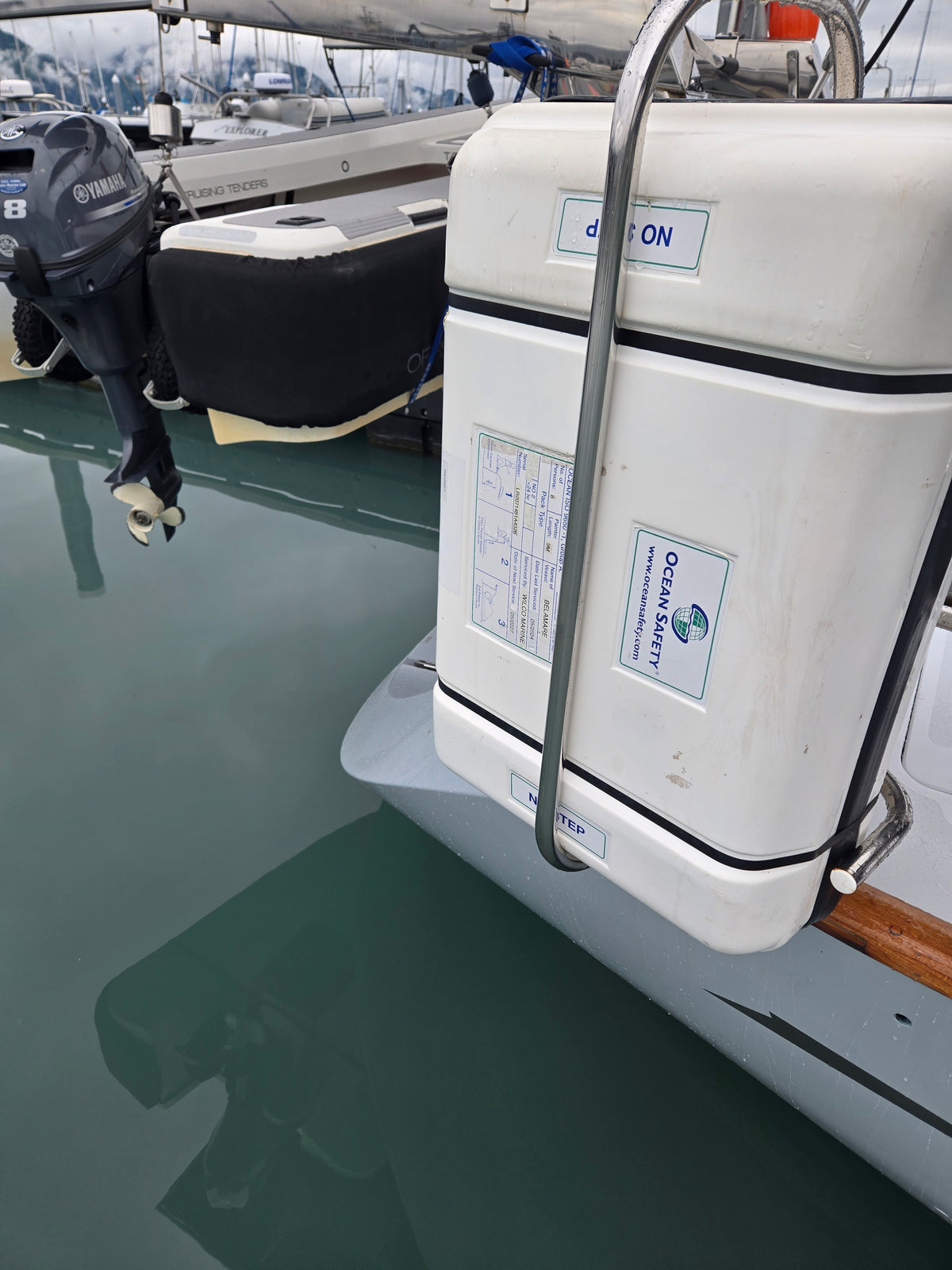

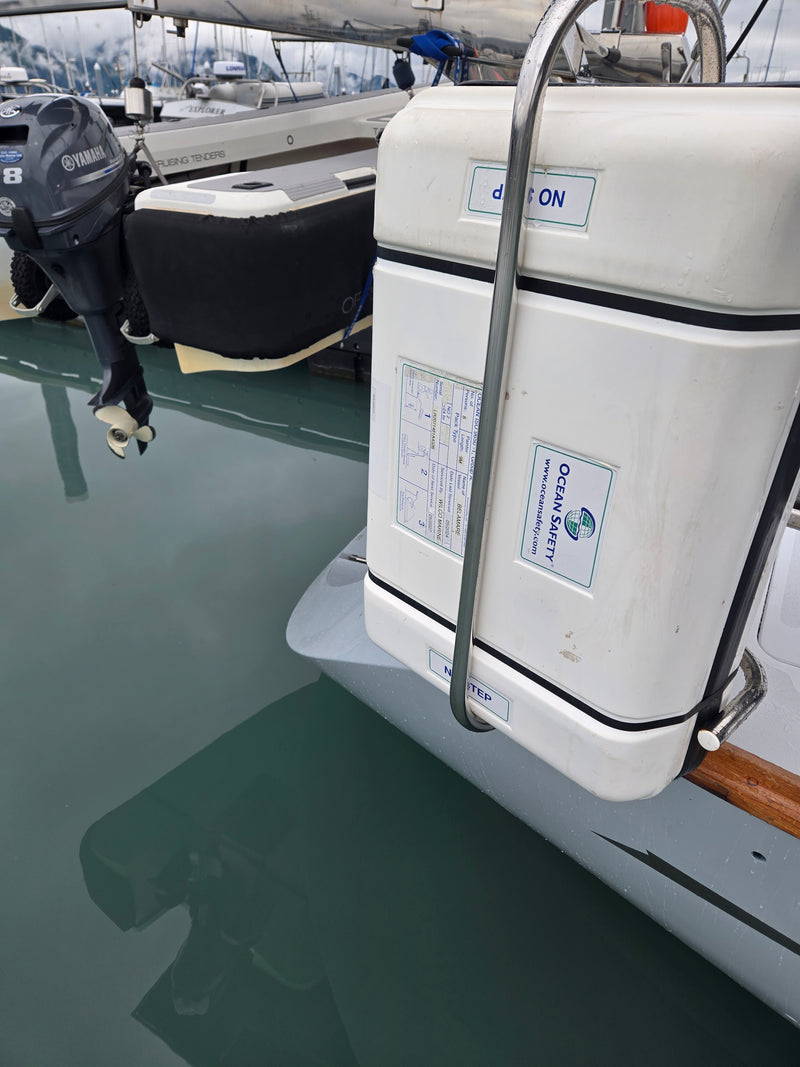

Oceansafety 8 person liferaft in canister mounted on stern rail (next service due 5/2027)
Lifesling MOB recovery device
Jonbuoy recovery module
Horseshoe buoy
Search light
Grab bag
Firdell blipper radar reflector
Teak flagstaff with US ensign
Magma propane BBQ
Seabrake Drogue with chain and 100m poly line
2024 refit and maintenance
Exterior
Replaced teak deck - painted and non-skid
Repainted hull
New antifoul
Replaced standing rigging
New fasteners and resealing deck fittings
New dodger
New bimini and added clears around cockpit
New stackpack mainsail cover
LED spreader lights
Fore deck lights
New LED tri-color/anchor light
New Rocna 40 anchor
New prop shaft and dripless seal
New perspex for all porthole and portlights
Replaced many seacocks with Trudesign
New UV strip on genoa
New staysail
Refitted storm sails
New AIS tuned antenna
Replaced bow thruster solenoid
Interior
Replaced interior lighting
New interior upholstery
New microwave
New water heater
New freshwater pump
Custom spring mattresses for stateroom
Replace electric toilet
USB power in all cabins
Starlink
Replaced galley sink gulper pump
New AIS
Rebuilt generator salt water pump
Maintenance
Replace engine mounts
New water pump for engine
Retapped turbo for engine
Dive compressor serviced
Rebuilt anchor windlass
Replaced Dorade vents
Serviced/repacked life raft
Bought Jon Buoy MOB
New gas spring for boom vang
2025 Upgrades
New main traveler
Replaced rod end on auto pilot ram
Replaced forward head gray water tank
Topped off refrigerant and replaced schrader valve
Replaced exhaust mixing elbow
New cockpit speakers
Safety strap on genoa luff and repair to leach line
New genoa furler cover
Serviced Yamaha outboard
2026 Upgrades
New antifoul
All new deck hatches lid assemblies
Replace aft head thru-hull fitting
Replaced aft head waste discharge hose
Exclusions
All personal belongings and all other items not expressly listed in the above inventory are excluded from the sale.
