Interior Accommodations

INDARA's warm, hand-crafted interior reflects the renowned quality of Ta Shing joinery. The layout features a forward double cabin, a spacious main salon, a large aft owner's cabin with a California king berth, and two full heads. The forward head is equipped with a Tecma electric toilet, shower, and ventilation. The aft head includes a Groco manual head and a separate stall shower with a solid acrylic door.

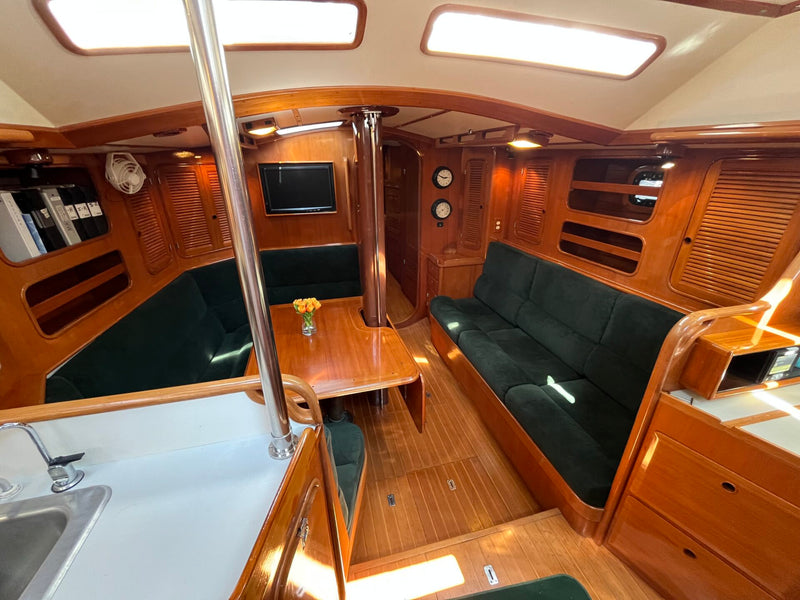

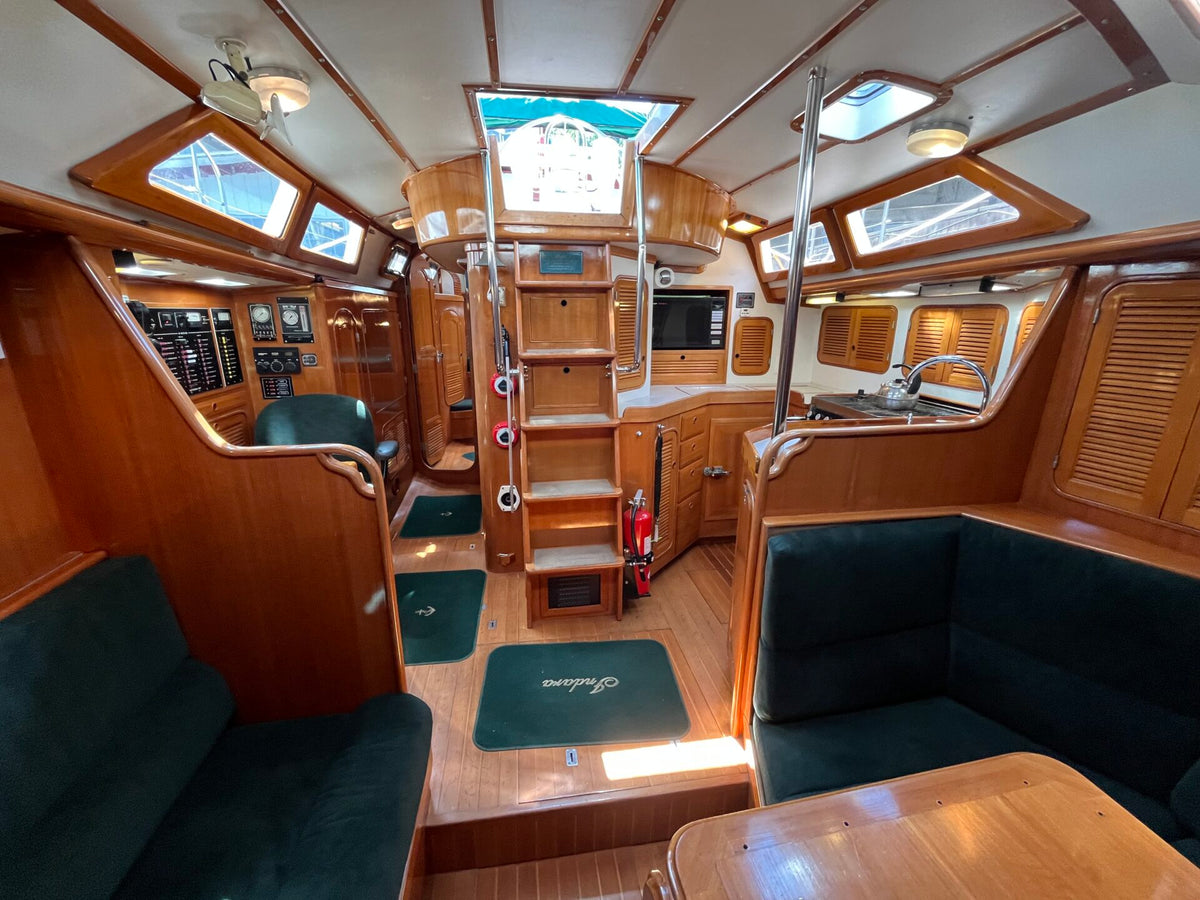

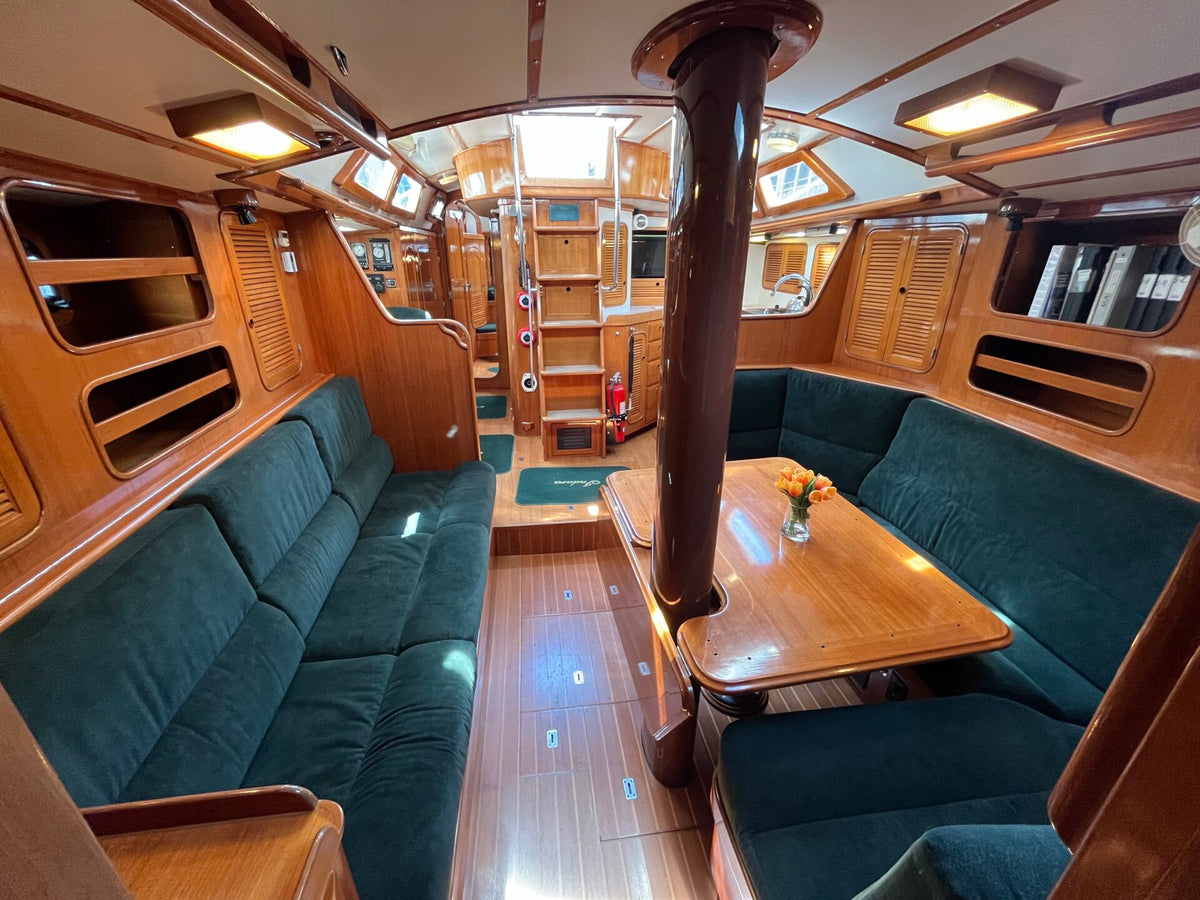

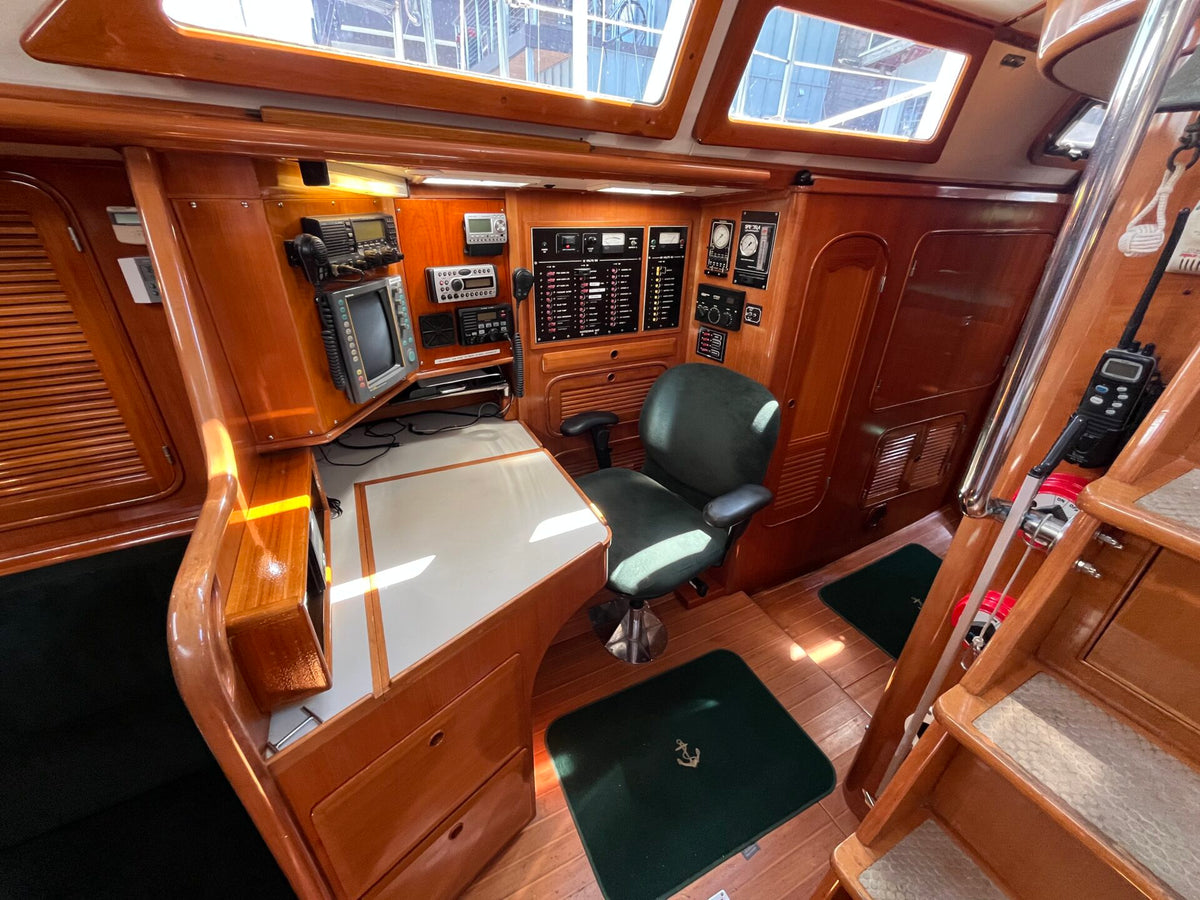

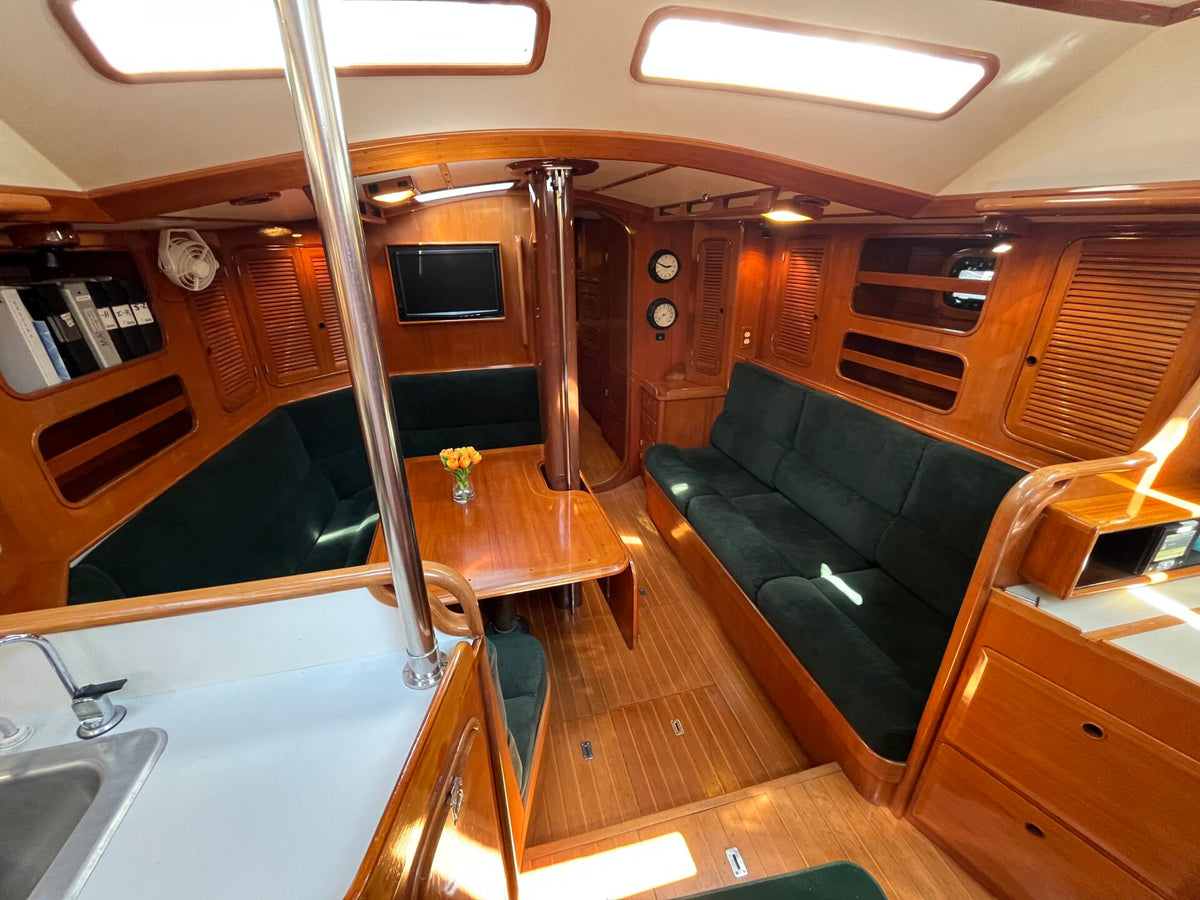

The main salon features a convertible dinette, bookshelves, lockers, and a large, folding dining table. A starboard sea berth doubles as a workbench with a vise, and deck prisms flood the area with natural light. The nav station is equipped with a swiveling captain's chair, SSB, radar, Wi-Fi antenna, and entertainment system.

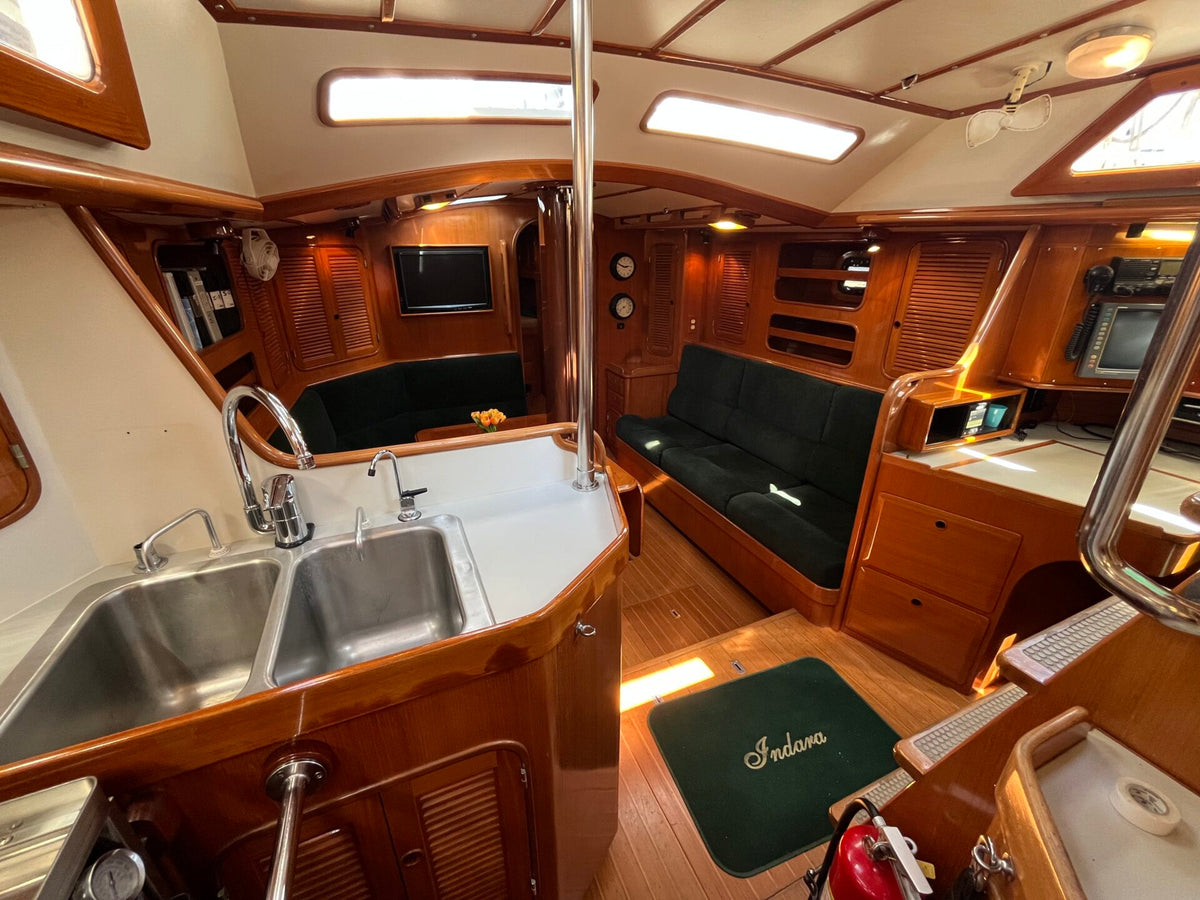

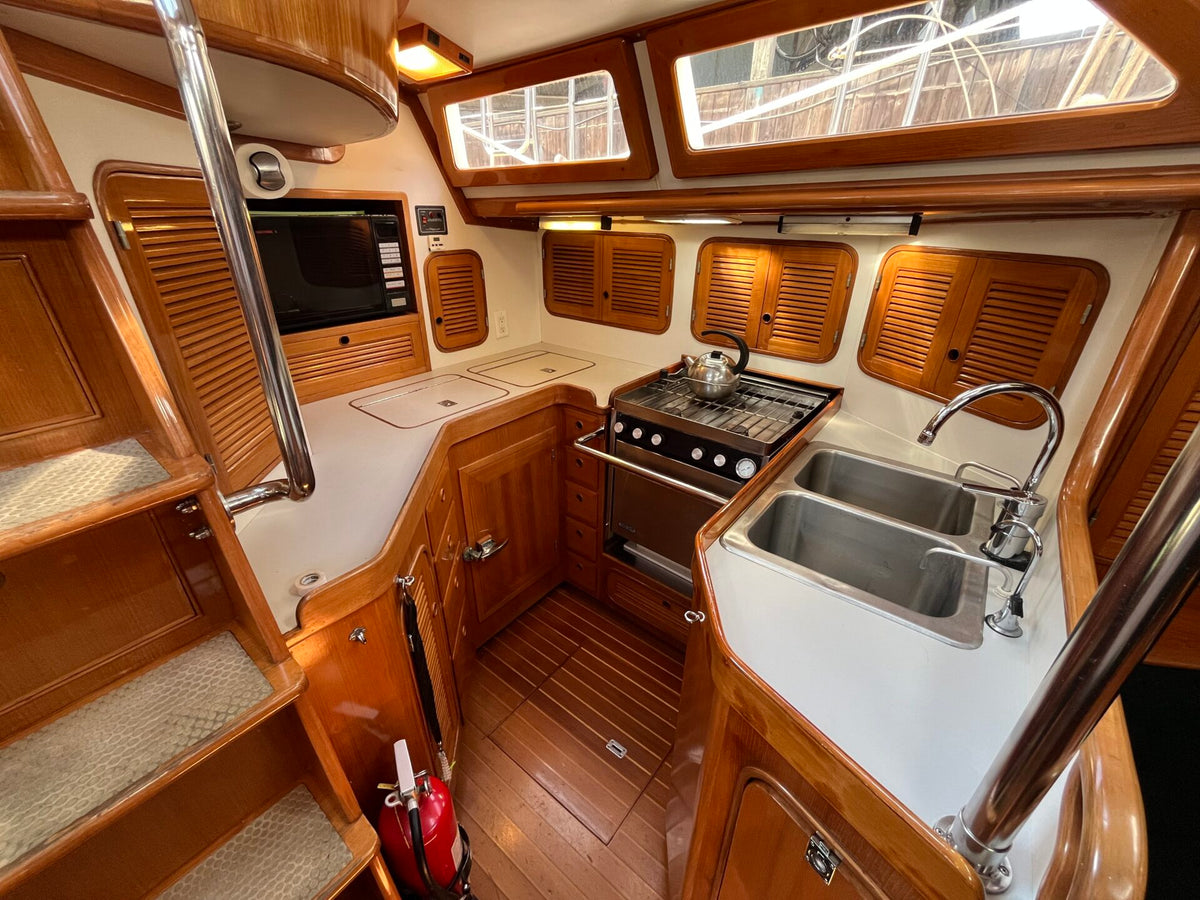

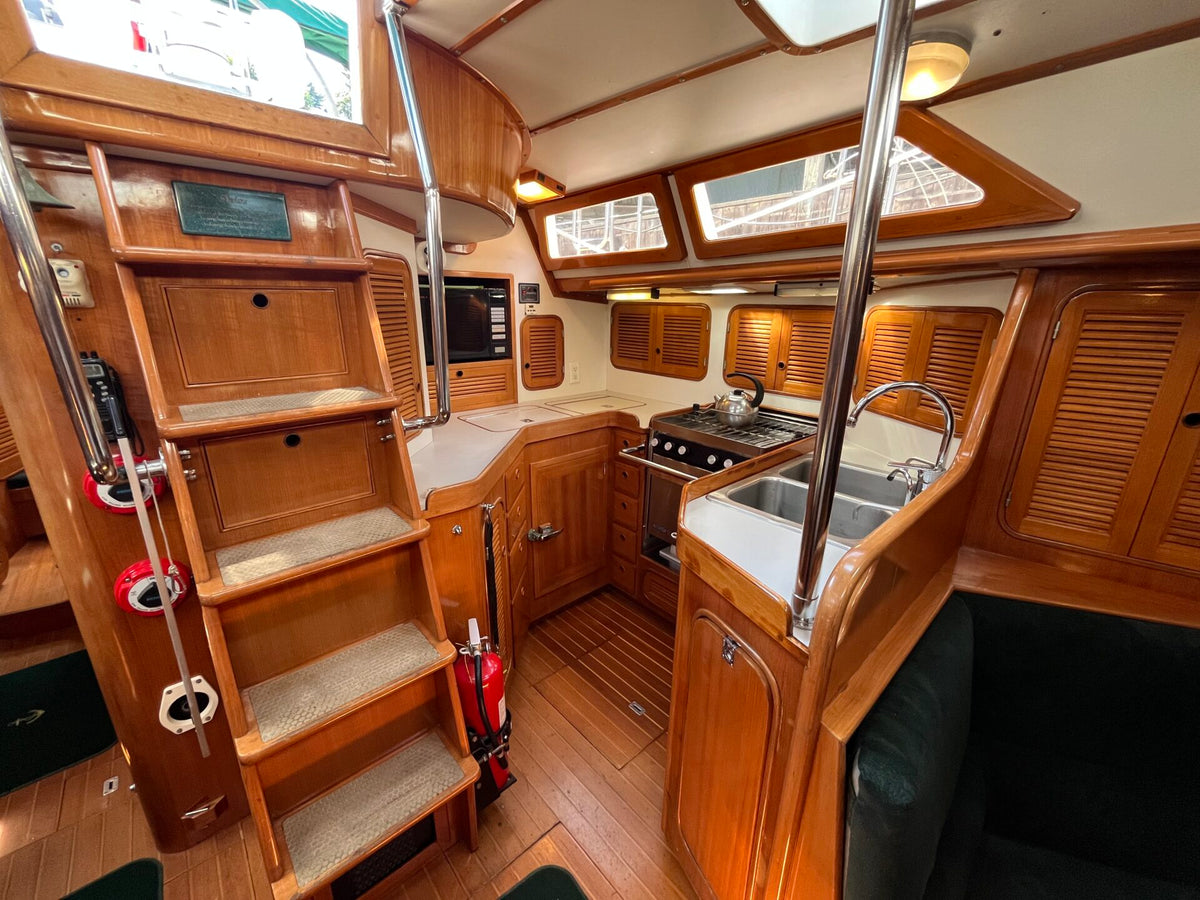

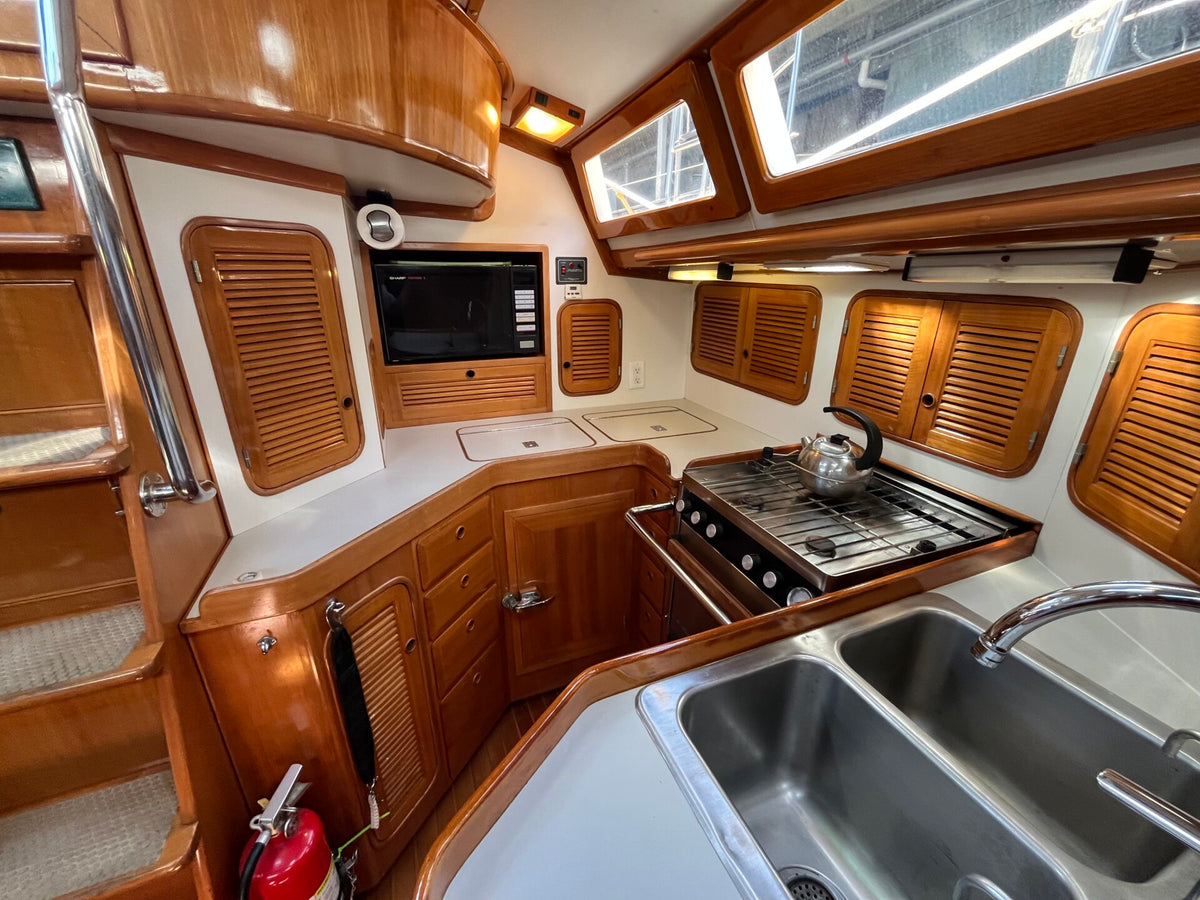

The galley includes a Glacier Bay holding plate refrigerator and freezer with digital thermostats, a Force 10 three-burner propane stove with oven, Sharp microwave, manual freshwater and saltwater pumps, and pressurized hot and cold water. The entire vessel is climate-controlled via a ProHeat hydronic diesel heater with multiple cabin exchangers and a 10-gallon water heater fed by engine, shore power, or hydronic system.

Electronics & Navigation

INDARA is fully outfitted for offshore navigation with redundant systems:

• Simrad AP22 autopilot (control head at cockpit, interior remote not in service)
• Fleming 501 self-steering windvane
• B&G multi-function displays (knot, depth, wind direction/speed) at helm and nav station
• Raytheon R40XX radar
• Raymarine radar antenna with hydraulic tilt (pole mounted, tilt not functional)
• Icom IC-M710 SSB and antenna tuner
• SSB modem
• ICOM IC-M502 VHF radio
• ICOM IC M1 handheld VHF
• VHF and AIS antennas (at radar pole)
• Ritchie compass at binnacle
• Clarion CMD4 AM/FM/CD Player with XM Radio and Wi-Fi Antenna (no speakers currently attached)
• ACER X223W computer monitor on salon bulkhead

Mechanical Systems

• Beta Marine 60HE, 58 HP diesel engine (installed 2009, approx. 259 hrs)
• V drive transmission (overhauled 2009)
• PSS dripless shaft seal
• Shark Shaft line cutter
• Max Prop 3-blade feathering propeller
• Racor primary fuel filter
• Beta stock alternator with Balmar ARS-5 external regulator
• Engine room light
• Spectra 200C watermaker - 12v DC 8gph
• Tank Tender monitoring system for water and fuel
• Automatic emergency bilge pump
• (2) manual bilge pumps

Electrical Systems

• 12v DC and 120v AC electrical systems
• 30 amp 125v shore power inlet with 50’ cord
• 50 amp 125 to 30 amp 125 adapter
• Norseman custom AC/DC electrical distribution panel with DC voltmeter and AC ammeter
• (4) Dyno 6v house batteries (2022)
• Freedom 10 inverter/charger
• Link 2000R inverter control panel
• Blue Sea M2 battery state of charge monitor
• Blue Sky Solar MPPT controller
• Kyocera 120watt solar panel array with 360° orientation
• 150 amp DC genset powered by Beta 7 HP diesel engine

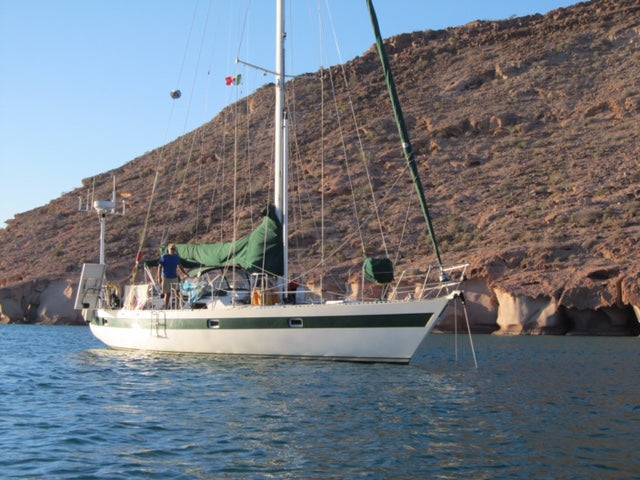

Deck & Hull

INDARA features a solid fiberglass hull that was soda-blasted down to the fiberglass and recoated with epoxy and new gelcoat (San Diego, 2012). Her teak deck was fully re-caulked and re-bunged in 2016, The deck includes:

• Lewmar vertical capstan anchor windlass
• Spade 121 lb anchor with all-chain rode and swivel
• Fortress FX 55 anchor
• Deck washdown (salt and freshwater)
• Stainless radar pole with mounted antennas
• Tempered glass deck prisms
• Granny bars at mast
• Three deck lockers, propane locker, and cockpit table
• Edson 40” wheel steering with emergency tiller
• Stern boarding and swim ladders
• Cockpit table
• Green canvas dodger and bimini
• Green canvas covers for mainsail, binnacle, dinghy, winches and windlass

Sails & Rigging

INDARA is rigged for long-distance cruising and heavy weather sailing:

• Two spreader aluminum mast and aluminum boom (painted white)
• Aluminum spinnaker pole mounted on mast
• Standing rigging by Brion Toss in 2000, with out of boat inspection by Toss in 2017
• Strong Track low friction mainsail track and separate storm trysail track on mast
• Rigid boom vang
• (2) Lewmar 43 ST winches on mast
• (2) Lewmar 55 ST primary winches at cockpit
• (1) Lewmar 46 ST winch at cabin top for mainsheet

Sails:

• Mainsail with Dutchman flaking system (Hasse and Co, 2000)
• Genoa on Furlex roller furling (Hasse and Co, 2000)
• Staysail
• Spinnaker with chute
• Storm jib
• Trysail

Tender Package

• AB 9’ inflatable dinghy with custom deck mounting system
• Tohatsu 6hp outboard motor
• Motor hoist and bracket on pushpit

Miscellaneous and Safety

• 6 person deck mounted liferaft
• Lifesling MOB recovery device
• MOB pole
• Storm drogue
• Boat hook
• Fenders and dock lines
