Interior Accommodations
Impala’s interior is beautifully finished in American cherry with satin varnish. All hatches and screens are finished this way as well. The cabin sole is thick teak and holly over plywood. Locking drawers and cabinets can be secured. Large salon windows fill the living areas with natural light. Opening ports and hatches with screens provide excellent ventilation. There are plenty of handholds to make passage easy and safer when the seas kick up or you are heeling over. She can sleep six comfortably in two separate cabins and the salon.
The master stateroom is located at the forward end of the boat. The comfortable pullman berth is on the port side. Drawers below the berth provide excellent storage space. There is a hinged space outboard to port for additional storage. Above the berth is a full length shelf with sliding doors. Opposite to starboard are two large lockers, divided in the center by a bureau of five drawers, including a vanity and mirror. Forward of this cabin is the private head with separate shower stall.
The main salon is aft of the master stateroom. There is a seven foot long U-shaped dinette to port with a drop leaf table with a straight settee to port. The mid-section of the backrest of the starboard settee drops down to become a small table perfect for playing cards or having a drink. There is a wine cabinet behind this table. Bookshelves with adjacent lockers are above and behind both settees. The settee coverts into a generous sea berth when underway. The battery bank and inverter charger is accessed beneath the starboard settee. Cushions are covered blue ultra-suede fabric in excellent condition. There are lee cloths available as well.
The U-shaped galley is located to port and aft of the main salon and includes Corian counters, forward facing double stainless sink and Scanvik faucets. There is a dish storage rack above the sinks. There are two large access hatches to the fridge and freezer on the port side as well as a three-burner gimballed Force 10 stove with oven. There is generous storage including a pantry with generous open storage and two deep drawers behind the navigation station.
Across from the galley to starboard is the navigation station. Situated adjacent to the companionway, the navigator will be in close proximity to those on watch allowing communication with the helm. The top opening chart table easily accommodates all the necessary navigation equipment. There are drawers and lockers for tools, winch handles and binoculars. The Raymarine E-120 radar/chartplotter screen is here as well as VHF radio. The electrical panel is on the aft side of the nav area and allows for full access to the back and wiring.
The guest stateroom is aft of the navigation station and is comprised of a comfortable double berth. Louvered lockers are above and outboard of the berth with additional storage in cabinets along the aft bulkhead. There is a large hanging locker a bookshelf as well as two drawers below the berth. Hatches and ports provide light and ventilation including into the cockpit.
Aft of the galley on the port side is the aft head finished in molded surfaces that are easy to clean and impervious to moisture. This head is close to the companionway for excellent access to the on watch crew or storage of foul weather gear. The stainless steel sink is set into a counter and there is a mirror above. The integral shower is handy to the aft cabin on the opposite side of the companionway. There is also internal access to the garage from this head.
Galley
Force 10 three burner stove with oven
(2) 20lb propane tanks in cockpit locker
Trident propane solenoid control panel
Frigoboat refrigerator & freezer with separate BD35F keel cooled compressors
Pressure hot/cold water
Raw water foot pump
Filtered water tap
Rail mounted BBQ with propane tank hose connection
Electronics and Navigation
Raymarine ST60+ Speed, Wind, Depth displays
Raymarine E120 & E80 radar/chartplotters at helm and nav station
Raymarine AIS
Icom M502 VHF radio with cockpit RAM mic
Ritchie compass at helm
Raymarine autopilot with wireless remote
Weems and Plath clock and barometer
Pioneer AM/FM/CD stereo receiver with (2) interior speakers and (2) cockpit speakers
Electrical Systems
120v AC and 12v DC electrical systems
ABYC approved marine wire throughout
Custom AC & DC panels at nav station with full access
AC voltmeter and ammeter and DC voltmeter at electrical panel
12v DC outlets at master stateroom and nav station
120v AC outlets at all cabins and galley
Xantrex battery monitor (not functional)
30 amp shore power inlets at bow and stern with selector switch

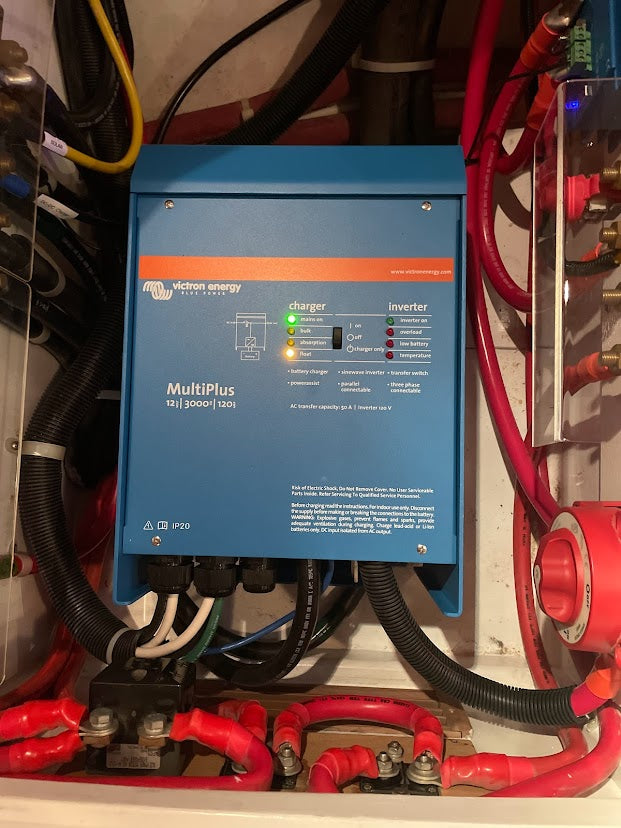

Victron Multiplus 3000 watt pure sine wave inverter/120amp battery charger (2021)
Victron GX Touch color display – electrical system monitor and control panel (2021)

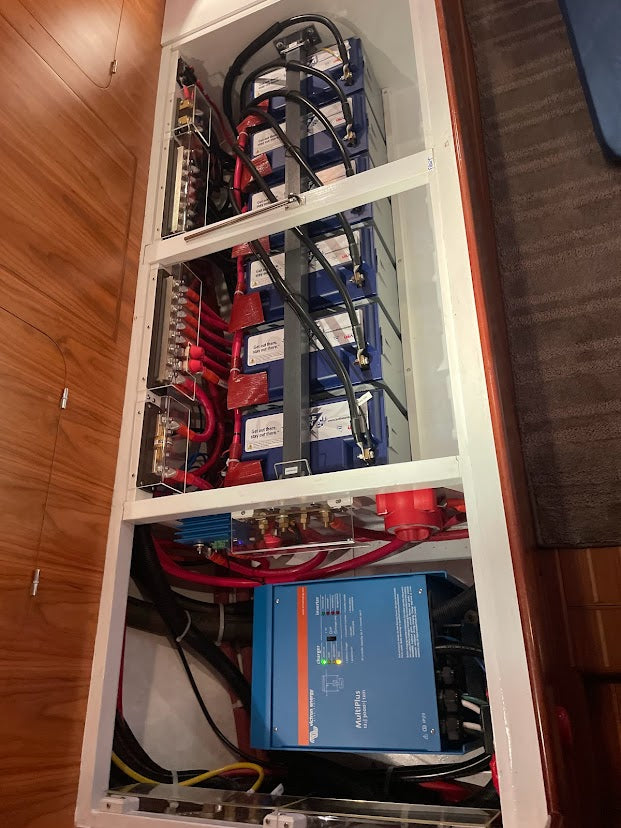

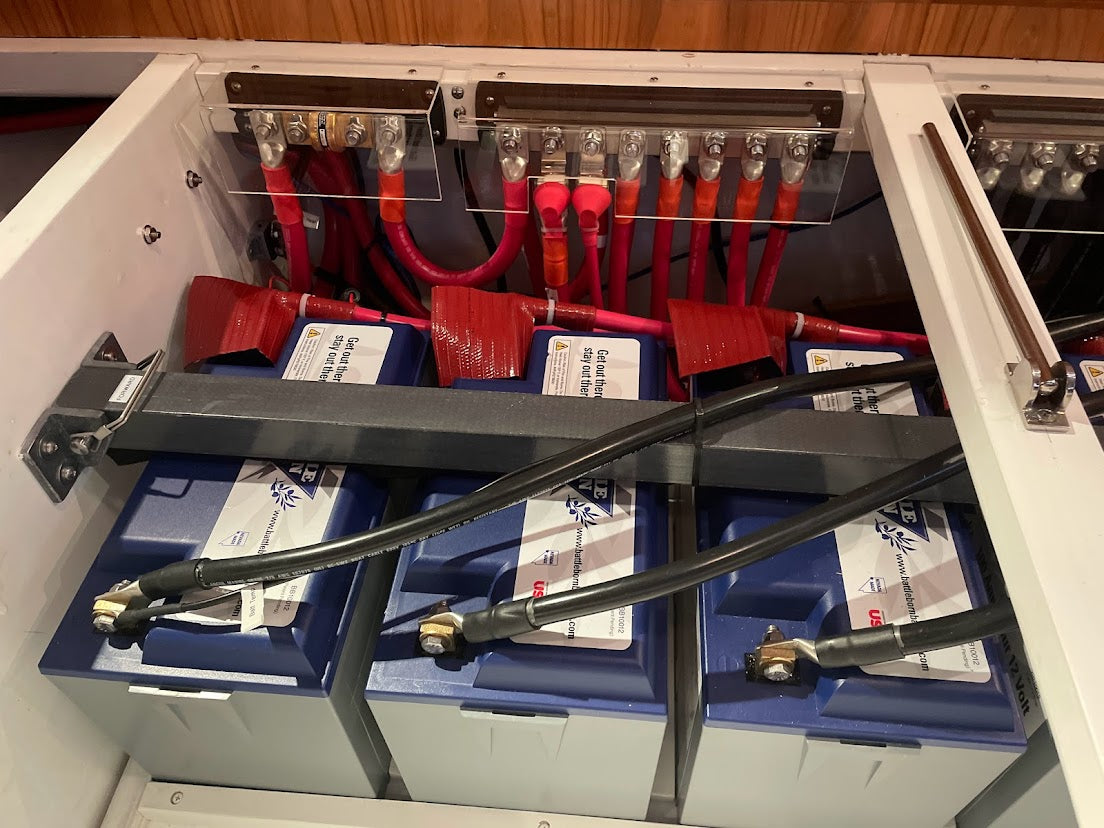

(6) Battle Born BB10012 100amp hour lithium batteries - 600 amp hours total (2021)
Group 27 engine start battery
(5) 160 watt solar panels with Victron Energy BlueSolar 100/50 MPPT controller for bimini panels and (2) BlueSolar MPPT 75/15 controllers for side mounted panels
Balmar XT-DF-170-J10 170 amp high output alternator with Wakespeed WS500 external alternator controller (2021)
Guest galvanic isolator
Mechanical Systems
Yanmar 4JH4-TE 75 hp diesel engine (estimated 1350 hours)
Yanmar full gauges panel in cockpit
Racor 500 series primary fuel filter with vacuum gauge
1.25” stainless shaft
Max Prop feathering propeller
PSS dripless shaft seal
Tank Tender tank level monitor
SidePower SP 95TI bow thruster
Webasto DBW 2010 Hydronic heating system w/thermostatic controls
44 inch stainless destroyer wheel
Rack & pinion steering system
Emergency tiller
(2) Tank Watch holding tank level monitors
(8) fans in cabin
Hull and Deck
The Outbound 46 design was conceived for serious offshore cruising. Each Outbound Yacht is constructed of 100% hand-laid fiberglass with a massive system of stringers, longitudinals and bulkheads that are carefully bonded directly to the hull while still in the mold. Laminates are increased in high stress areas and in the bow and bilge for added strength. Bi-axial cloth adds to the overall impact resistance and outer layers of vinylester resin protect against osmotic blistering. Ashland Maz-Guard premium ISO-NPGH gelcoat is used to protect the laminate and provide a superior gloss for years. To eliminate keel bolt troubles, the hull and keel are molded as a single lamination. After the deck is through bolted and sealed to the hull with 3M 5200 sealant, the bulkheads are fiberglassed on their entire perimeter, not just screwed in place. All furniture is then carefully bonded to the hull adding to the structural support system.
The deck is cored with balsa and vacuum bagged with the core materials removed and replaced with solid fiberglass and stainless backing plates in critical areas. There are removable overheard access panels throughout to get to deck hardware. Pushpit, pulpit and mast rails are oversized 1.5” stainless tubing. Lifelines are taller than average at 30”, with a solid handrail leading from the boarding gates aft. There are stainless handrails on the cabin top and padeyes to connect jacklines and harnesses. Mooring cleats are 12” stainless, suitable for a large ocean-going yacht. There are ten stainless steel opening ports and eight Lewmar hatches. Four dorade vents and Nicro solar fans provide plenty of ventilation.

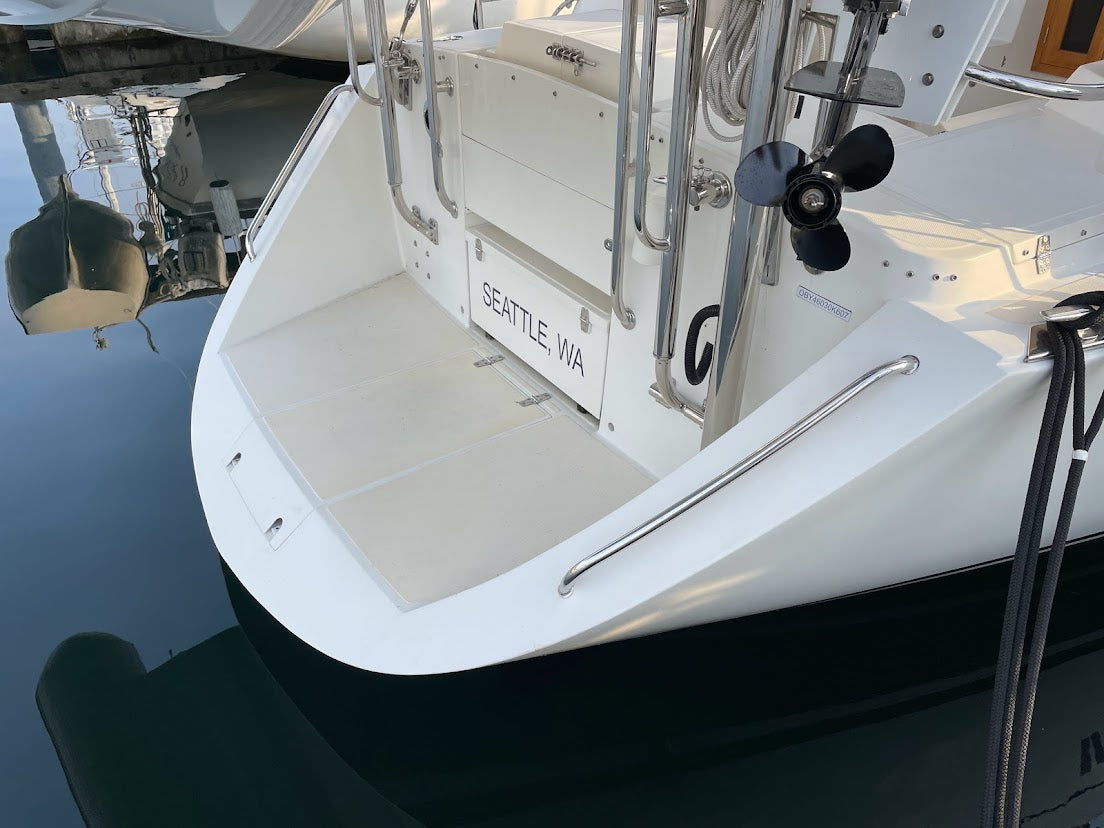

The cockpit is a safe and comfortable place whether driving the boat in a gale or resting in a placid anchorage. The long seats provide plenty of room for entertaining, sleeping outside or sunbathing. Most importantly, the cockpit is deep and narrow with seat backs ergonomically designed for maximum comfort. For safety and comfort, the Outbound 46 was designed to make moving about the cockpit and cabin as easy as possible. The three step companionway allows easy transit from cockpit to salon without having to use a steep and long ladder. Forward of the companionway is a molded sea hood with integral instrument panel and large coaming for attaching the dodger. A walk thru transom with boarding platform and fold down swim ladder make access to the dinghy and water easy. And there is a built in liferaft storage container accessible to the cockpit and platform.

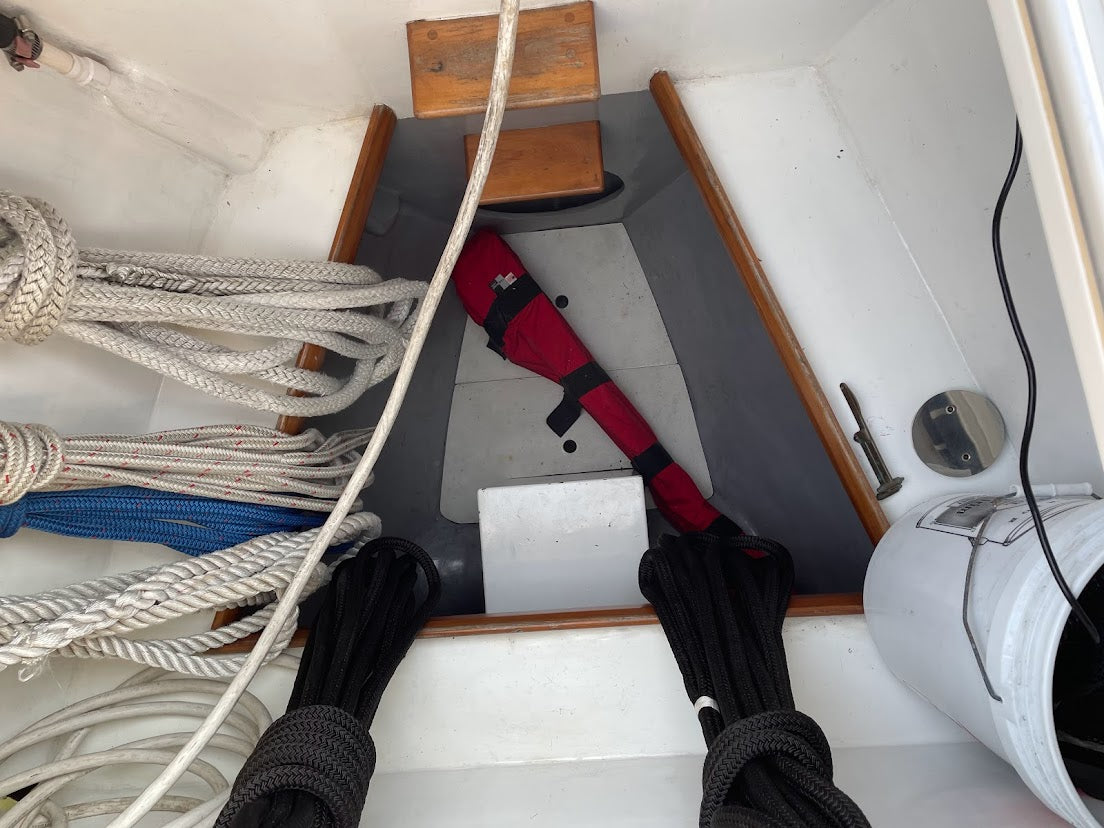

Excellent stowage and load carrying capacity are designed into the Outbound's hull and deck. 200 gallons of water and 180 gallons of fuel are stored in integral fiberglass tanks beneath the cabin sole which aids in upwind sailing performance and opens space under the settees and bunks for other stowage. There is a large foredeck locker at the bow, separated from the cabin by a watertight bulkheadand accessed from on deck. The locker also offers standup access to the anchor locker and makes stowing an asymmetrical spinnaker a breeze. In addition to the forward locker there is a giant cockpit lazarette, a large propane locker and access to the "garage" aft of the after head.
A full boat cover for off season storage is included in the sale.

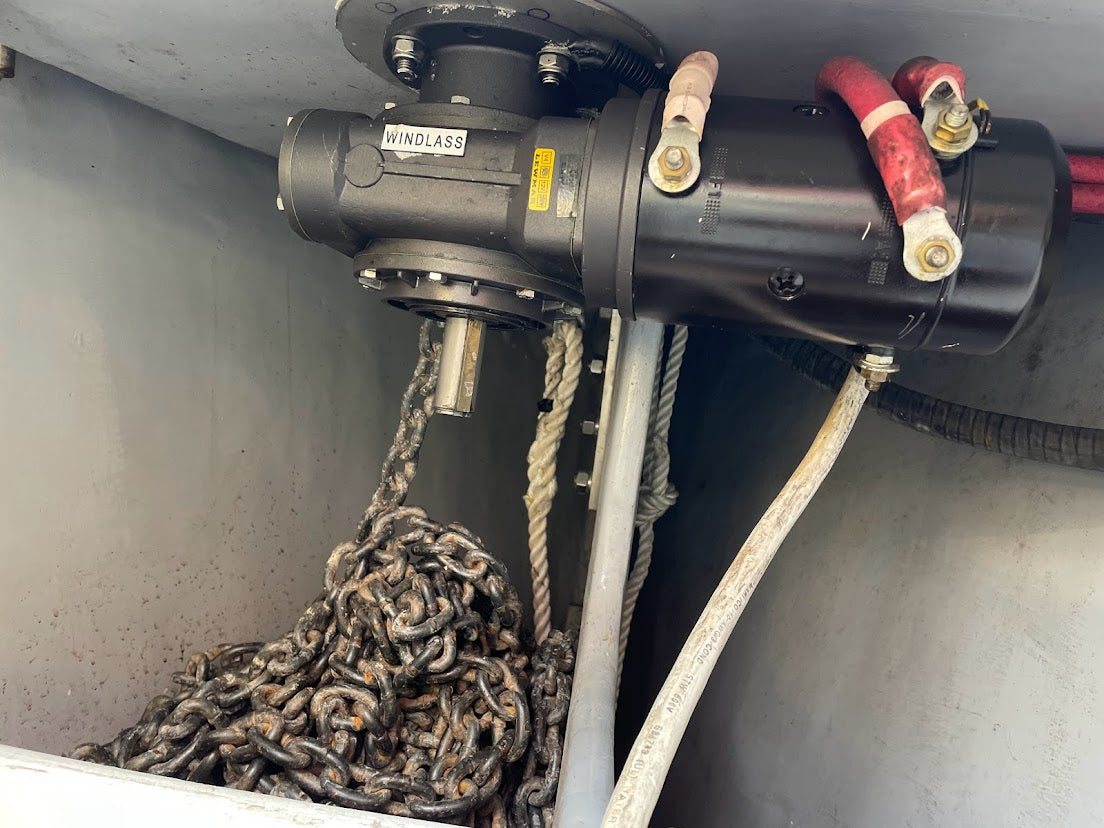

Lewmar Ocean vertical capstan anchor windlass
Delta 65 lb plow anchor
200 ft 5/16 G4 chain
Fortress FX37 anchor
Composite cockpit table with cupholders

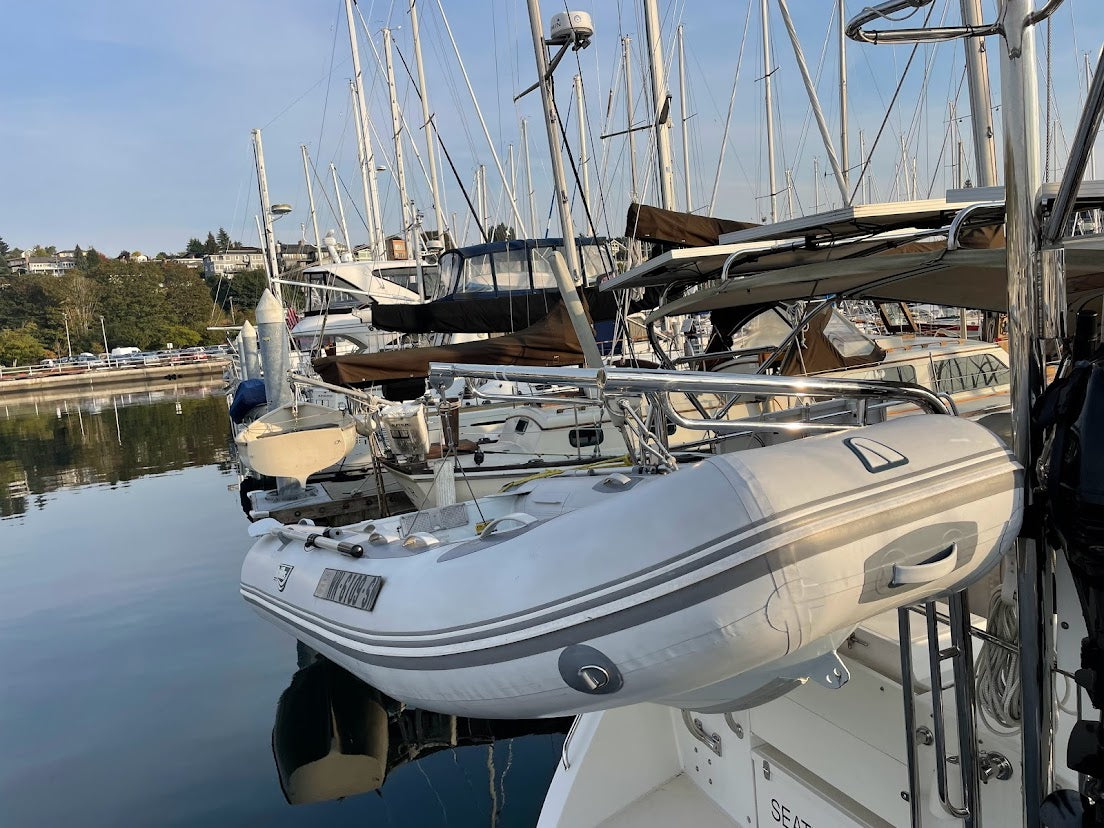

Achilles 3.0 RIB dinghy (2018)

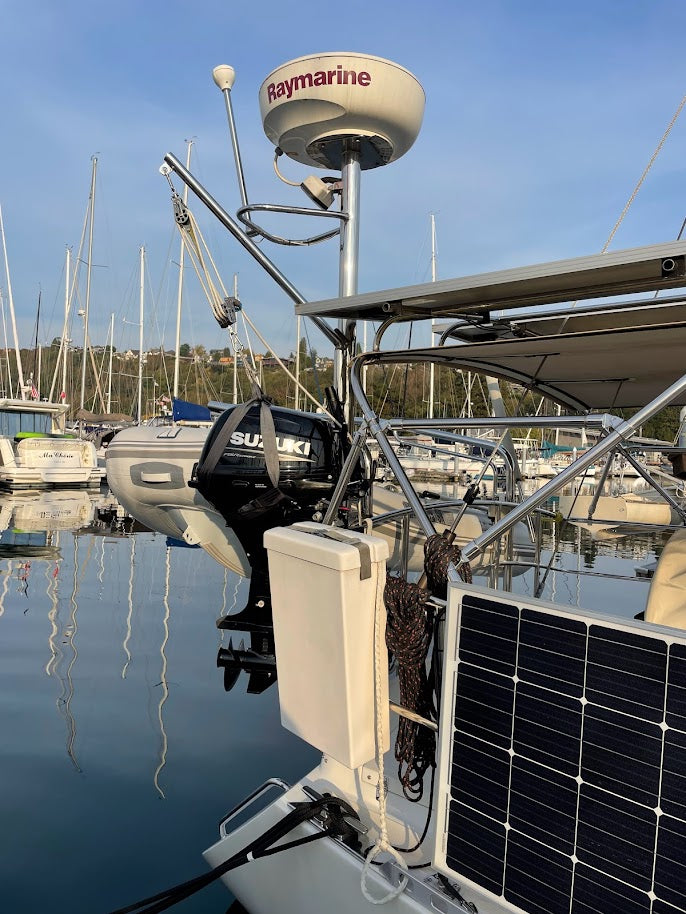

Suzuki 4 stroke outboard engine (2022)
Outbound stainless dinghy davits (2018)
Iverson’s Designs tan canvas dodger and bimini
Sails and Rigging
Impala is rigged for shorthanded sailing with all lines led aft to the cockpit. There is an electric main halyard winch at the forward end of the cockpit. All sailing hardware is oversized and well suited for ocean passagemaking.
I: 57.33 ft
J: 17.50 ft
P: 53.75 ft
E: 20.00 ft
Working Sail Area: 1083.00 sq ft
Aluminum double spreader mast, painted white
Aluminum boom, painted white
1x19 wire standing rigging
Antal low friction mainsail track
Storm trysail track
Rigid boom vang
Harken headsail furlers for genoa and solent
Hood dacron mainsail, genoa and solent
Hood Sails tan canvas stack pack mainsail cover
(2) Lewmar 68ST primary winches
Lewmar 44ST electric halyard winch at cabin top
Lewmar 44ST winch at cabin top
(2) Lewmar 40ST winch at mast
Hydraulic backstay adjuster
Staysail tang
Whisker pole at the mast
